[Note]

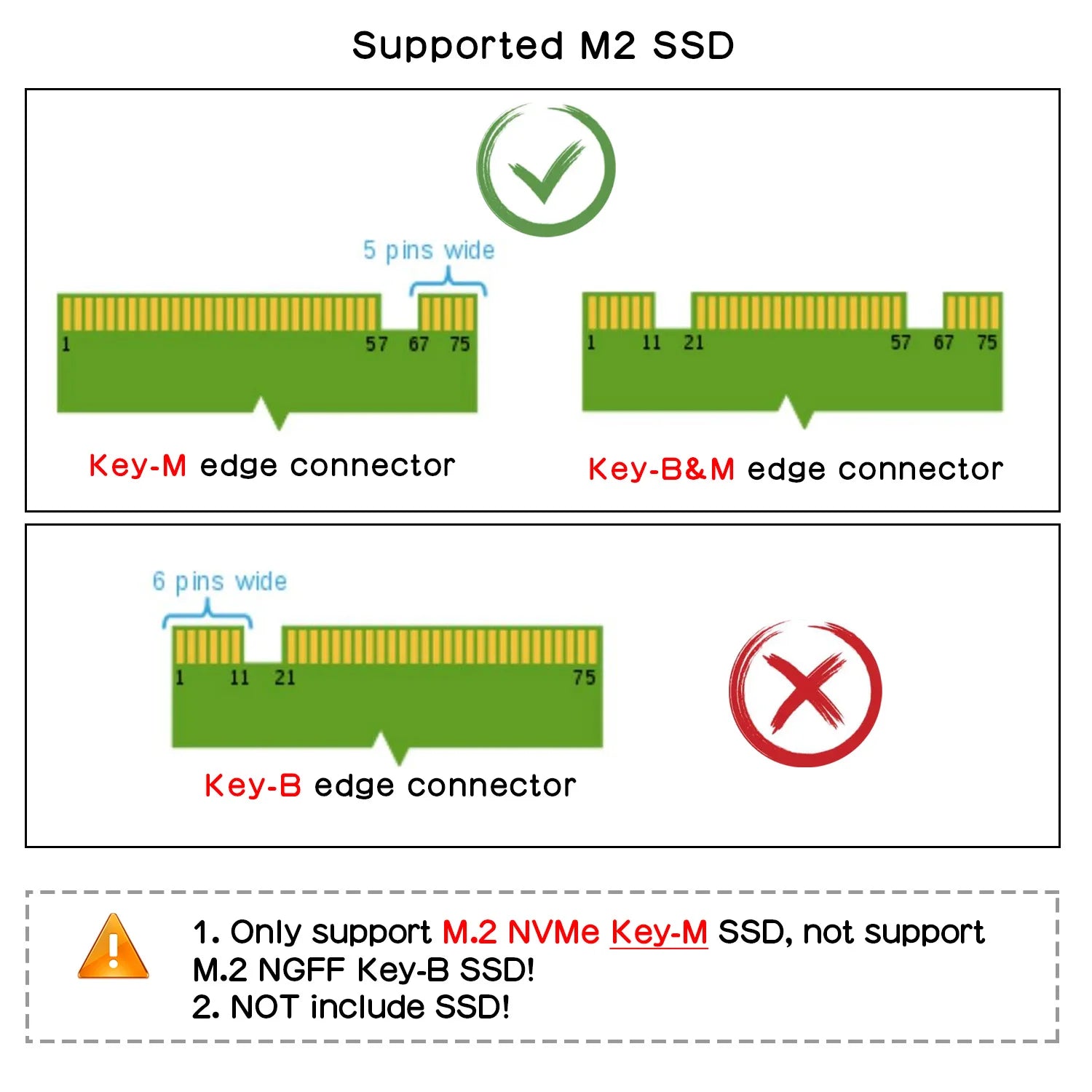

• Compatible with Raspberry Pi 5 and NVMe M2 2280 SSD Only (Not include Pi 5 & SSD !!!)

• X1004 now supports NVMe boot with the latest eeprom (2024/05/17 version).

• Older NVMe drives with less efficient flash media may not perform as well as newer drives.

• Not supportPCIe Gen 3 speed.

[Overview]

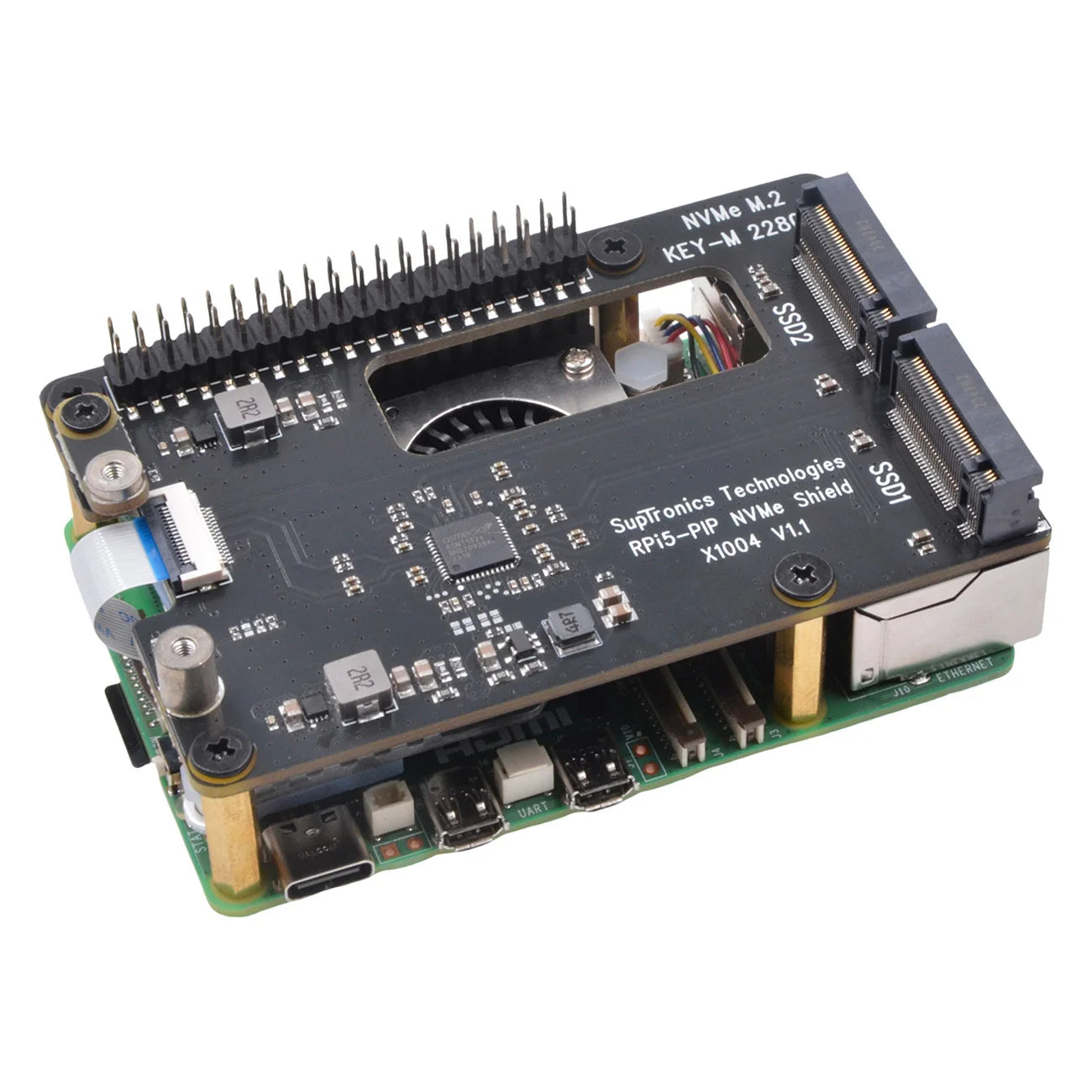

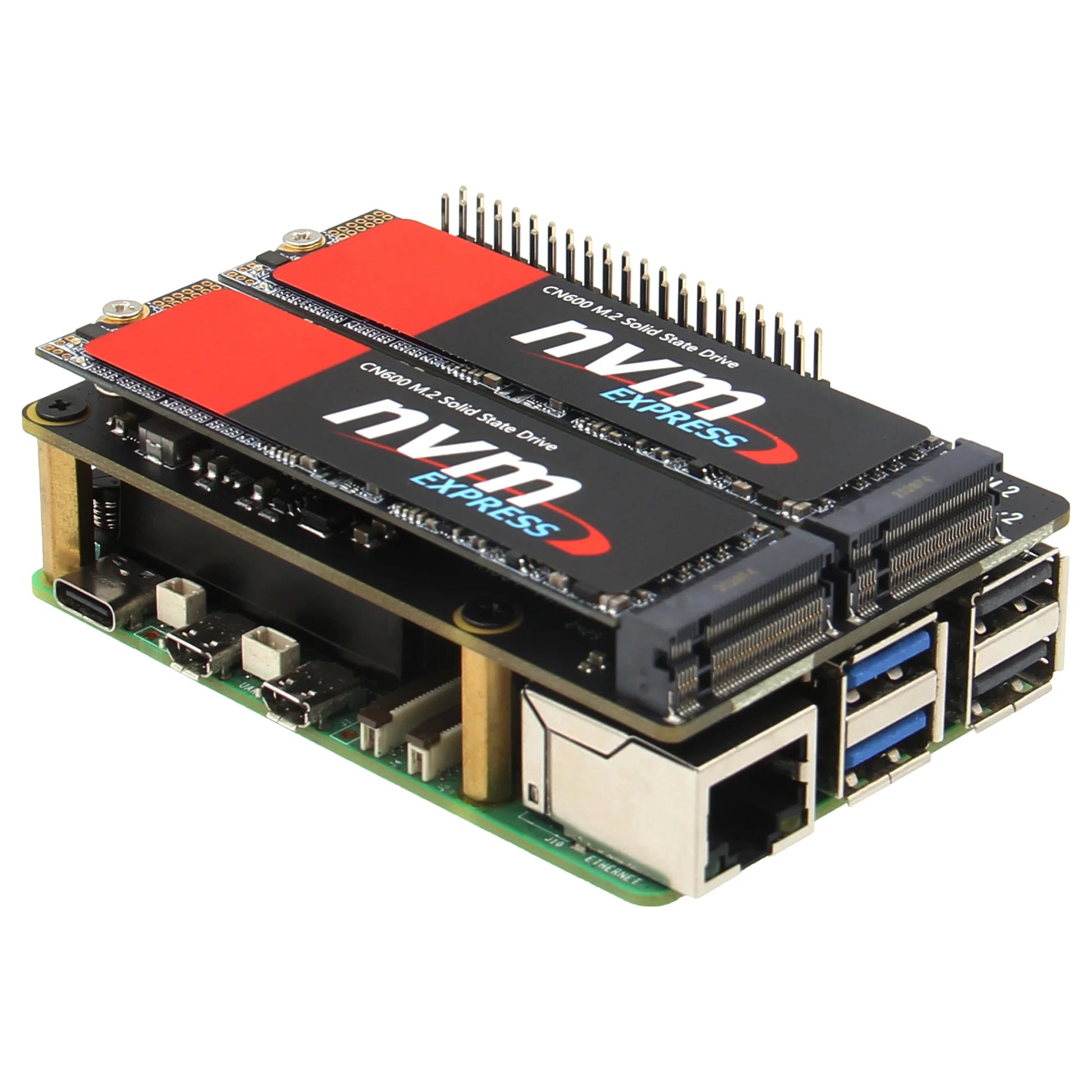

• X1004 NVMe dual SSD shield, designed to provide a seamless and high-speed storage solution for your Raspberry Pi 5. Its sleek and compact design enables easy attachment of two full-size M.2 2280 SSDs to your Raspberry Pi 5.


[Features]

• M.2 NVMe dual SSD Shield

• Supports a total of 8TB storage capacity (4TB+4TB) with M.2 NVMe solid-state drives

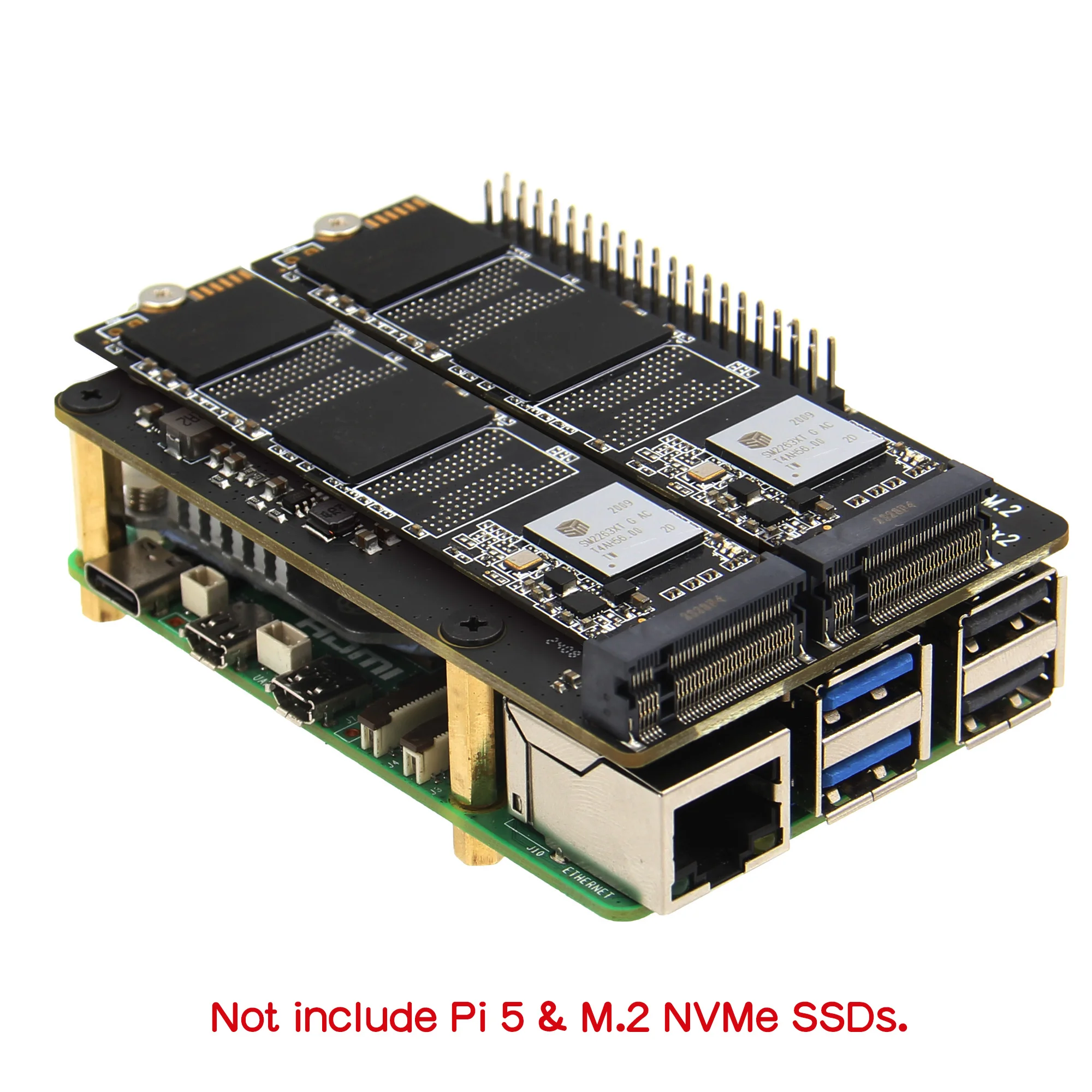

• Accommodates two full-size 2280 NVMe SSDs

• Provides speedy data transfer with PCIe 2.0 5Gbps

• Fully compatible with the Raspberry Pi official active cooler

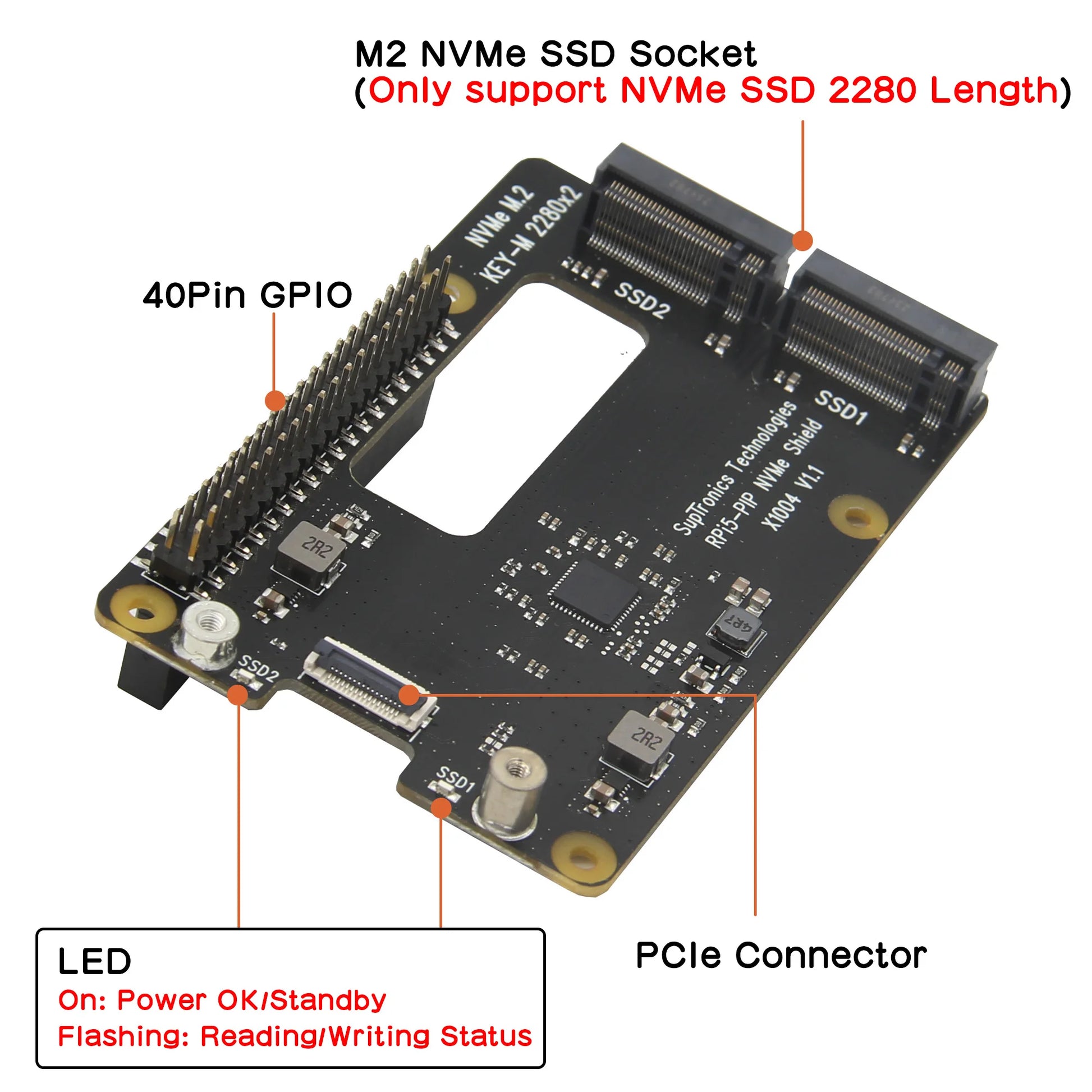

• LED indicators in blue display power and drive status

• Features an integrated high-performance PCIe packet switch

• Equipped with two high-efficiency DC/DC step-down converters, delivering a maximum of 3.5A+3.5A to power your SSDs

• Designed to be attached on top, allowing stacking with other HATs

• Powered via the 40-pin GPIO header & PCIe FFC

• Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down.


[Manual]

https://wiki.geekworm.com/X1004

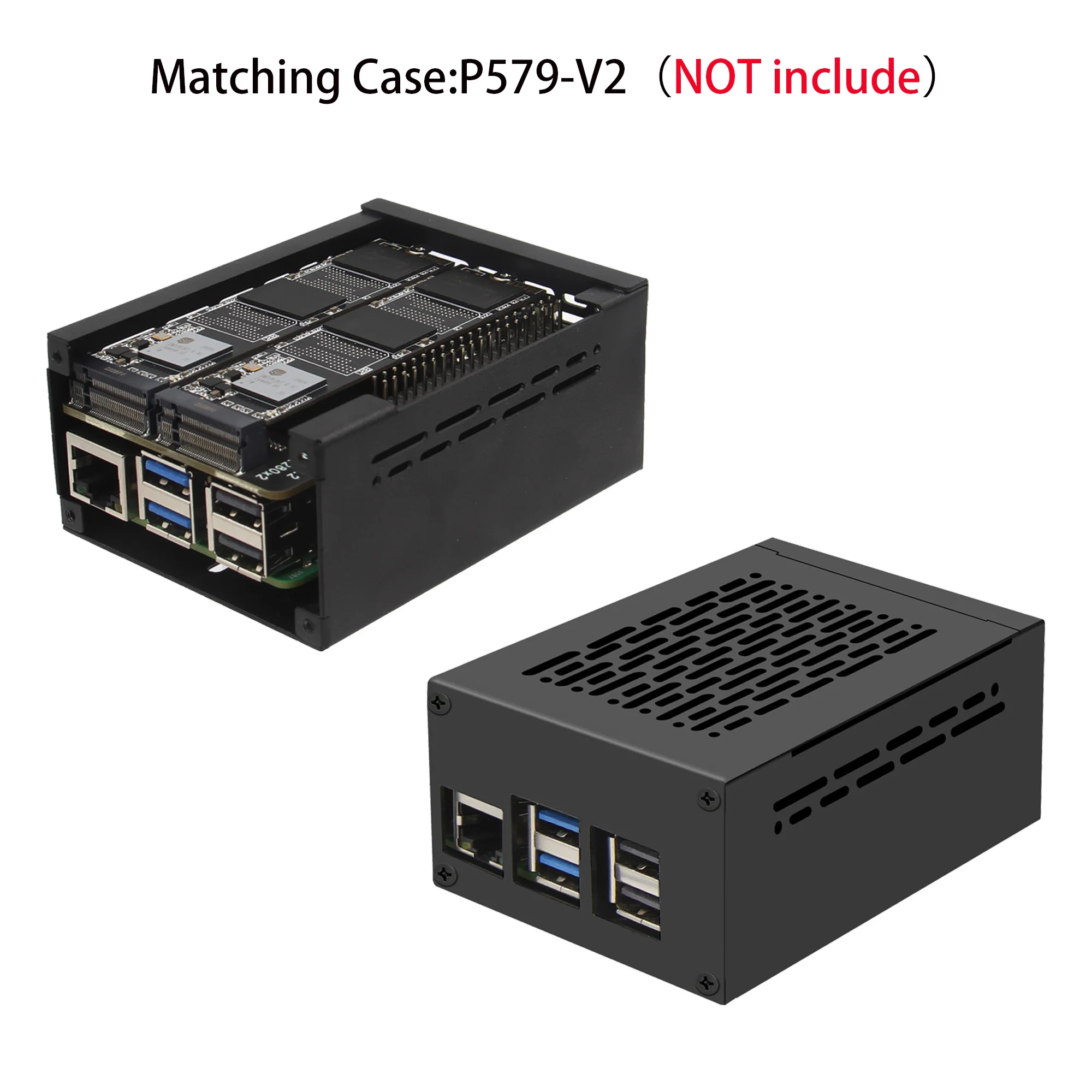

[Matching Case P579-V2]

https://www.aliexpress.com/item/1005006409212486.html

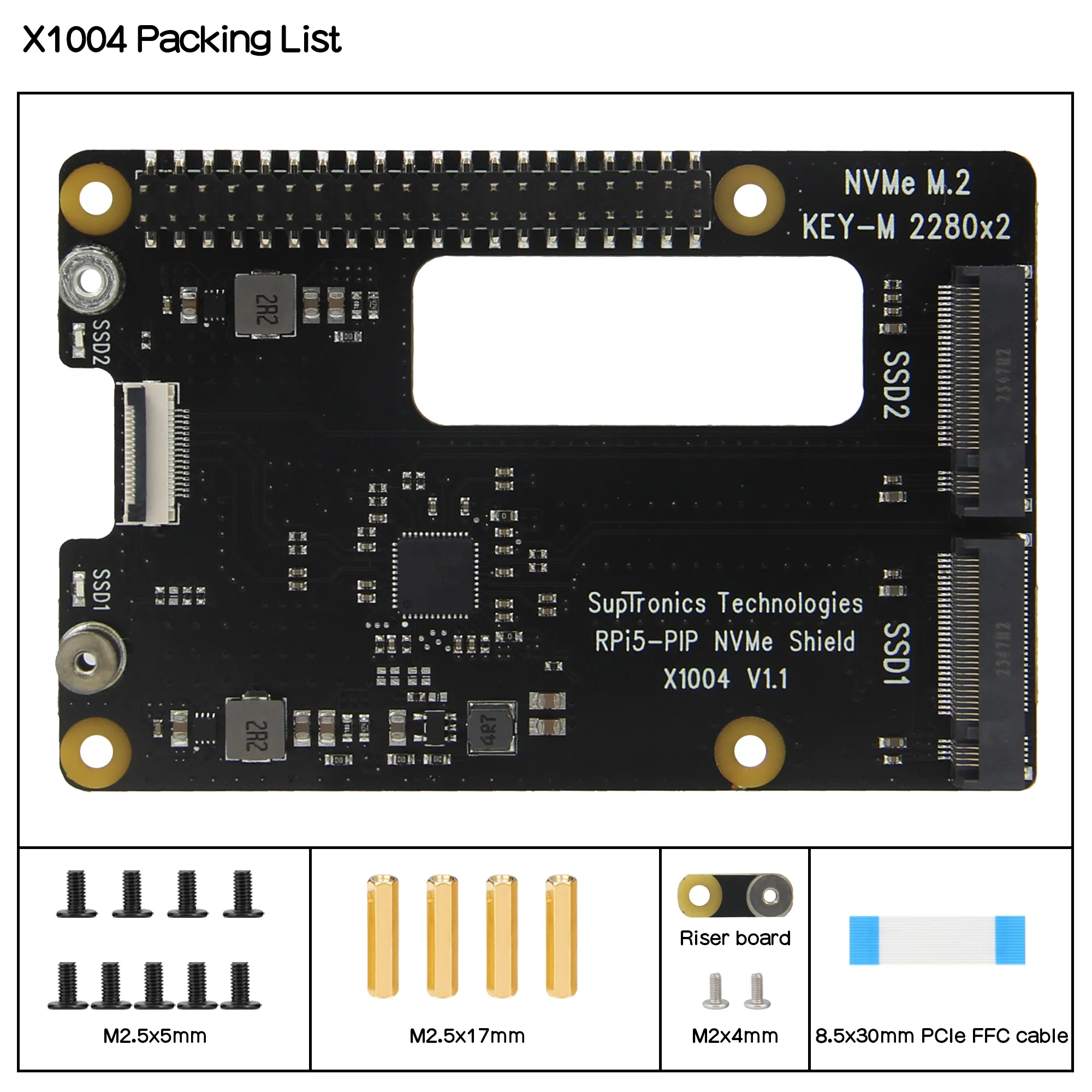

[Packing List]

Bundle1

• 1 x X1004 Dual 2280 NVMe SSD Shield

• 1 x PCIe FPC Cable

• 4 x Screw Pack

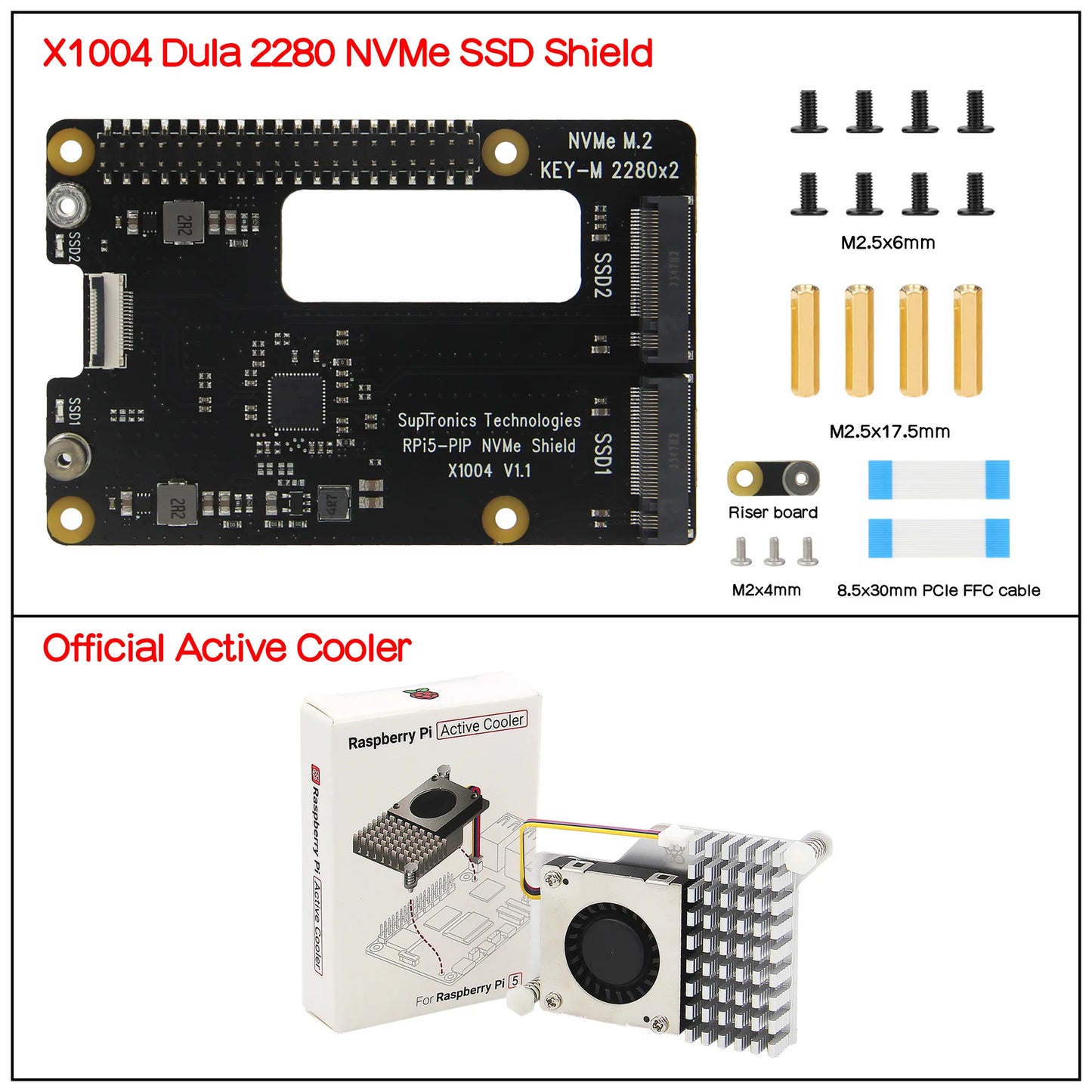

Bundle2

• 1x X1004 Dual 2280 NVMe SSD Shield (with Munting Accessories)

• 1x Raspberry Pi5 Official Active Cooler

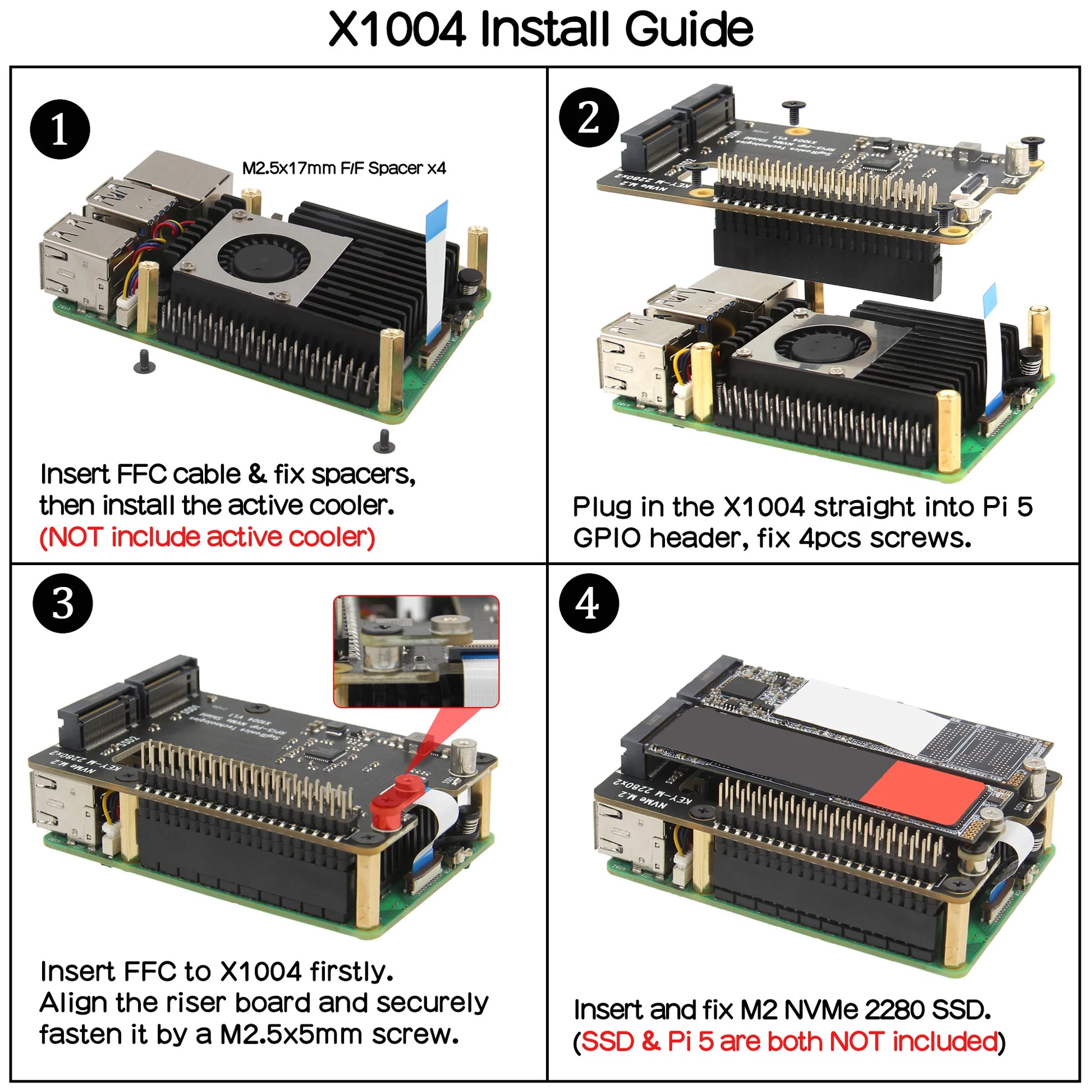

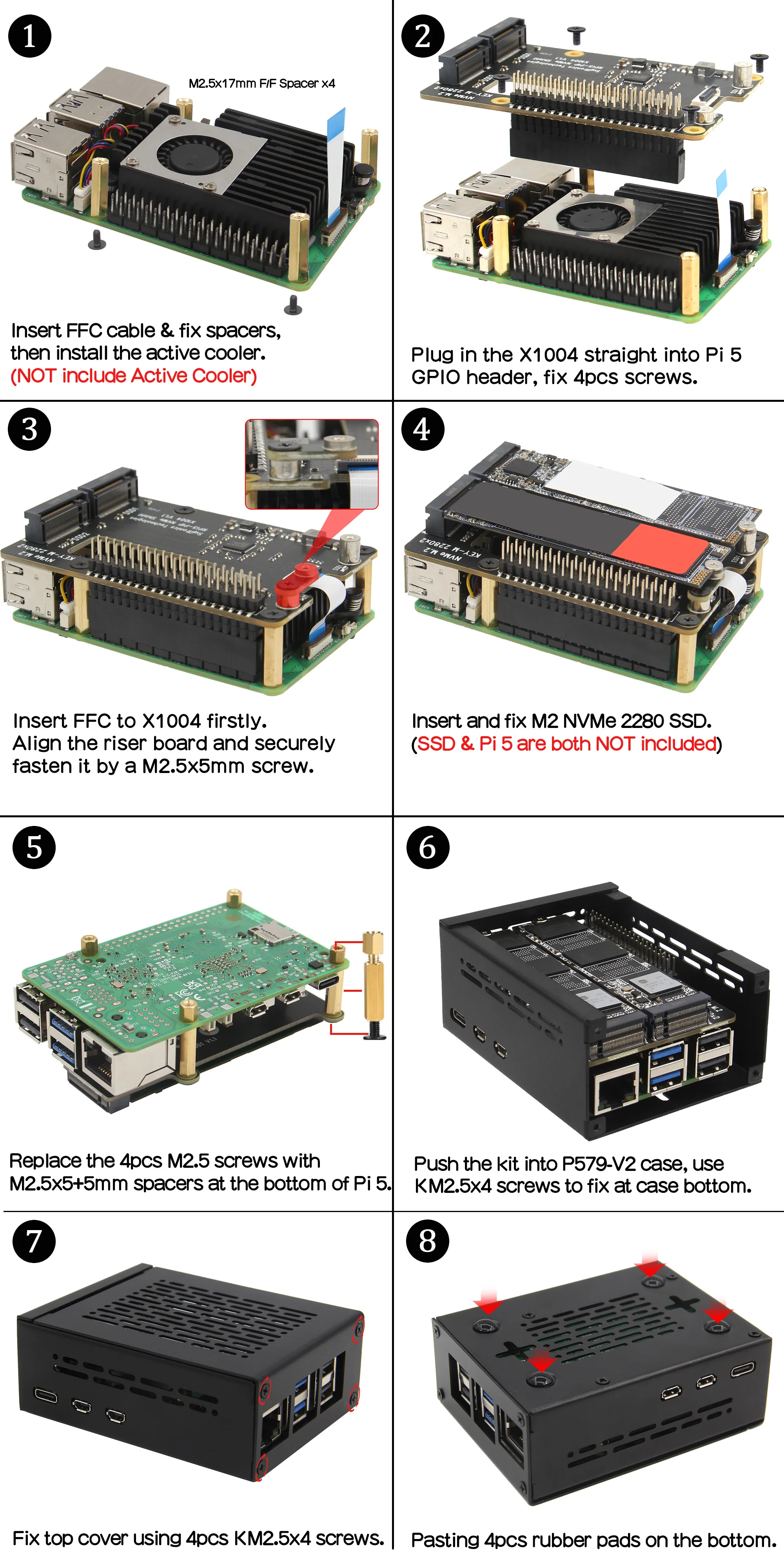

[Assembly Instructions]
