Custom X1003 Pcie M.2 NVMe SSD 2242 Board for Pi 5

[Note]

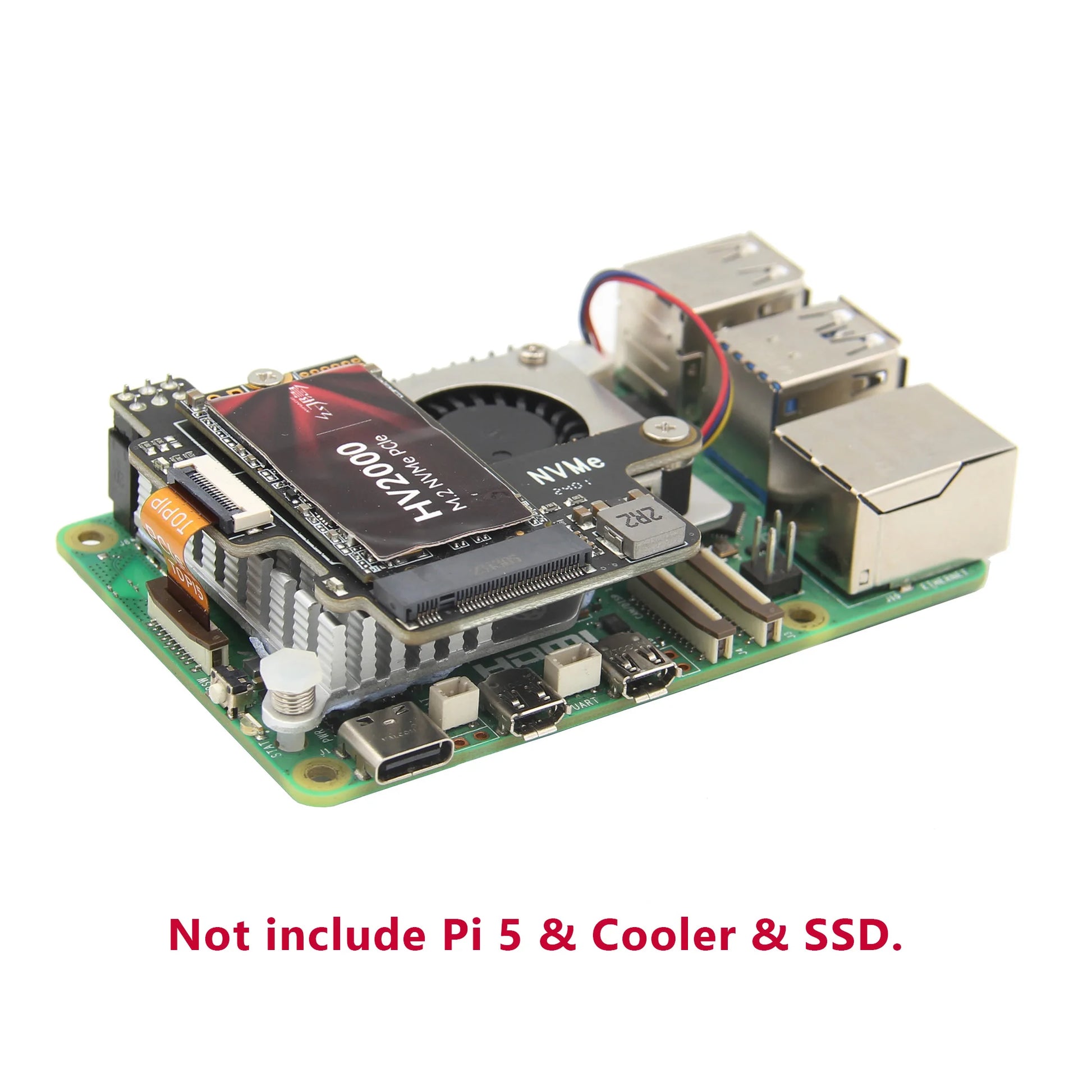

1. The Raspberry Pi 5 & M.2 NVMe SSD is not included in the packing list!!!

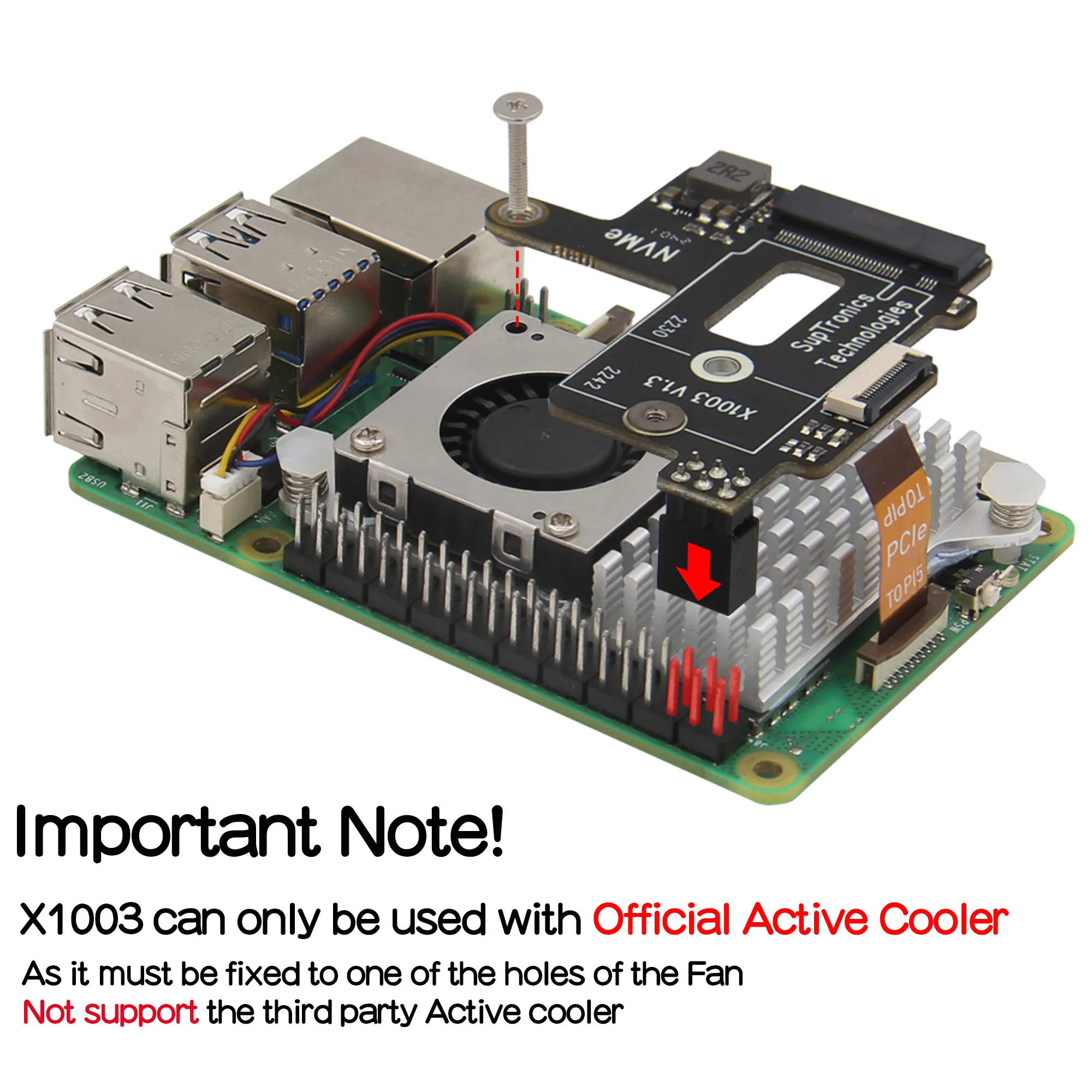

2. X1003 is a PCIE to NVME expansion board designed for the Raspberry Pi 5 official Active Cooler and Official Case. It must and only supports use with Official Active Cooler, otherwise it cannot be installed.

3. Do not reserve the nut column to fix the 2230 SSD, users need to find proper way to fix the 2230 SSD.

4. Compatible with M.2 NVMe SSDs; Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices

5. Older NVMe drives with less efficient flash media may not perform as well as newer drives

6. New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.

[Features]

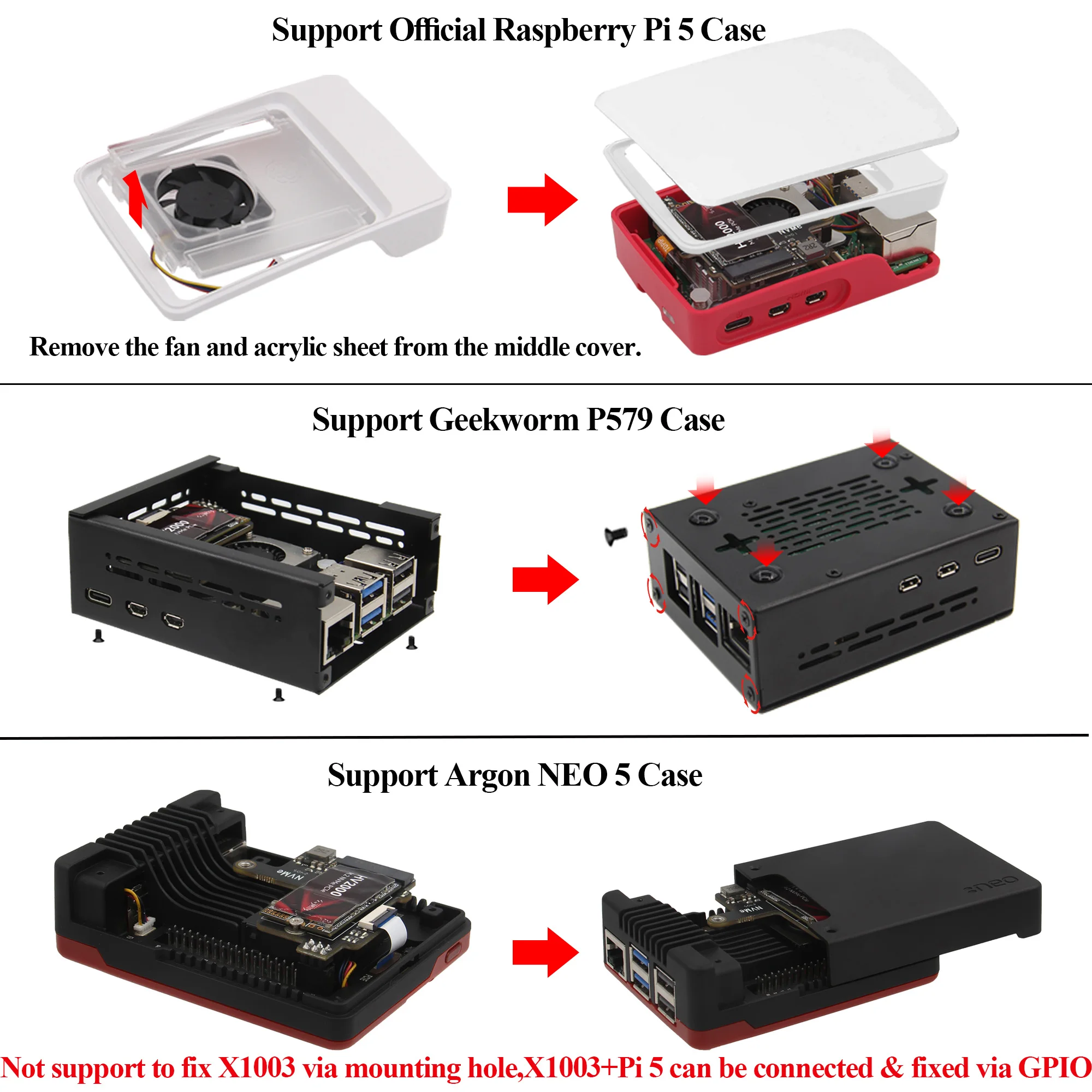

• Compatible with Raspberry Pi 5 Active Cooler and Raspberry pi 5 official case;

• FFC is only 22mm length.

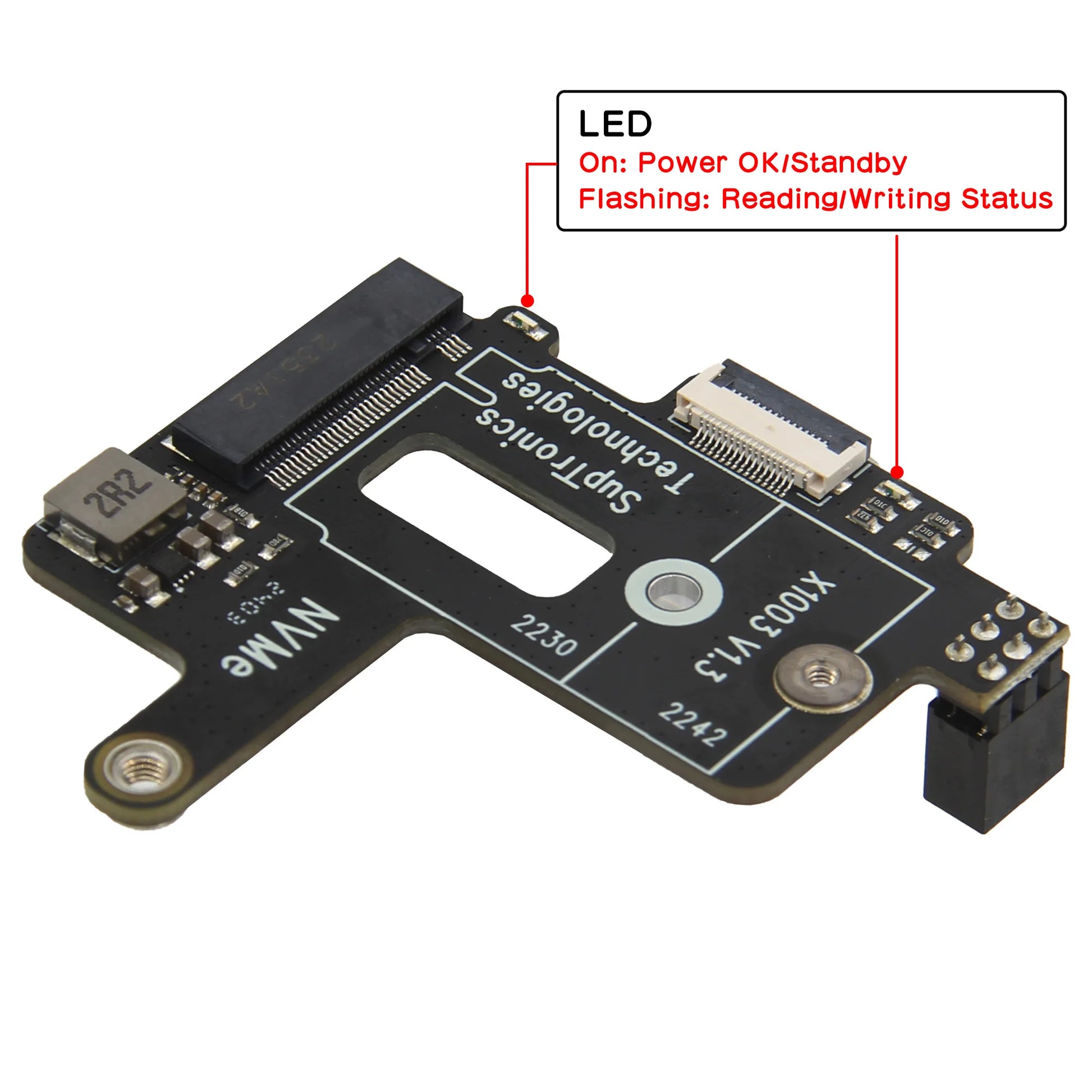

• With M.2 disk activity (“ACT”) LED; On: Power OK/Standby,Flashing: Reading/Writing

• Supports 2230/2242 NVME M2 SSD only.

• Supports additional GPIO power supply in addition to FPC power supply


[User Manual]

https://wiki.geekworm.com/X1003

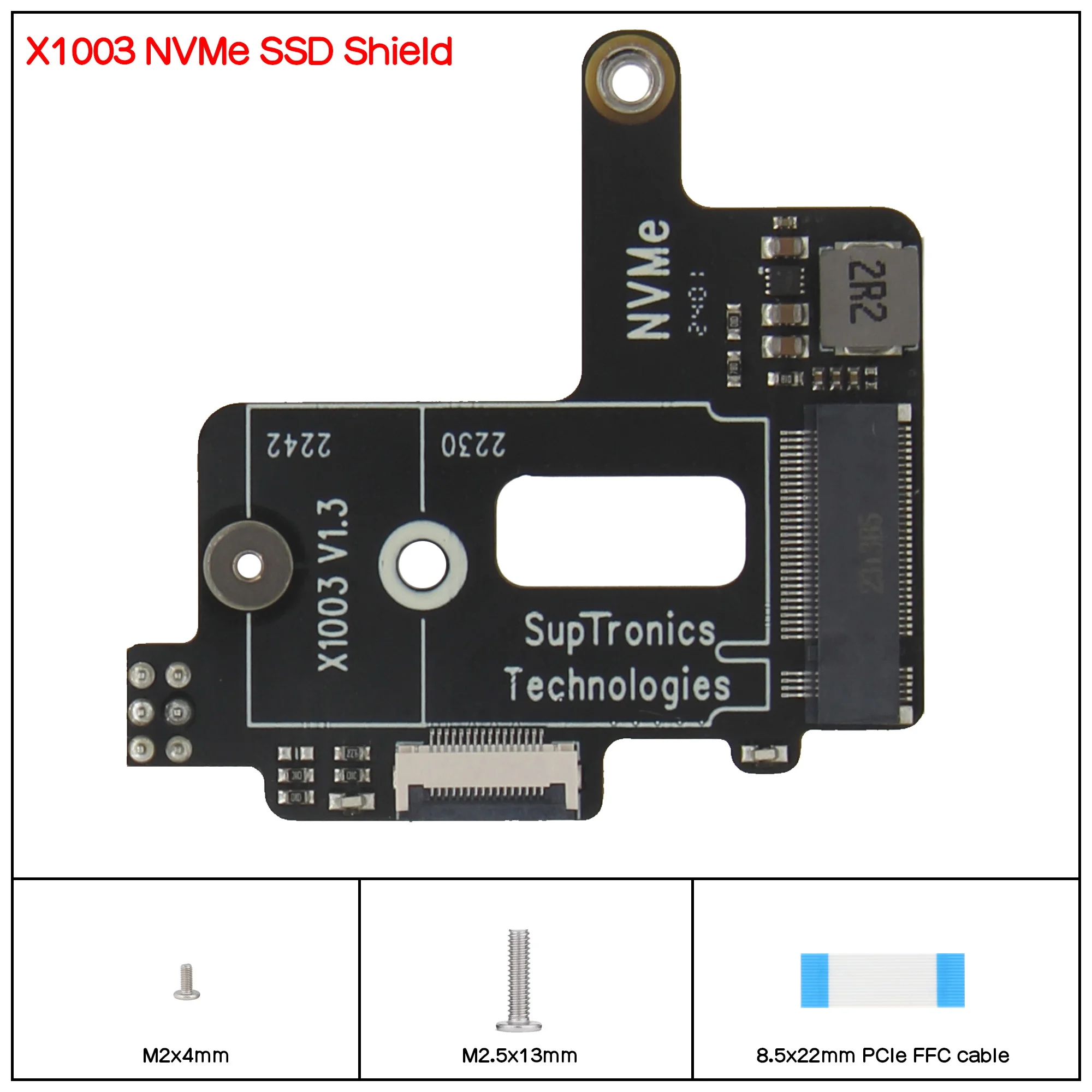

[Packing List]

• 1 x X1003 NVMe SSD Shield

• 1 x PCIe FFC Cable(22mm length)

• 1 x M2.5x13mm Screw

• 2 x M2x4mm Screws (to fix MVME M2 SSD)
