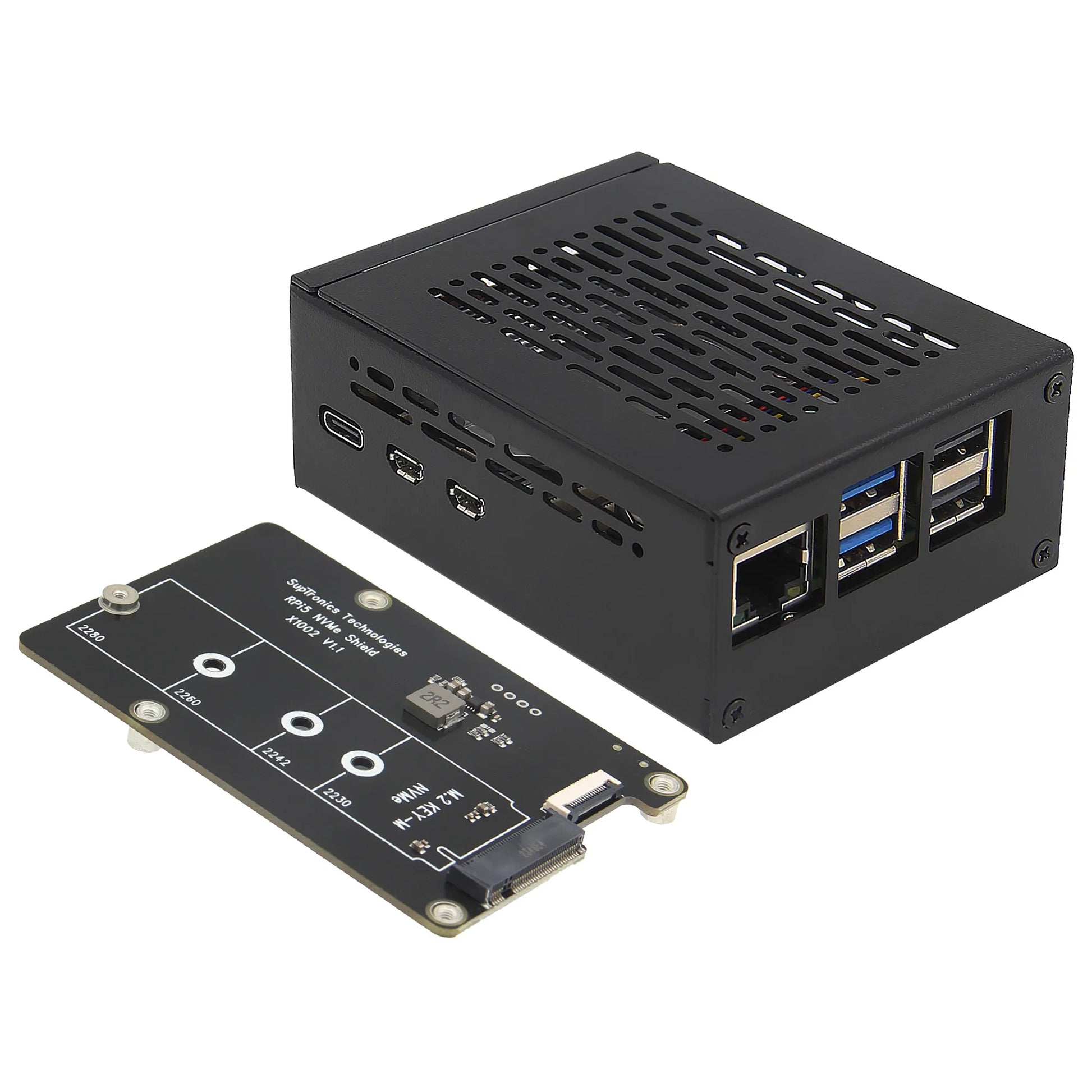

Custom X1002 pcie to NVMe Board with P580 Metal Case for Pi 5

[Note]

Not include Raspberry Pi 5 board and NVMe M2 SSD!!!

[Overview]

The X1002 V1.0 shield is a bottom NVMe M2 2280 SSD PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilise the NVME M2 SSDs for fast data transfers and ultra-fast booting.

[Features]

• Full compatible with other HAT shield;

• Customized FPC cable for easy use of TF card;

• Supports installation of official active coolers also;

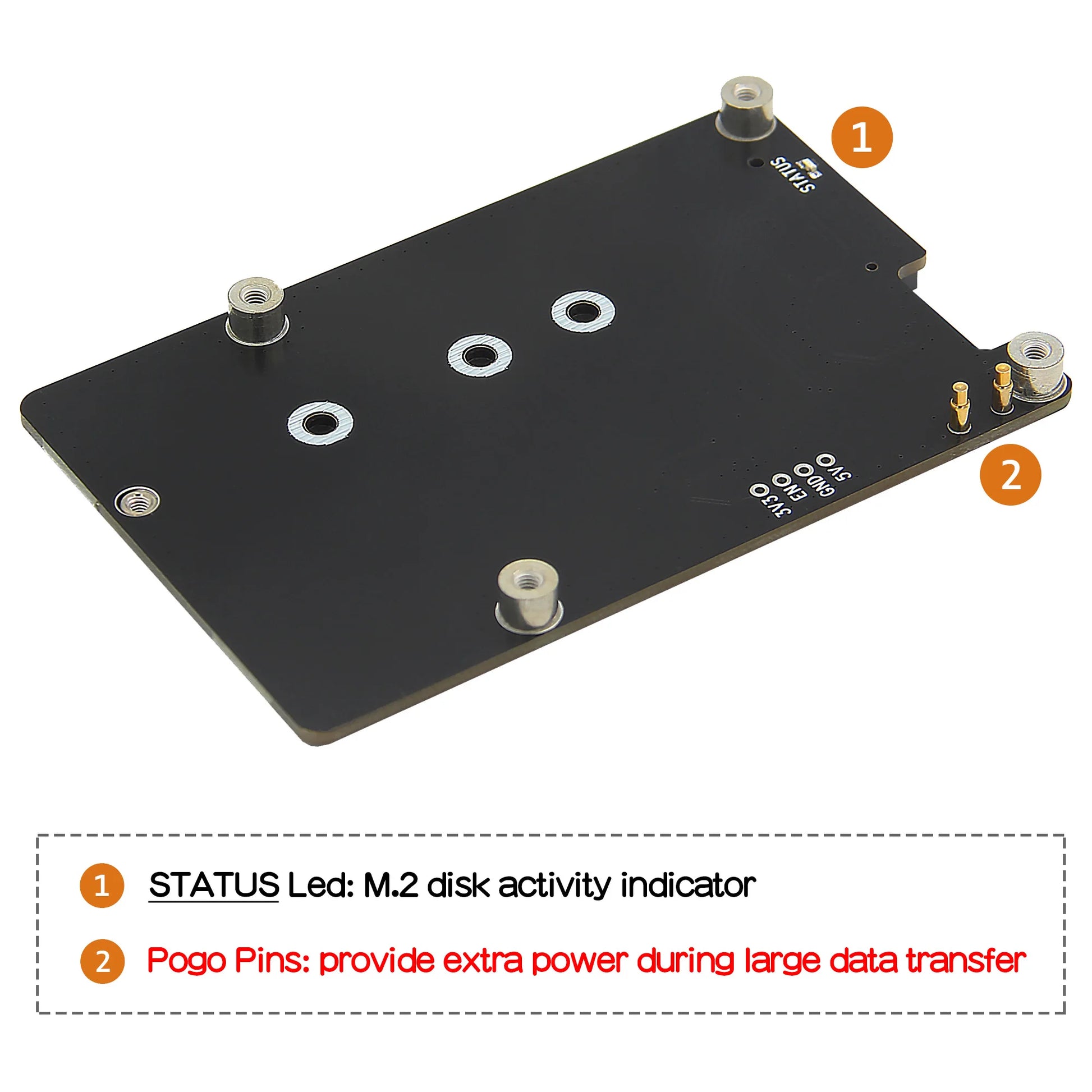

• With ACT LED Indicator;

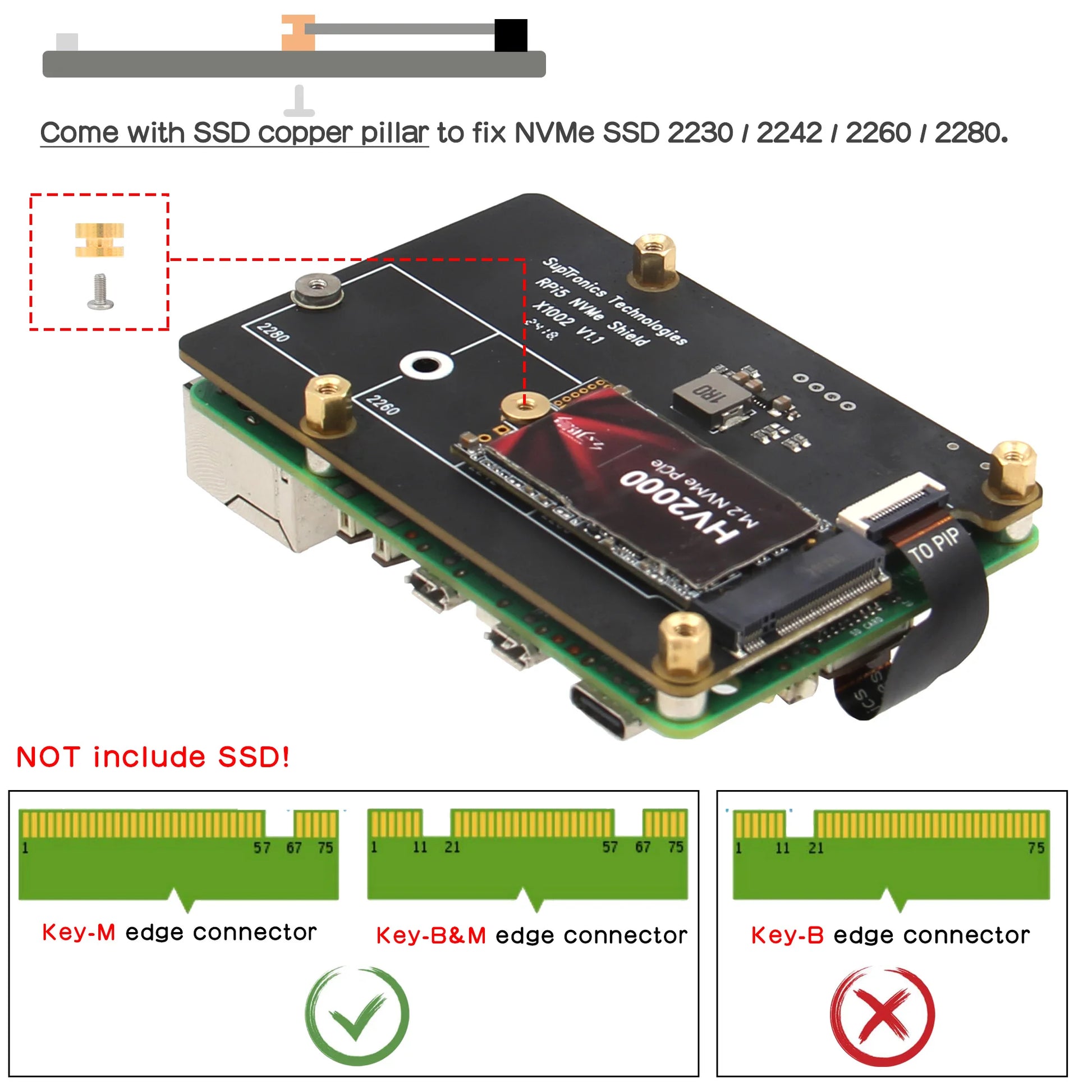

• Supports 2230/2242/2260/2280 NVMe M2 SSD.

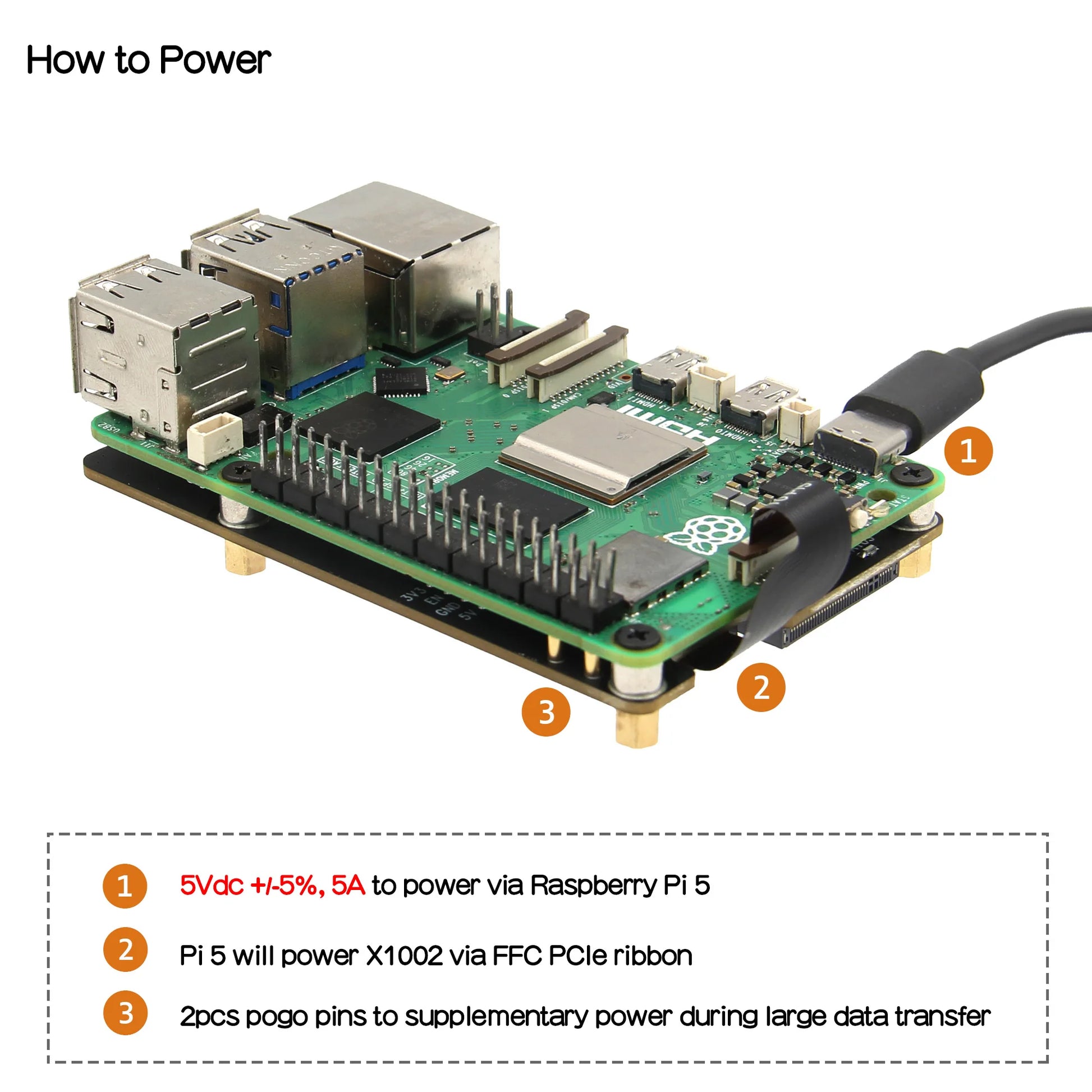

[How to Power]

Can power the X1002 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)

[Manual]

https://wiki.geekworm.com/X1002

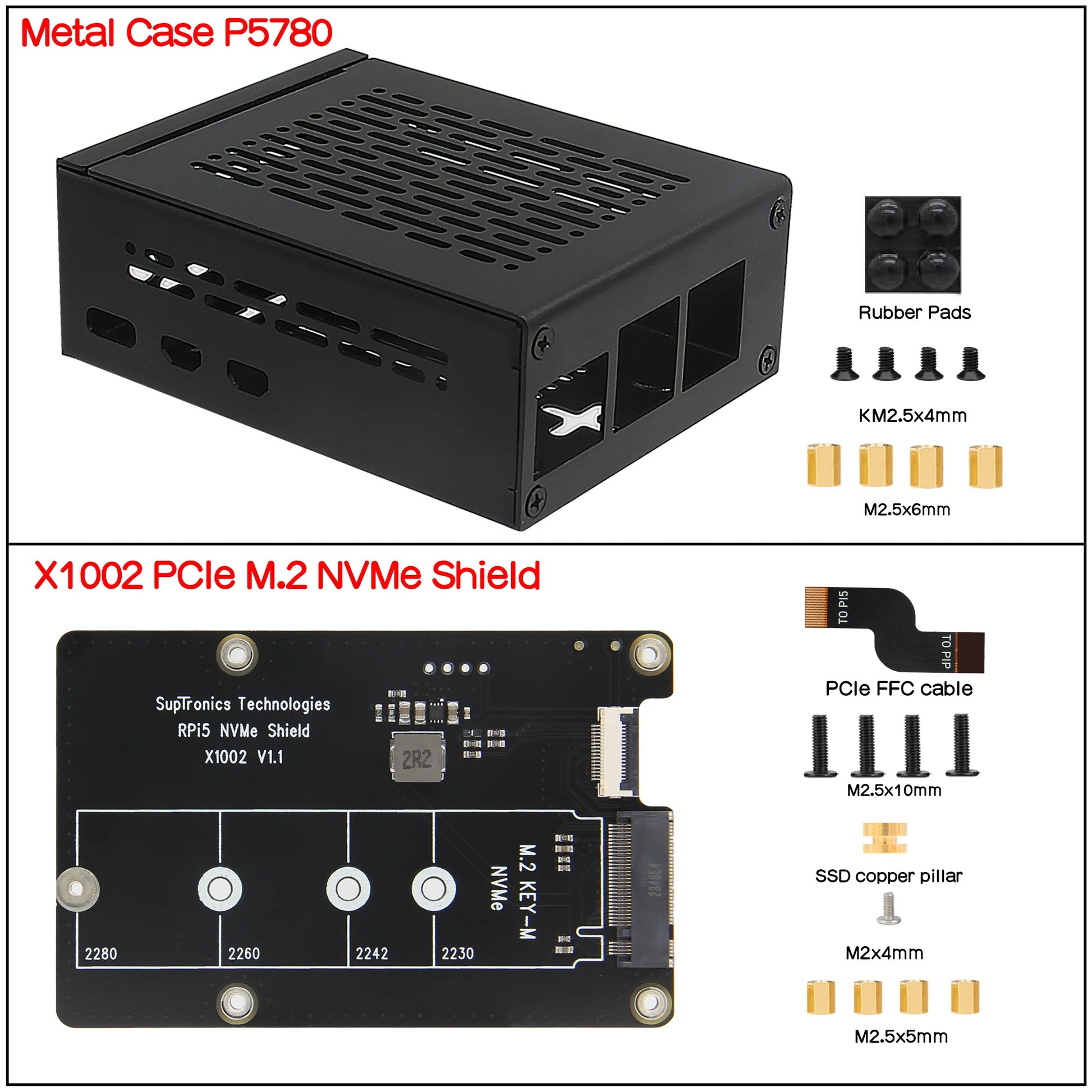

[Packing List]

Bundle1

• 1 x X1002 NVMe SSD Shield bottom

• 1 x PCIe FPC Cable

• 4 x M2.5x5mm F/F Spacers

• 4 x M2.5x10mm Screws

• 1 x M2x4mm Screws (to fix NVMe M2 SSD)

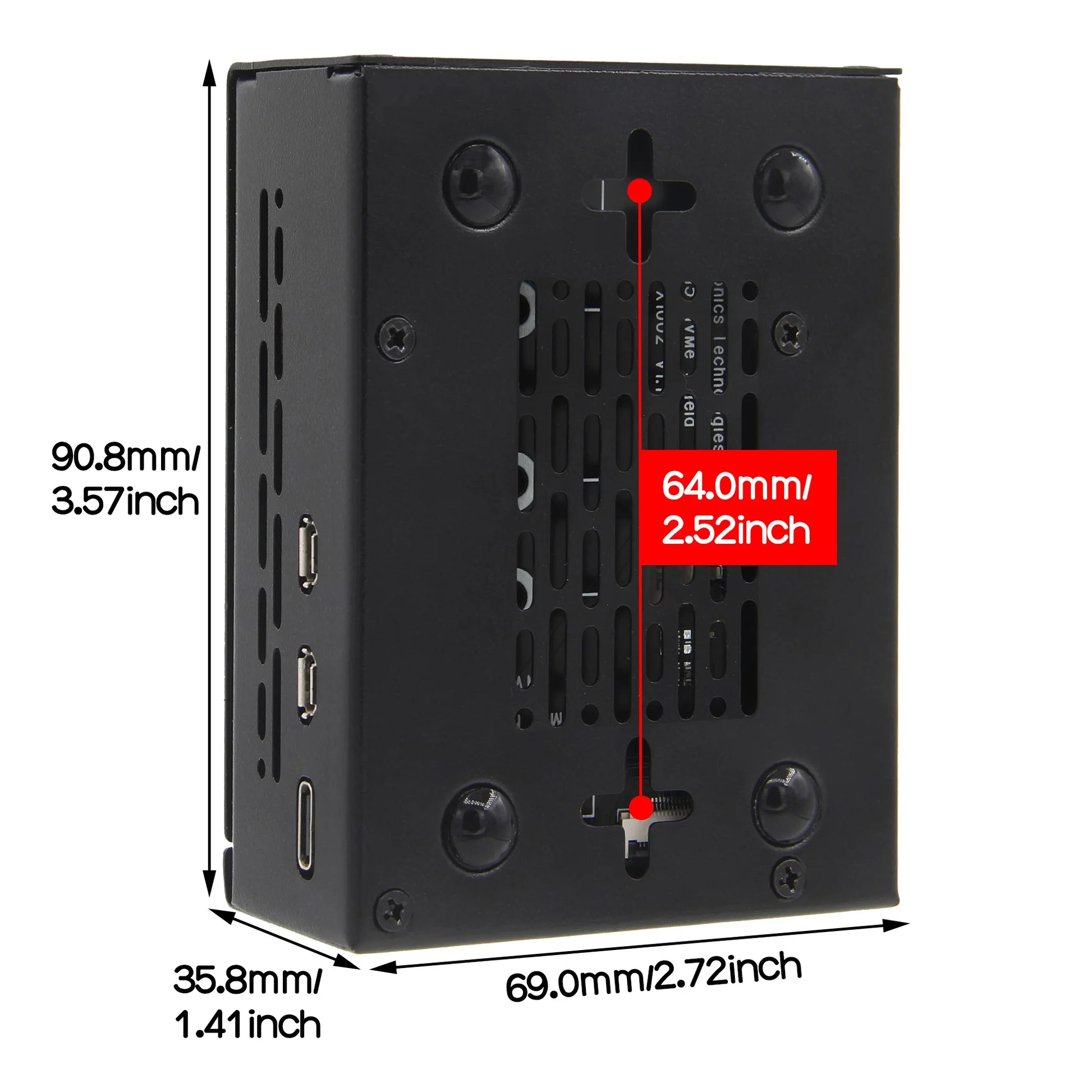

• 1 x P580 Metal Case

Bundle2

• 1 x X1002 NVMe SSD Shield bottom

• 1 x PCIe FPC Cable

• 4 x M2.5x5mm F/F Spacers

• 4 x M2.5x10mm Screws

• 1 x M2x4mm Screws (to fix NVMe M2 SSD)

• 1 x P580 Metal Case

• 1 x Official Active Cooler

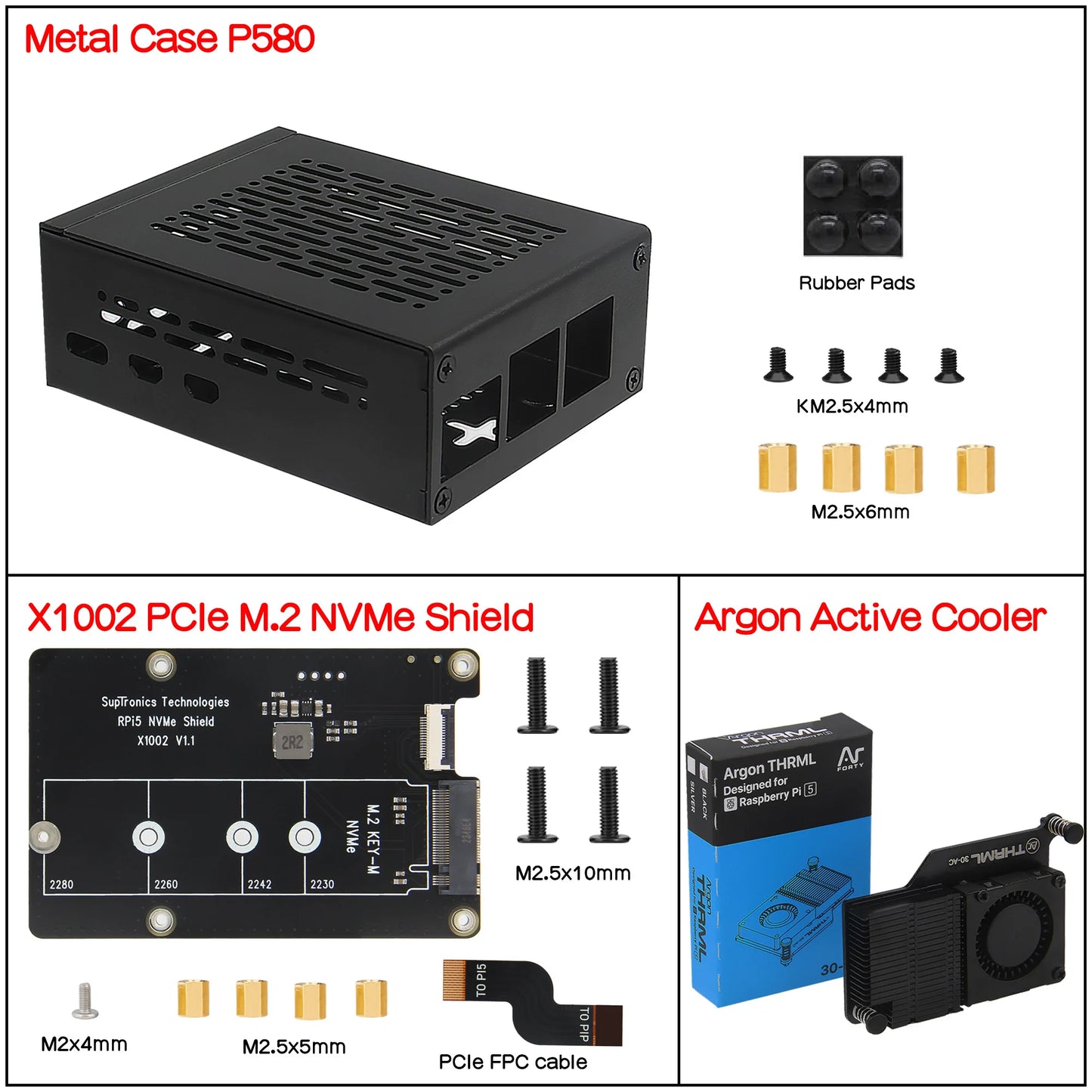

Bundle3

• 1 x X1002 NVMe SSD Shield bottom

• 1 x PCIe FPC Cable

• 4 x M2.5x5mm F/F Spacers

• 4 x M2.5x10mm Screws

• 1 x M2x4mm Screws (to fix NVMe M2 SSD)

• 1 x P580 Metal Case

• 1 x Argon THRML Active Cooler-BLACK
