Custom X1002 PCIe M.2 NVMe SSD 2280 M Key Bottom for Pi 5

[Note]

Not include Raspberry Pi 5 board and NVMe M2 SSD!!!

[Overview]

1. The X1002 V1.0 shield is a bottom NVMe M2 2280 SSD PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilise the NVME M2 SSDs for fast data transfers and ultra-fast booting.

2. Maximum current for pcie connector is 1A, and voltage is 5V

3. The X1002 hardware has no limit on NVME SSD capacity, which is dependent on the Raspberry Pi OS.


[Features]

• Full compatible with other HAT shield;

• Customized FPC cable for easy use of TF card;

• Supports installation of official active coolers also;

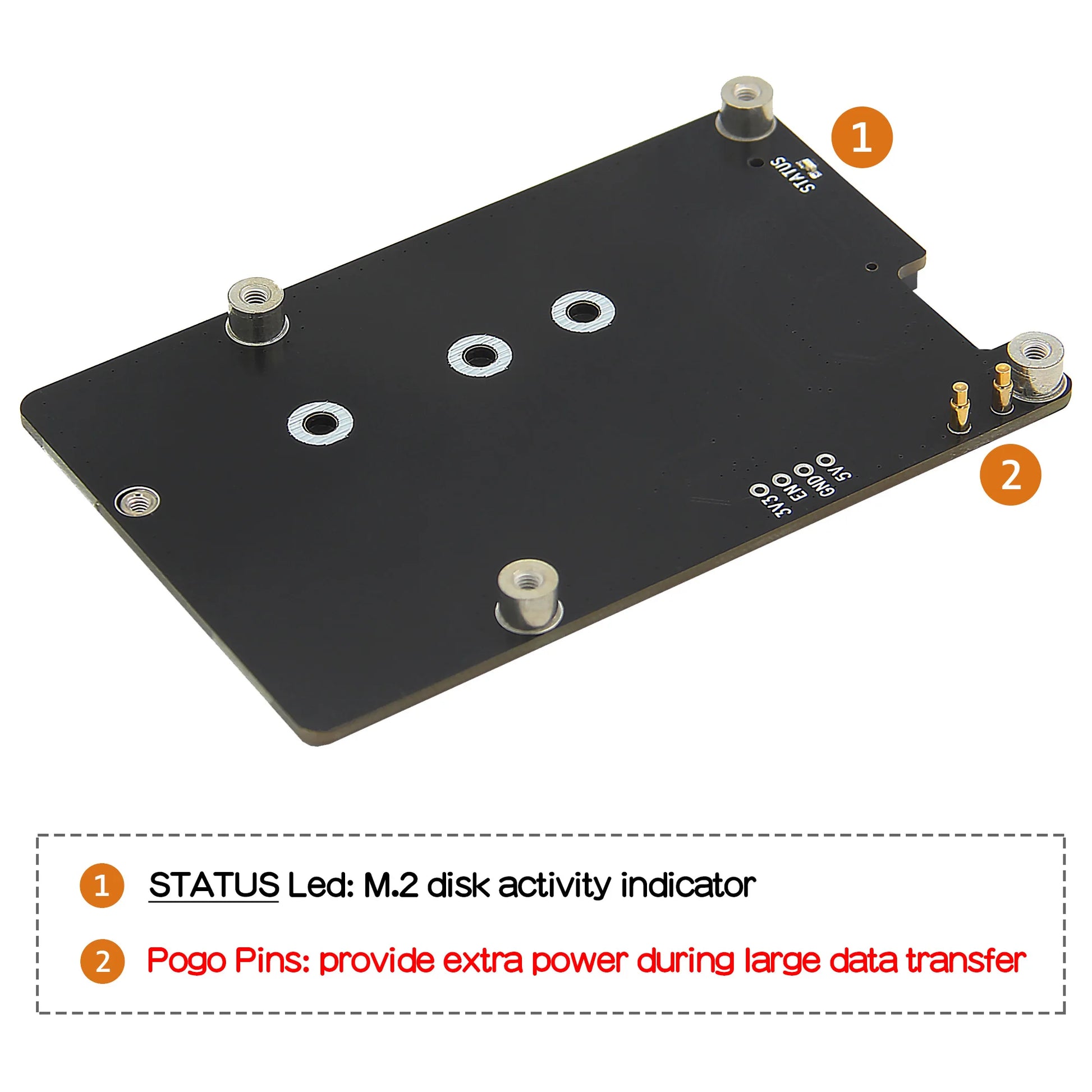

• With ACT LED Indicator;

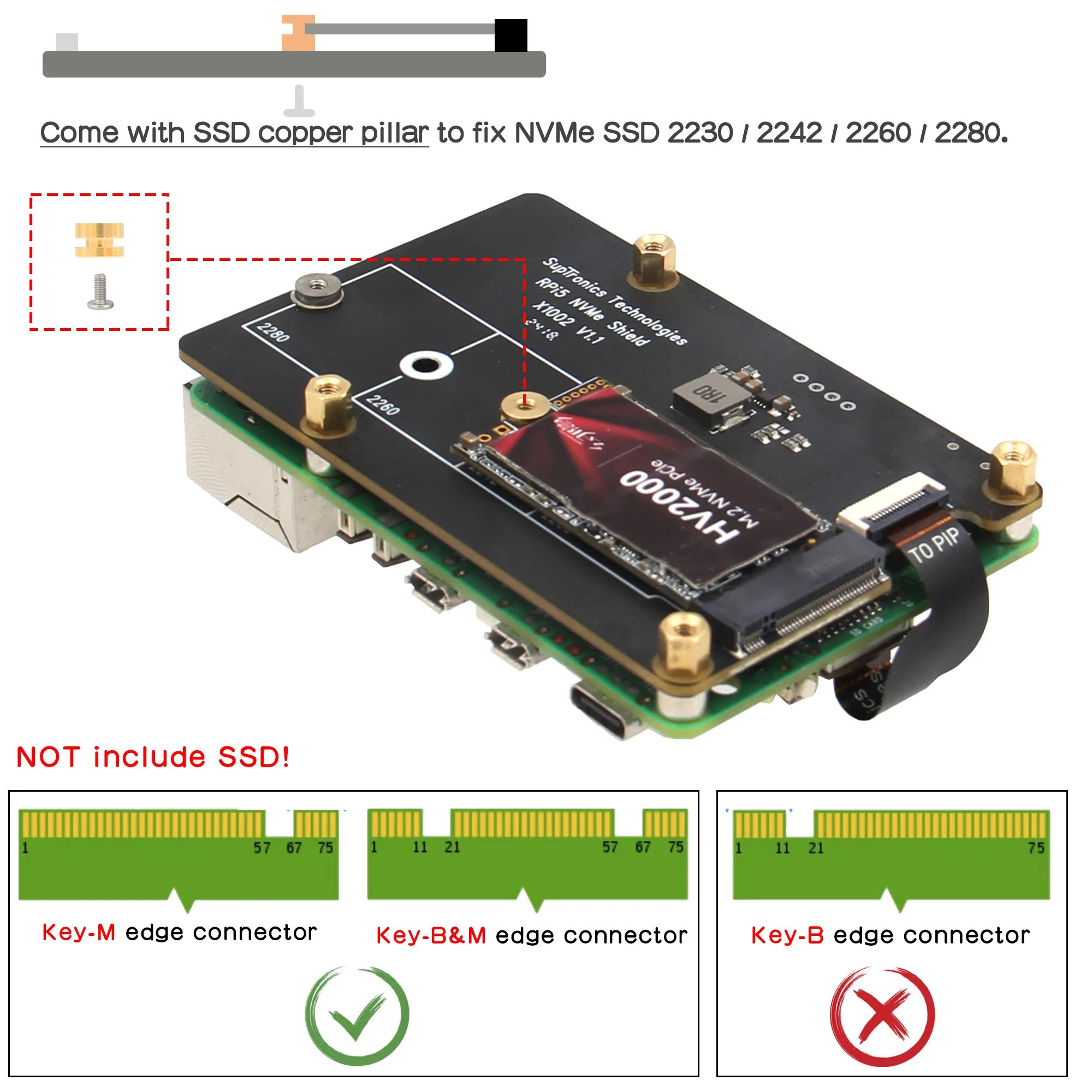

• Supports 2230/2242/2260/2280 NVMe M2 SSD.

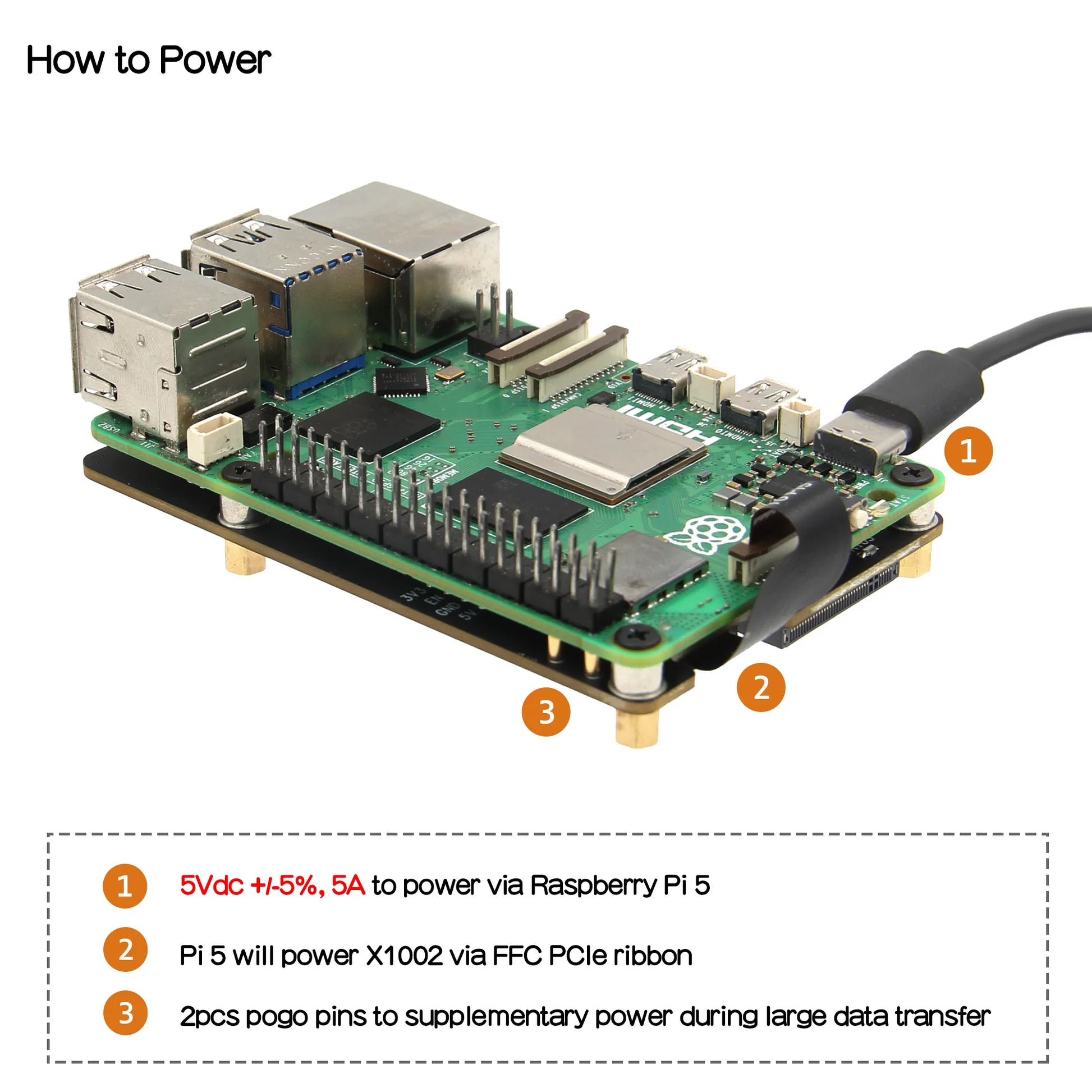

• Can power the X1002 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)


[Manual]

https://wiki.geekworm.com/X1002

[Matching Case P580]

https://wiki.geekworm.com/P580

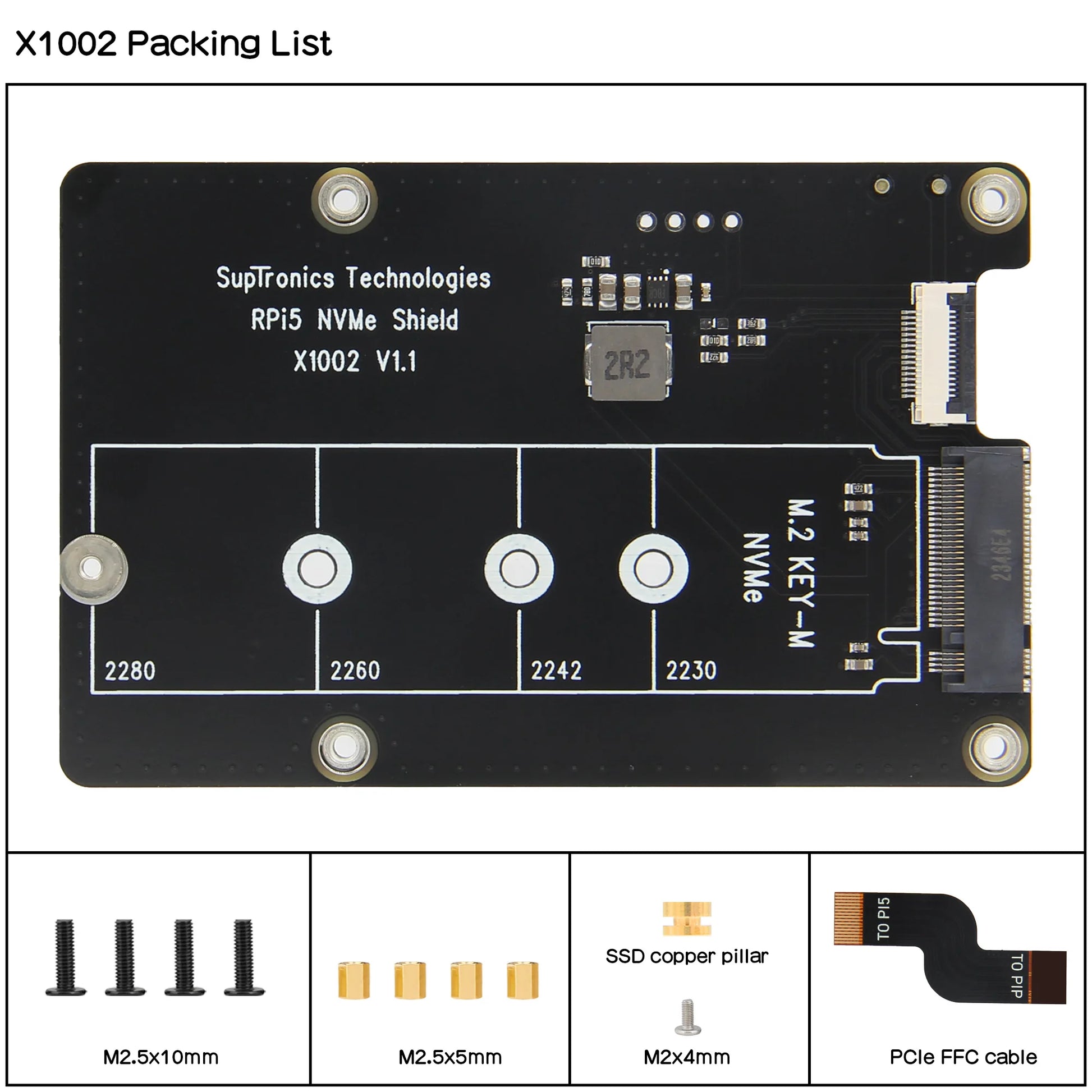

[Packing List]

• 1 x X1002 NVMe SSD Shield bottom

• 1 x PCIe FPC Cable

• 4 x M2.5x5mm F/F Spacers

• 4 x M2.5x10mm Screws

• 1 x M2x4mm Screws (to fix NVMe M2 SSD)
