Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
Older NVMe drives with less efficient flash media may not perform as well as newer drives
New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.

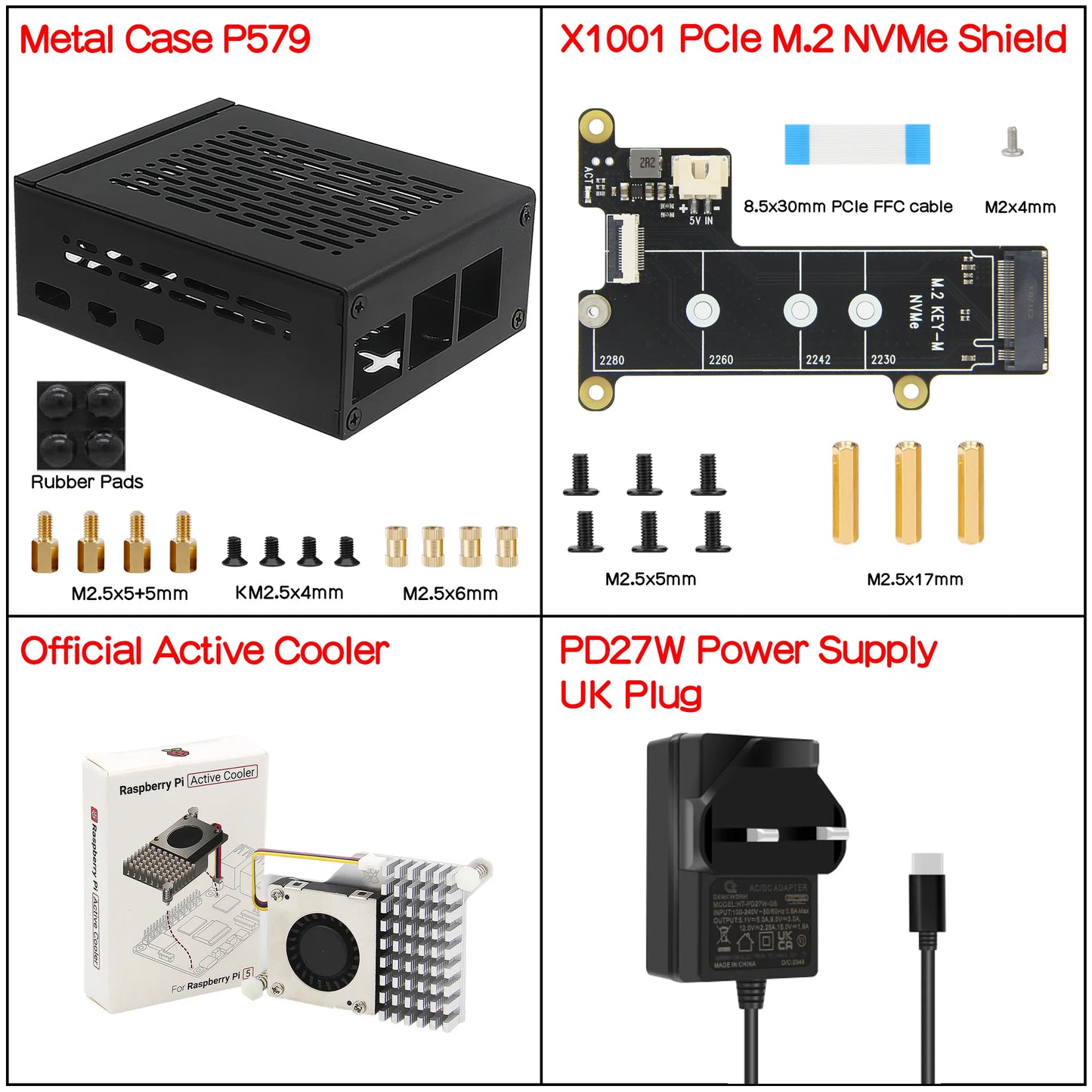

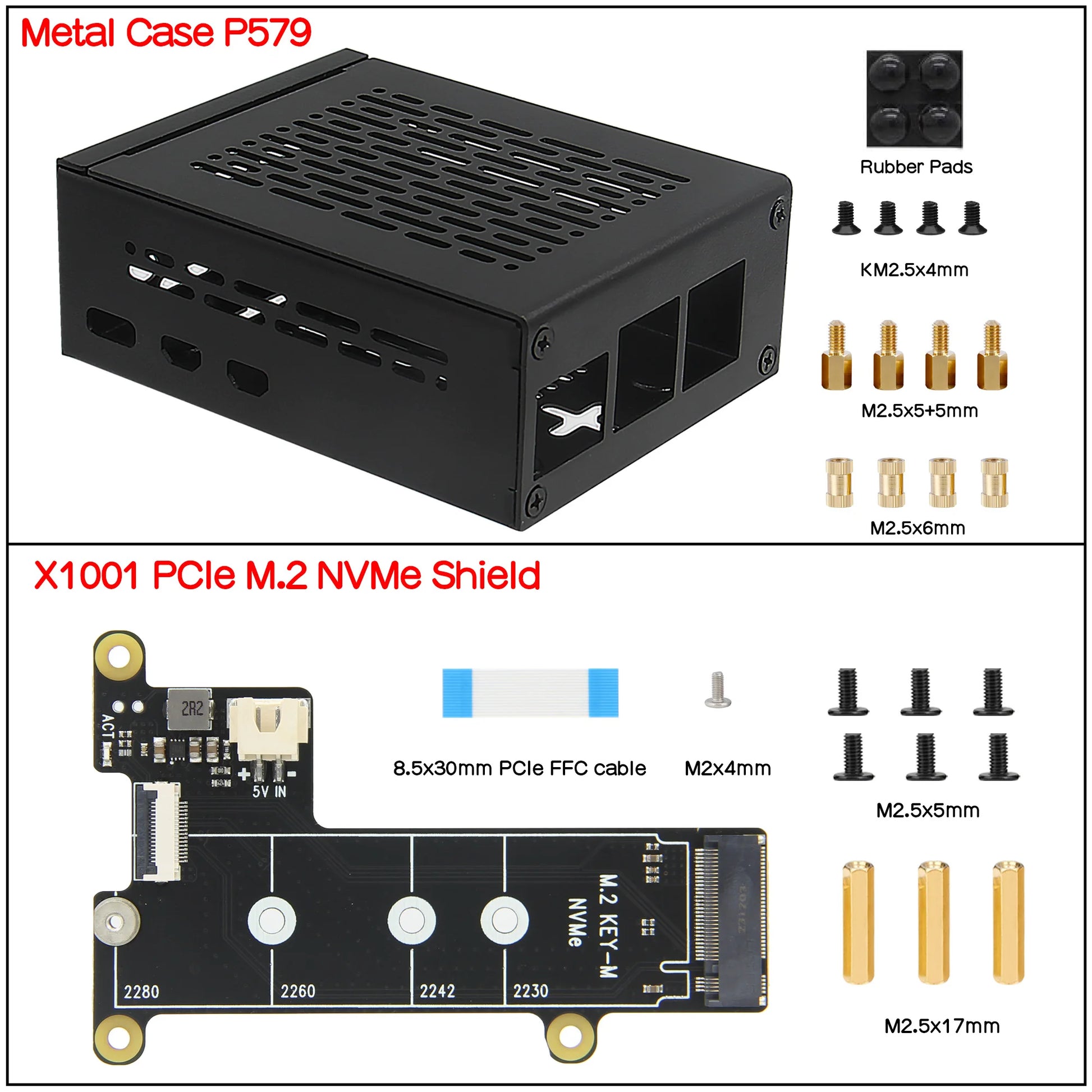

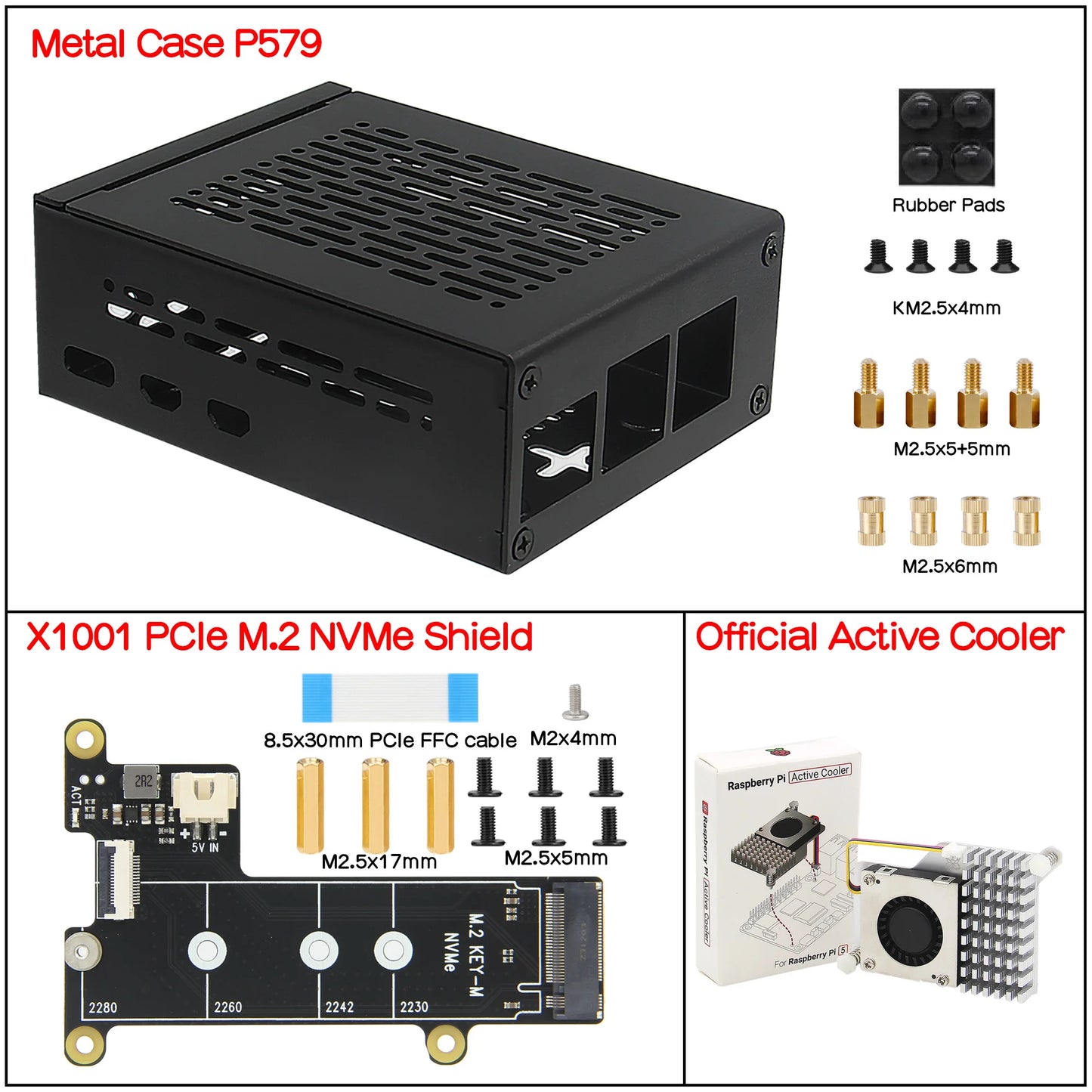

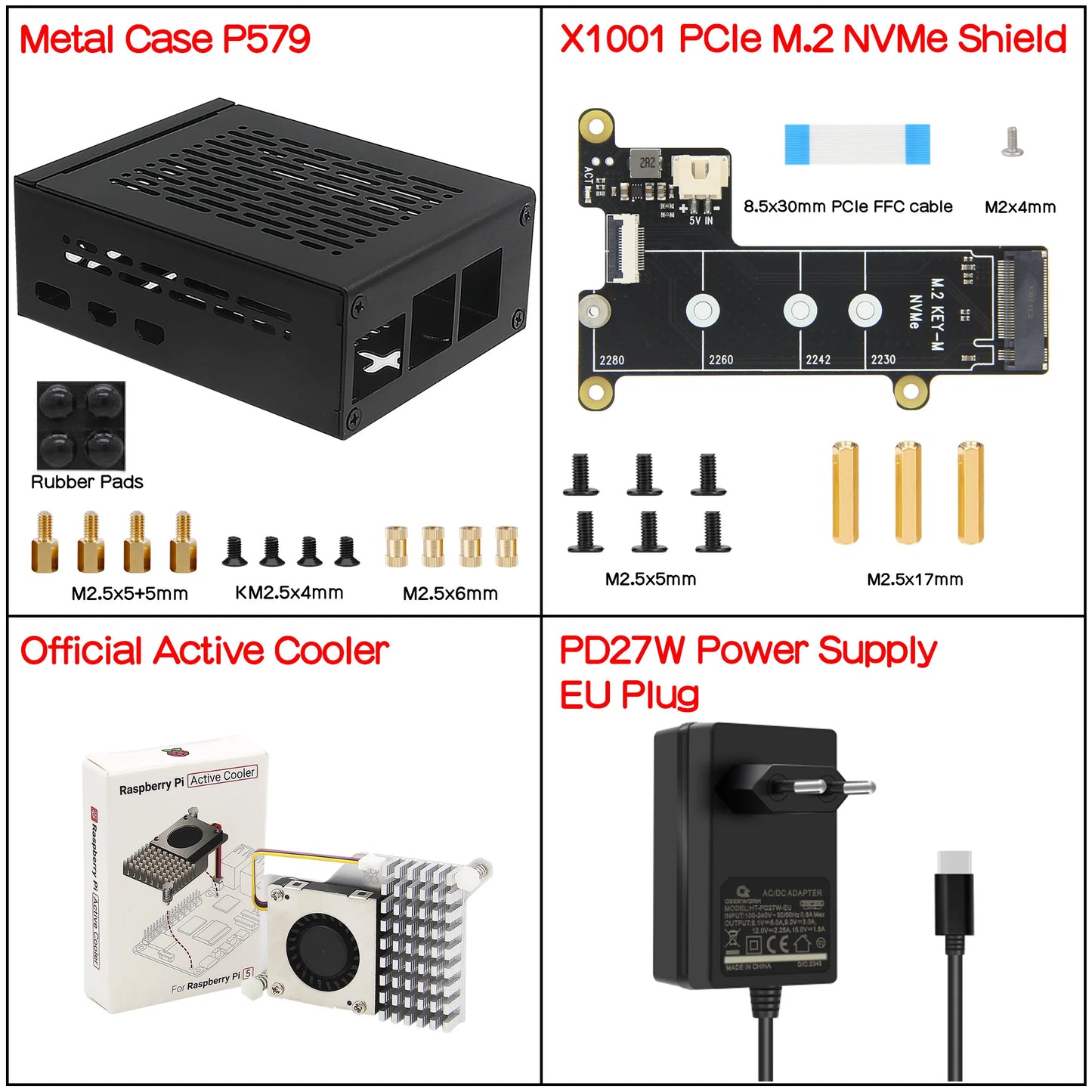

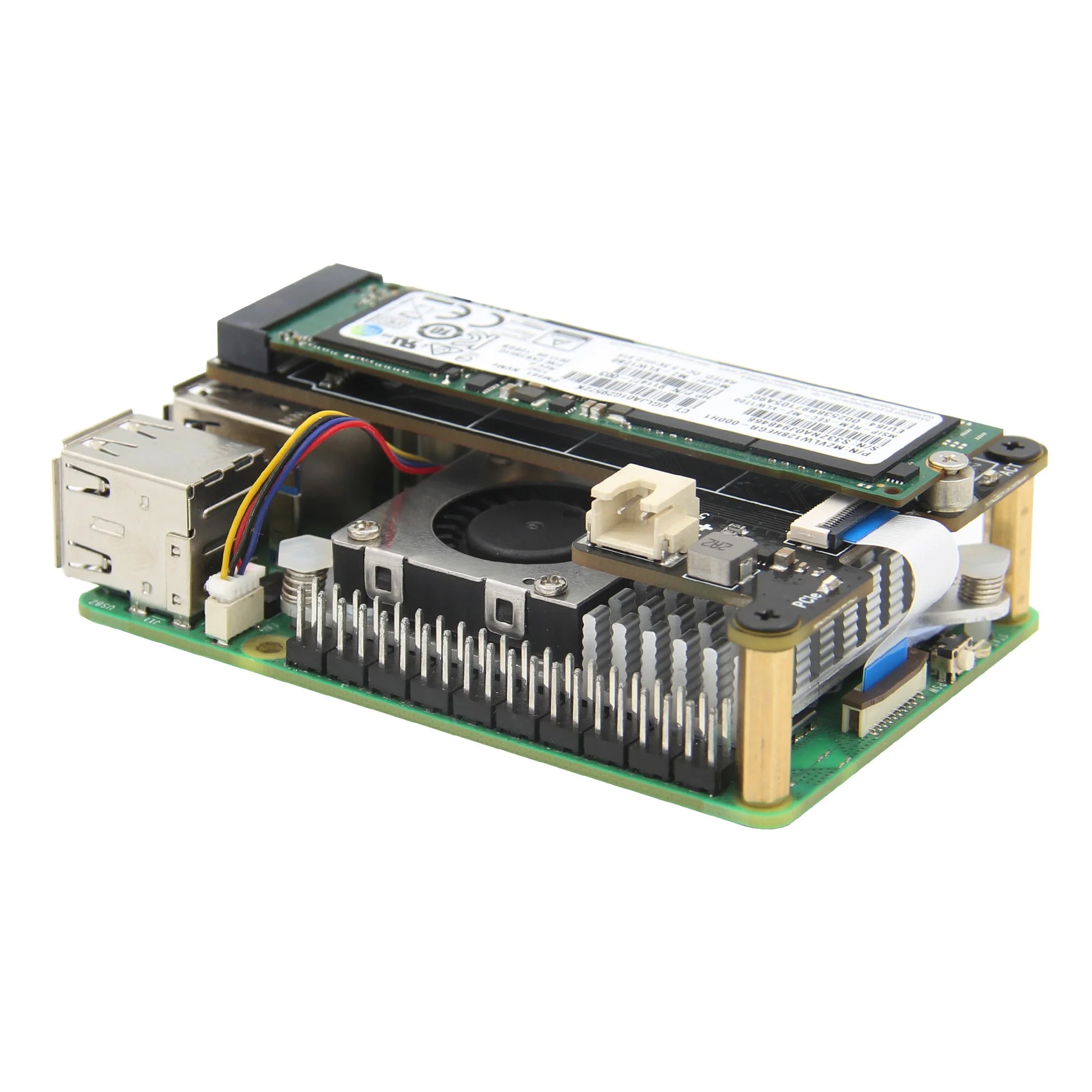

[X1001 M.2 NVMe Shield Features]
Minimalist design, easy to install
Compatible with other HAT shield;
Supports installation of official active coolers;

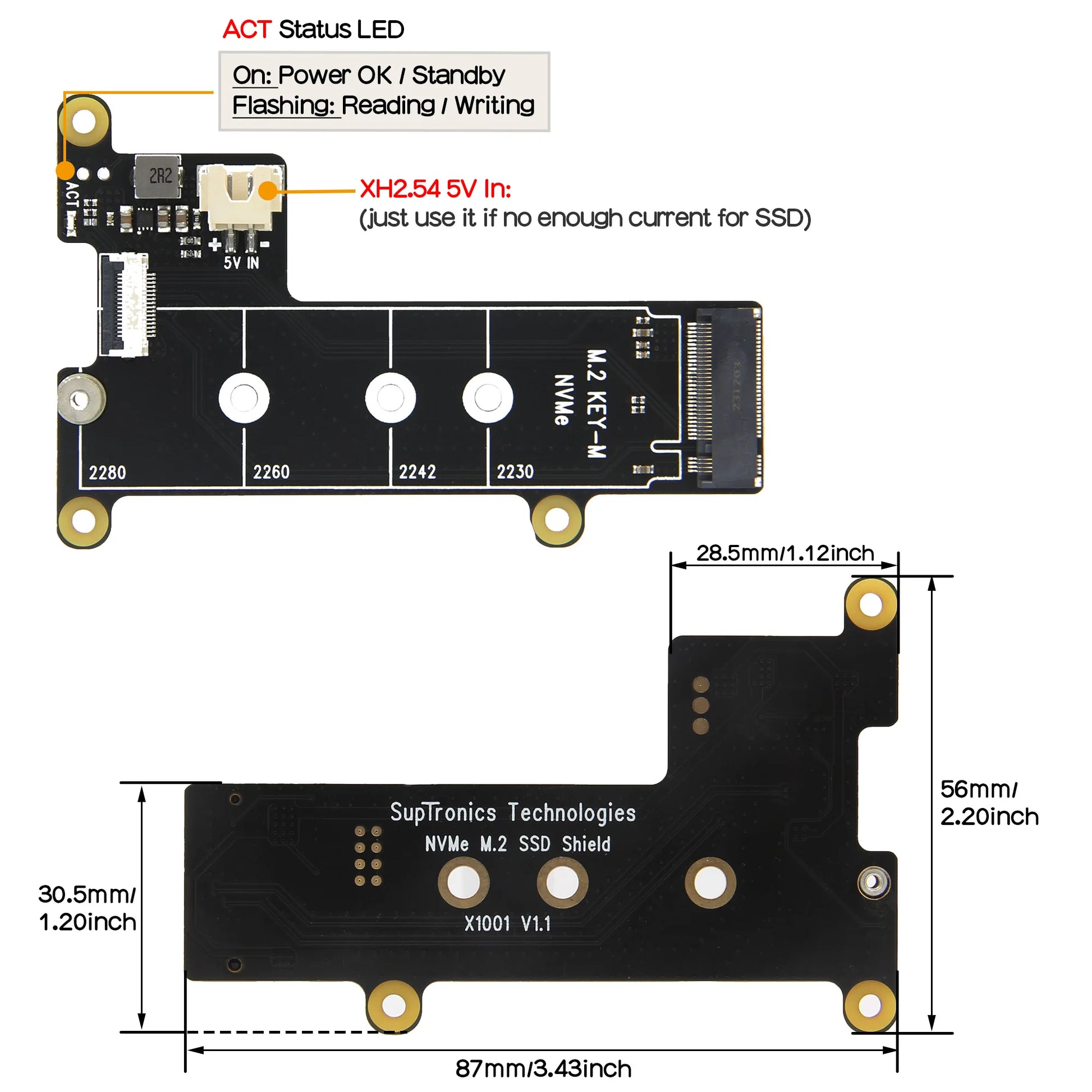

With M.2 SSD ACT LED Indicators;

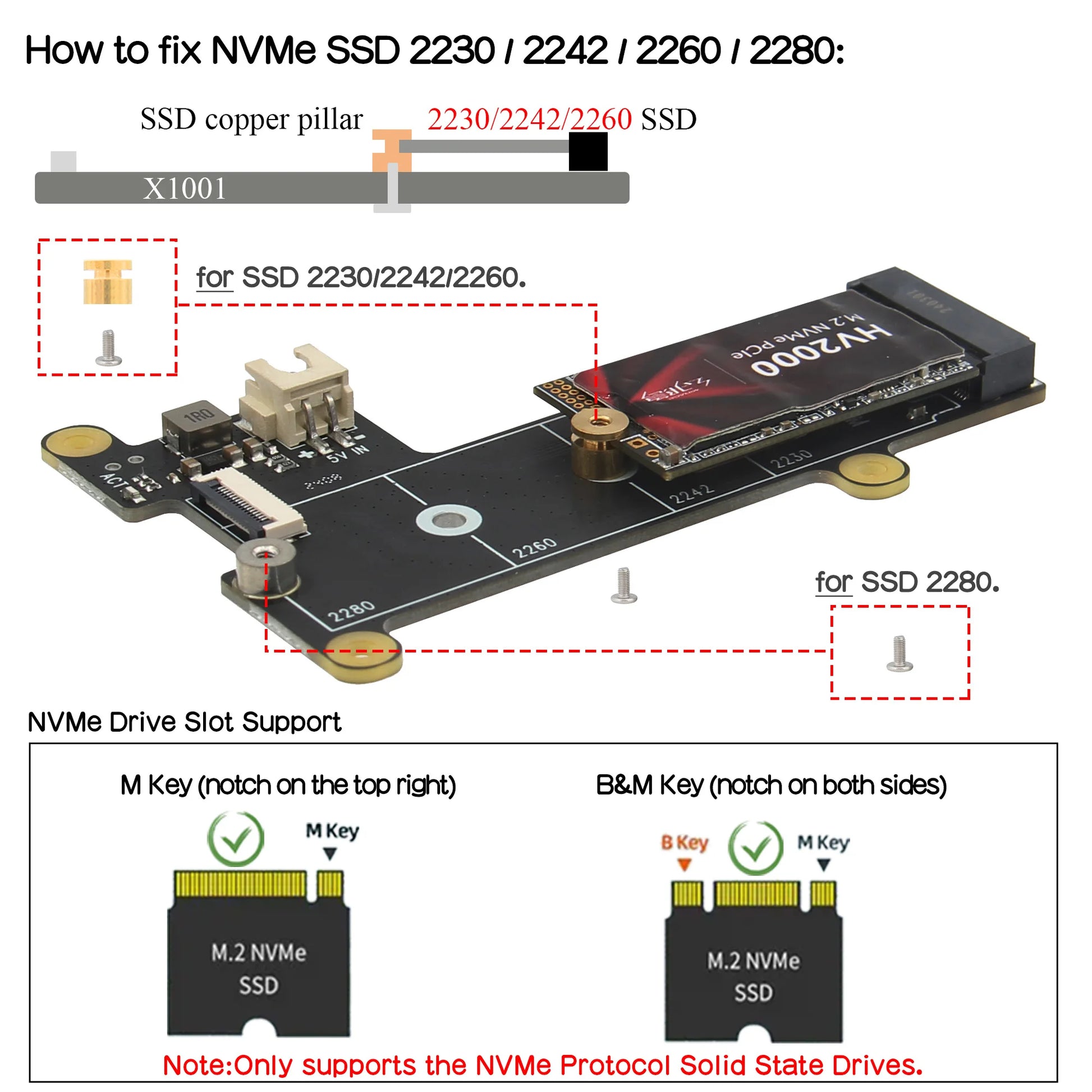

Supports 2230/2242/2260/2280 NVME M2 SSD
Can Power the X1001 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)
Integrated with XH2.54 5V power connector, just use it if you are using a ultra large capacity SSD if the current is not enough
[Raspberry Pi 5 Active Cooler Features]
Single-piece anodized aluminium heatsink
Heatsink-mounted temperature-controlled fan
Spring-loaded push pins for mounting onto Raspberry Pi5
Pre-applied thermal pads for heat transfer(remove protective paper before application)
Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
Fan speed control: Pulse width modulation control with tachometer
Maximum airflow: 1.09 CFM
Maximum fan speed: 8000 RPM +/- 15%
Product material: Anodised aluminium

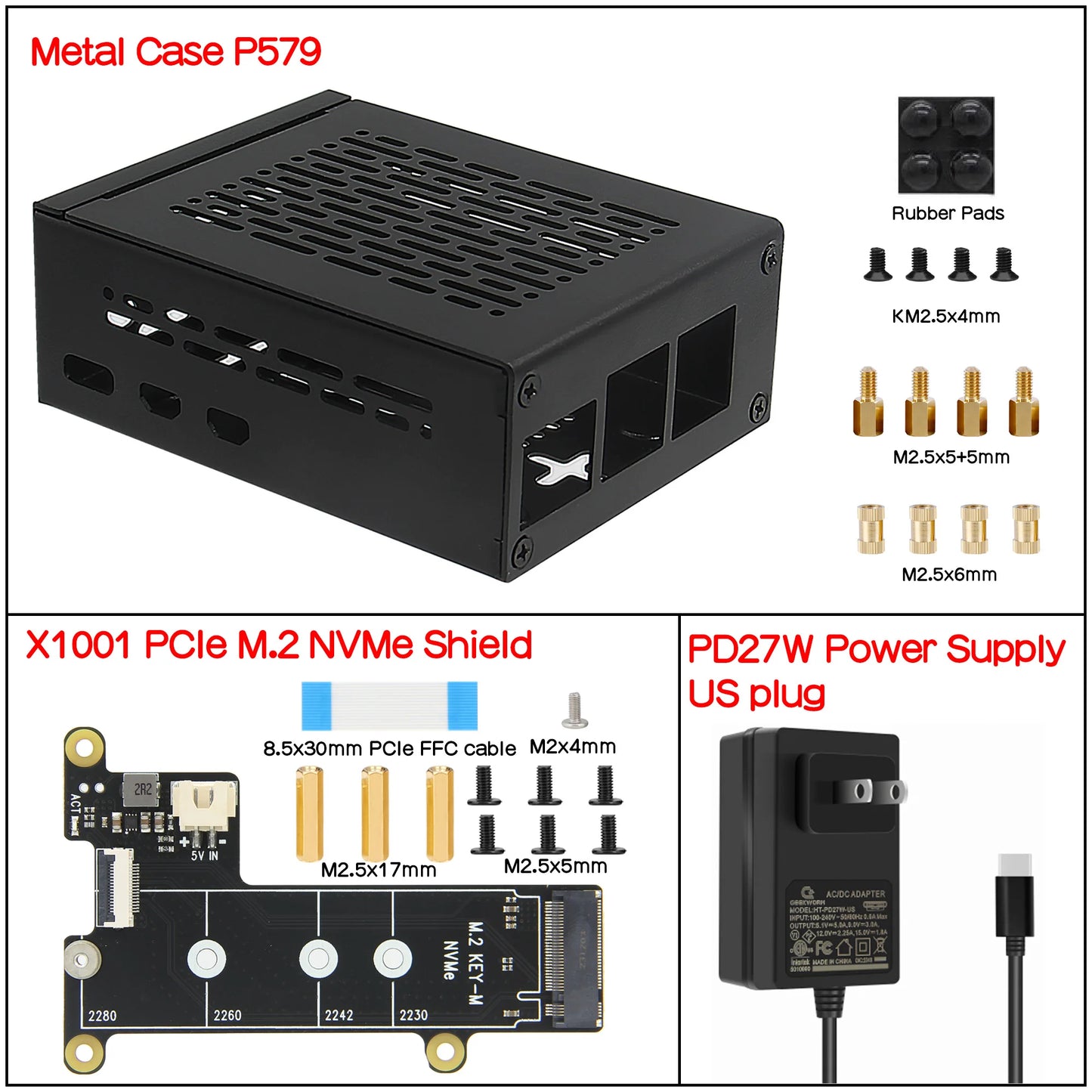

[PD27W USB C Power Adapter Features]
Compatibility USB-C power adapter for Raspberry Pi 5 8GB / 4GB
