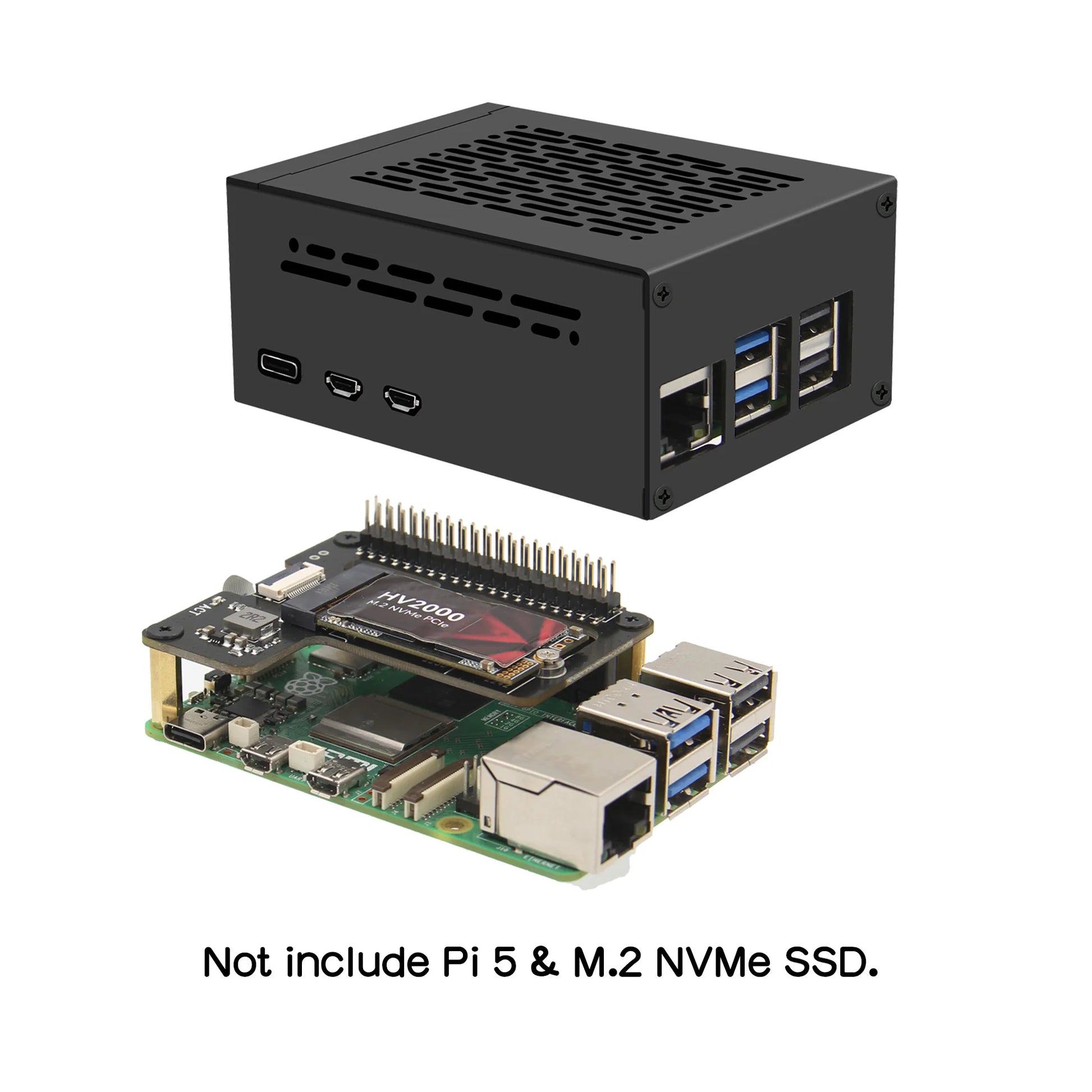

Custom X1000 Pcie M.2 NVMe SSD 2242 PIP PCIe Peripheral Board with Case for Pi 5

[NOTE]

Not include Raspberry Pi 5!!!

The X1000 hardware has no limit on NVME SSD capacity, which is dependent on the Raspberry Pi OS.

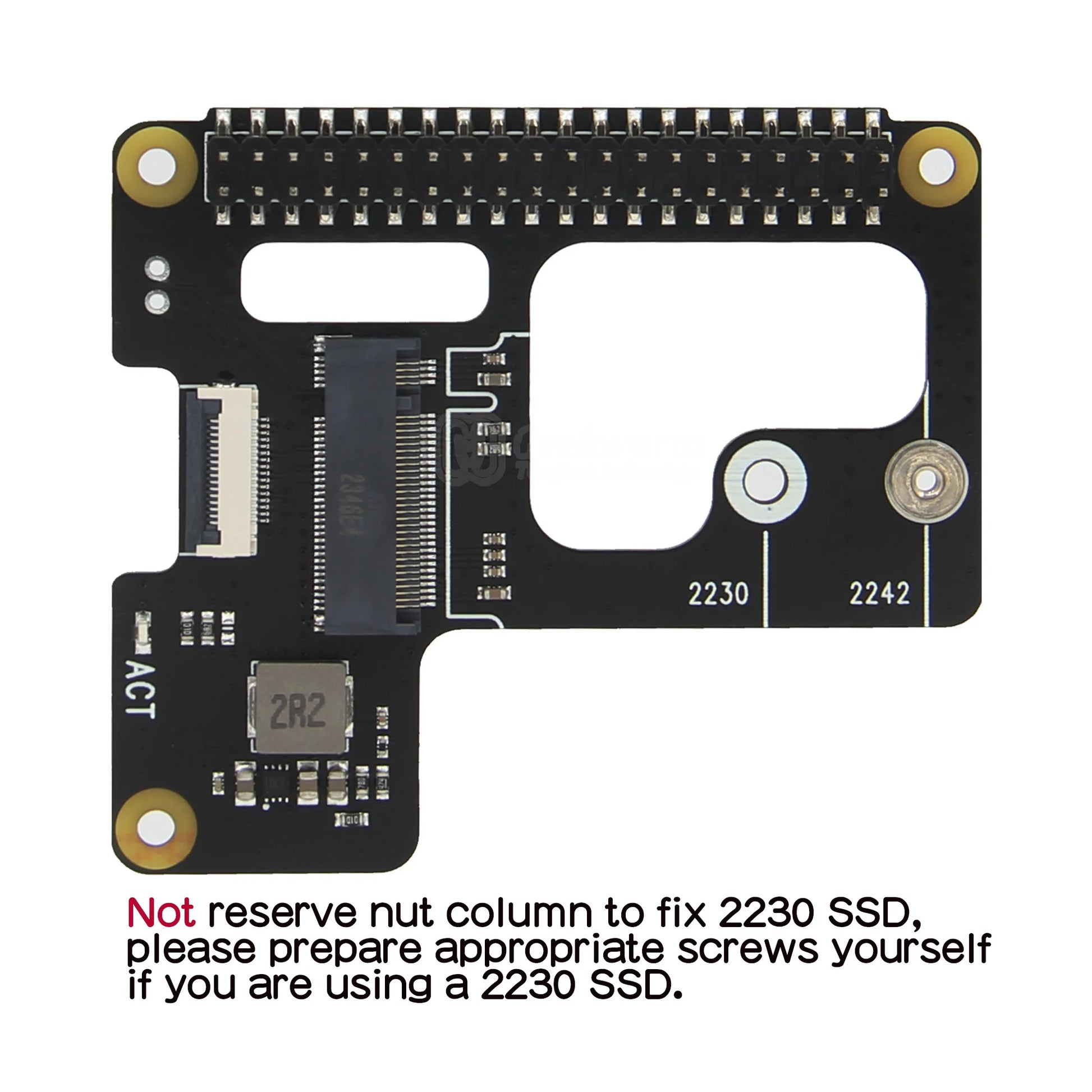

Do not reserve the nut column to fix the 2230 SSD, users need to find proper way to fix the2230SSD.

[NVMe SSD Incompatibility List:]

• We recommend avoiding the following NVMe SSD drives which is equipped with a Phison controller due to their proven incompatibility:

• WD Blue SN550/SN580 series

• WD Green SN350 series

• WD Black SN850 series

• Other NVMe SSD drivers equipped with the same Phison controller

• These specific models have demonstrated compatibility issues, and it is advisable to avoid them when considering NVMe SSD options for the X10xx series NVMe shield.

• We hope the Raspberry Pi Foundation will resolve this issue soon.

Also note:

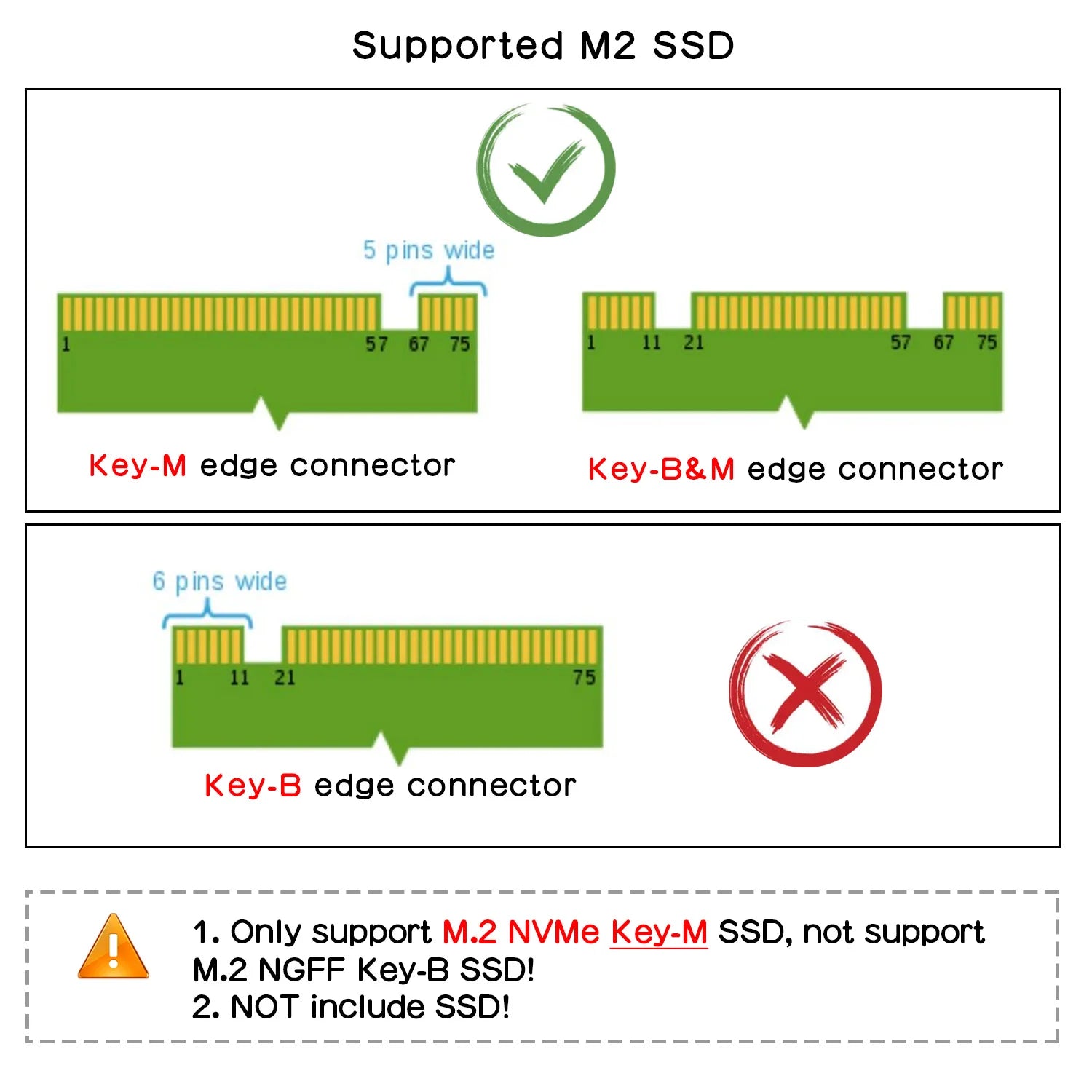

• Compatible with M.2 NVMe SSDs

• Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices

• Older NVMe drives with less efficient flash media may not perform as well as newer drives

• New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.

[X1000 M.2 NVMe Shield Features]

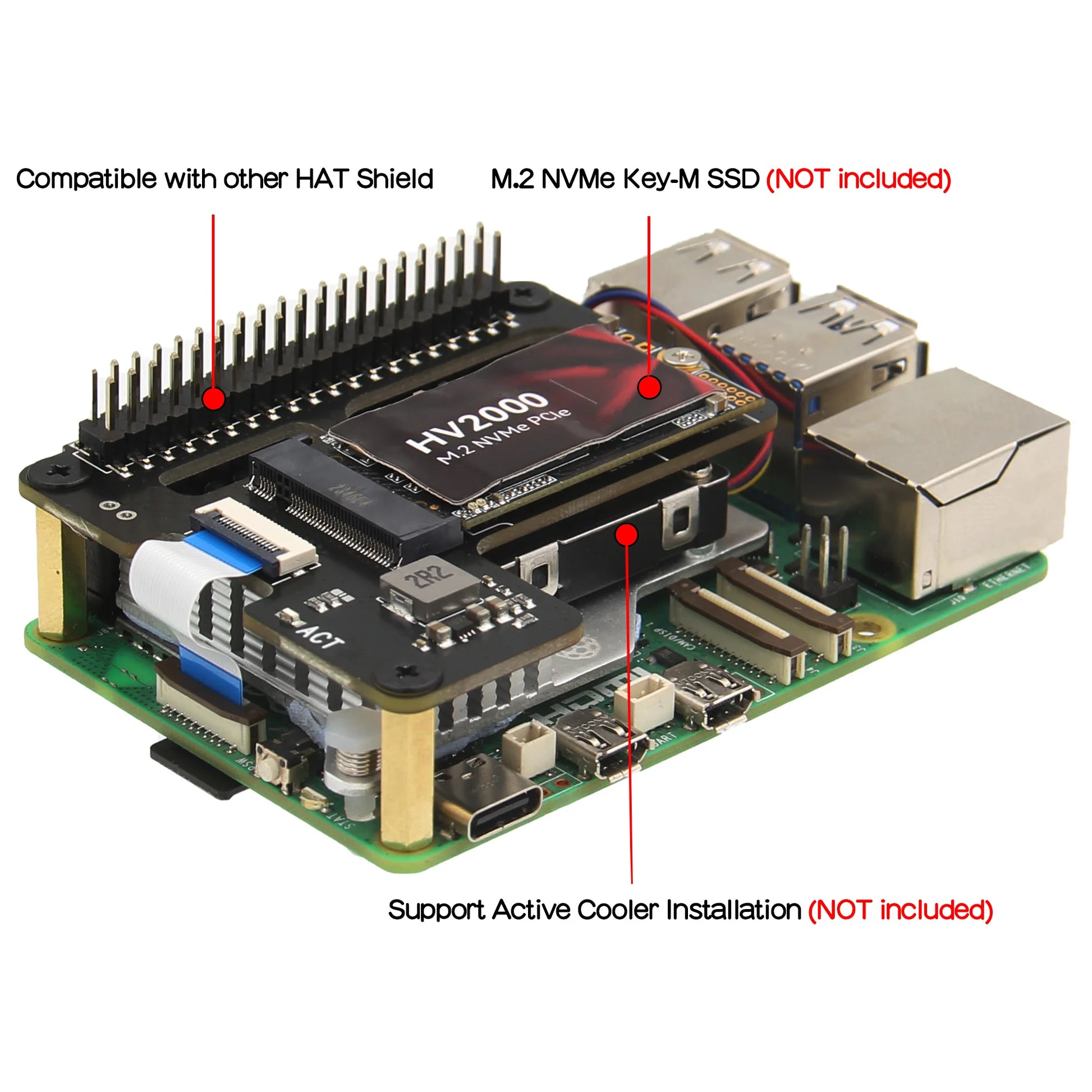

• Compatible with other HAT shield;

• FFC is only 30mm length.

• Supports installation of official active coolers also;

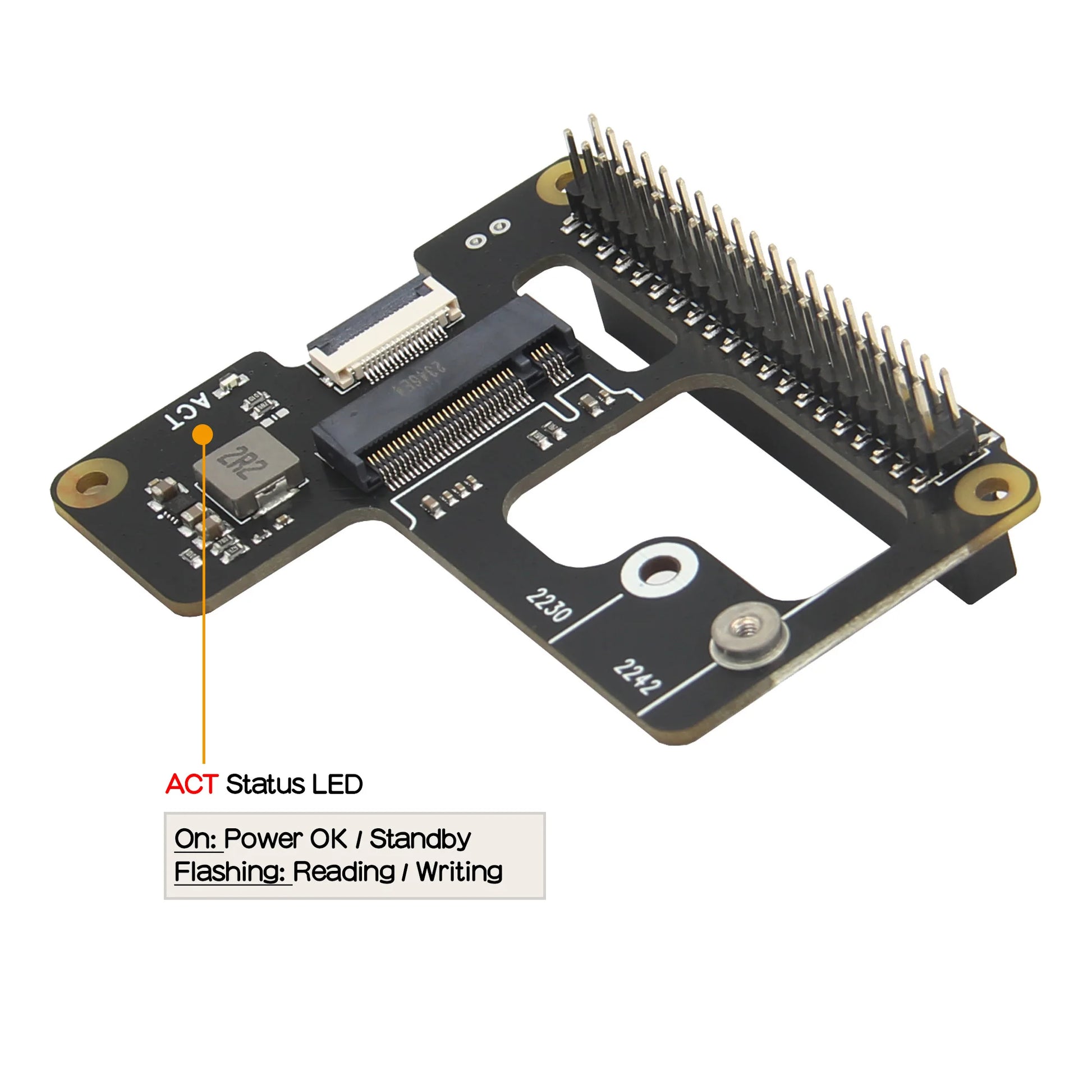

• With ACT LED Indicator; On: Power OK/Standby,Flashing: Reading/Writing

• Reserved space for POE module installation

• Supports 2230/2242 NVME M2 SSD only.

• Can Power the X1000 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)

• With 40pin pin header, it can automatically supply power from GPIO, avoiding the problem of insufficient power supply for ultra-large capacity SSDs.


[Raspberry Pi 5 Active Cooler Features]

• Single-piece anodized aluminium heatsink

• Heatsink-mounted temperature-controlled fan

• Spring-loaded push pins for mounting onto Raspberry Pi5

• Pre-applied thermal pads for heat transfer(remove protective paper before application)

• Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5

• Fan speed control: Pulse width modulation control with tachometer

• Maximum airflow: 1.09 CFM

• Maximum fan speed: 8000 RPM +/- 15%

• Product material: Anodised aluminium

[PD27W USB C Power Adapter Features]

• Compatibility USB-C power adapter for Raspberry Pi 5 8GB / 4GB

• Input:100 – 240V AC, 50/60HZ 0.6A Max

• Output:5.1V/5A, 9V/3A, 12V/2.25A, 15V/1.8A

• Cable:1.2m 18AWG

[Packing List]

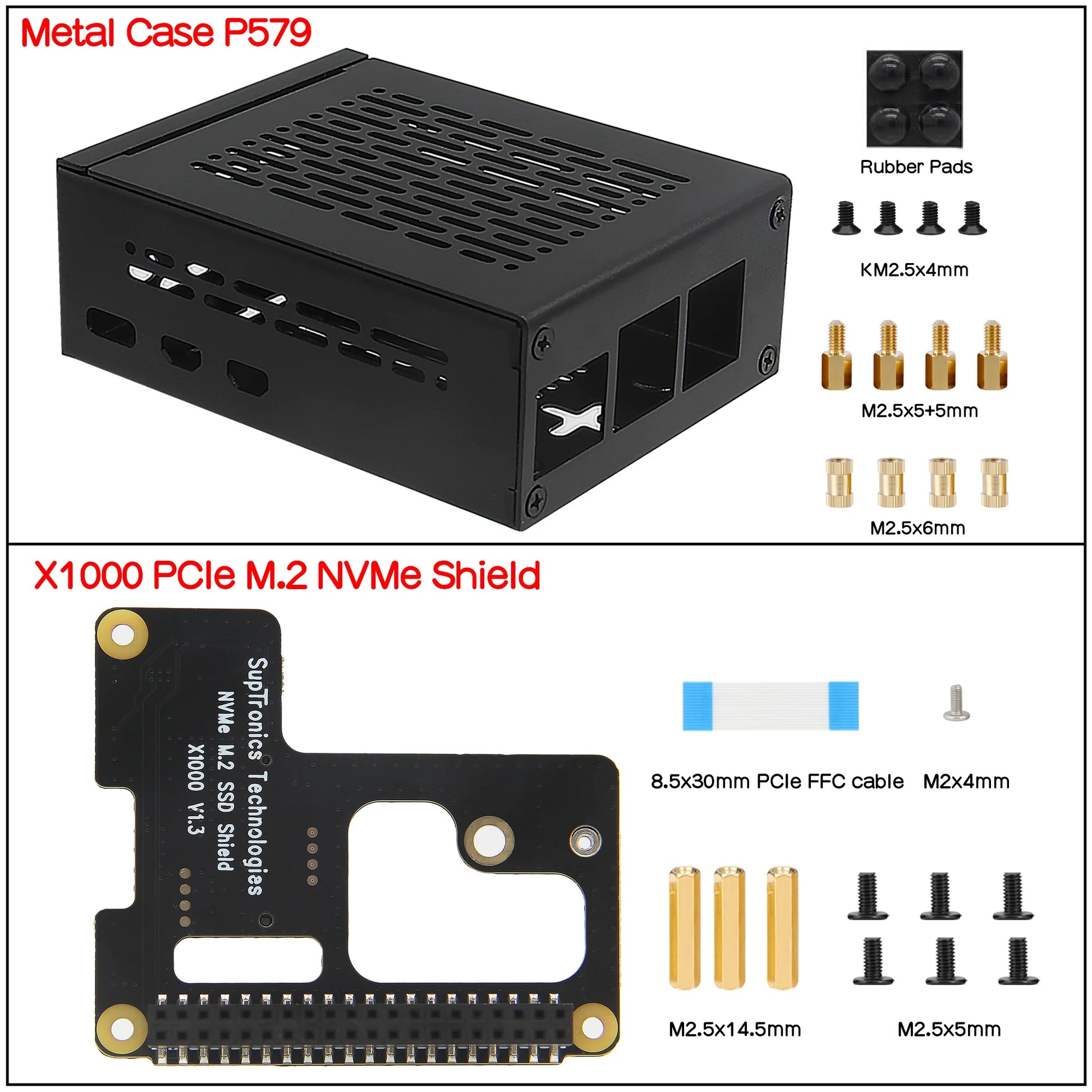

Bundle1

• 1 x X1000 NVMe SSD Shield

• 1 x Metal Case

Bundle2

• 1 x X1000 NVMe SSD Shield

• 1 x Metal Case

• 1 x Official Active Cooler

Bundle3

• 1 x X1000 NVMe SSD Shield

• 1 x Metal Case

• 1 x PD 27W Power Supply EU plug

Bundle4

• 1 x X1000 NVMe SSD Shield

• 1 x Metal Case

• 1 x PD 27W Power Supply US plug

Bundle5

• 1 x X1000 NVMe SSD Shield

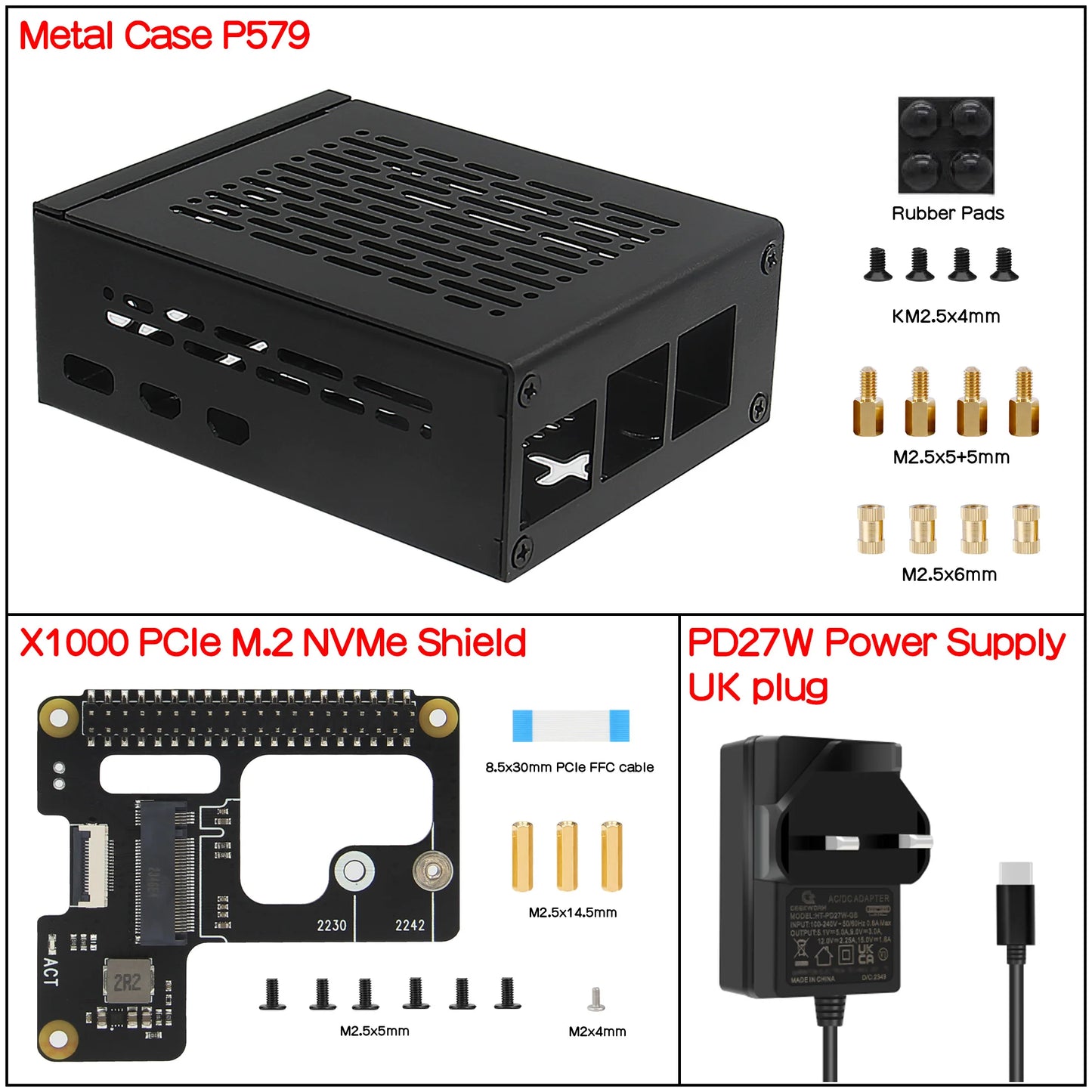

• 1 x Metal Case

• 1 x PD 27W Power Supply UK plug

Bundle6

• 1 x X1000 NVMe SSD Shield

• 1 x Metal Case

• 1 x Official Active Cooler

• 1 x PD 27W Power Supply EU plug

Bundle7

• 1 x X1000 NVMe SSD Shield

• 1 x Metal Case

• 1 x Official Active Cooler

• 1 x PD 27W Power Supply US plug

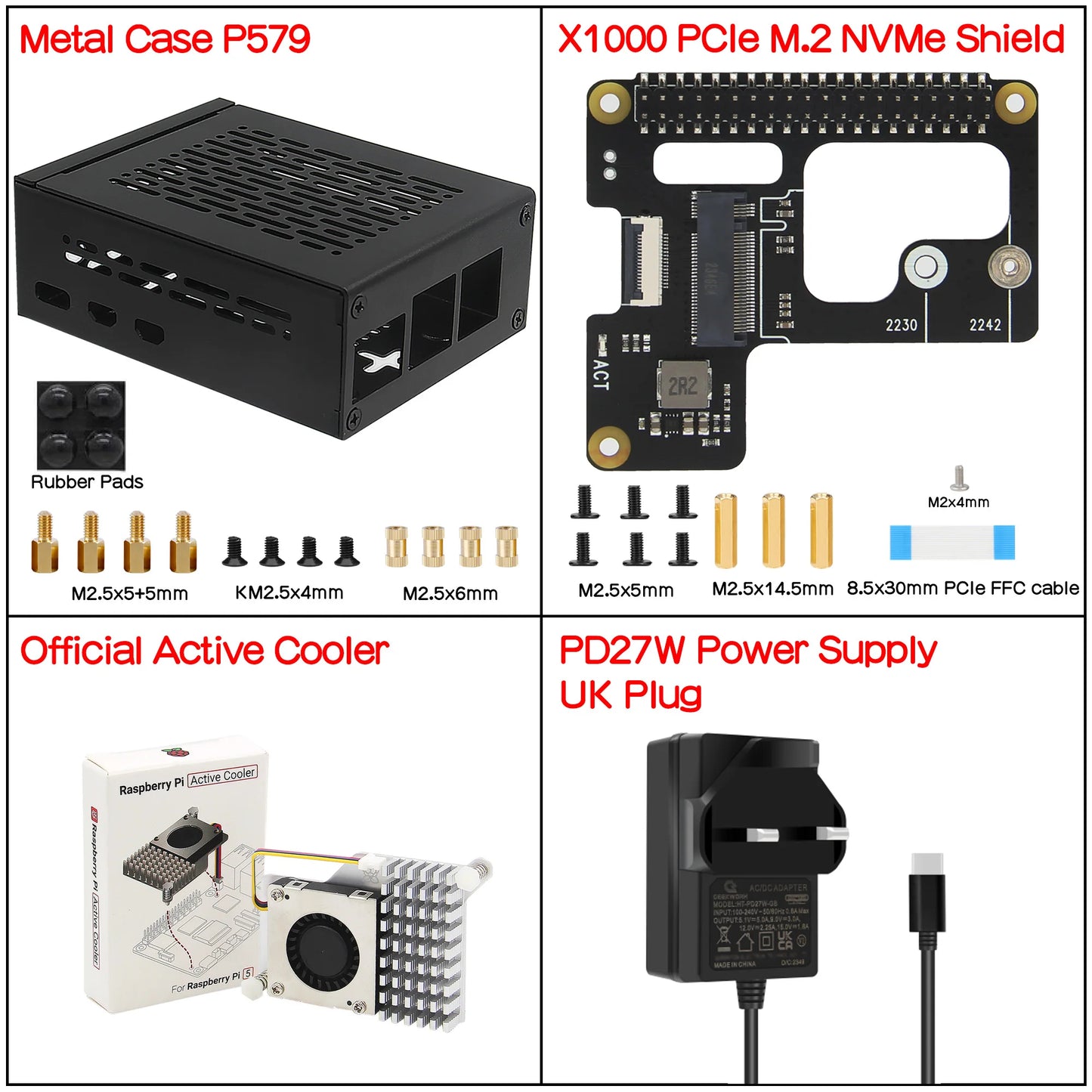

Bundle8

• 1 x X1000 NVMe SSD Shield

• 1 x Metal Case

• 1 x Official Active Cooler

• 1 x PD 27W Power Supply UK plug
