Custom X1000 Pcie M.2 NVMe SSD 2242 PIP PCIe Peripheral Board for Raspberry Pi 5

[Note]

The Raspberry Pi 5 & M.2 NVMe SSD is not included in the packing list!!!

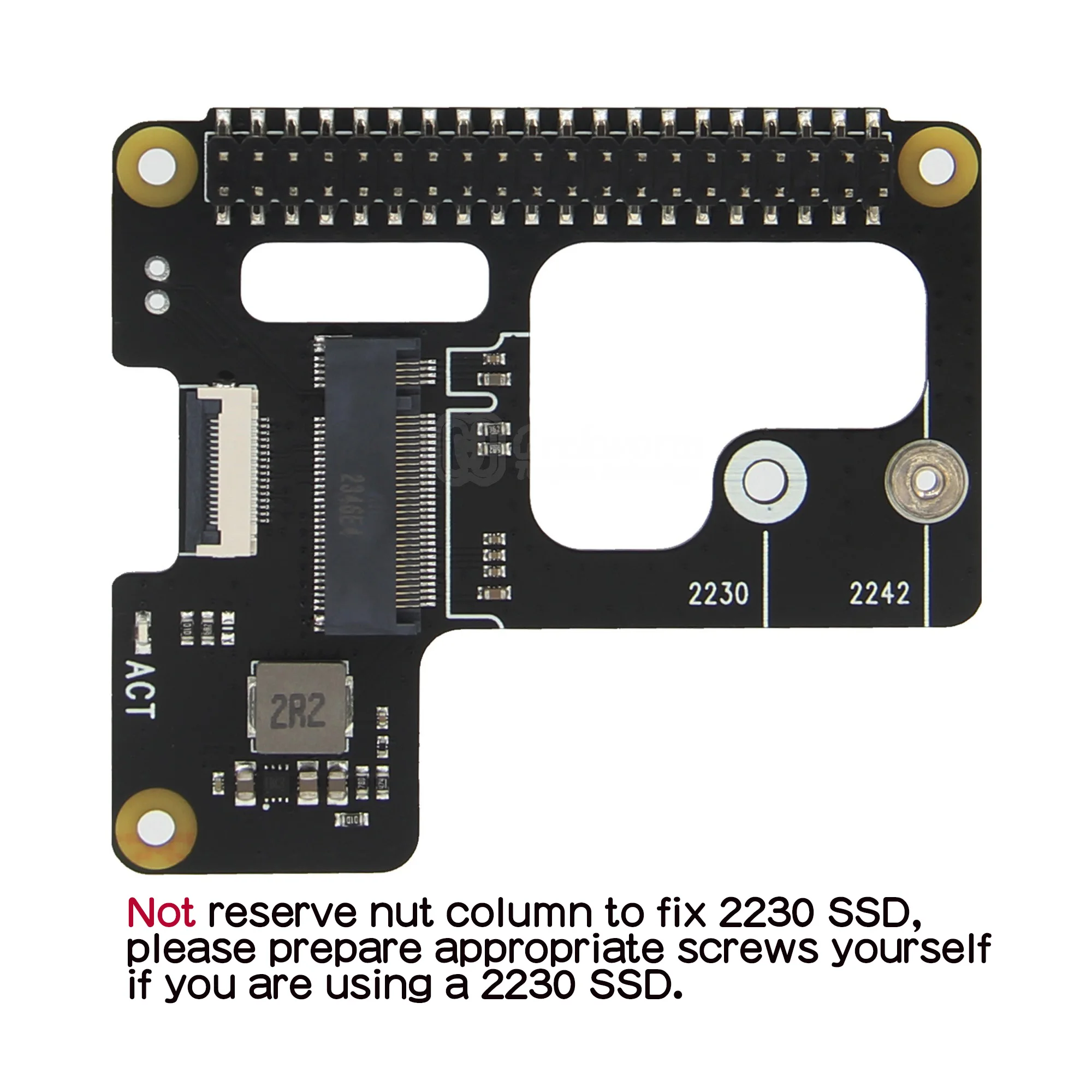

Do not reserve the nut column to fix the 2230 SSD, users need to find proper way to fix the 2230 SSD.

[NVMe SSD Incompatibility List:]

• We recommend avoiding the following NVMe SSD drives which is equipped with a Phison controller due to their proven incompatibility:

• WD Blue SN550/SN580 series

• WD Green SN350 series

• WD Black SN850 series

• Other NVMe SSD drivers equipped with the same Phison controller

• These specific models have demonstrated compatibility issues, and it is advisable to avoid them when considering NVMe SSD options for the X10xx series NVMe shield.

• We hope the Raspberry Pi Foundation will resolve this issue soon.

[Overview]

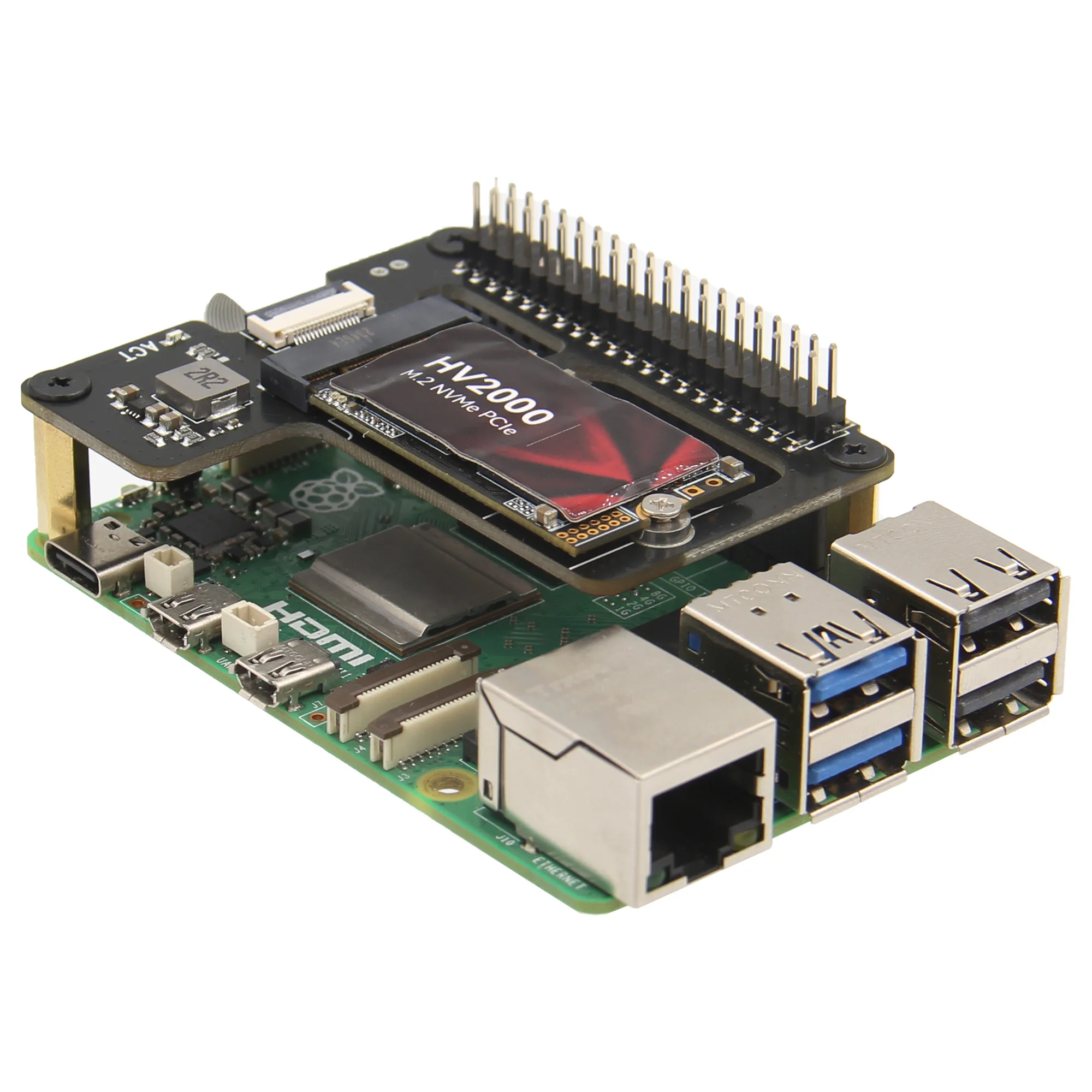

1. The X1000 V1.3 shield is an NVME M2 2242 SSD PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilise the NVME M2 SSDs for fast data transfers and ultra-fast booting.

2. The X1000 hardware has no limit on NVME SSD capacity, which is dependent on the Raspberry Pi OS.

3. Do not reserve the nut column to fix the 2230 SSD, users need to find proper way to fix the 2230 SSD.

[Features]

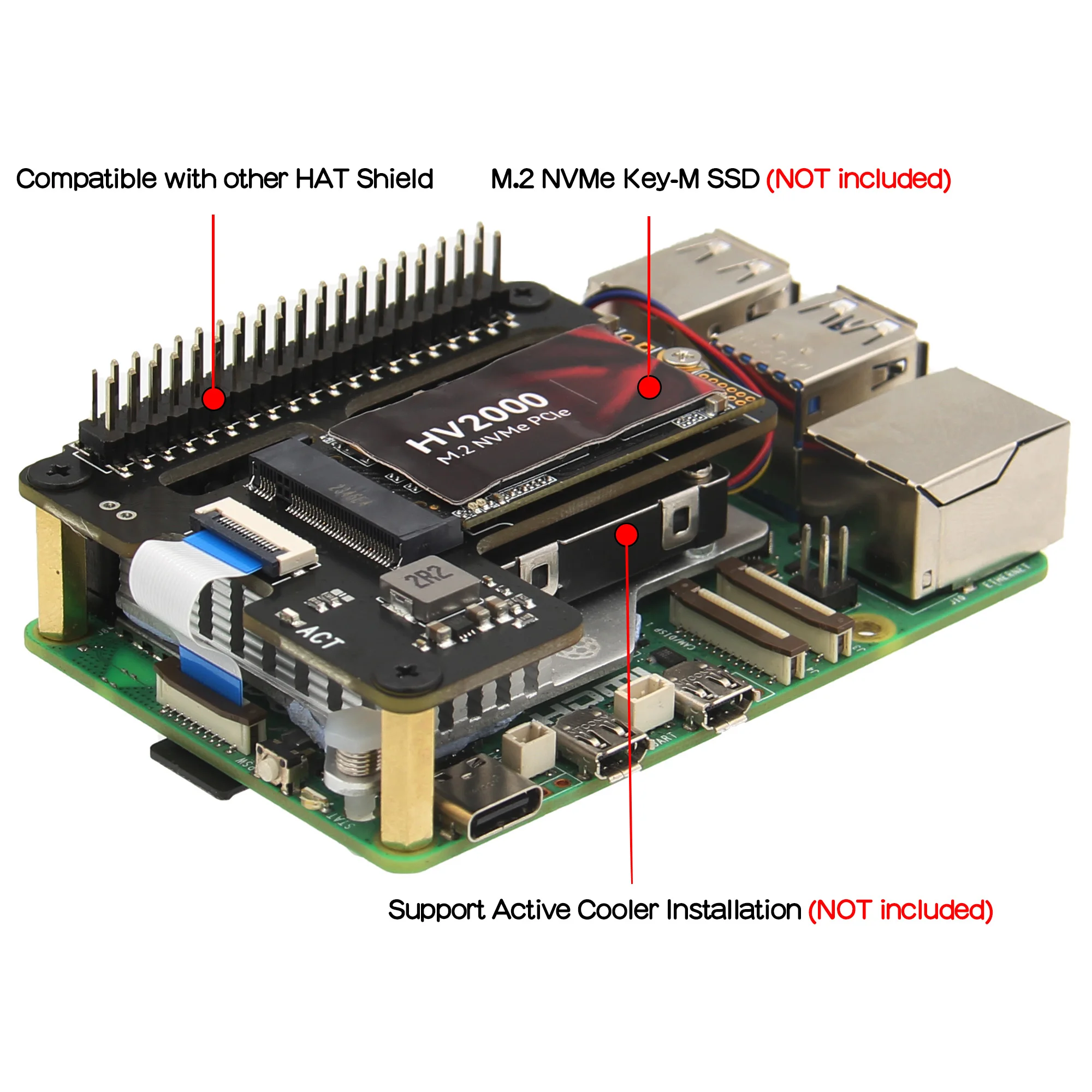

• Compatible with other HAT shield;

• FFC is only 30mm length.

• Supports installation of official active coolers also;

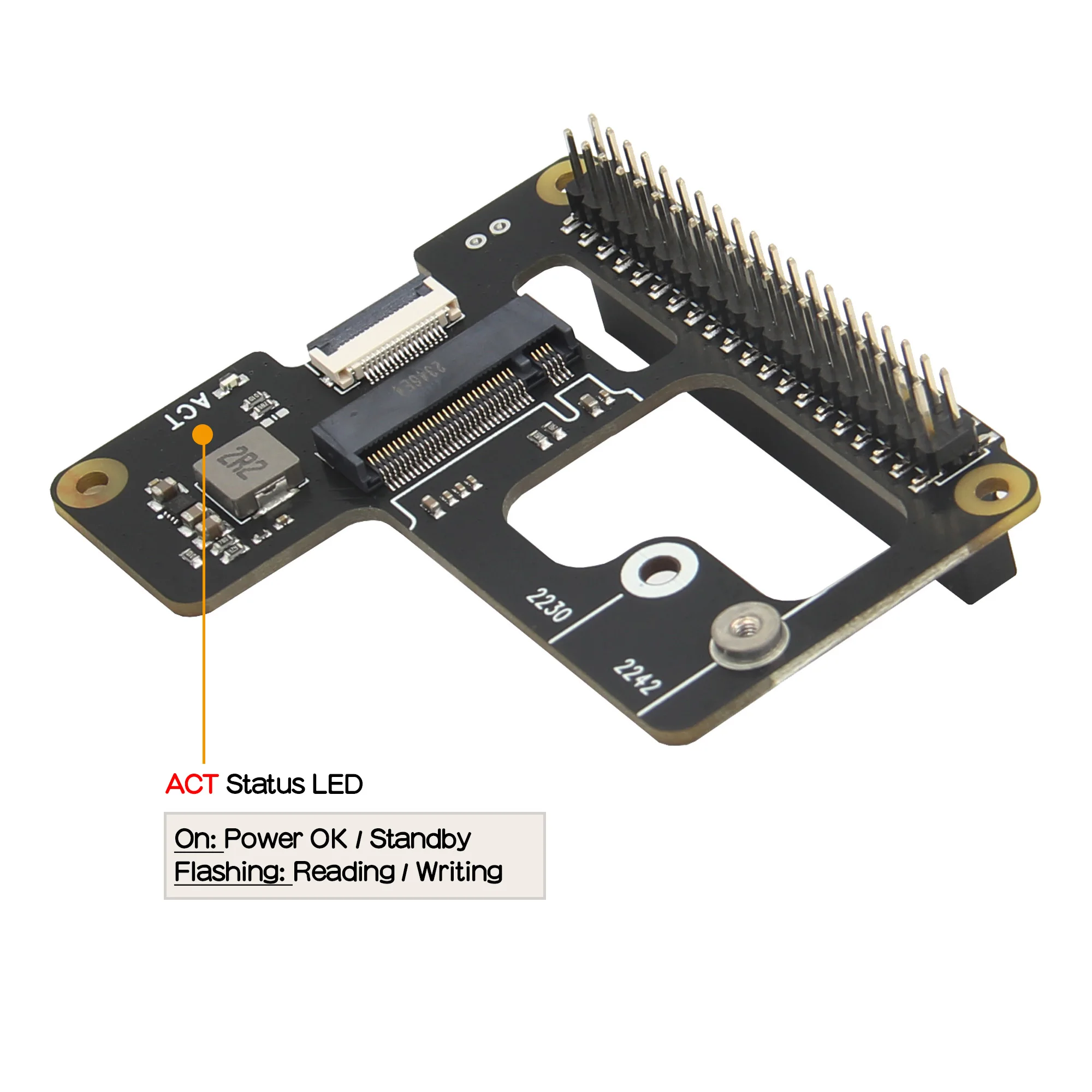

• Dual LED Indicators:PCE: PCie - The LED will be on if the SSD is recognised; SSD - M.2 disk activity (“ACT”).

• Reserved space for POE module installation

• Supports 2230/2242 NVME M2 ssd only. Do not reserve the nut column to fix the 2230 SSD, users need to find proper way to fix the 2230 SSD.

• Can Power the X1001 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)

• With 40pin pin header, it can automatically supply power from GPIO, avoiding the problem of insufficient power supply for ultra-large capacity SSDs.

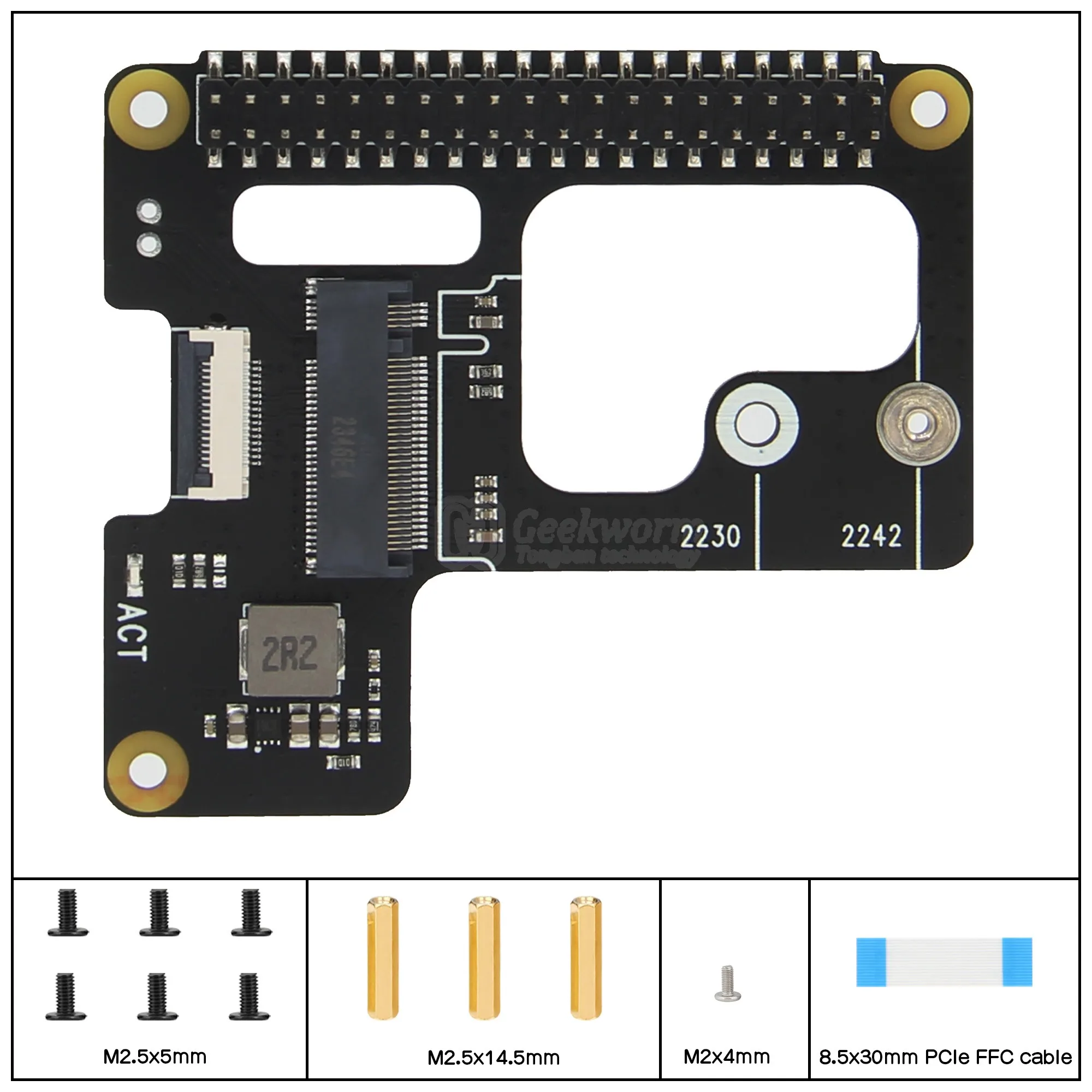

[Packing List]

• 1 x X1000 V1.3 NVMe SSD Shield

• 1 x PCIe FFC Cable(30mm length)

• 3 x M2.5x14.5mm F/F Spacers

• 6 x M2.5x5mm Screws

• 1 x M2x4mm Screws (to fix MVME M2 SSD)

• Do not reserve the nut column to fix the 2230 SSD, users need to find proper way to fix the 2230 SSD.
