The X-UPS1 is an universal stackable uninterruptible power supply (UPS) shield for most Single-Board Computers (SBC) that uses 12Vdc or 5Vdc. The UPS ensures that in event of power interruption, a battery or any other power source will intervene without any effect on your board.

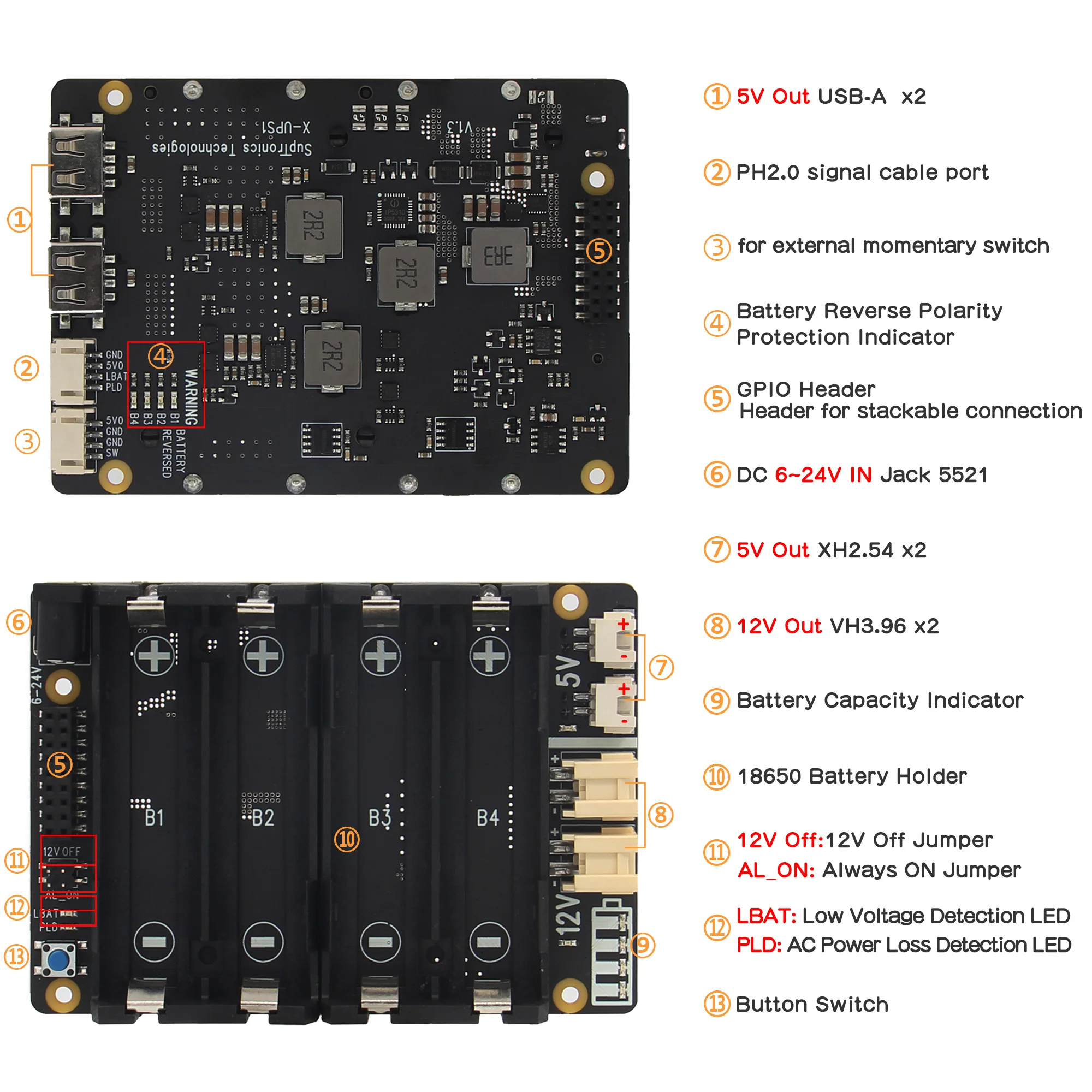

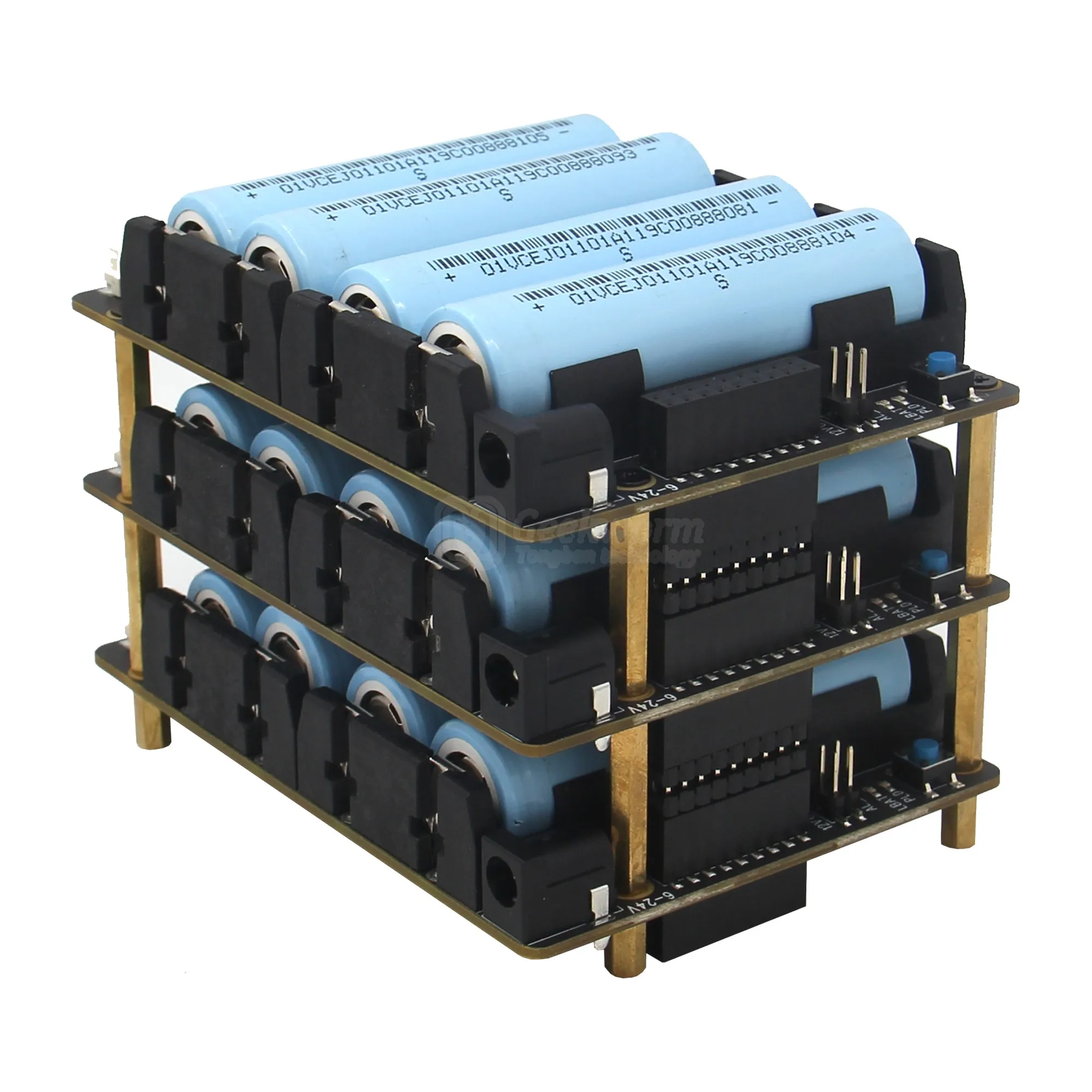

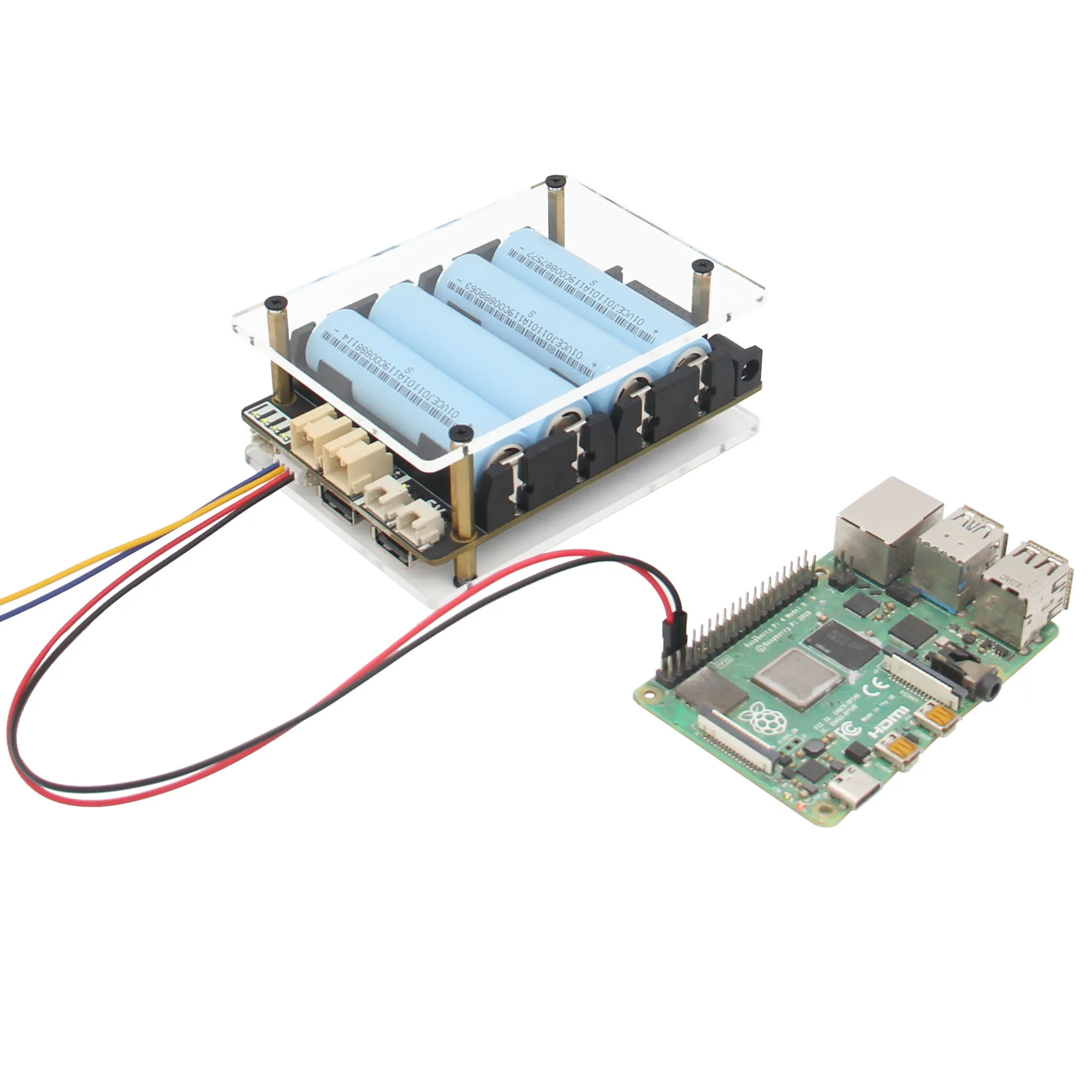

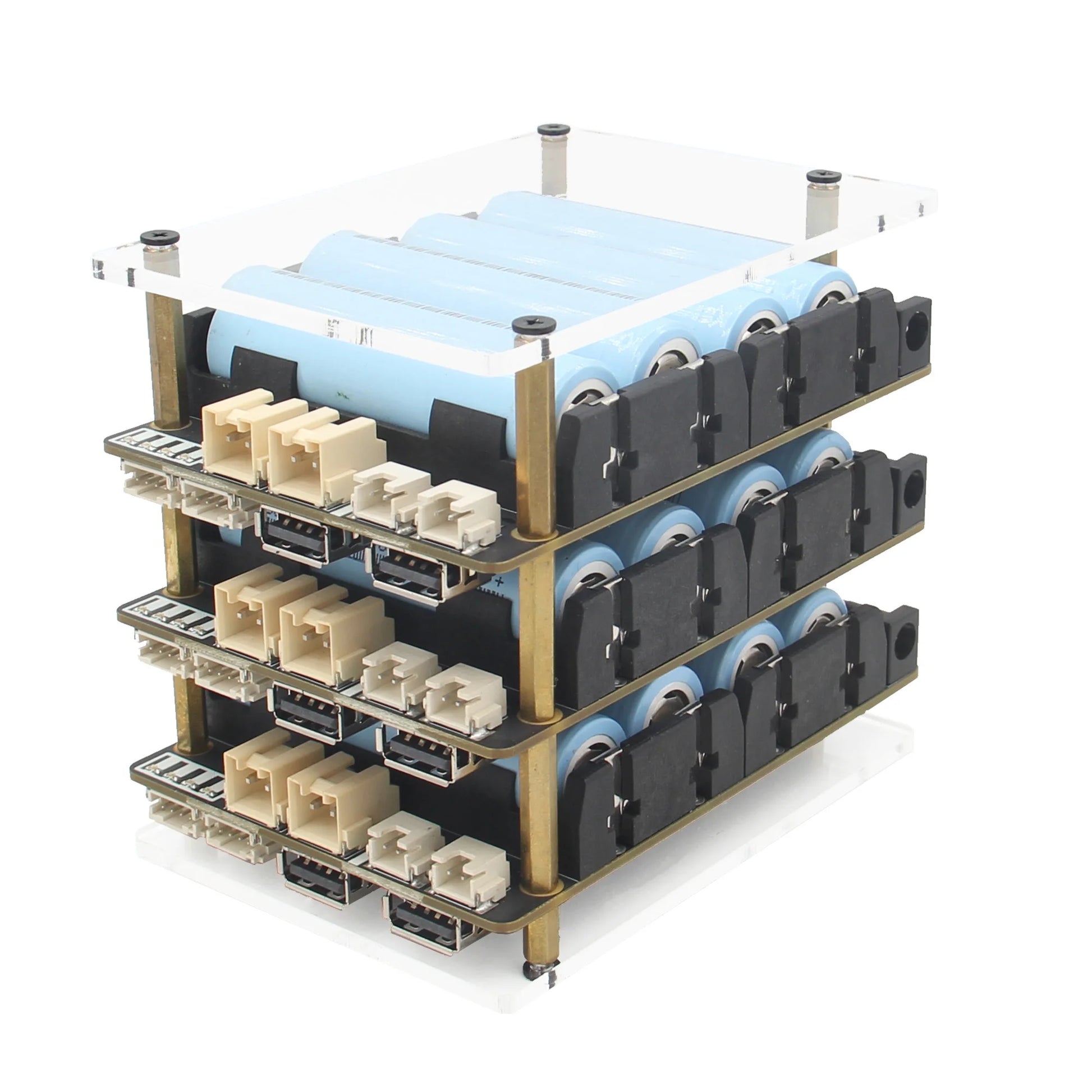

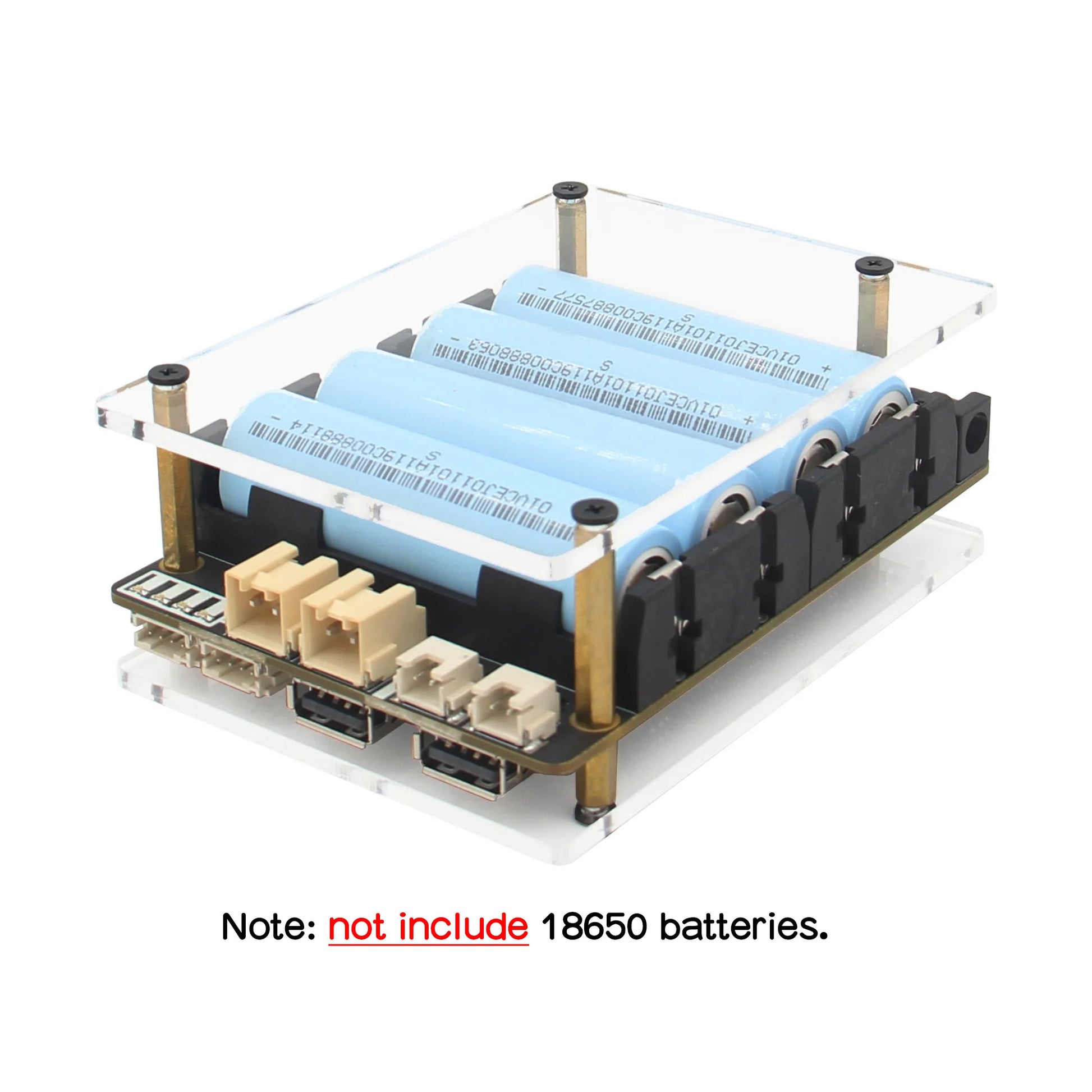

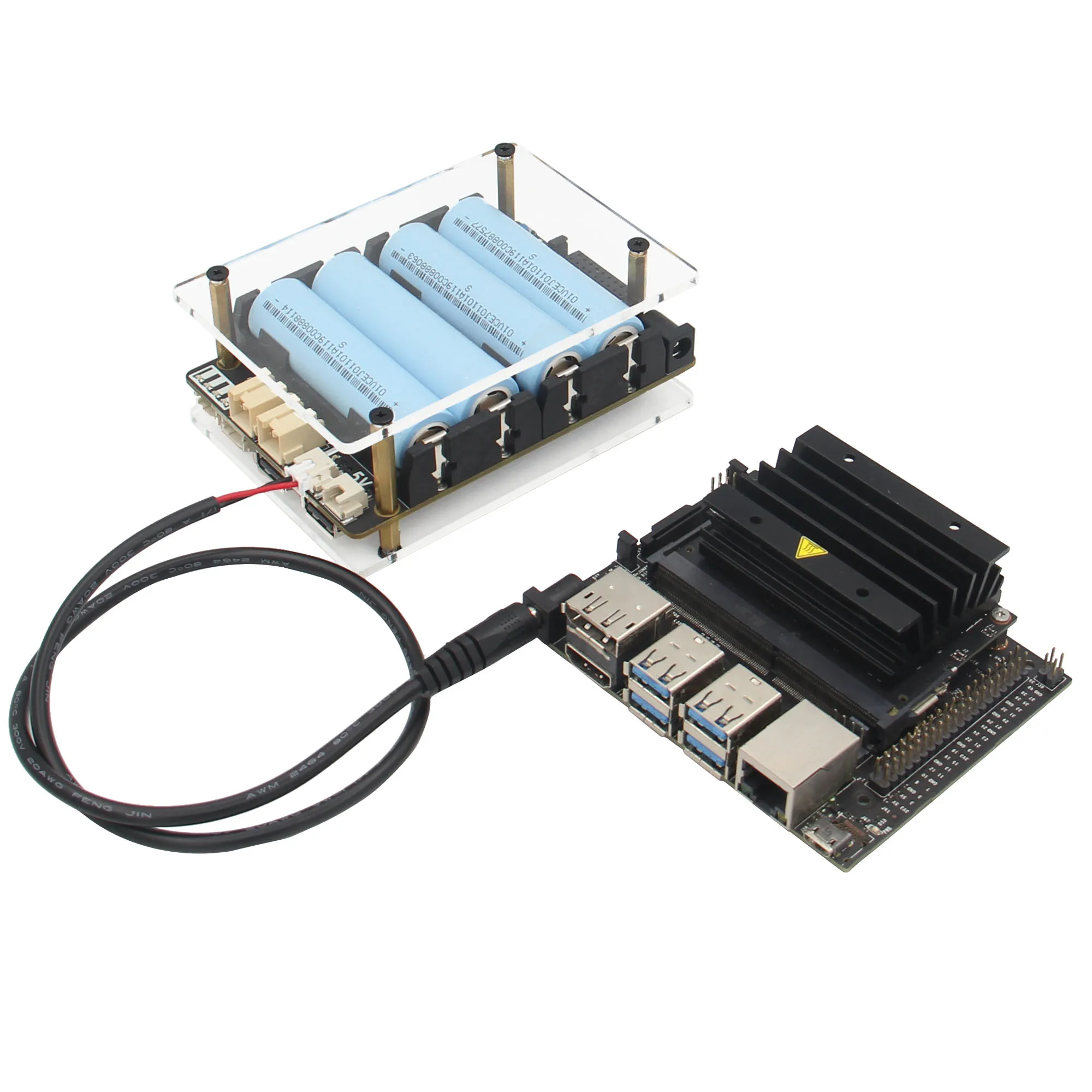

Our convenient stackable design allows you to connect several UPS modules on your boards to provide long-lasting & higher output power for even the most demanding SBC set ups that have constant power connections 24 hours a day, seven days a week.

[For use with]

• Most Single-Board Computers (SBC) that uses 12Vdc or 5Vdc

SBC Example: Orange Pi 5 / Orange Pi 5B / Jetson Nano / Raspberry Pi 4 / Tinker Board / Rock Pi / Arduino

[Key Features]

Power Output

• Provides dual 12Vdc & 5Vdc or single 5Vdc output

• Each board provides max 3A power backup

• Can be stacked to increase output current and battery life

• Total output current could be 3A multiplied by the No. of boards

• Reverse Current Protection

• Integrate Advanced Power MOSFET with Equivalent of 7mΩ RDS(ON) to reduce power loss

Battery Charging

• Supports 3000mA fast battery charging

• Battery over current protection and over voltage protection

• Protection of battery cell Reverse Connection

• Lowbattery detection (LED and 3.3V level output)

• Onboard 4 green LEDs indicate battery charging and discharging levels of 25%, 50% , 75% and 100%

• 18650 4cell lithium Ion holders

Power Input

• Integrated highefficiency stepdown DC/DC converter

• Wide 6V to 24V operating input range

• Up to 95% Efficiency

• Up to 10A output current to keep 3A fast charging and powering your SBC at the same time

• Allows powering from a car, a solder pannel and other power sources

• Most common power input jack: 5.5x2.1mm

Power Control

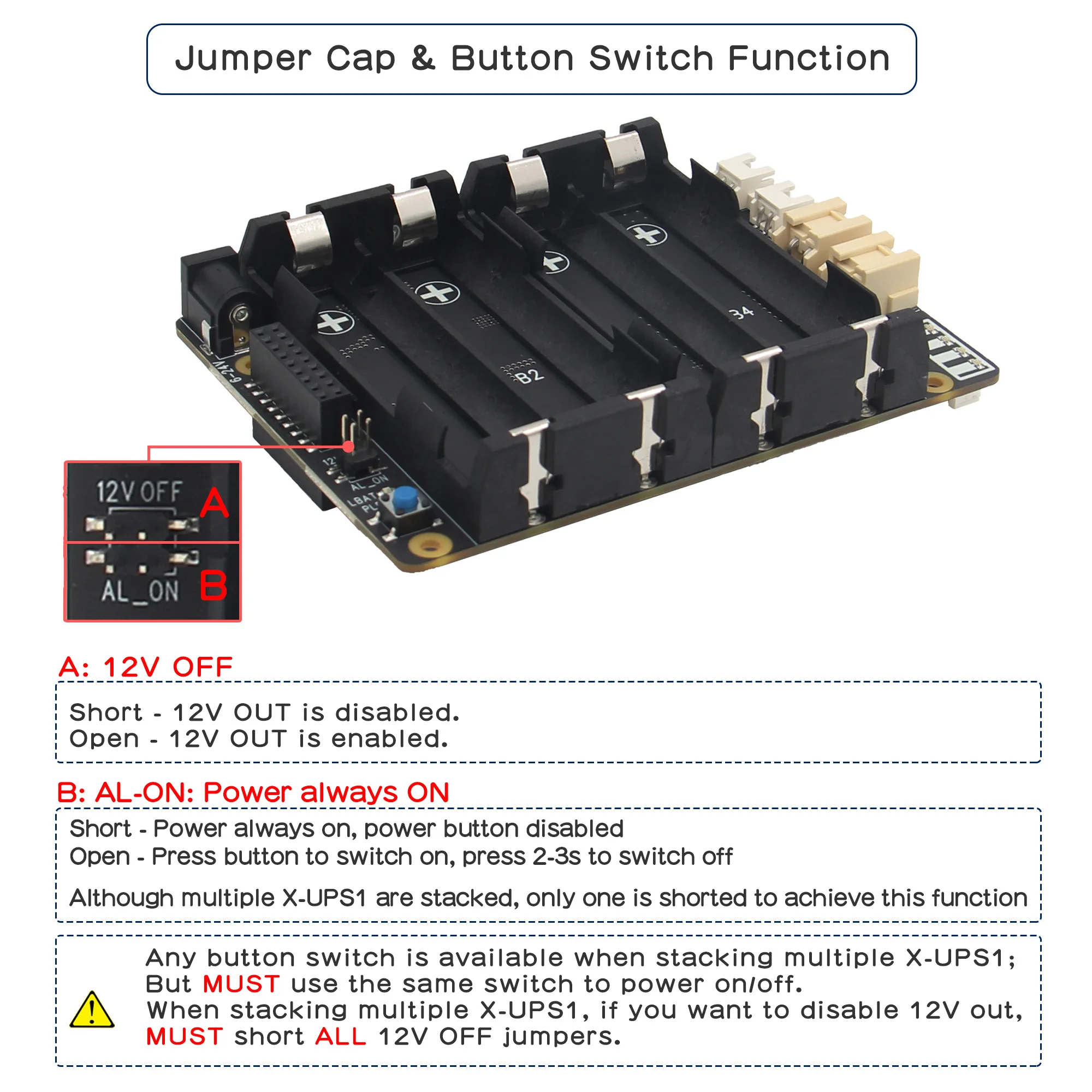

• Onboard push button to control power on /off (PressON, Hold the button pressed at least 3s OFF )

• Onboard LEDs shows the status of power output

• AC power loss or power adapter failure detection (LED and 3.3V level output)

• Jumper setting to enable Auto power on when power applied or restored

• Jumper setting to disable 12V output

• Ultralow standby power consumption to maximize battery life

• Advanced system powerpath management avoids batteries frequent charging and discharging

Misc

• Power output connectors : VH3.96 x2 (12V) / XH2.54 x2 (5V) / USB TypeA x2 (5V)

• PH2.0-4P for external power switch

• PH2.0-4P for low battery and AC power loss deteciton

[Specification]

• Power input (Single board) : 6-24Vdc ±5%, ≥3A

• UPS output voltage : 12Vdc ±5%, 5.1Vdc ±5%

• UPS output current (Single boards) : Max 3A

• UPS output current (Stackable boards) : 3A x No. of the boards

• UPS charging current (Single board) : 2.3~3.2A

• Terminal Battery Voltage : 4.24V

• Battery Recharge Threshold : 4.1V

• Battery low detection: ≤3V

Notes for stackable application:

• All power input are connected together via the 18-pin female header, input current is subject to the No. of boards.

• You can use one board to turn on/off all stackable boards. (be noted that which board you press the button to turn on, also must the same board to turn off.)

• If the jumper for auto power on is inserted on one board, then this funciton will be enabled for all stackable boards.

[Packing List]

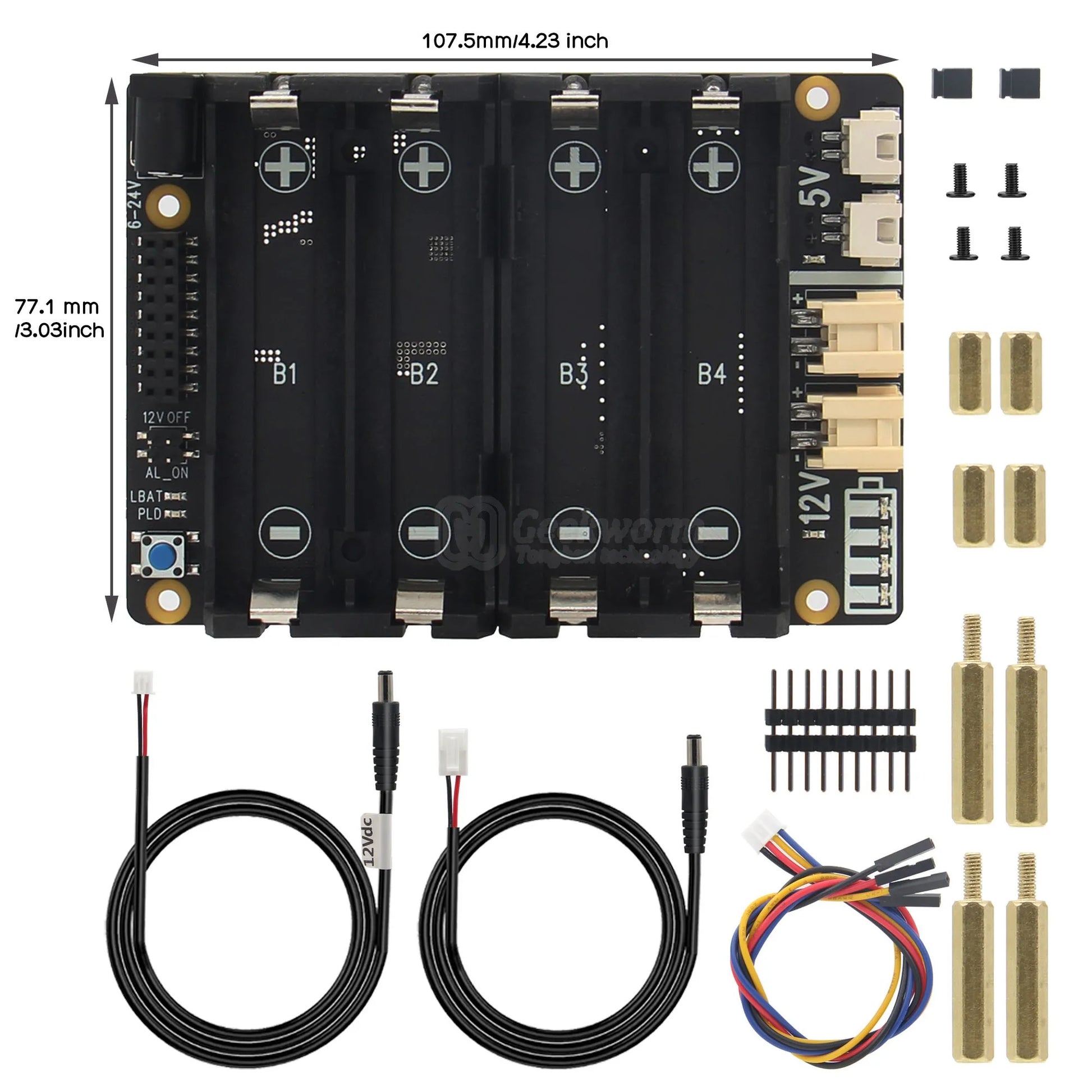

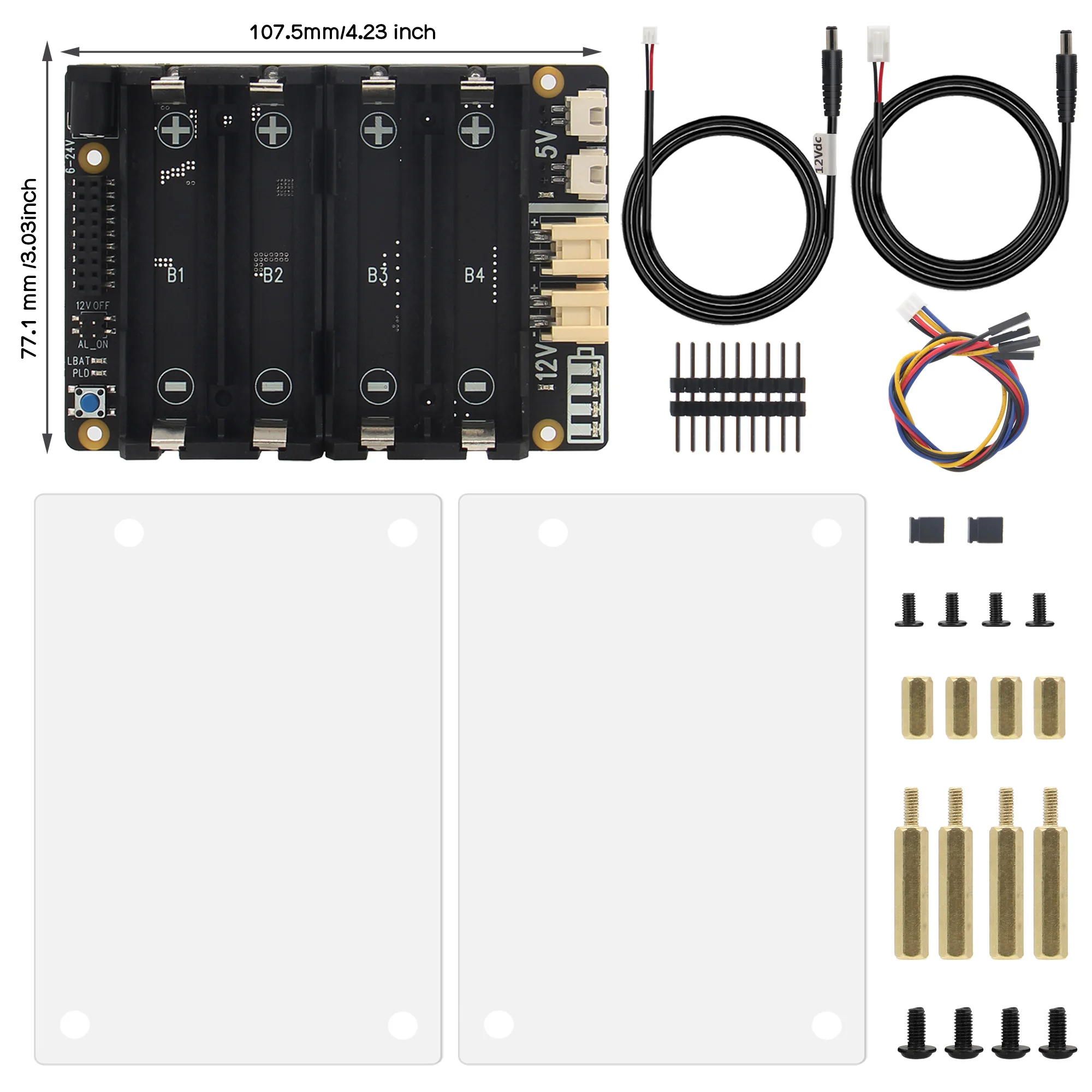

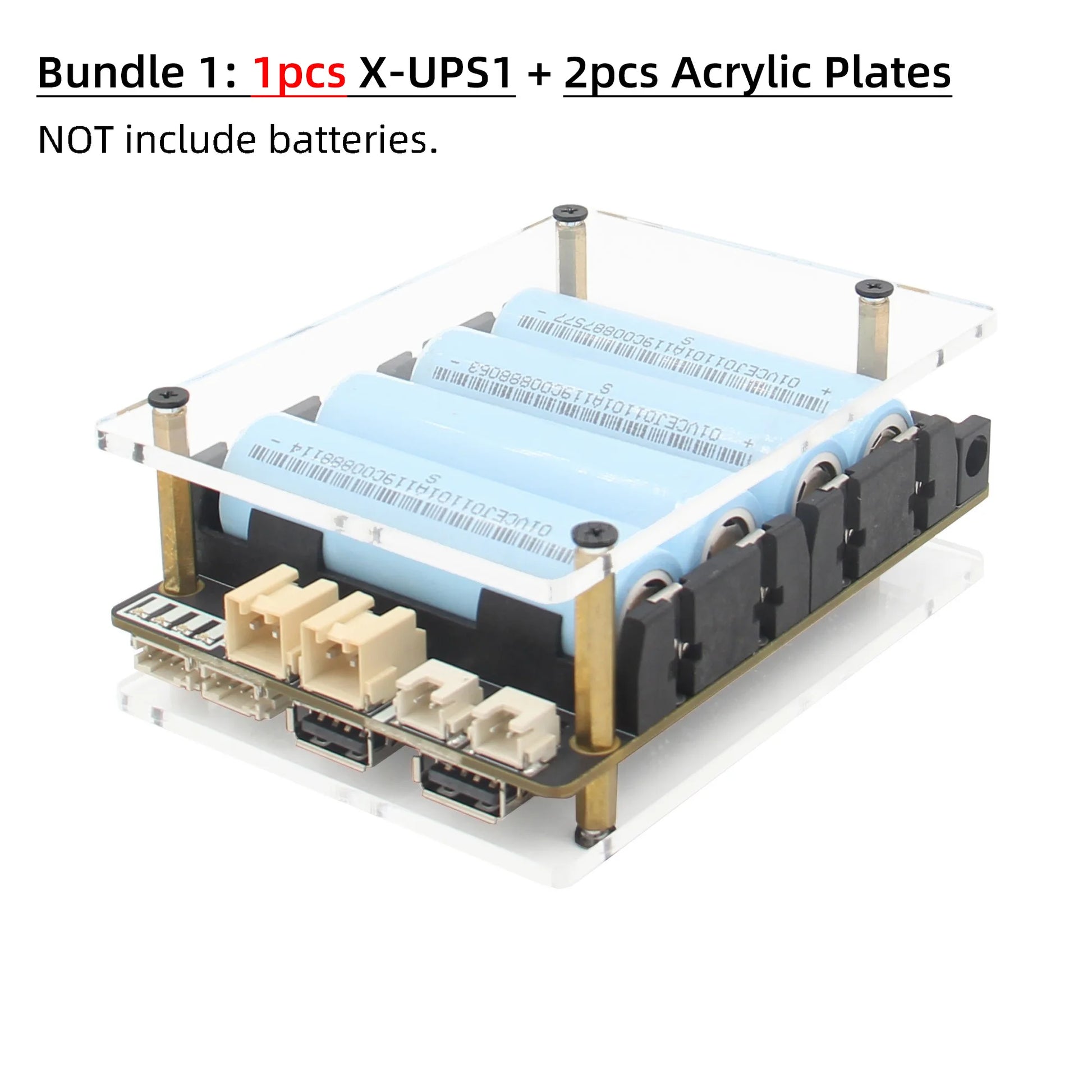

Bundle 1: 1pcs X-UPS1 + 2pcs Acrylic Plates

• 1 x X-UPS1 Expansion Board

• 1 x 4Pin PH2.0 to dupont cable (30cm length, this is a signal & 5V Output Cable)

• 1 x VH3.96 to DC5525 (50cm length, to 12V output)

• 1 x XH2.54 to DC5521(50cm length, to 5V output)

• 1 x GPIO Header

• 2 x Jumper link Pitch 2.54mm

• 4 x Spacer F/F M2.5x10mm

• 4 x Spacer M/F M2.5x25+6mm

• 4 x Screw M2.5 x 5mm

• 2 x Acrylic Plates

• 4 x Screw CM2.5*6mm

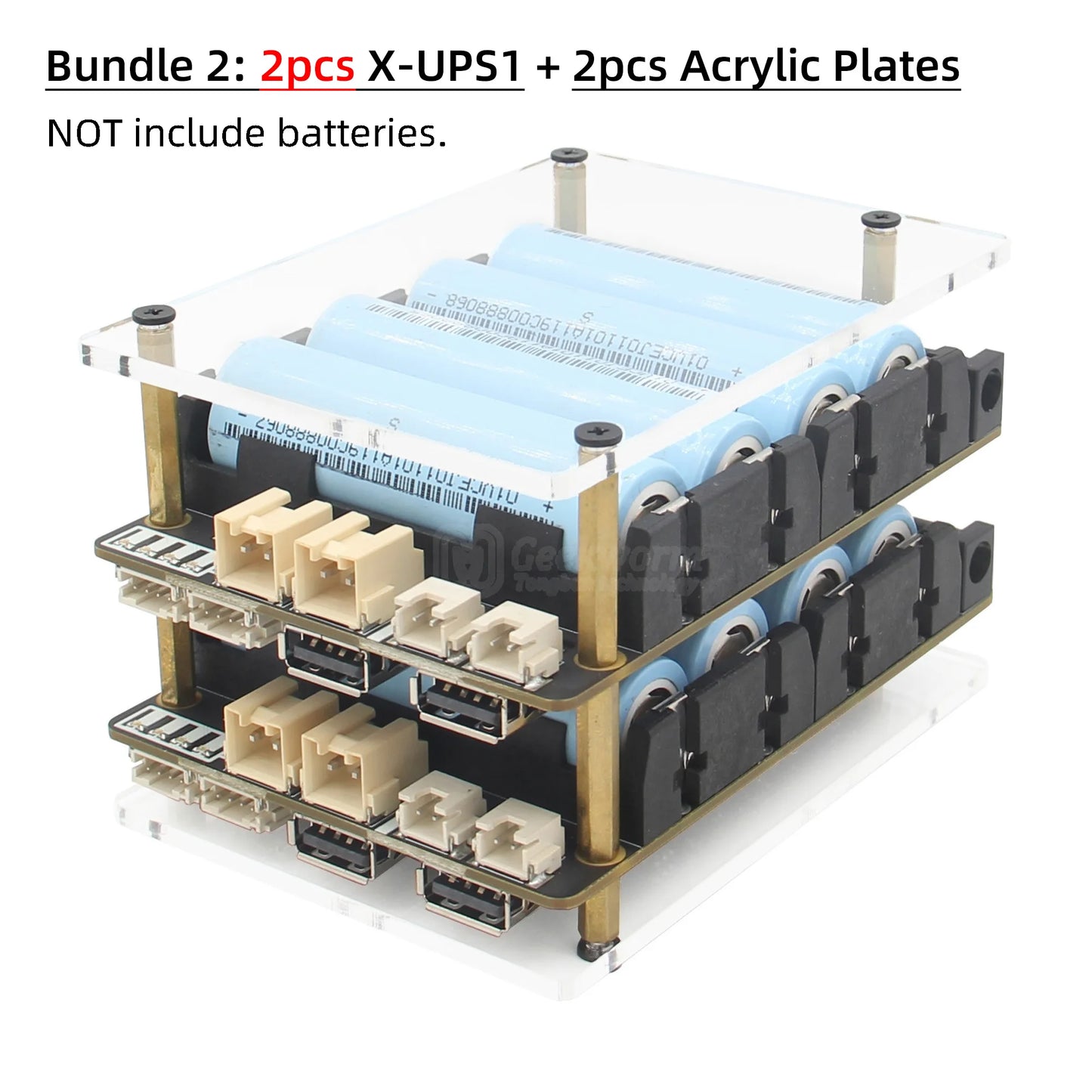

Bundle 2: 2pcs X-UPS1 + 2pcs Acrylic Plates

• 1 x X-UPS1 Expansion Board - x2

• 1 x PH2.0 Cable- x2

• 1 x VH3.96 to 12V DC5525 - x2

• 1 x XH2.54 to 5V DC5521 - x2

• 1 x GPIO Header - x2

• 2 x Jumper link Pitch 2.54mm - x2

• 4 x Spacer F/F M2.5x10mm - x2

• 4 x Spacer M/F M2.5x25+6mm - x2

• 4 x Screw M2.5 x 5mm - x2

• 2 x Acrylic Plates

• 4 x Screw CM2.5*6mm

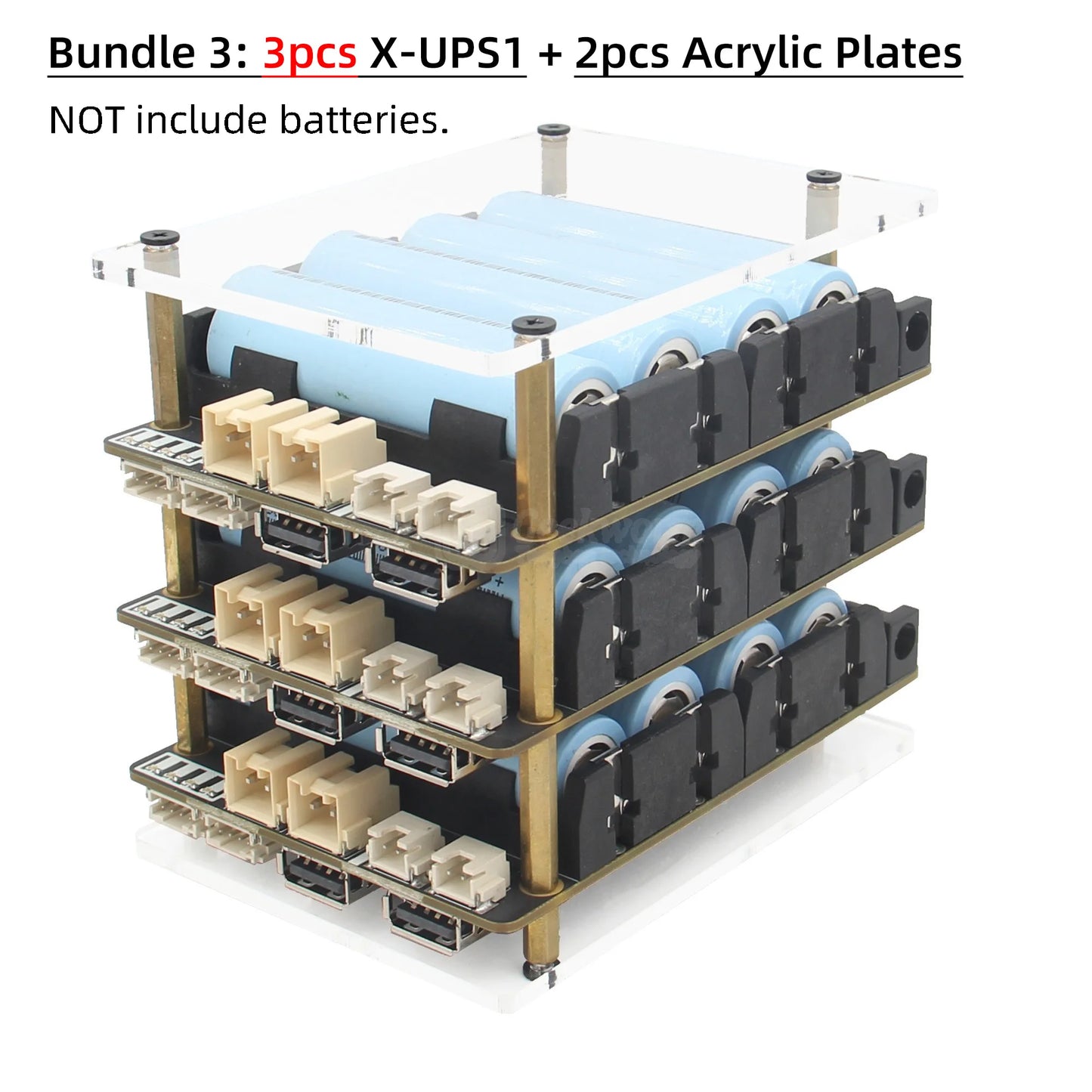

Bundle 3: 3pcs X-UPS1 + 2pcs Acrylic Plates

• 1 x X-UPS1 Expansion Board - x3

• 1 x PH2.0 Cable- x3

• 1 x VH3.96 to 12V DC5525 - x3

• 1 x XH2.54 to 5V DC5521 - x3

• 1 x GPIO Header - x3

• 2 x Jumper link Pitch 2.54mm - x3

• 4 x Spacer F/F M2.5x10mm - x3

• 4 x Spacer M/F M2.5x25+6mm - x3

• 4 x Screw M2.5 x 5mm - x3

• 2 x Acrylic Plates

• 4 x Screw CM2.5*6mm

1 Layer Packing List:
