Custom With antenna RFM95 RFM96 RFM98 433/868/915mhz LoRa module SX1276 SX1278 wireless transceiver module Sub-GHz module Lora
Custom With antenna RFM95 RFM96 RFM98 433/868/915mhz LoRa module SX1276 SX1278 wireless transceiver module Sub-GHz module Lora
Regular price
$2.26 USD
Regular price
$8.26 USD
Sale price
$2.26 USD
Unit price
per
Couldn't load pickup availability

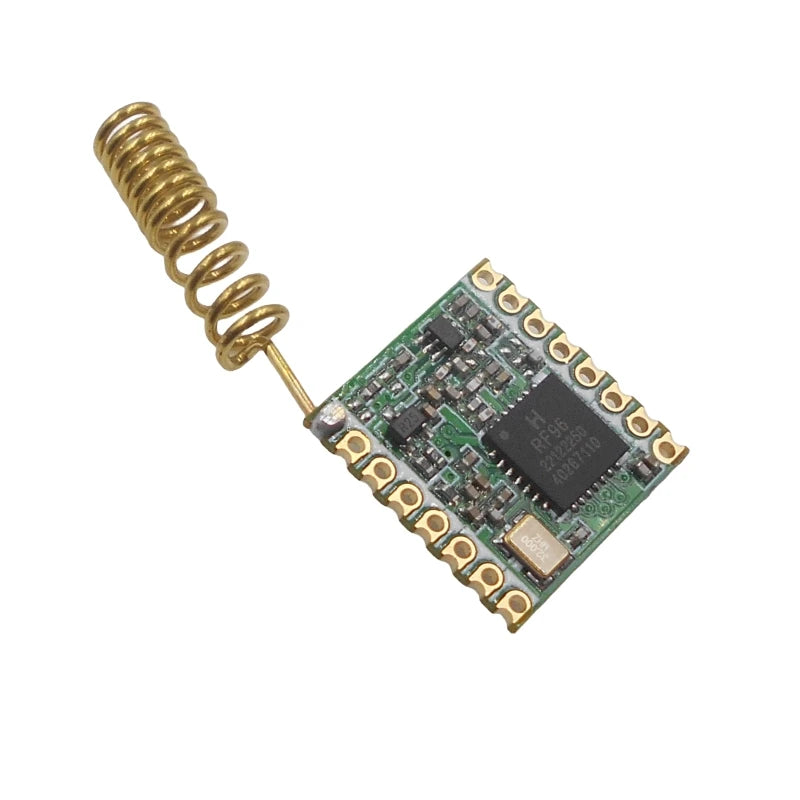

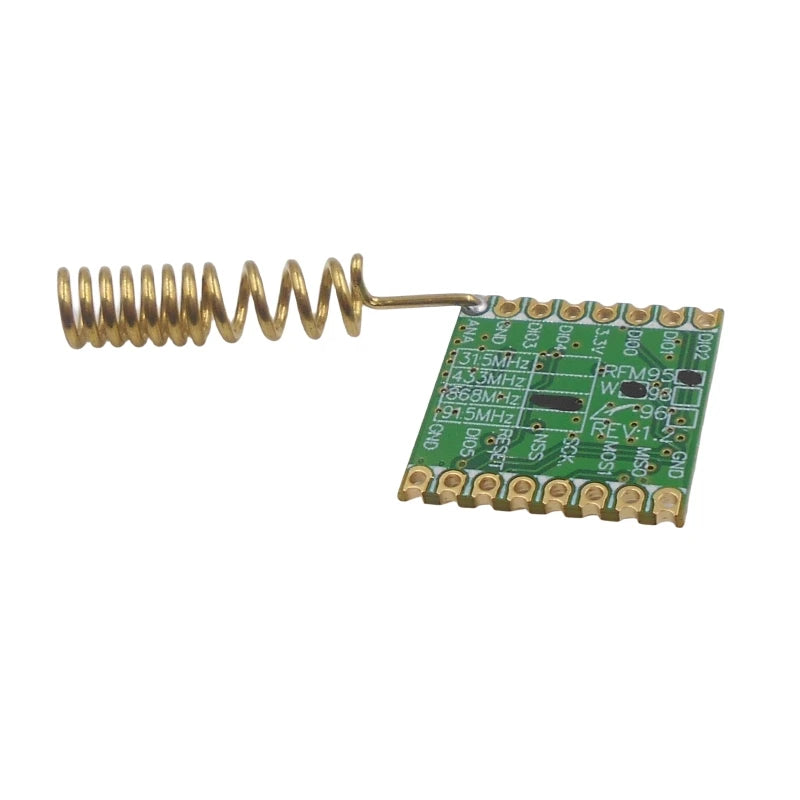

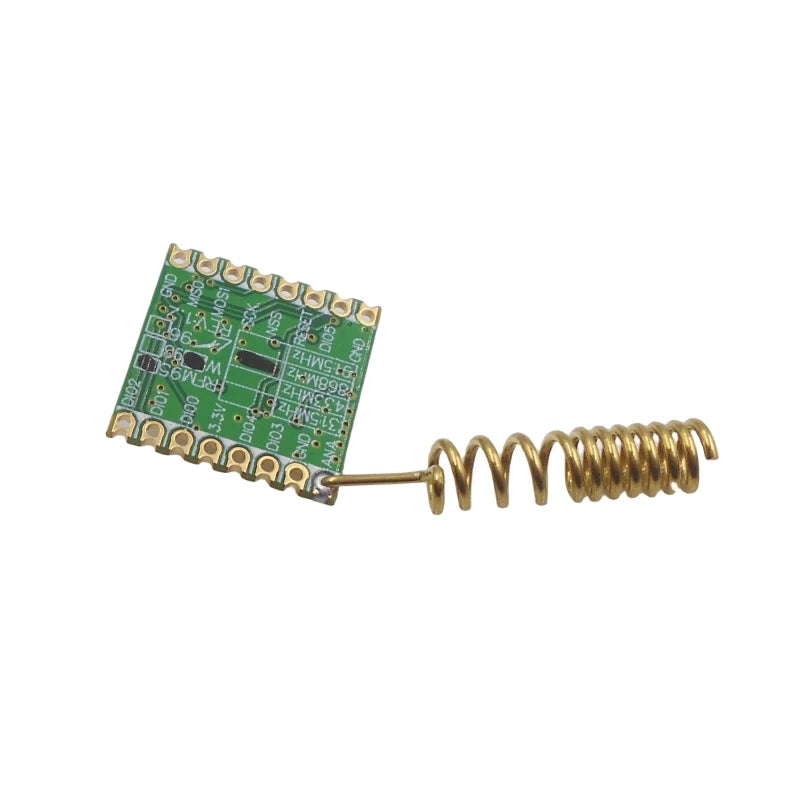

Welded spring antenna
RFM96W 433MHZ USE SX1276 MAIN CHIPS .
RFM95W 868MHZ AND RFM95W 915MHZ USE SX1276 MAIN CHIPS .
Special statement:
The RFM95 module uses RFM96 chip, and the picture is a physical map.
Do not accept the submission of disputes and bad reviews because the chip is RFM96, hereby declare.

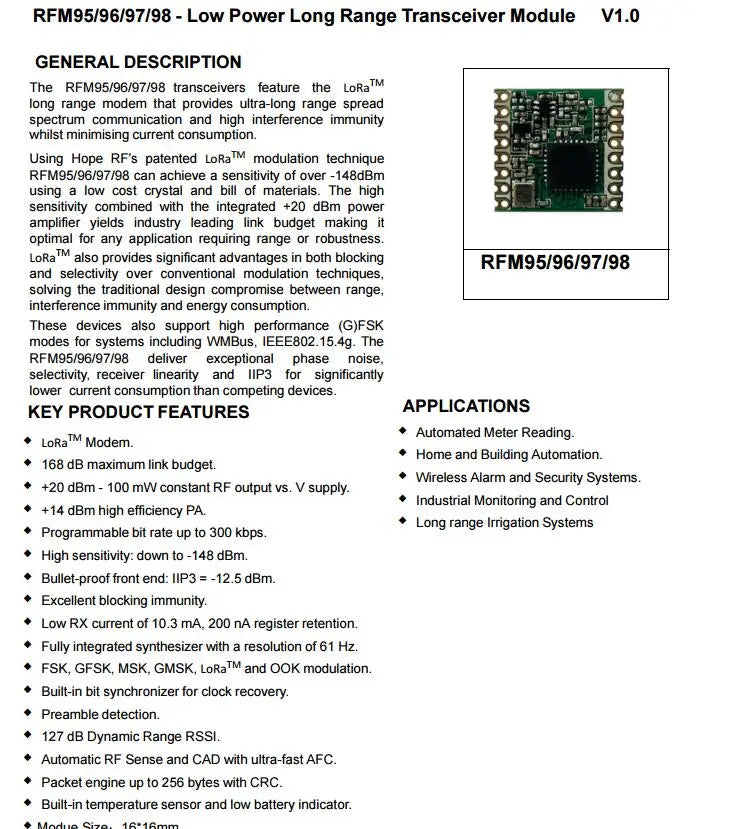

RFM95 | RFM95 wireless transceiver module | LoRa spread spectrum communication | 868MHz | 915MHz | SX1276 | 16 * 16mm |8000m
Low power Long Range wireless transceiver module
working frequency:868/915MHZ
Modulation mode:LoRA/FSK/GFSK/00K
Transmit power:20dBm
Receiving sensitivity:-148dBm(AT)FSK
0.018K~37.5Kbps(AT)LoRa
Transmission rate:200Kbps
emission current:120mA(AT)20dBm
receiving current:10.3mA
standby current:0.2uA
data interface:SPI interface
communication distance:>8000m (AT)LoRa
antenna resistance:50 Ohm
operation temperature:-20 ~ 70 °C
power:DC 1.8V ~ 3.7V
size:16*16mm
