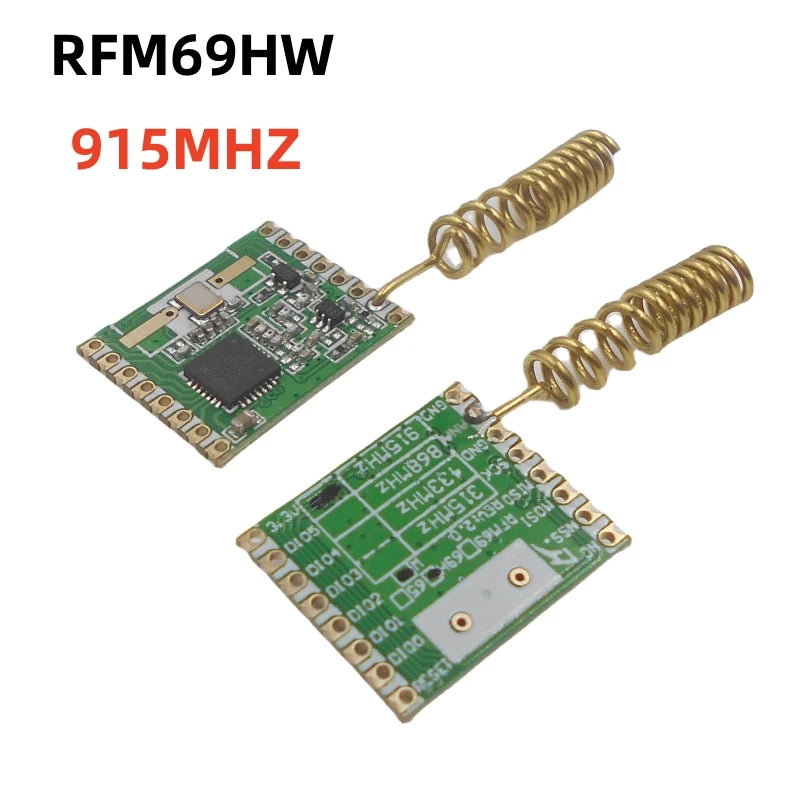

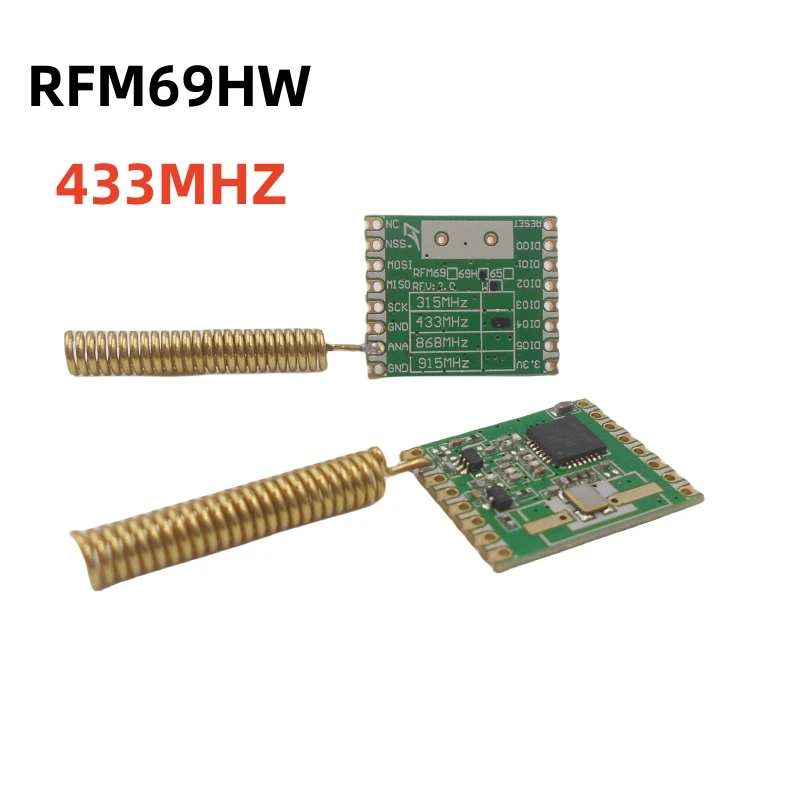

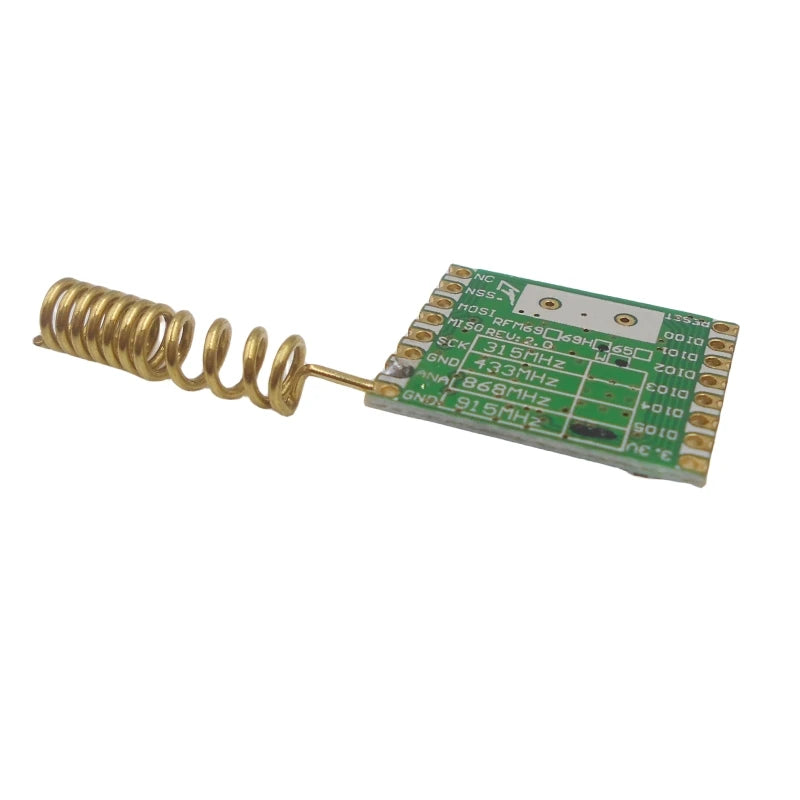

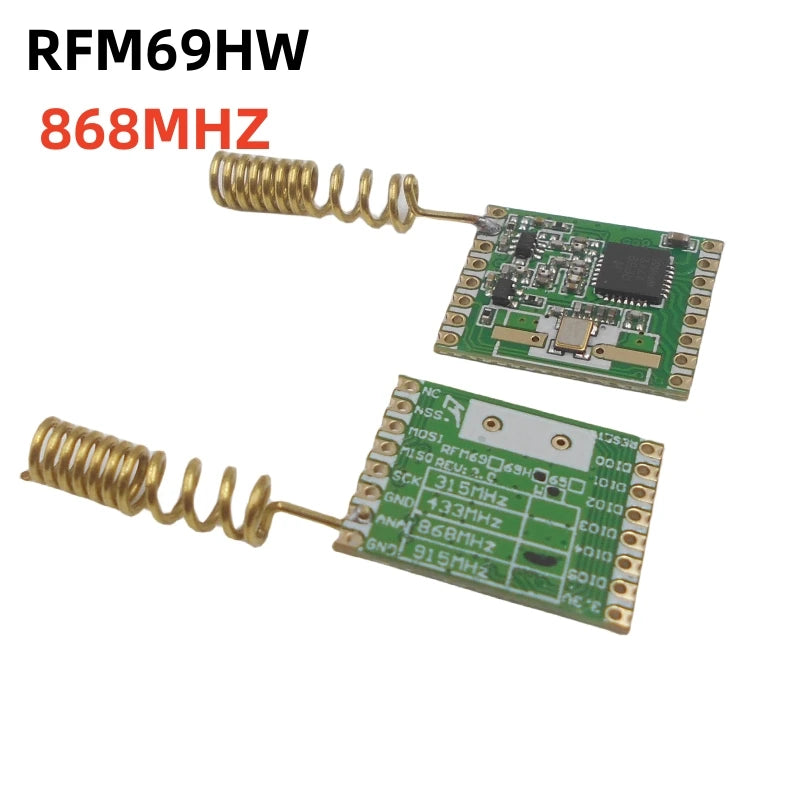

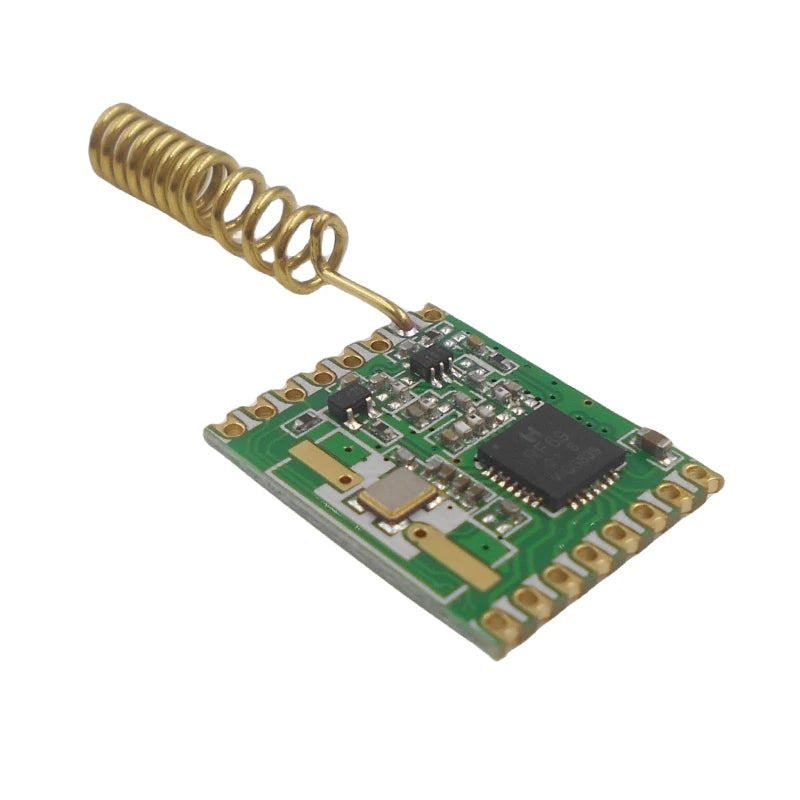

Custom With antenna RFM69HW 433/868/915mhz FSK transceiver module 20dBm SX1231

Product Description:

RFM69H series of wireless communication module, is designed for work in / 433/868 / 915MHz ISM global free application band design of low-power, high-bandwidth wireless digital communication module.

The series of modules with low cost, small size, stable work, product consistency and good features, the maximum space rate up to 300Kbps, can be widely used in daily life and activities need wireless connection occasions, can also be used for industrial control, Attendance, monitoring and security and other industries. RFM69H series of wireless communication module according to whether with the MCU, whether to add power amplification, data interface and packaging, etc. are divided into a variety of models to choose from, with the series within the various models of modules can communicate with each other, all models of advanced product design, the Excellent technical indicators, in line with FCC / CE standard parameter requirements, to meet customer certification needs.

RFM69H type is not with MCU, the transmission power of 20dBm below the wireless communication module.

main application:

· Medical equipment and remote control

· Logistics tracking, warehouse inspection, electronic tags and so on

Consumer electronics applications

Low power remote sensing survey

Wireless sensor network applications

The same time as

Basic parameters:

Operating frequency: 315/433/868 / 915MHz

Modulation: FSK / OOK

Transmit power: 20dBm

Receiving Sensitivity: -120dBm (1.2kb / s in ook)

Transmission rate: 300Kbps

Emission current: 120mA

Received current: 16mA

Standby current: <0.1uA

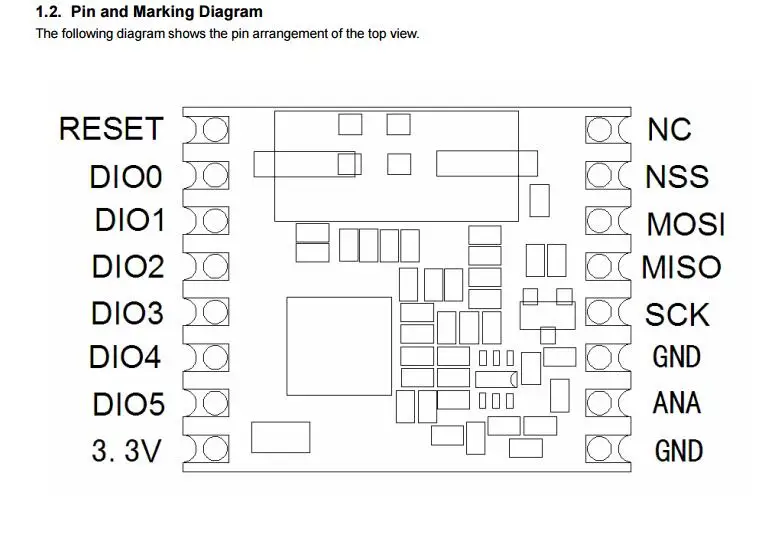

Data interface: SPI interface

Communication distance: 0-800 meters (1.2kb / s rate, visual distance)

Antenna impedance: 50Ω

Operating temperature: -40-85 ° C

Power supply: DC 1.8V ~ 3.6V

Size: 20x16.mm
