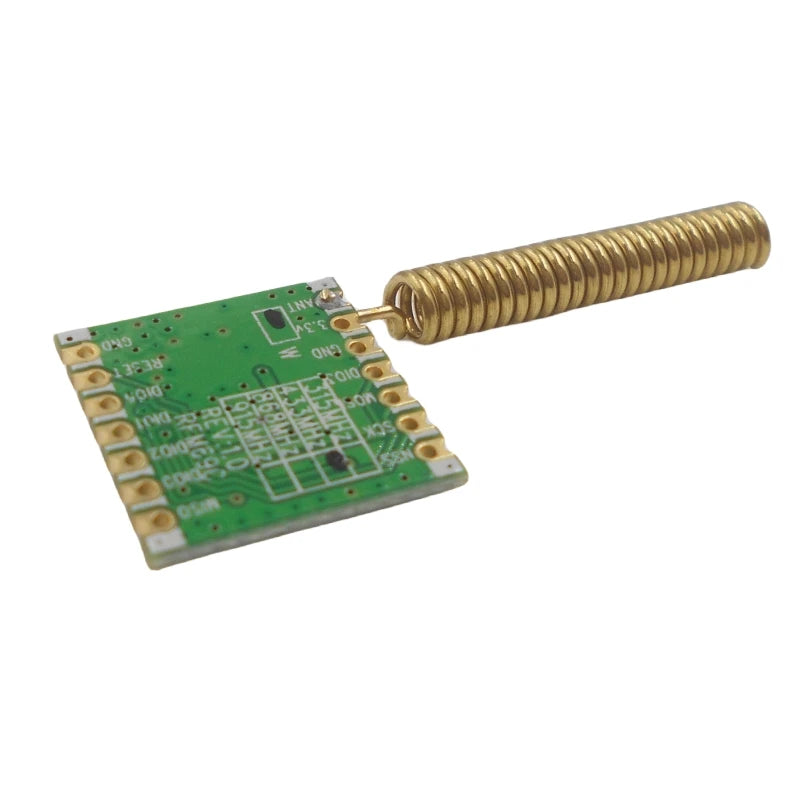

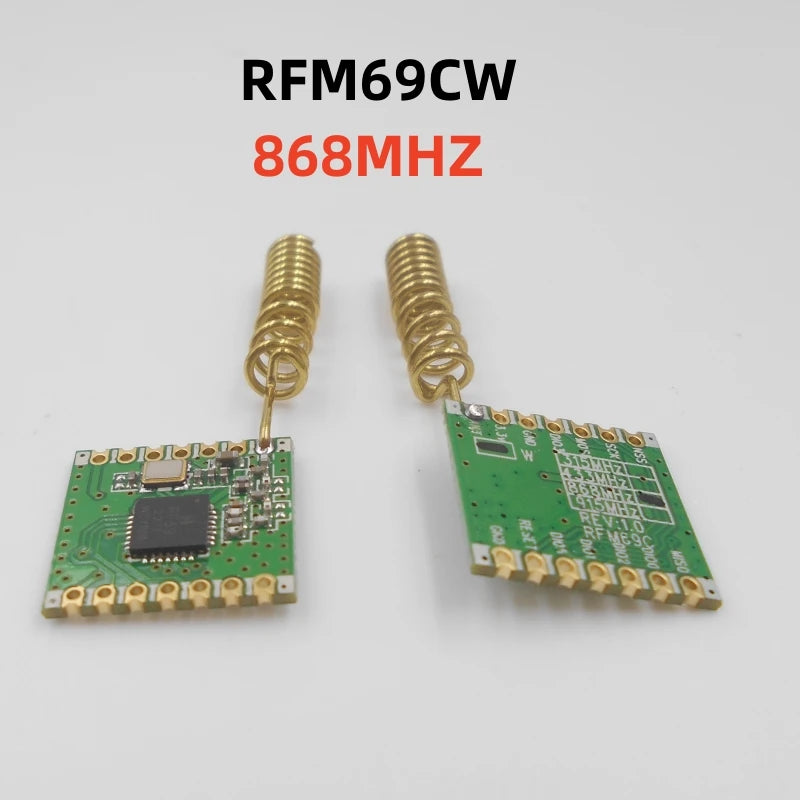

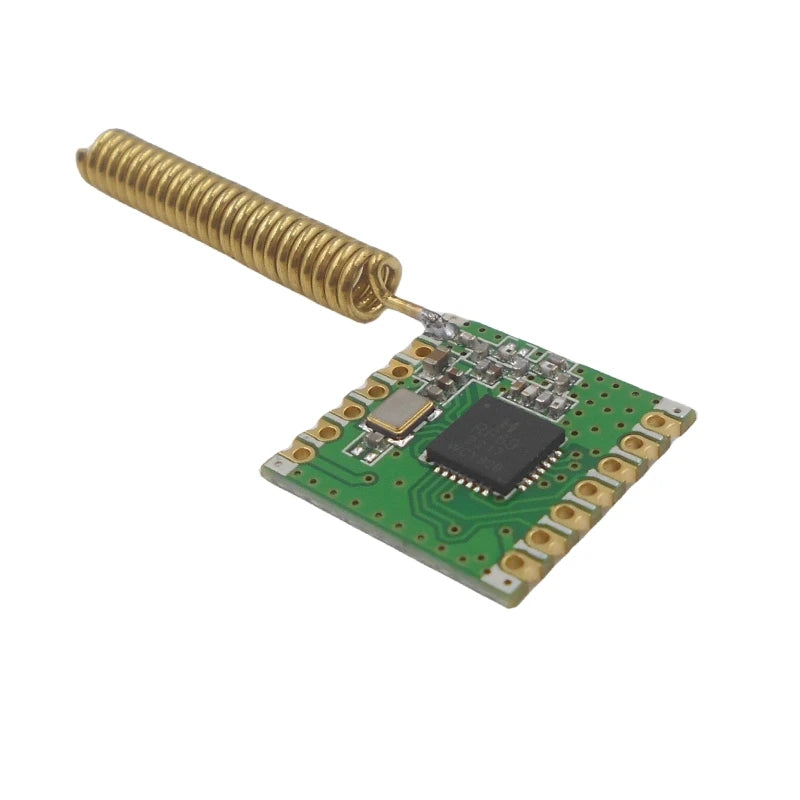

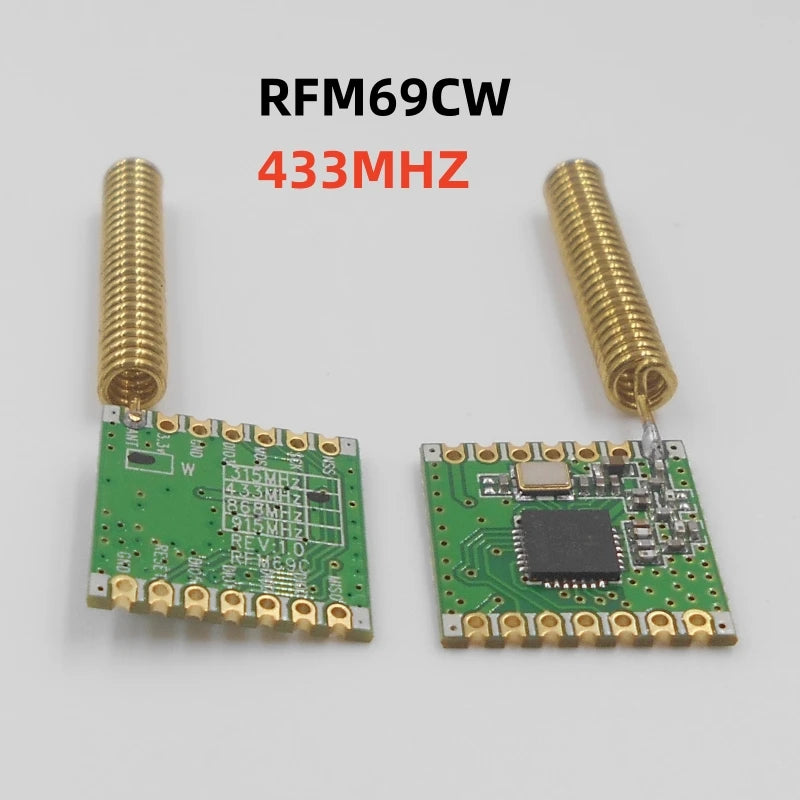

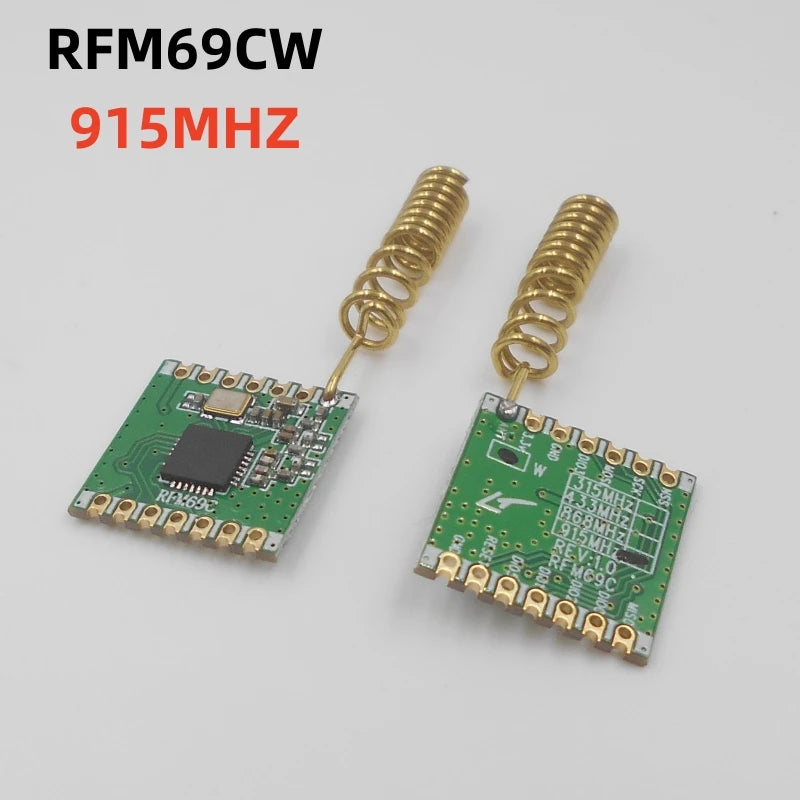

Custom With antenna RFM69CW 433/868/915mhz FSK Wireless Transceiver Module SX1231 13DB SPI 16*16mm
Custom With antenna RFM69CW 433/868/915mhz FSK Wireless Transceiver Module SX1231 13DB SPI 16*16mm
Regular price
$1.56 USD
Regular price
$7.56 USD
Sale price
$1.56 USD
Unit price
per
Couldn't load pickup availability
Basic parameters:
● Maximum + 13dBm - Transmit transmit power
● High sensitivity: -120 dBm @ 1.2 kbps
● High sensitivity: 16 FIR channel filters
● Suppression front end: IIP3 = -18 dBm, IIP2 = +35 dBm, 80 dB block immunity, no mirror frequency response
● Low current: 16 mA when receiving status, 100 nA when register is saved
● Adjustable power range: -18 ~ + 13dBm / 1dB step
● The RF performance is stable in the module voltage range
● FSK rate up to 300 kb / s
● Highly integrated frequency synthesizer with a resolution of 61 Hz
● FSK, GFSK, MSK, GMSK and OOK demodulation
● built-in potentiometer, can achieve Clock Recovery
● Automatic identification of synchronization words
● 115 dB + dynamic range RSSI
● Ultra-fast AFC, automatic RF detection should be
● Supports CRC, AES-128 encryption and 66 byte FIFO
● Built-in temperature sensor
● Module size: 16 * 16mm
main application:
● Remote wireless meter reading
● Wireless sensor network
● home and building automation
● Wireless alarm and security system
● Industrial monitoring
● Wireless M-BUS
