Custom WIFI+Bluetooth two in one module USB interface

Product Introduction

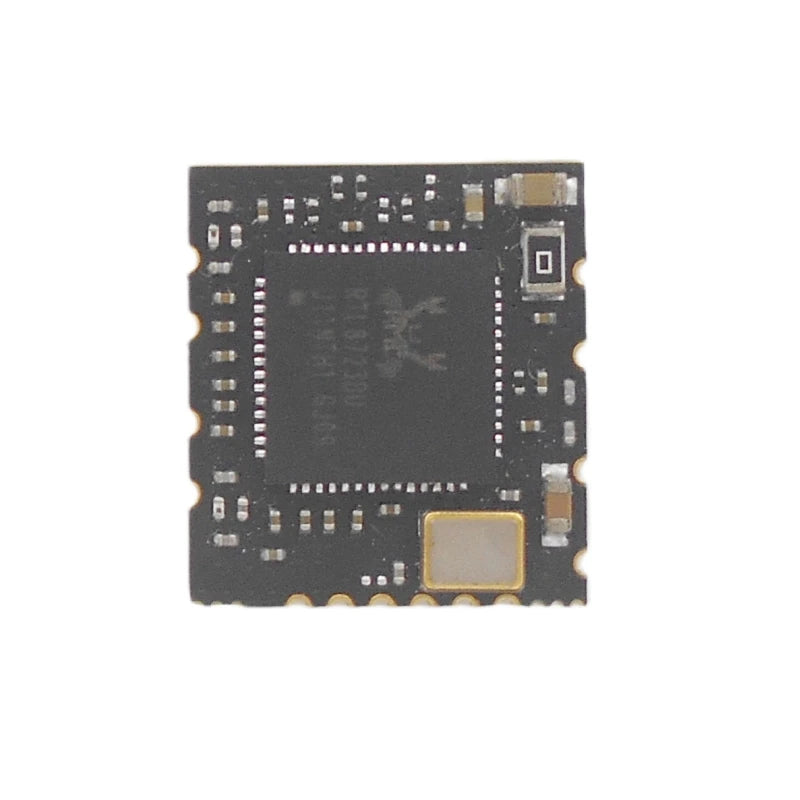

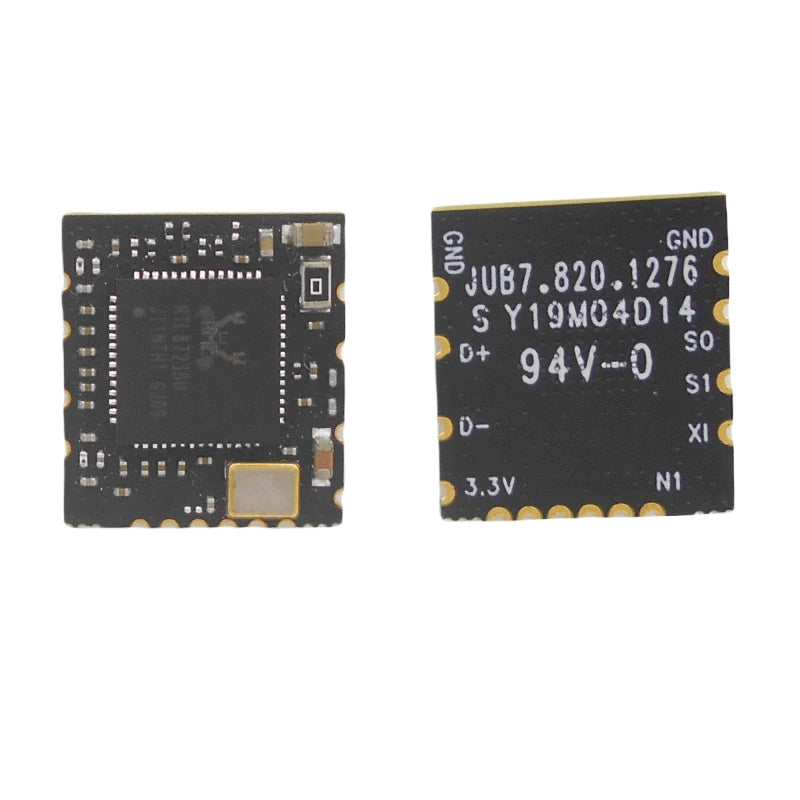

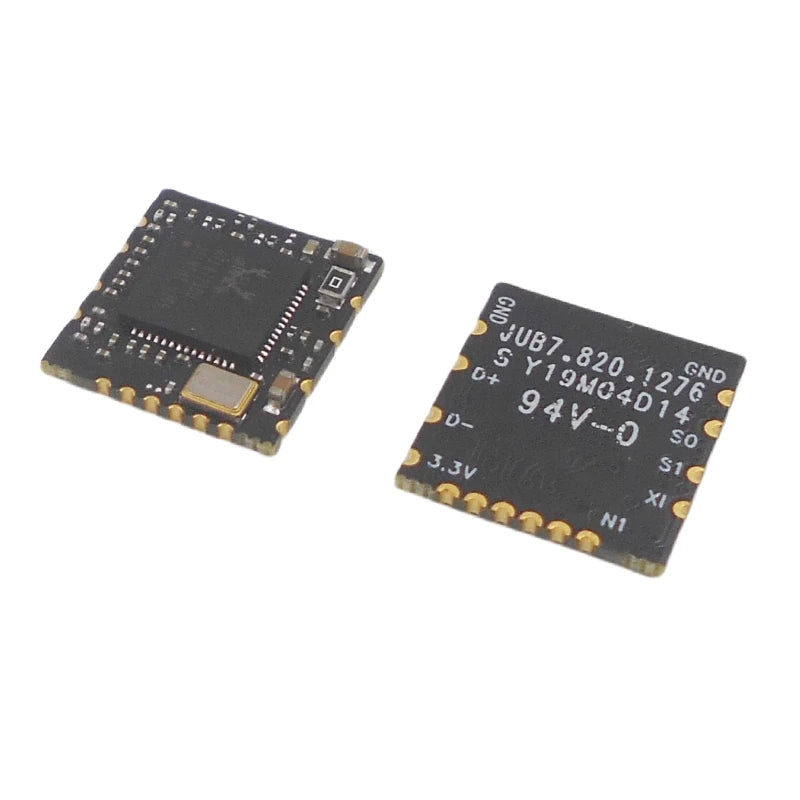

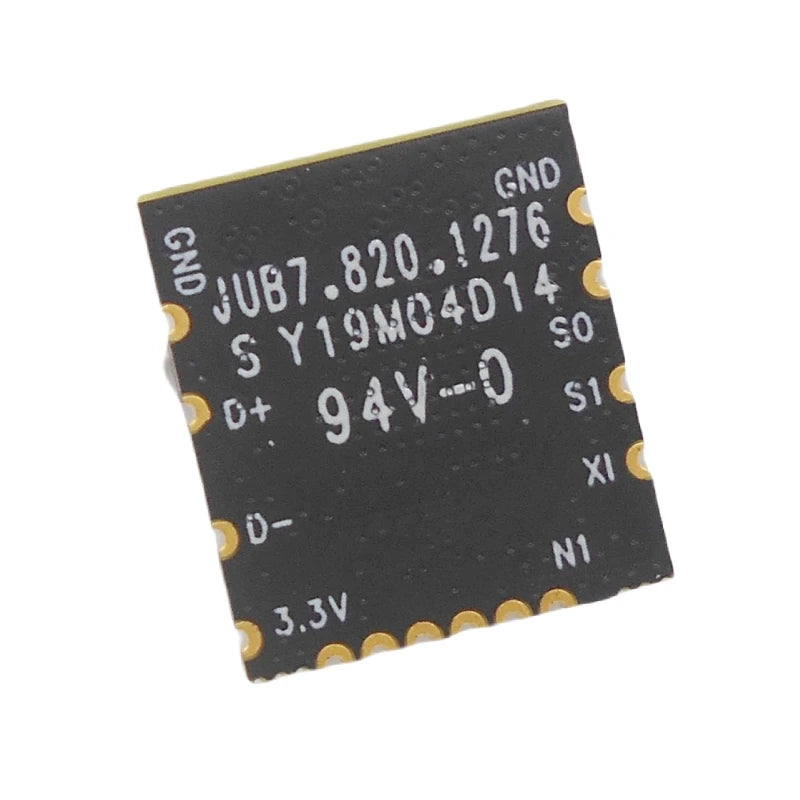

Product features: It is a small-sized WiFi module packaged in LGA. It adopts the Realtek 8723BU chip design, complies with the IEEE 802.11b/g/n standard, operates in 2.4G mode, supports Bluetooth EDR/3.0/4.0, and is backward compatible with v2.1. This module is currently commonly used in consumer electronics products such as set-top boxes, POS machines, and PADs that use WiFi+BT, and is one of the high-performance wireless module choices

• Product Features

Supports IEEE 802.11b/g/n protocol

WIFI 1T1R n mode with a transmission rate of up to 150 Mbps

2.4GHz supports 20/40MHz

USB interface supporting WLAN and Bluetooth

Supports Bluetooth V2.1+EDR/3.0/3.0+HS/BLE 4.0

main parameter

Interface type: USB

Transmission rate: 150Mbps

Antenna: External

benefit

Working frequency: 2.4GHz

Size: 12.9x12.19x1.60mm

Chip model: RTL8723BU

Wireless standard: 802.11b/g/n

Safety regulations: ROHS REACH

Working voltage: 3.3V

Supported systems: Android/Linux

RF antenna: 1T1R

Storage temperature: -40 ° C to 80 ° C
