Lonten Tech

Custom WIFI 2.4G 3dbi PCB Antenna IPX IPEX WLAN Laptop Blueth Zigbee Wireless Module SIM900 SIM800L SIM868 SIM800H SIM800C Manufacturer

Custom WIFI 2.4G 3dbi PCB Antenna IPX IPEX WLAN Laptop Blueth Zigbee Wireless Module SIM900 SIM800L SIM868 SIM800H SIM800C Manufacturer

Regular price $6.00 USD
Regular price $6.00 USD Sale price $6.00 USD
Sale Sold out

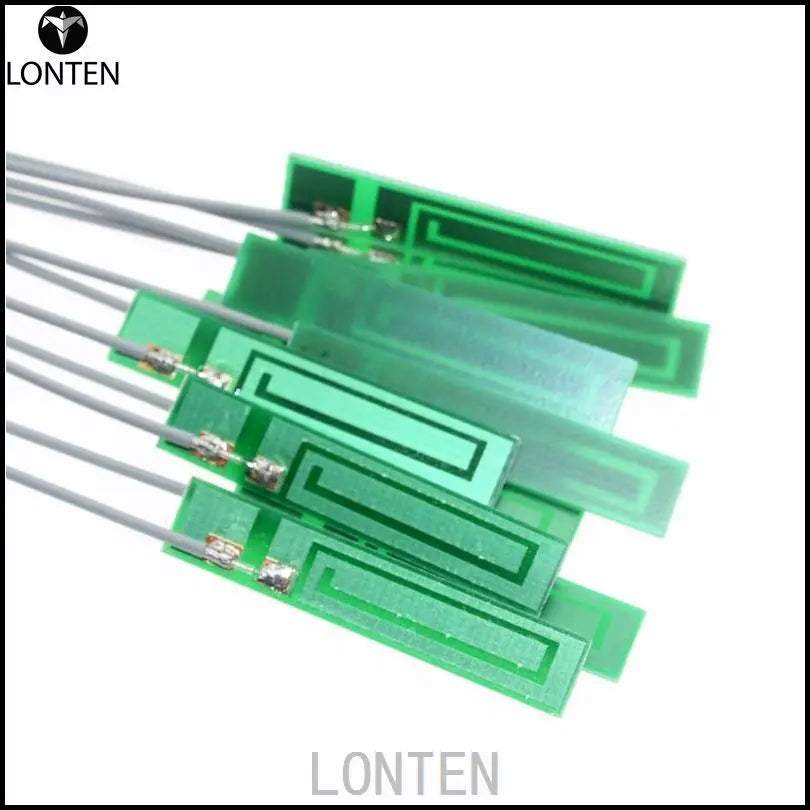

 WIFI 2.4G 3dbi PCB Antenna IPX IPEX WLAN Laptop Bluetooth Zigbee Wireless Module SIM900 SIM800L SIM908 SIM800C

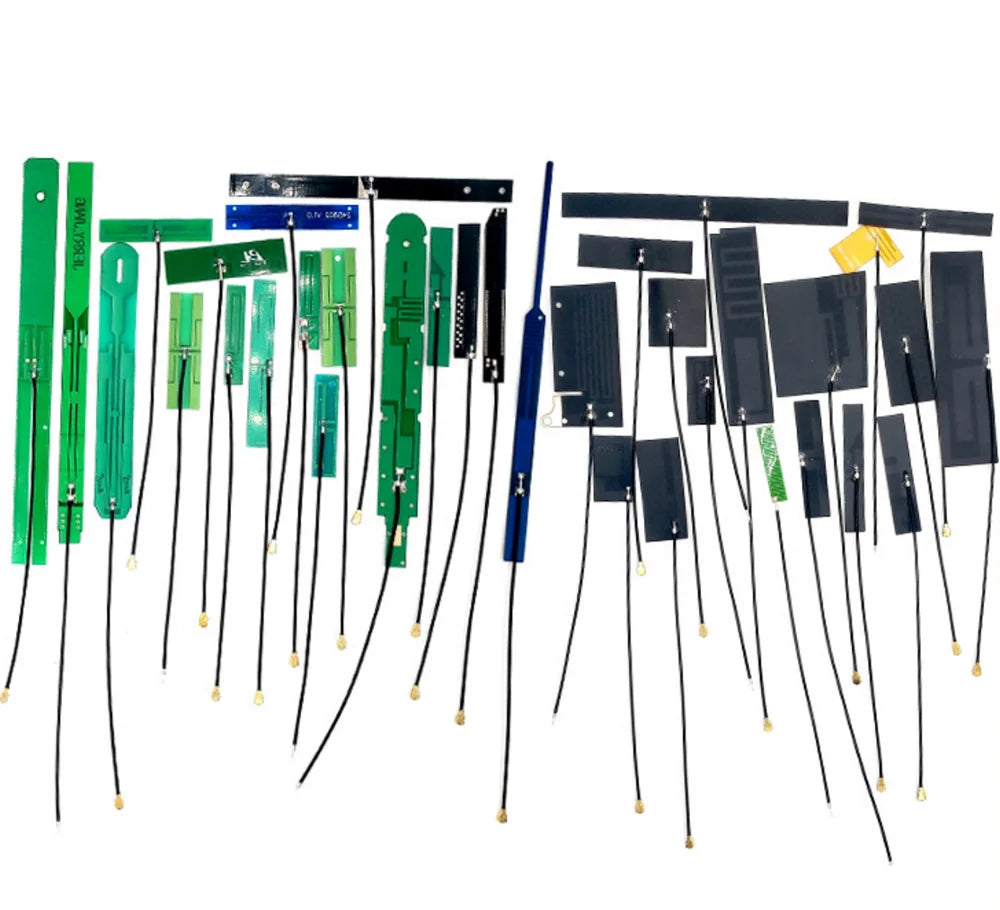

Note: We host antennas with different parameters. Welcome to consult, thank you!



Product Parameter Description

Product Name: GSM antenna circuit board built-in antenna the 1.13 line girdling type

Frequency 824-960/1710-1990/2010-2170MHz

Frequency Range:824-960 / 1710-1990/2010-2170MHZ

S.W.R. <= 2.0

VSWR: Less than or equal to 2.0

Antenna Gain 3.0

Impedance 50 Ohm

Block Resistance: 50

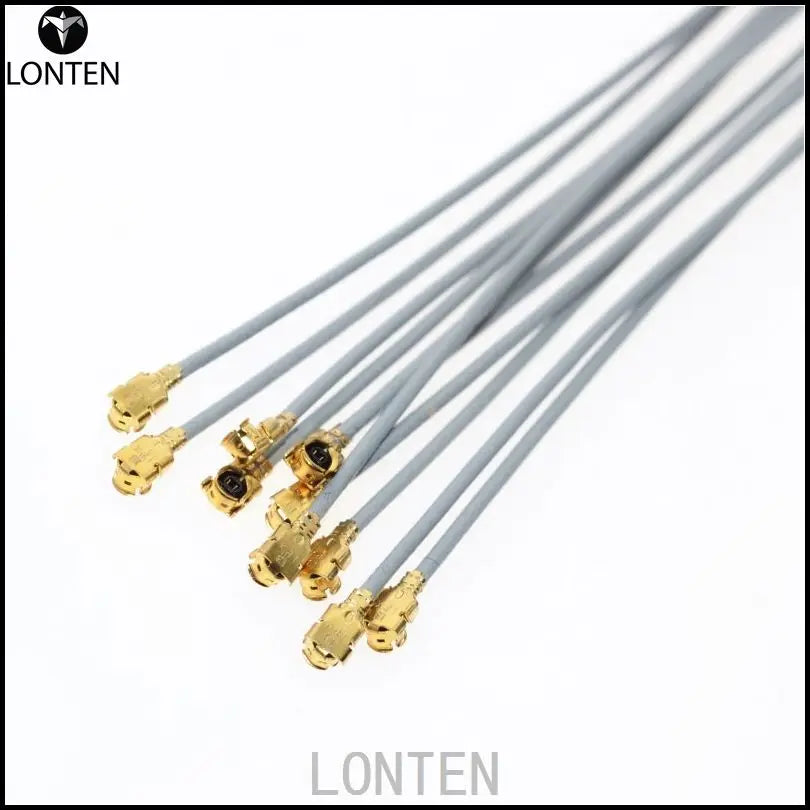

Cable Type O.D. 1.13 mm

The outside diameter of the cable model and diameter: RG1.13 line, line 1.13MM

Operation Temperature - 40 C ~ + 65 C

Storage Temperature - 40 C ~ + 80 C

Other specifications:

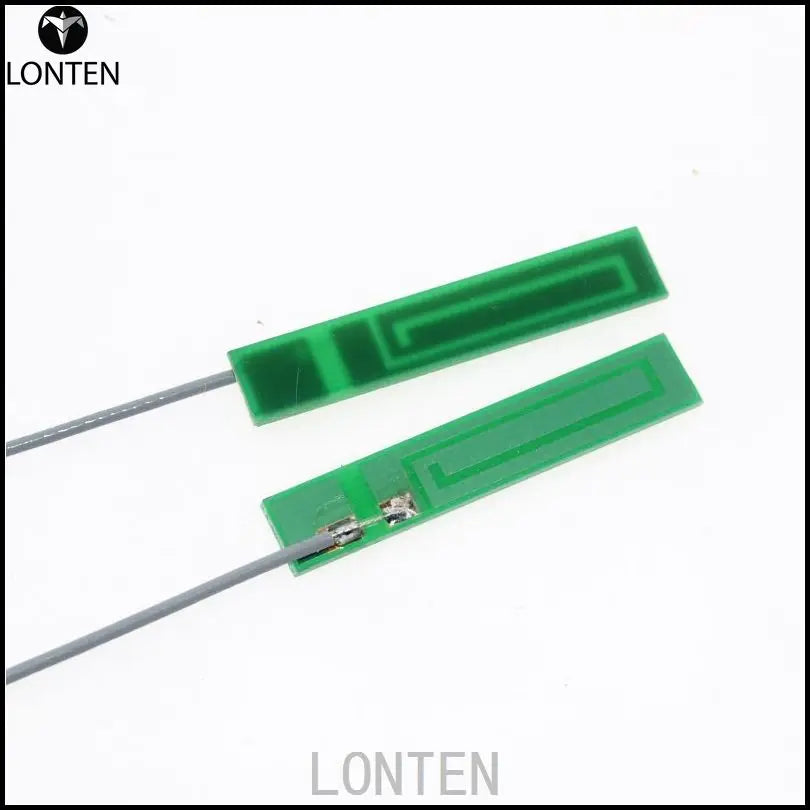

Board size: 35.00MM * 5.70MM * 0.70MM

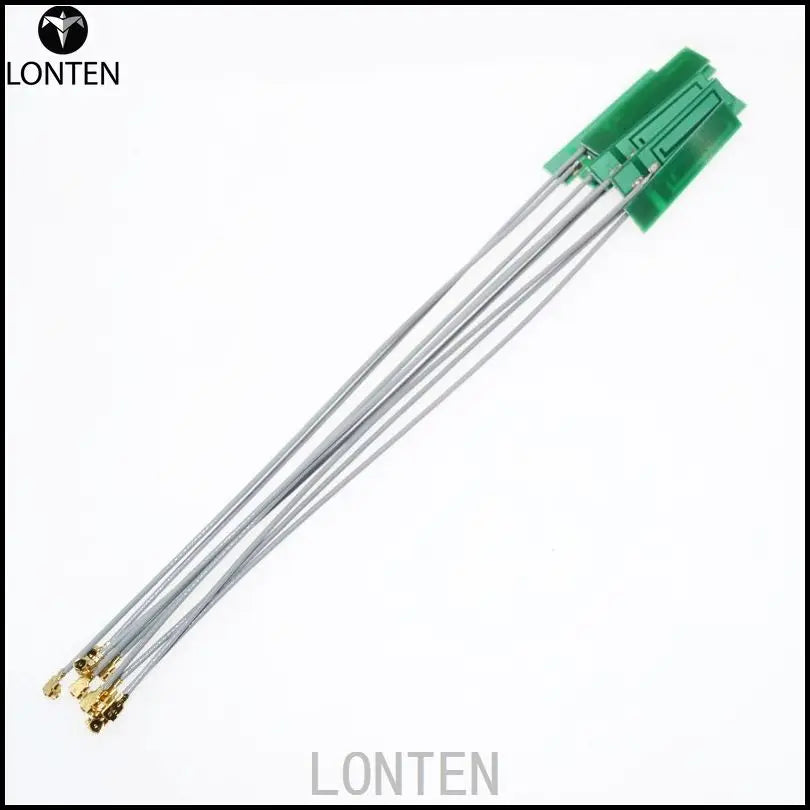

Cable length: default 100MM (custom length you need, in addition to the length of the board about 9.5CM prevail Contact)

Total length of the antenna: Default 13CM (can be customized to the length you need, select the cable length is related)

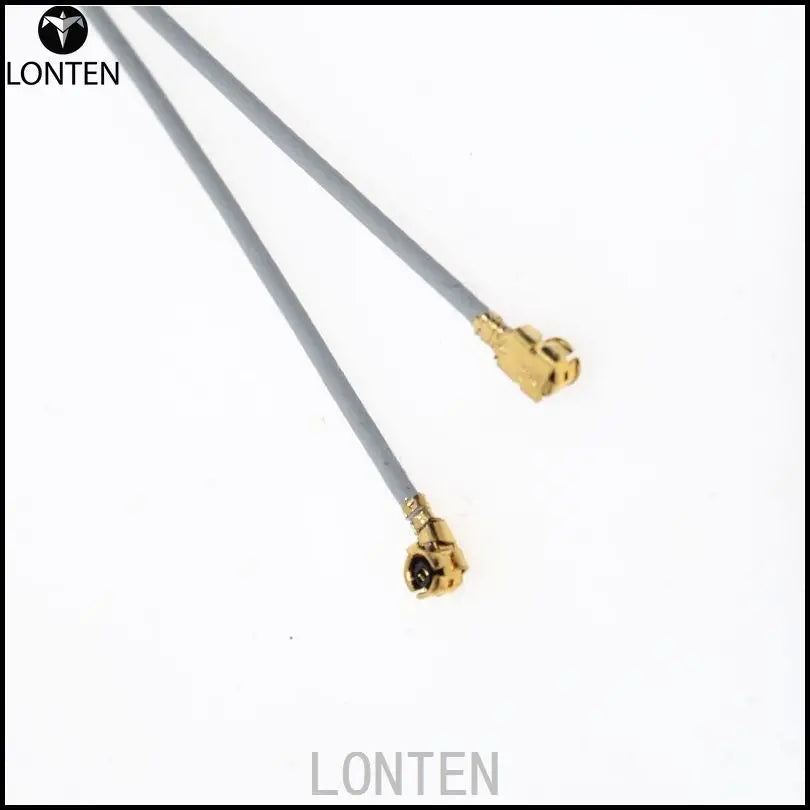

Interface Type:Girdling (directly welded plate used), the other end is welded directly to the circuit board, FIG prevail

For bifurcation (V) type, please contact Remarks



list:

3dbi PCB Antenna *1pcs












 Welcome Customize Order!
