Logic Analyzer V1 / Mini DLA

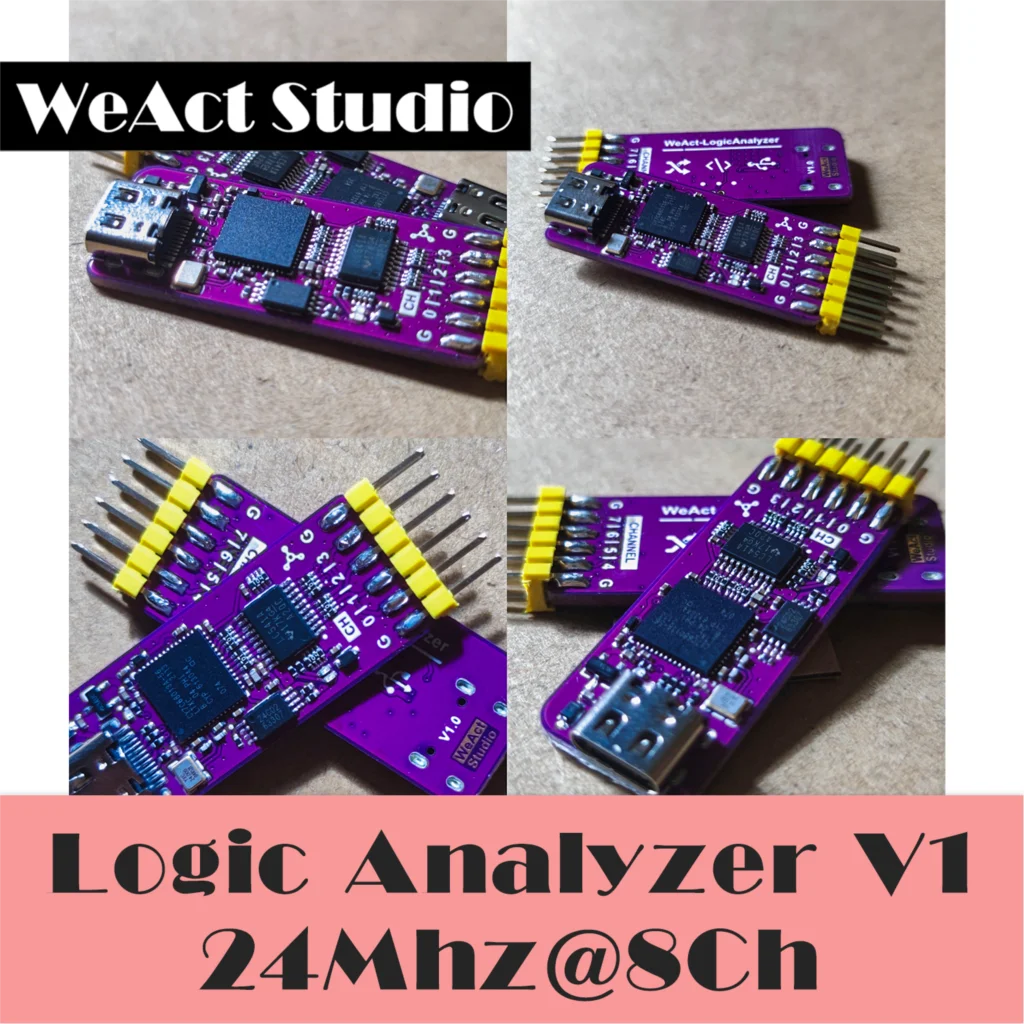

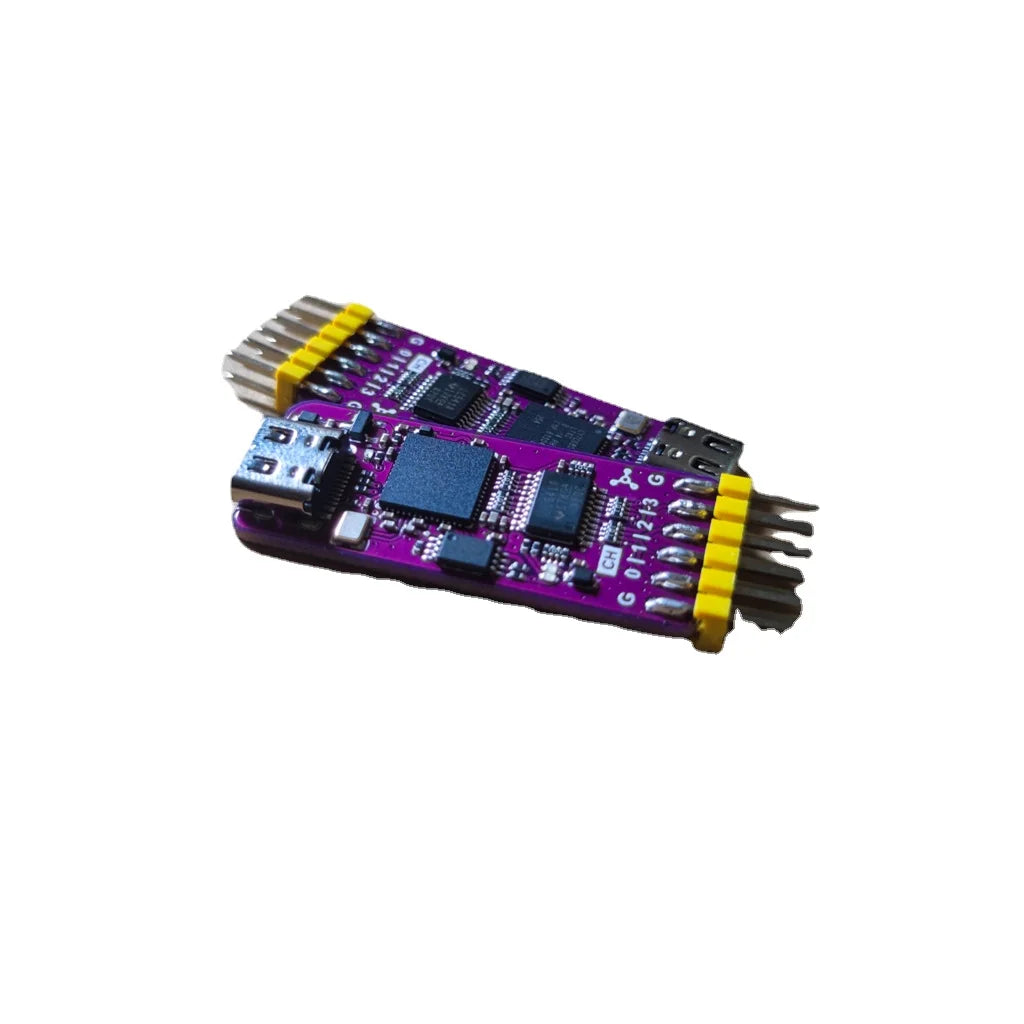

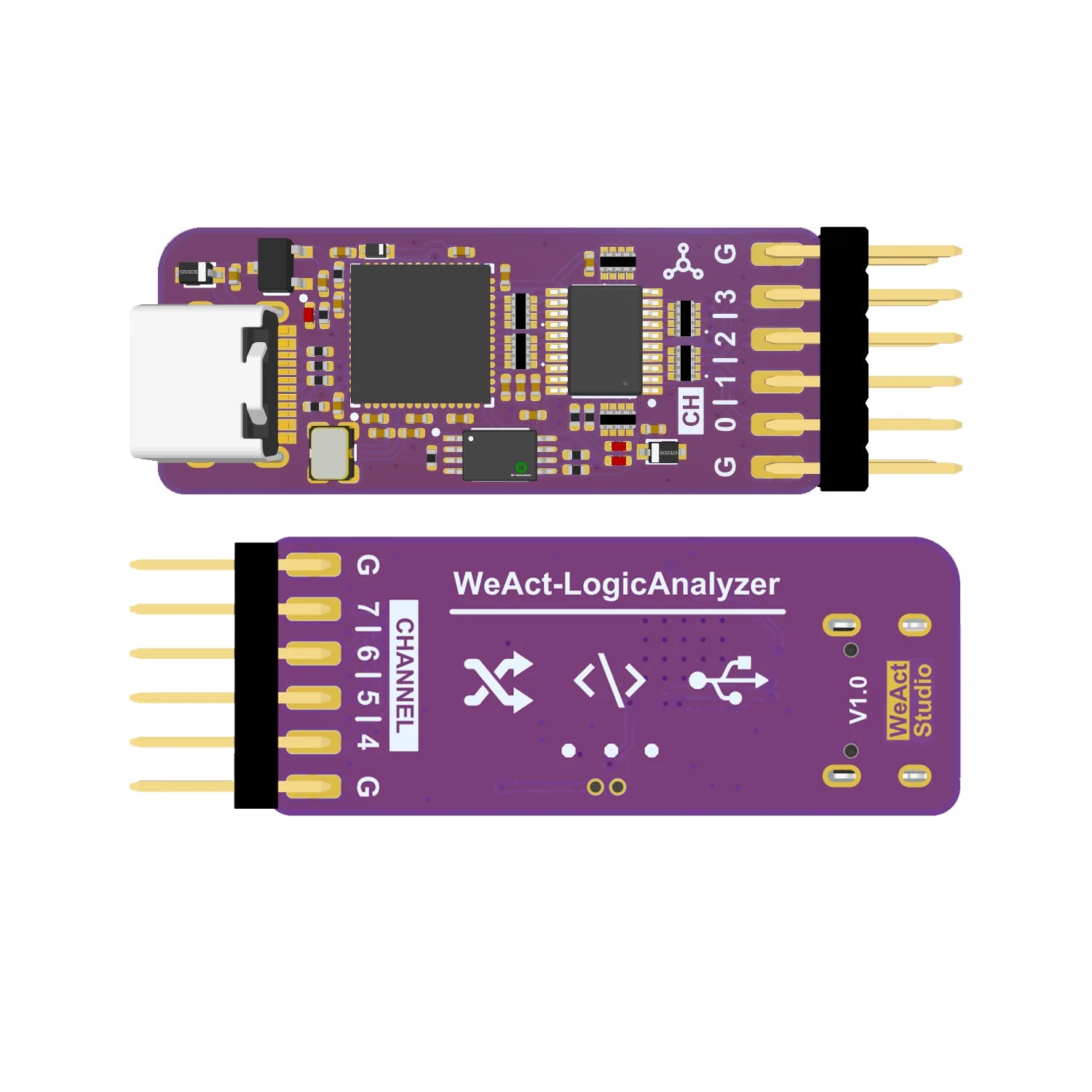

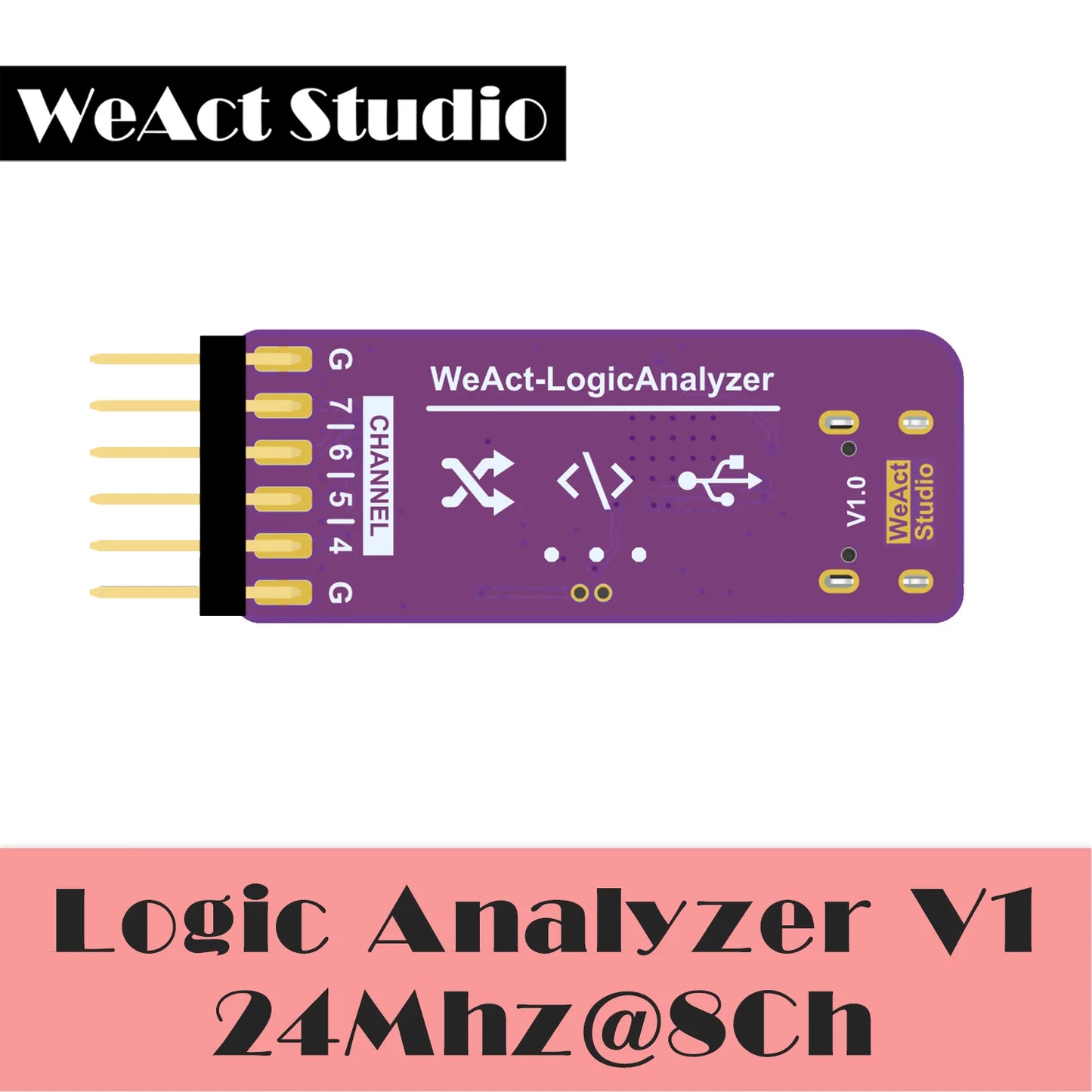

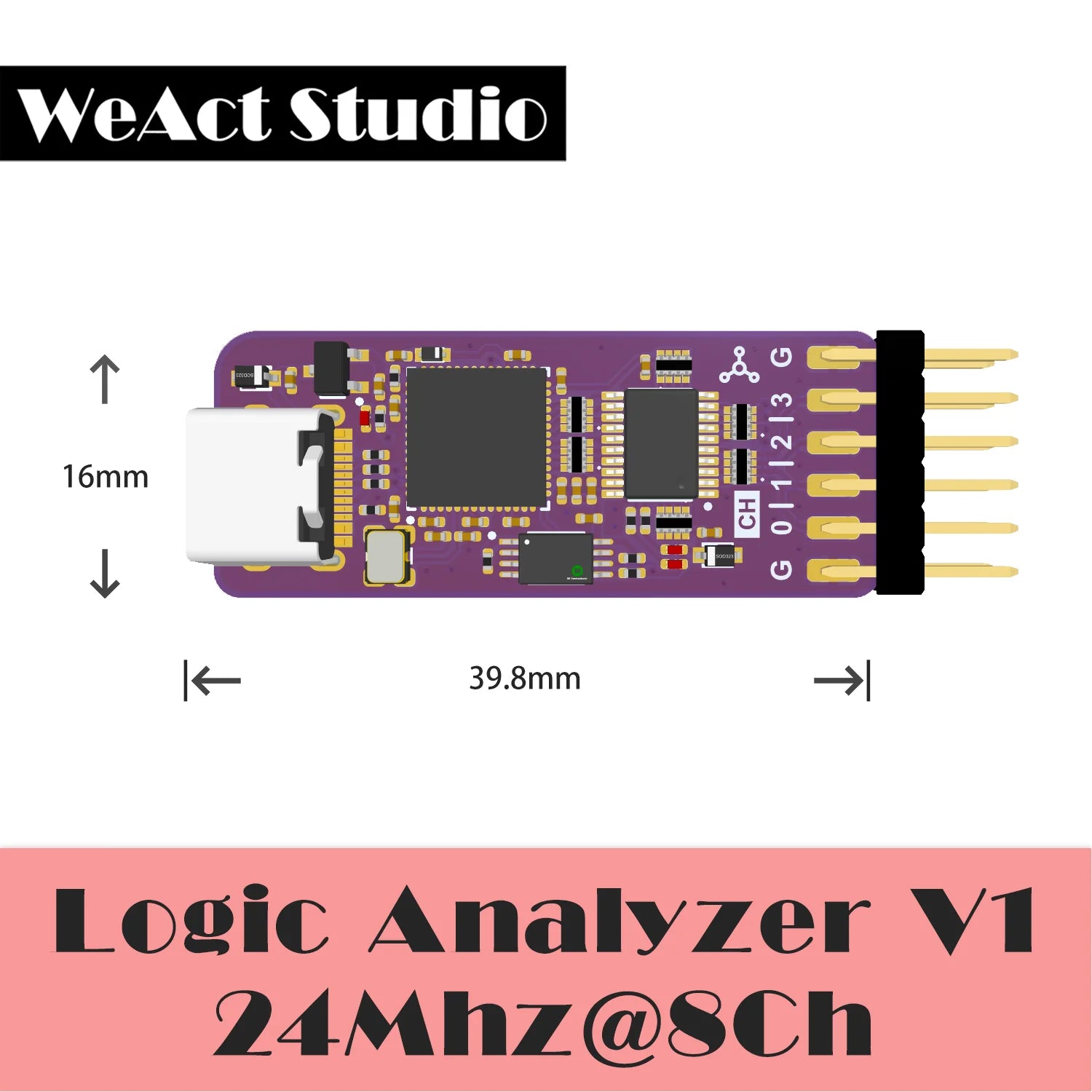

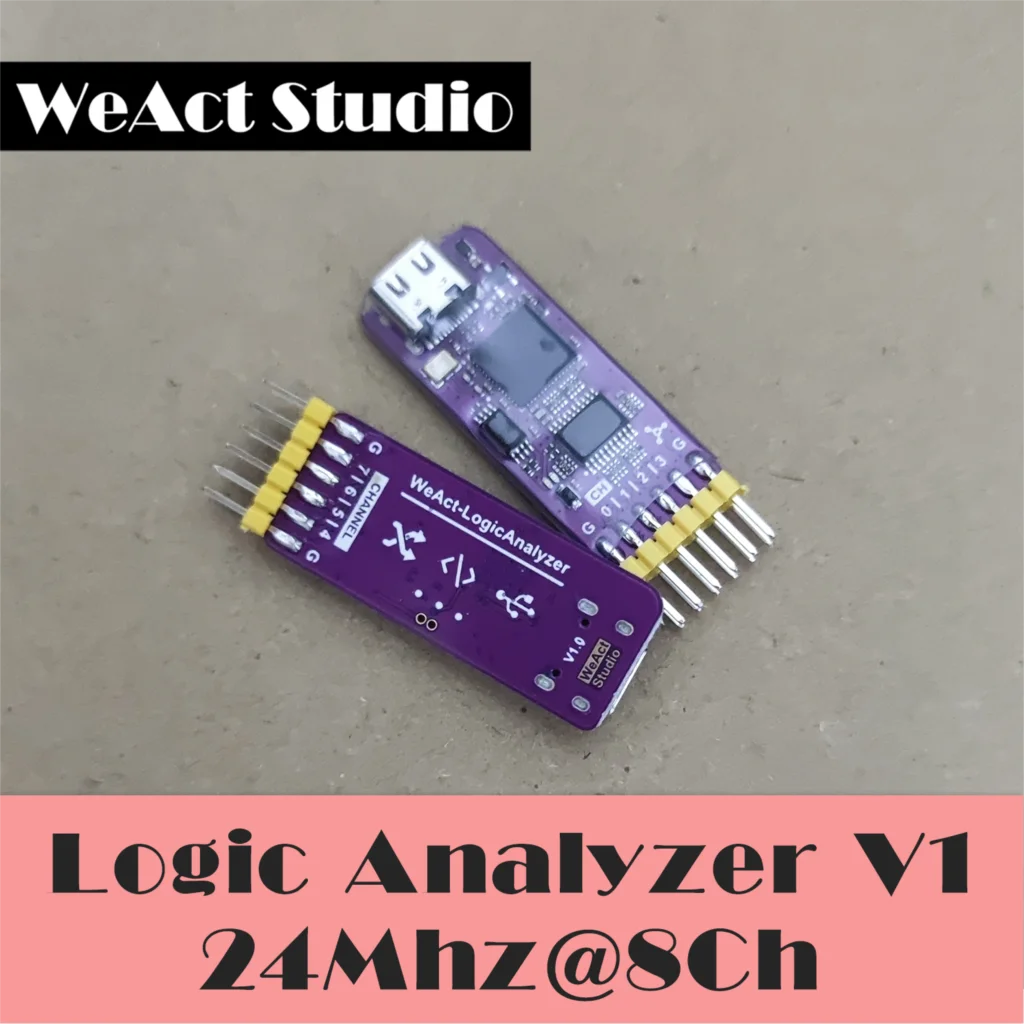

WeAct LogicAnalyzerV1 is a logic analyzer designed based on Cypress USB controller. It can collect 8 channels at the same time. The maximum sampling rate of each channel is 24Mhz, and the maximum logical level supports 5.5V. The software adopts sigrok-PulseView, which is open source, and supports Linux, Windows, Mac OS X and other platforms. It supports more than 100 kinds of protocol analysis, and can add its own protocol analysis.

1. Sampling rate&&channels: 24Mhz@8 Channel

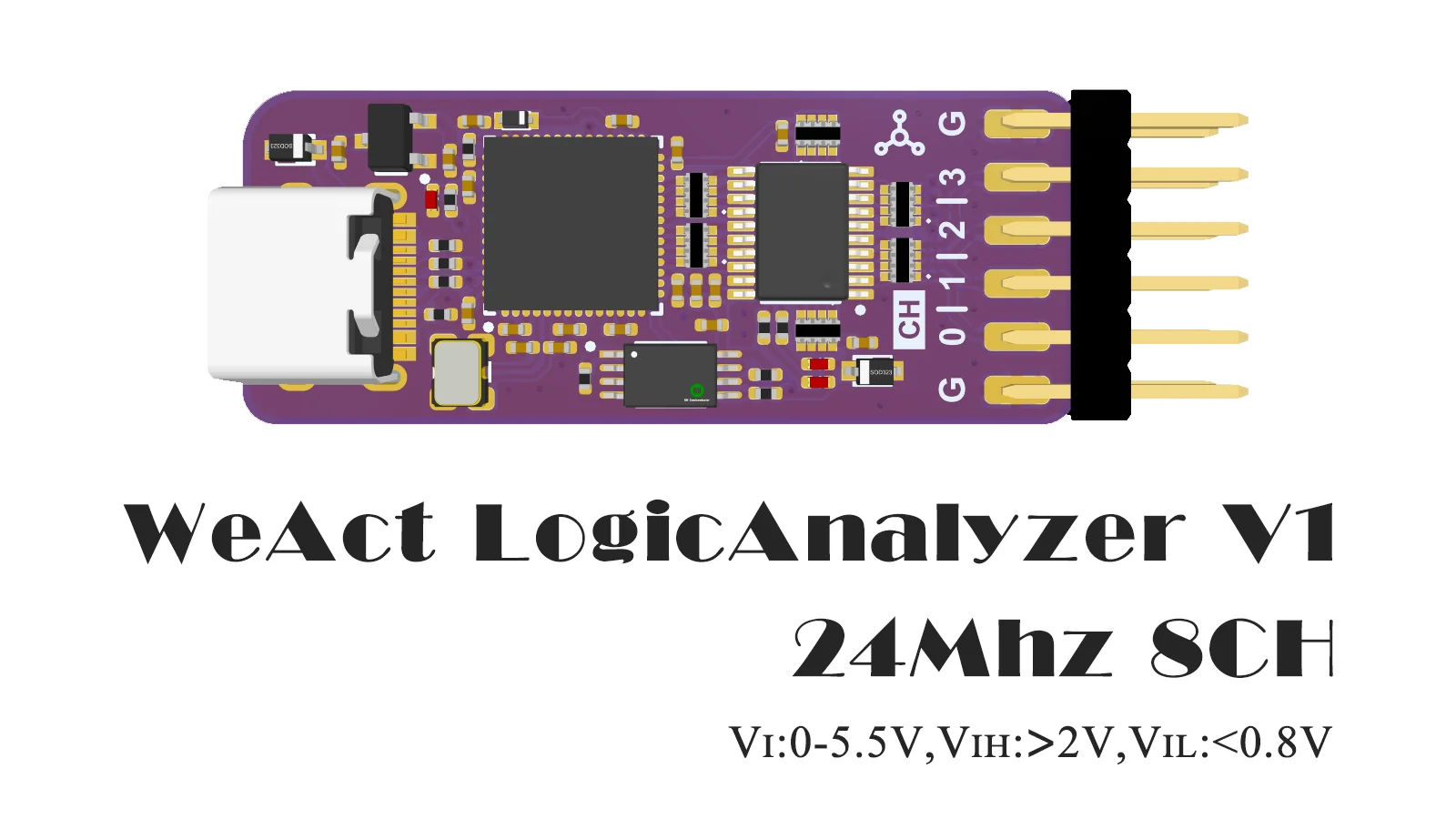

2. Signal input range: 0-5.5V
3. VIH: >2V,VIL: <0.8V
4. Communication mode: USB 2.0
(In order to ensure the sampling rate of 24Mhz, try not to use USB docking station)

GITHUB && How to use

https://github.com/WeActTC/LogicAnalyzerV1.git

Software

sigrok-PulseView
fx2lafw fIrmware

Product Details

Package1: LogicAnalyzer x1
Package2: LogicAnalyzer x1+Type-C Cable x1
Package3: LogicAnalyzer x1+Type-C Cable x1+20cm Silicon Jump Wire x4 +Test Hook x2
