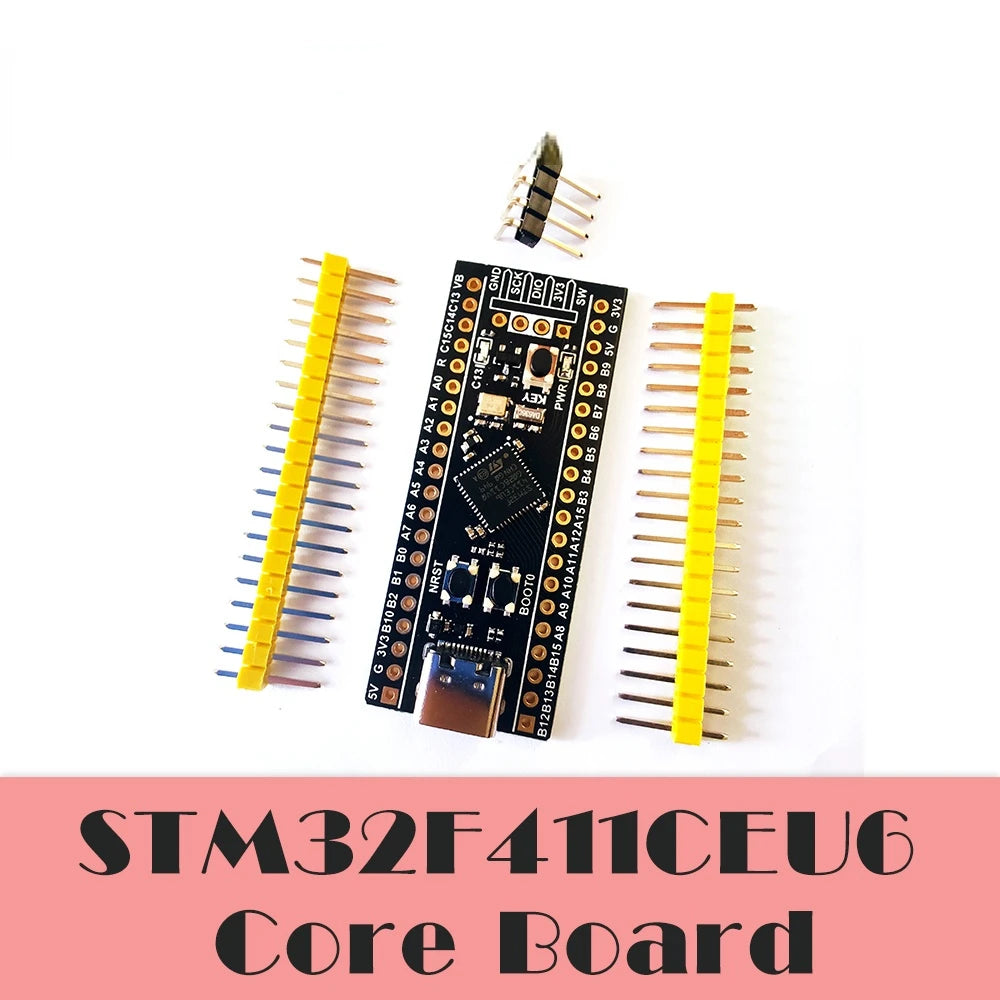

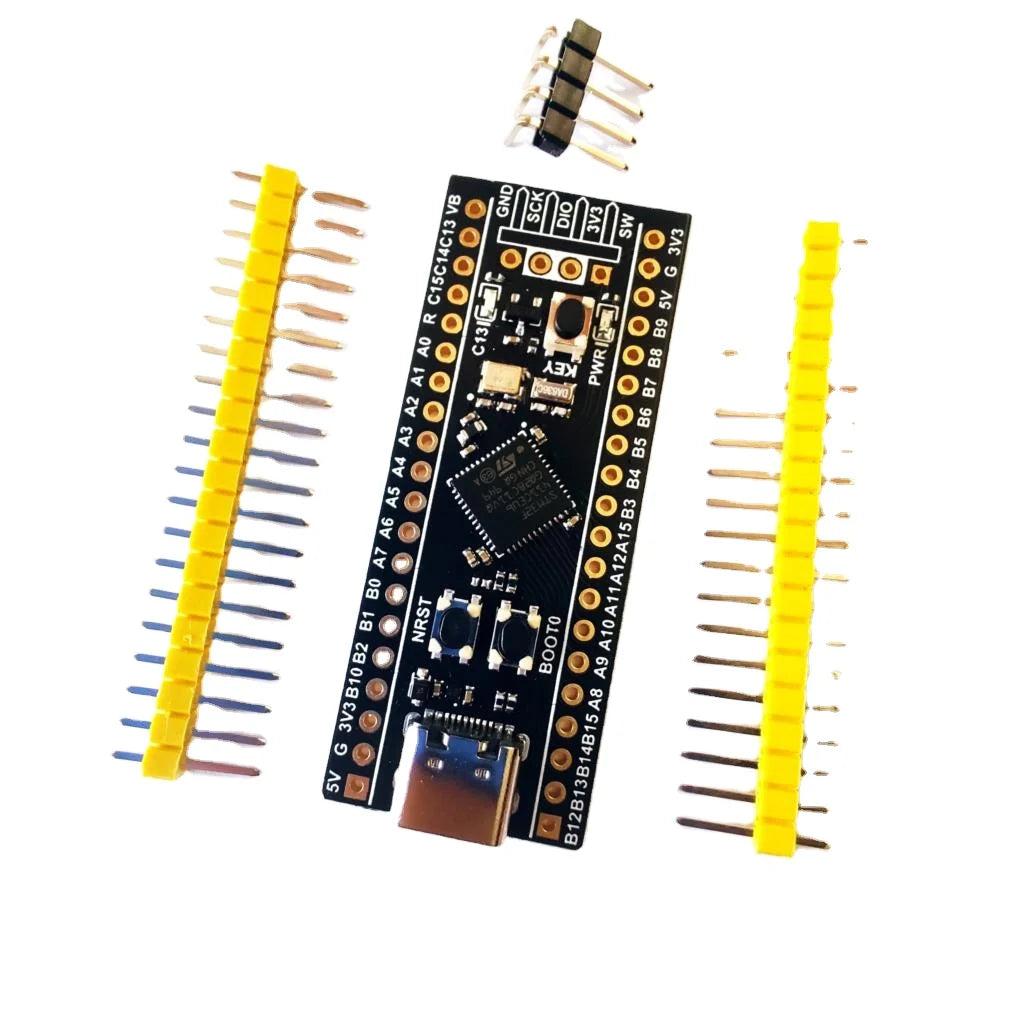

WeAct STM32F411CEU6 BlackPill
It will be updated to V3.1 in the near future. Board with our LOGO and version number is our board, ST new original chip, quality assurance.At present, most of the businesses selling MiniF4 in Aliexpress are pirated. They use the pictures of our studio board, so please carefully identify them
ChipMARK: More than 2020 years
WeAct MiniF4,Download link
https://github.com/WeActTC/MiniSTM32F4x1
The Board Packaging
The outer packing of our boards carries our WeAct Studio label.Besides, the inserting pin and the board are packed separately to avoid the product being injured due to the logistics collision.

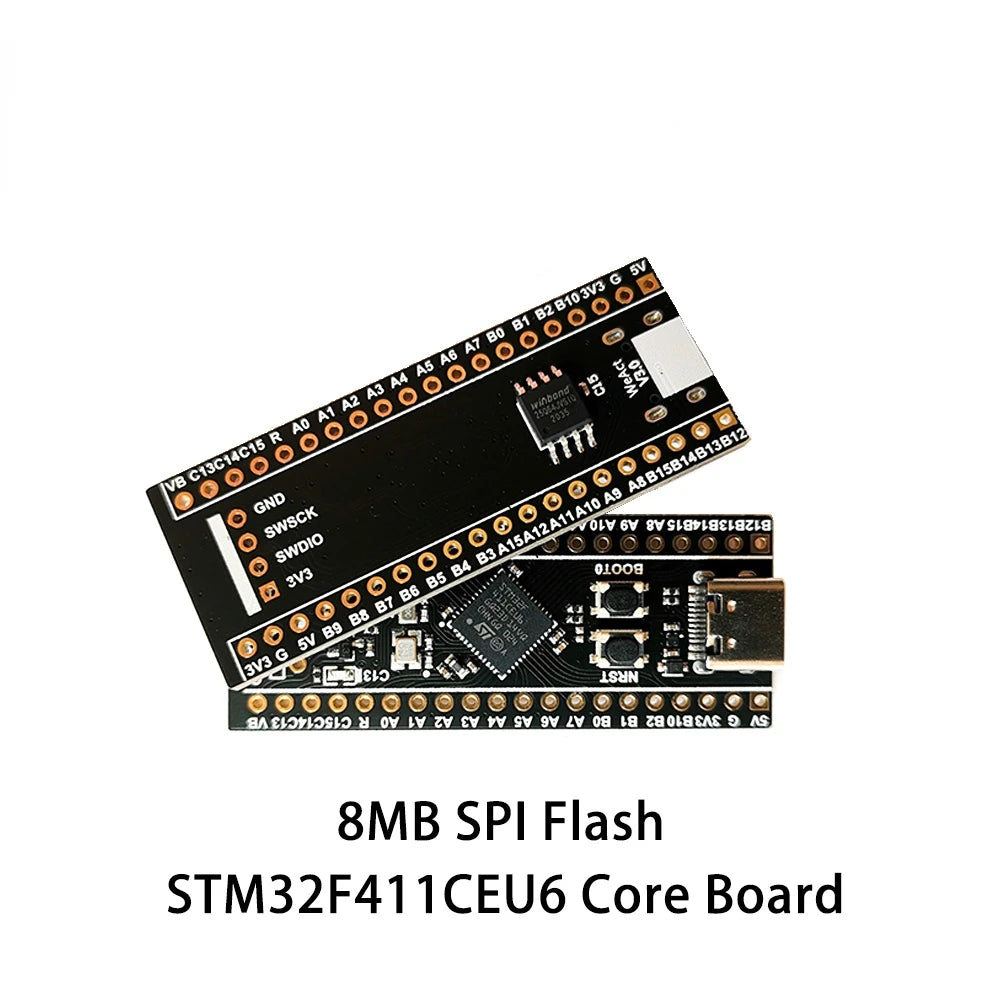

STM32F411CE with 8M SPI Flash
Flash is W25Q64JVSSIQ SOIC8,64Mbit,8MB
Product Details
1. STM32F411CEU6 100Mhz, 128KB RAM,
512KB ROM
2. 25MHZ high speed crystal oscillator &
32.768khz 6PF low speed crystal oscillator
3. Gold sinking process is adopted, lead-free
process is used, and the needle arrangement
is gold-plated, which is more environmentally
friendly
4. Support for MicroPython programming with
available MicroPython firmware
5. Support for Arduino programming development
6. Support C language programming development
7. Version V3.0, there are 3 buttons, reset key,
BOOT0 key, user key
8. The use of the latest original ST chip, high quality crystal vibration
ARM Cortex M4
Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from Flash memory, frequency up to 100 MHz, memory protection unit, 125 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
Memory
512 Kbytes of Flash memory
128 Kbytes of SRAM
SPI Flash (Optional)
Clock and Power Supply
* 3.3V-5V power input, 3.3V LDO maximum output current 100mA
* USB C interface is used, and a diode is serial to prevent power backflow
* 25MHz 9PF high speed crystal oscillator
* 32.768K 6PF low speed crystal oscillator
Interface and Key
* USART x 3, I2C x 3, SPI x 5,USBFS x 1
* ADC x 1(10),I2S x 5,CRC x 1,TIM x 8
* 20 Pin 2.54mm pitch I/O interface x 2
* 4 Pin 2.54mm pitch SW debug interface x 1
* USB C (Type C) interface x 1
* User keys Key (PA0) x 1
* Reset key NRST x 1
* Boot0 key x 1
Design and Quality
* Adopt lead-free welding process, sink gold
PCB
* Boot is set by pressing a key
* Using high quality crystal oscillator, metal
shell, can be good vibration
* Always use the original ST chip
* GitHub regularly updates the chipmark used to
make sure that you are buying new chips
Use Items / Download Hex
How to enter ISP (serial port /USB download)
* Method 1:
Press Boot0 and NRST at the same time and
release NRST. After 0.5s, release Boot0 and
enter ISP mode
* Method 2:
In the power off state, press Boot0, power on,
wait for 0.5s, release to enter ISP mode
* Serial port download: use USB to serial port to connect the core board PA9,PA10 can be, do not use USB port power supply
* USB download: use the data cable to connect to the computer, if there is no identification problem,The chip can be properly heated (25°C+),then re-entering ISP mode
* STM32CubeProg, Weact Studio Download Tool (see Github/WeActTC/MiniSTM32F4x1/Soft/)
WeAct Studio HID Flash
* No USB to serial port, no debugger, no computer driver, just a Type-C data line can complete the firmware download
1. Burn HID IAP firmware (the factory program
brushes in by default, which is a special test
version)
2. Press the KEY KEY to power up or press the
KEY to reset, LED C13 flashes, release the KEY
to enter
3. Confirm APP firmware address is 0x8004000,
interrupt address offset is 0x4000
4. Download it using
Github/WeActTC/MiniSTM32F4x1/Soft/WeAct_HID_FW_Bootloader/weact_hid_flash_xxx.exe
Dimensions and Accessories
Dimensions: 52.38mm x 20.78mm
Accessories:
* STM32F411CEU6 Core Board x 1
* 20 Pin 2.54mm pitch row Pin x 2
* 4Pin 2.54mm pitch back bend row needle x 1
Provide Altium Designer Core Board Packaging, see Github/WeActTC/MiniSTM32F4x1/HDK/
