Custom Waveshare 13.3inch e-Paper e-Ink Display HAT For Raspberry Pi1600*1200 resolution Custom PCB chips in pcba Manufacturer

Name: Custom Waveshare 13.3inch e-Paper e-Ink Display HAT For Raspberry Pi1600*1200 resolution Custom PCB chips in pcba Manufacturer
Brand: Lonten Tech
Price: 100.00 USD
Availability: InStock

$100.00 USD

~~$0.00 USD~~ $100.00 USD

Sale Sold out

Quantity

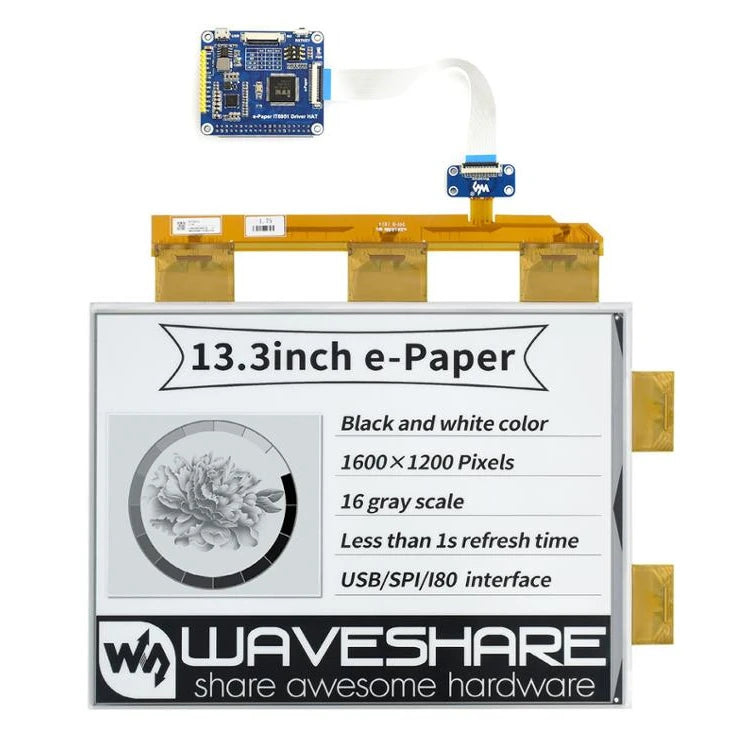

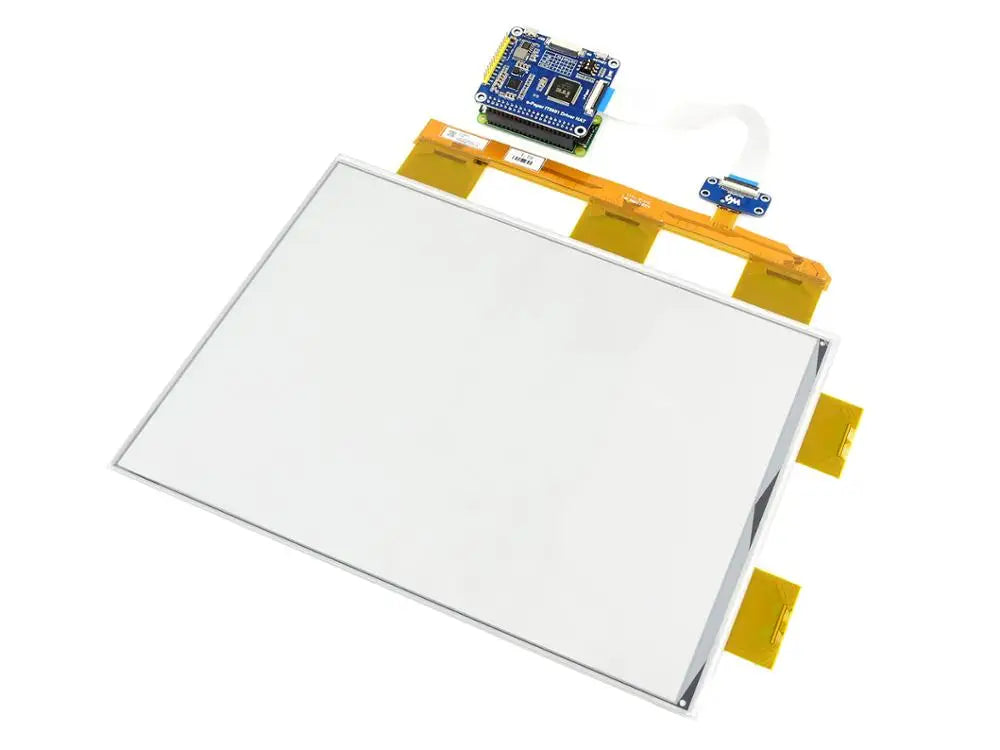

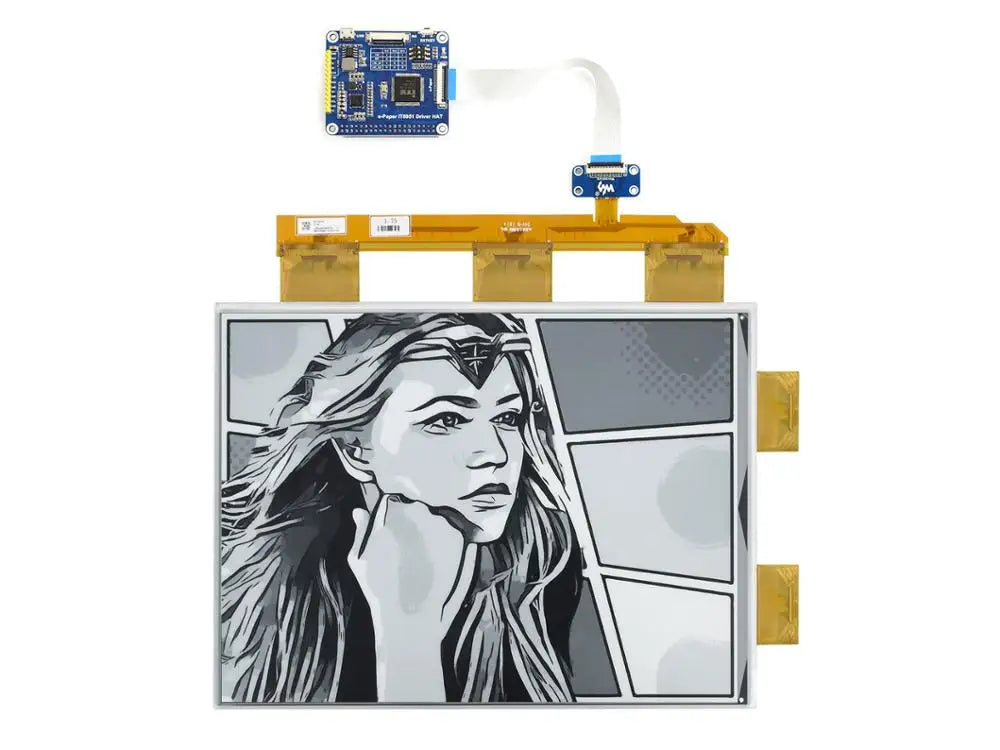

13.3inch E-Paper E-Ink Display HAT For Raspberry Pi, 1600×1200 Pixels, Black / White, 2-16 Grey Scales, USB/SPI/I80

13.3" E-PAPER HAT FOR RASPBERRY PI

Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for e-reader, eink monitor, industrial instruments...

Size13.3"
Resolution1600×1200
Viewing Angle>170°
Display ColorBlack and White
Grey Scale2-16 (1-4 bit)
CommunicationUSB/SPI/I80
Display PanelE-paper
ExperiencePaper-like
EnvironmentAmbient Light Required
Display TypePassively Reflective
RefreshingPartial Refresh Support

Features At A Glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
USB/SPI/I80 interface, for connecting with controller boards like Raspberry Pi/STM32, etc.
Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications

OPERATING VOLTAGE	5V	DISPLAY COLOR	black, white
INTERFACE	USB/SPI/I80	GREY SCALE	2-16 (1-4 bit)
OUTLINE DIMENSIONS	285.80 × 213.65mm	FULL REFRESH TIME	<1s
DISPLAY SIZE	270.40 × 202.80mm	REFRESH POWER	1.2W (typ.)
DOT PITCH	0.169 × 0.169mm	STANDBY CURRENT	<0.1W
RESOLUTION	1600 × 1200 pixels	VIEWING ANGLE	>170°

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

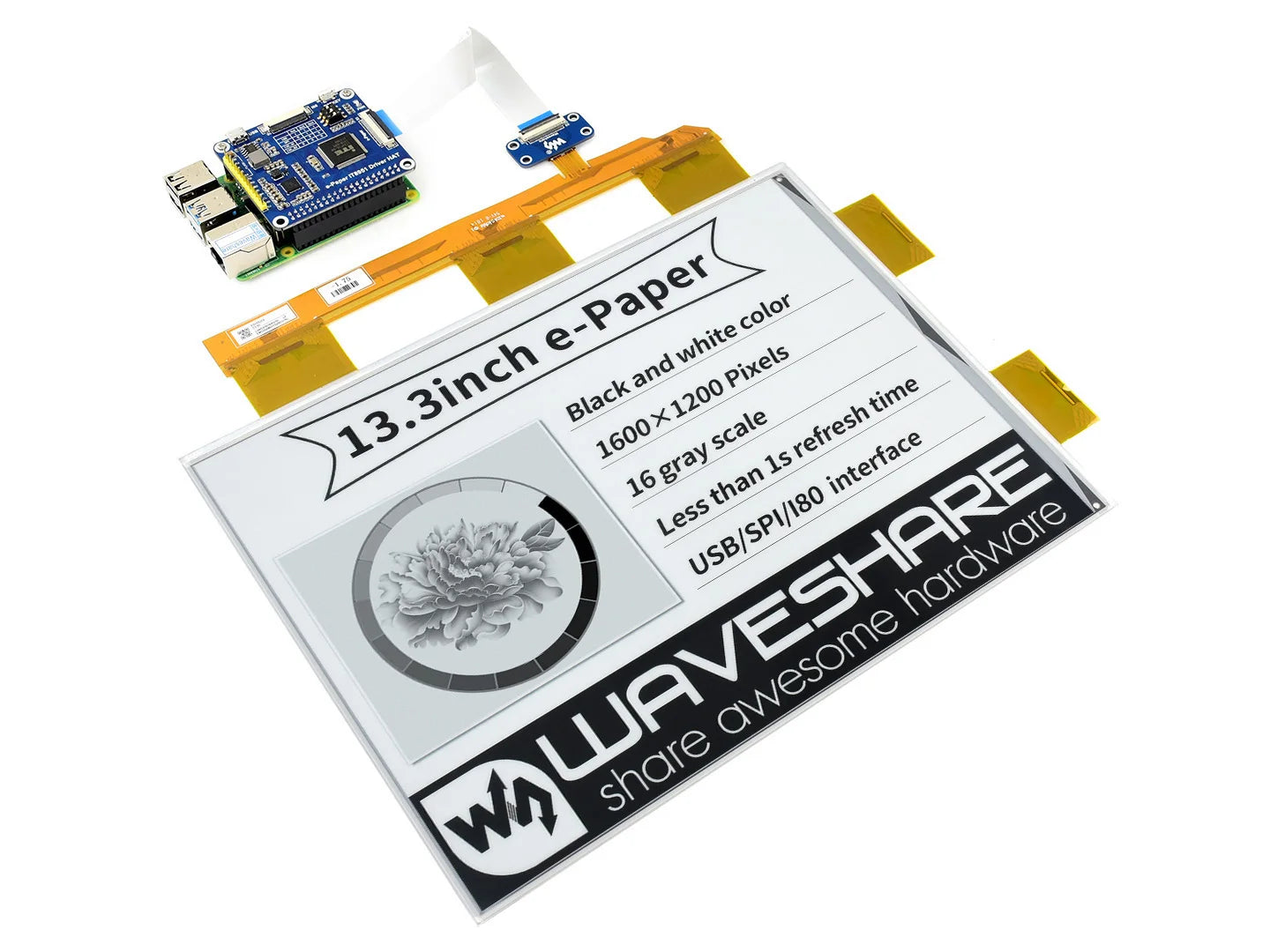

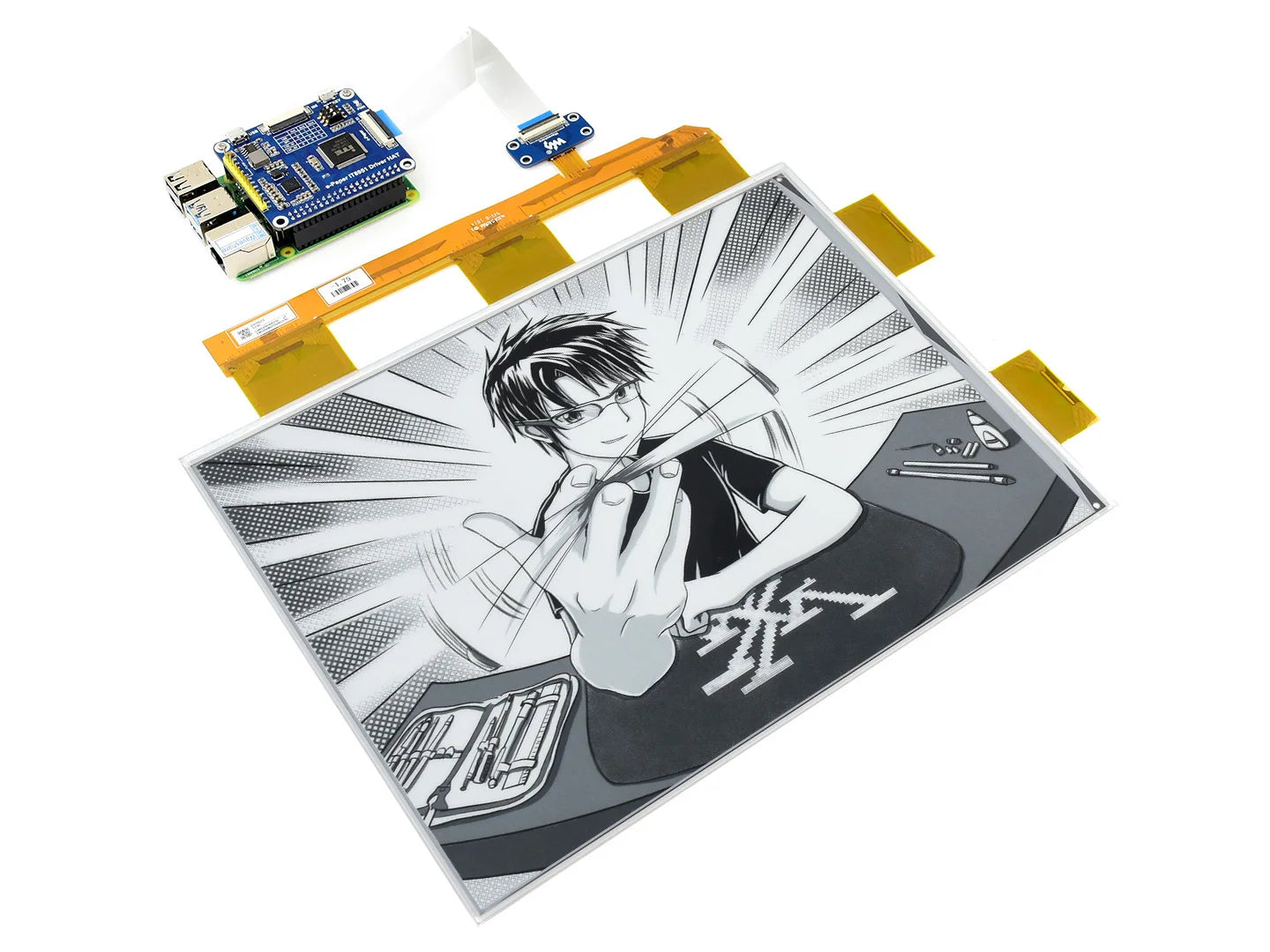

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards

Raspberry Pi in the photo is NOT included.

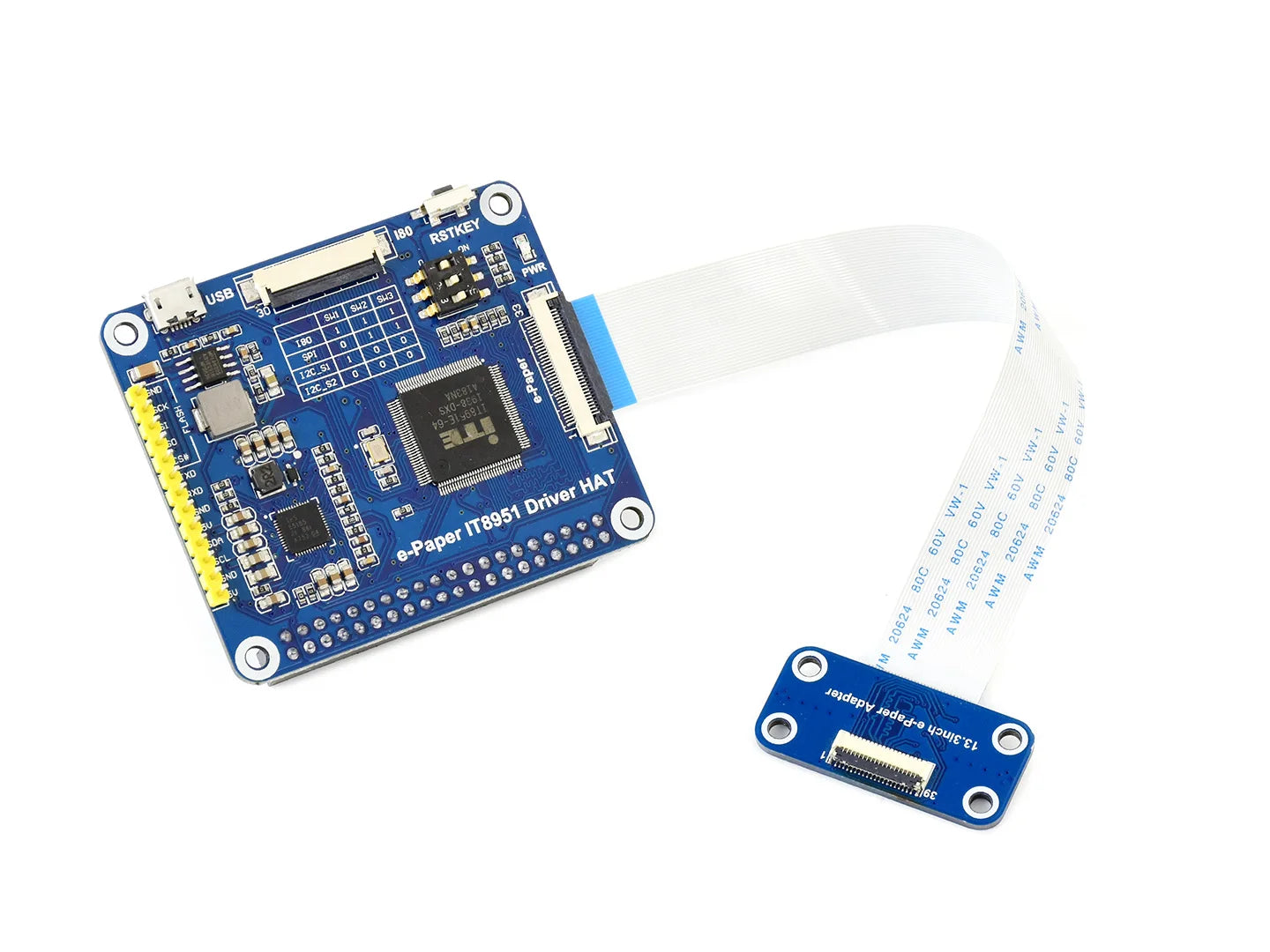

Onboard USB/SPI/I80 Control Interface

For Use With Controller Boards Like Raspberry Pi/STM32

SPI PINOUT
5V	Power, 5V input
GND	Ground
MISO	SPI MISO pin
MOSI	SPI MOSI pin
SCK	SPI SCK pin
CS	SPI chip selection, low active
RST	External reset, low active
HRDY	Busy status output, low active
