Custom VEYE-MIPI-IMX462 for Raspberry Pi and Jetson Nano XavierNX,IMX462 MIPI CSI-2 2MP Star Light ISP Camera Module Manufacturer
Custom VEYE-MIPI-IMX462 for Raspberry Pi and Jetson Nano XavierNX,IMX462 MIPI CSI-2 2MP Star Light ISP Camera Module Manufacturer
Couldn't load pickup availability
Brief

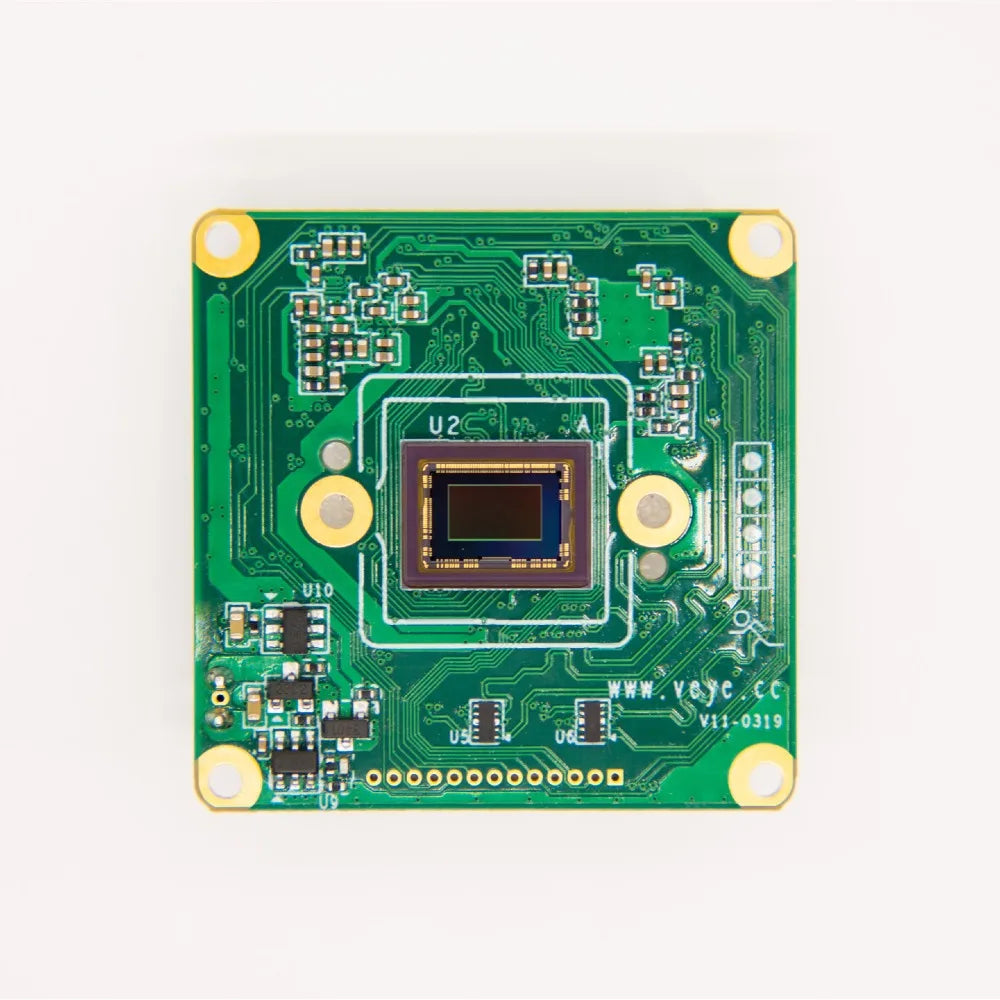

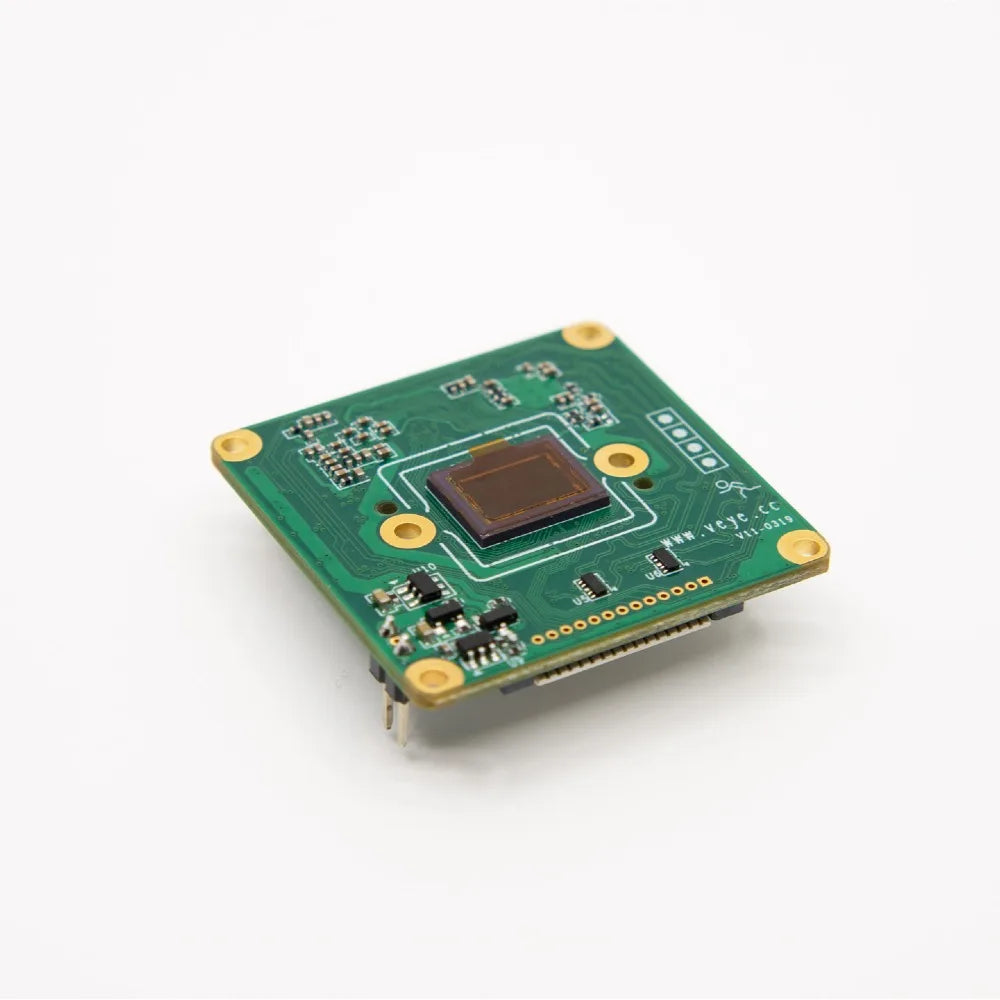

IMX462 is a back-illuminated sensor with extended red and near infrared response.

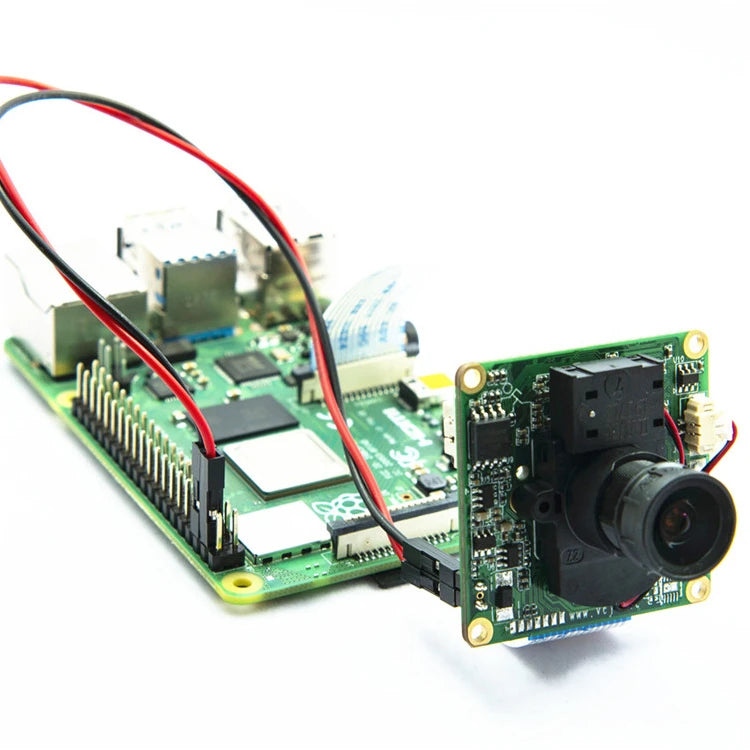

This package is compatible with Raspberry Pi 4/3B+/3/zero/cm3 and Jetson Nano/NX and i.MX8m.
Features

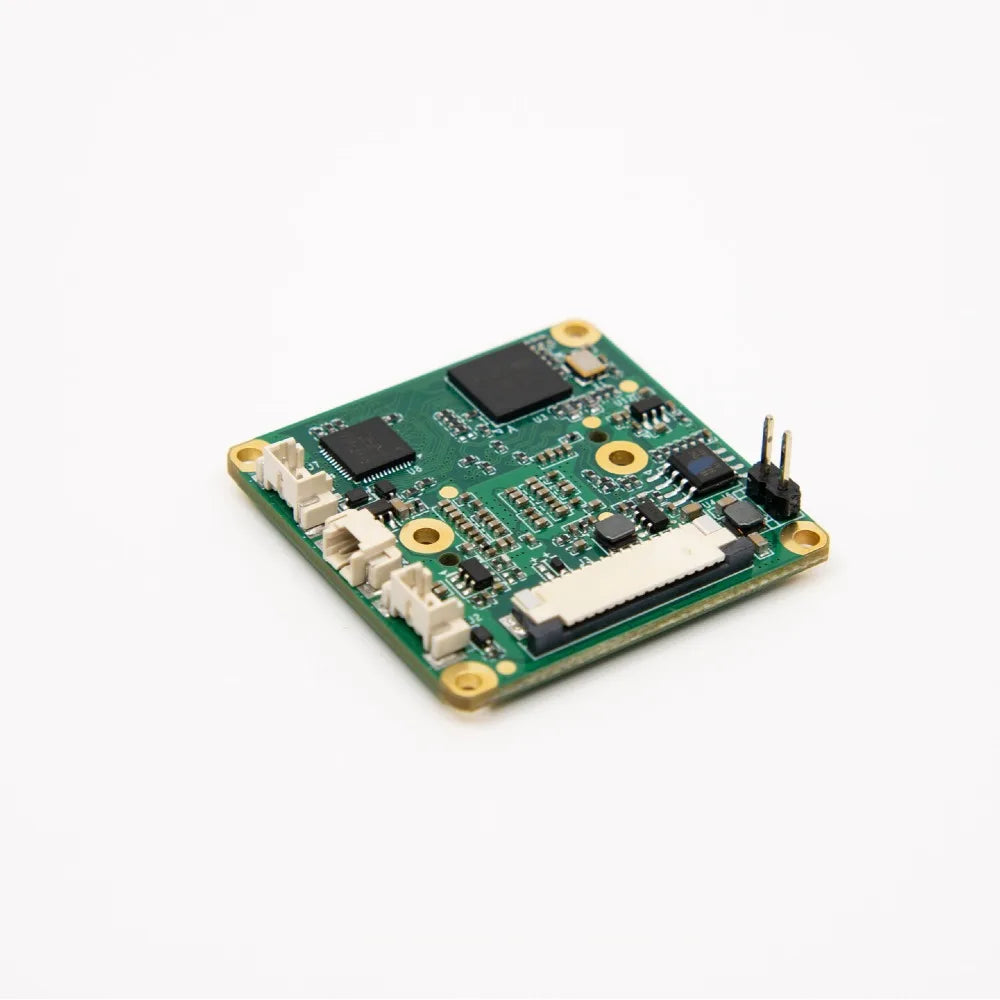

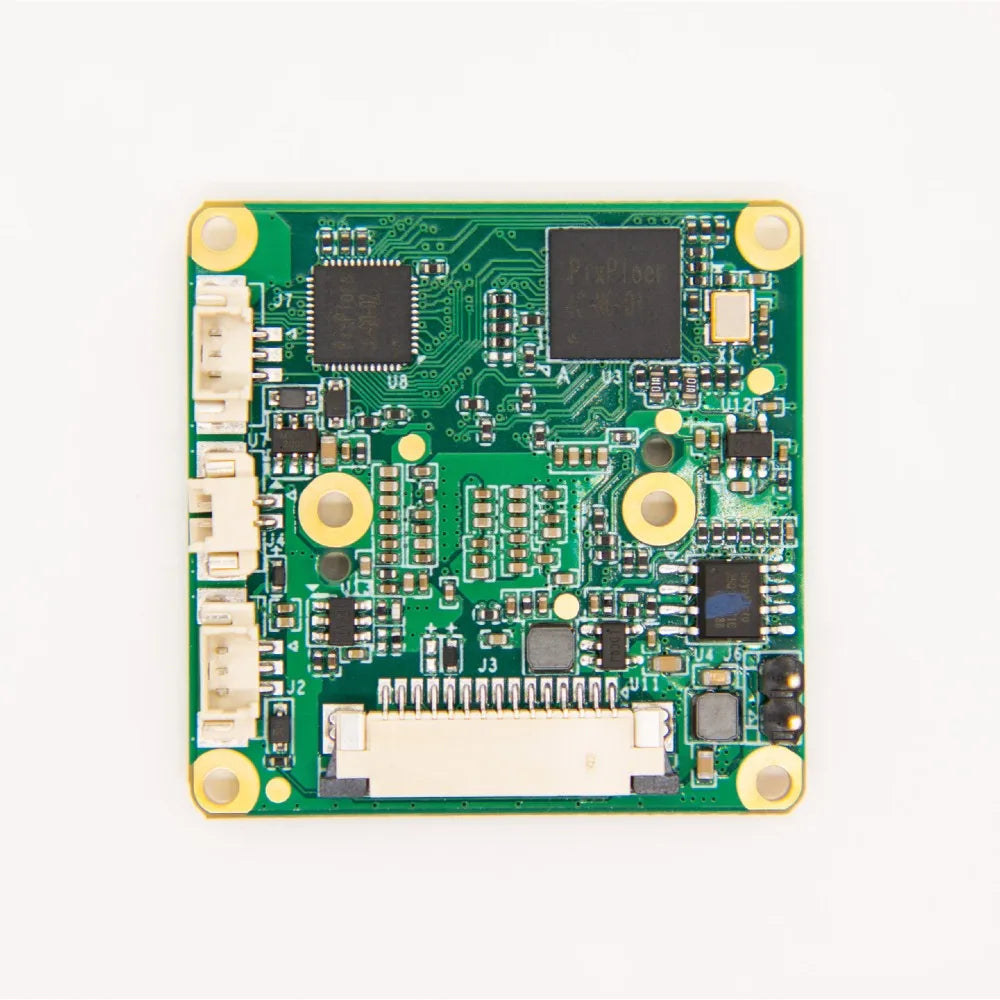

VEYE-MIPI-IMX462 is a camera module with excellent low illumination and wide dynamic performance.This module only is 38*38*8mm, which is convenient for integration and can be connected to various embedded motherboards with adapter board.Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc...
+ 1/2.8 inch 2 Mega STARVIS sensor IMX462 by SONY
+ MIPI output: CSI-2
+ Uncompressed UYVY format, YUV422-8bit
+ Standard lens mount
+ IR-CUT circuit
+ BLC, DOL-WDR, 2D/3D noise reduction, Anti-fog,Brightness, Contrast, Sharpness, Saturation adjustable
+ Stream mode and Capture mode
+ Framerate control
+ Support Raspberry PI, JETSON,i.MX8m
+ Open source drivers and applications for all platform supported
+ Support 5V - 3.3V access at the same time, automatic switch 5V power supply
+ Also support 5V, 3.3V independent power supply
Thechnical Details
CAD drawing
Lens select
http://wiki.veye.cc/index.php/Lens_select
