Custom VEYE-MIPI-IMX385 forRaspberry Pi and Jetson Nano XavierNX,IMX385 MIPI CSI-2 2MP Star Light ISP Camera Module Manufacturer

Brief

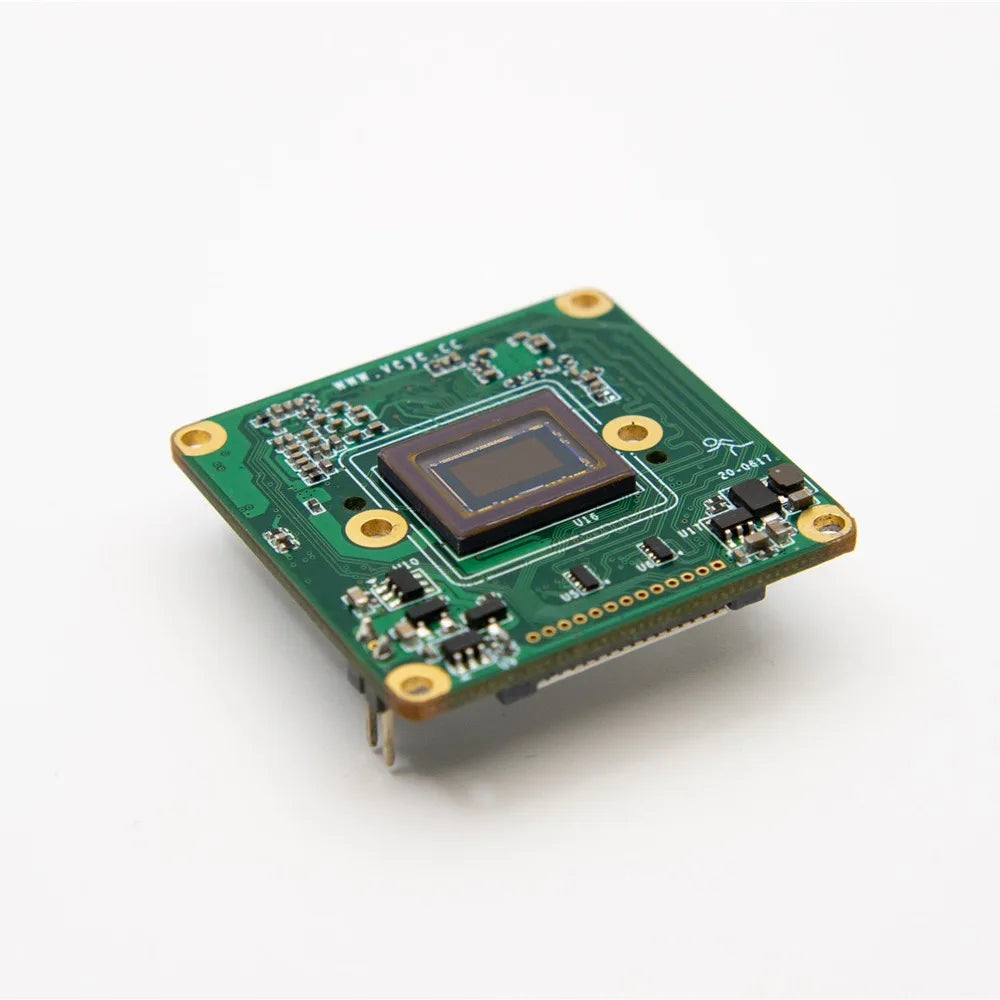

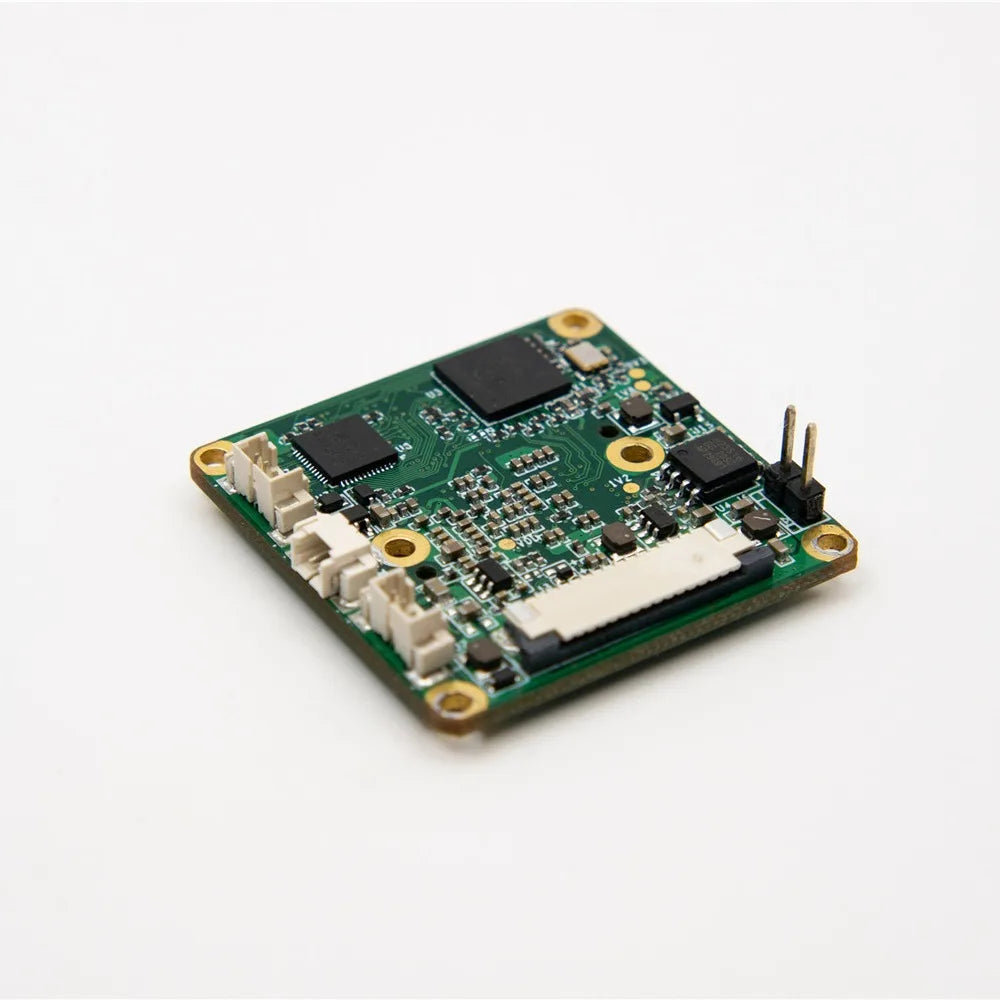

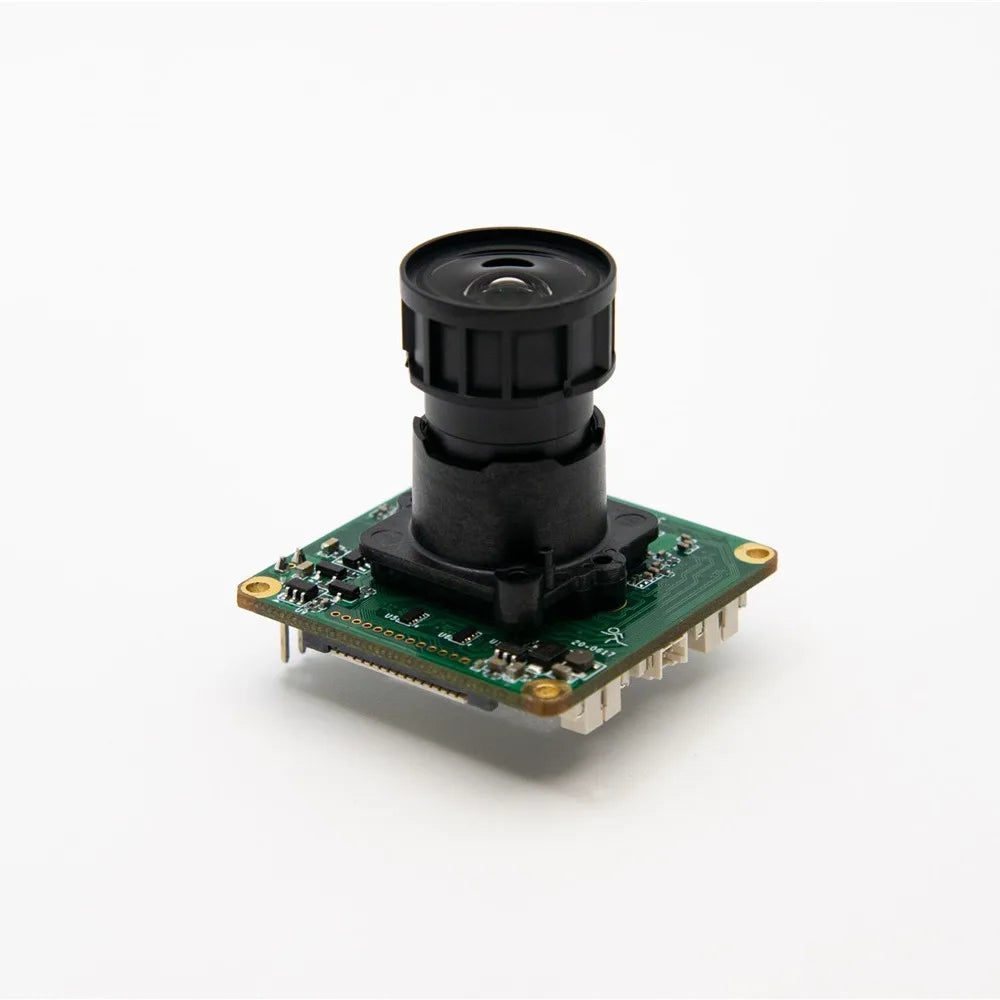

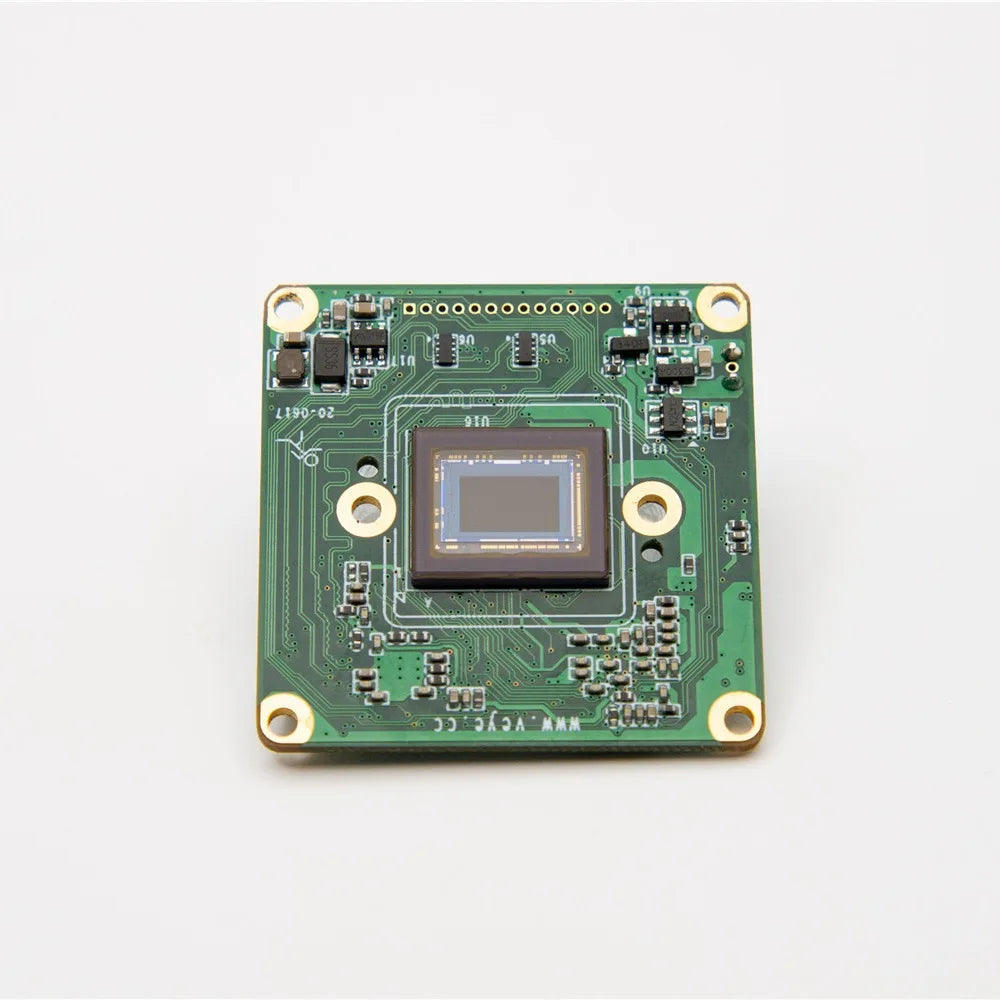

VEYE-MIPI-IMX385 is a large imaging size starlight video streaming module.
This package is compatible with Raspberry Pi 4/3B+/3/zero/cm3 and Jetson Nano/NX and i.MX8m.

Features

VEYE-MIPI-IMX385 is a large Imaging size starlight video streaming module, using a compact design (38*38mm) to facilitate user integration, standard 15pin FPC user interface, easy access to embedded platforms such as raspberry pie and Nvidia.

The function of automatic power switch is added,5V and 3.3V power supply can be automatically switched to 5V power supply, or you can freely choose 5V or 3.3V independent power supply.

+ 1/2 inch 2 Mega sensor IMX385LQR-C by SONY

+ MIPI output: CSI-2

+ Uncompressed UYVY format, YUV422-8bit

+ IR-CUT circuit

+ Stream mode and Capture mode

+ Framerate control

+ BLC, DOL-WDR, 2D/3D noise reduction, Brightness, Contrast, Sharpness, Saturation adjustable

+ Brightness, Contrast, Sharpness, Saturation adjustable

+ Support 5V - 3.3V access at the same time, automatic switch 5V power supply

+ Also support 5V, 3.3V independent power supply

Thechnical Details

Lens select

http://wiki.veye.cc/index.php/Lens_select

Camera Caputure File in different scenes

Full Resolution Video and Capture file:

https://www.mediafire.com/folder/zziqnrhhvyyss/VEYE_Camera_modules_Videos

Important references links

+ wiki about VEYE-MIPI-IMX385

Packaging and accessories
