This board does not need to burn the firmware
Product Description
Description:
Model: V59
Scheme of the chip: TSUMV59
Input Interface: PC / HDMI / TV /
Voltage: Single 12 V
Screen interface: LVDS Single 6 / 8 , Double 6 / 8
Screen voltage: 3.3V / 5V / 12V
Resolution: Support high screen 1920 * 1080, 7-42 inch LVDS screen
Notice:

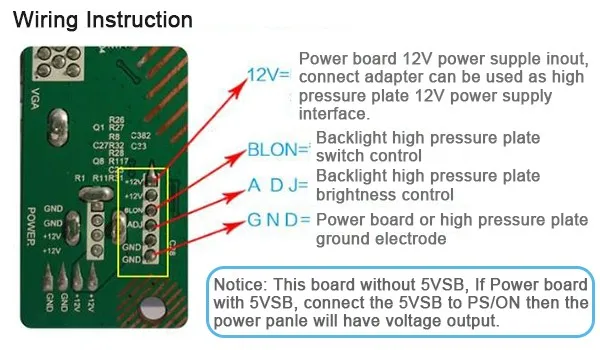

1. power requirement of 12V4A

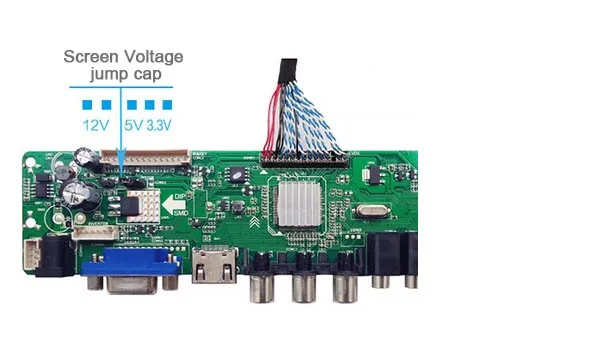

2. Screen voltage jump line according to the working voltage of screen jump to the corresponding position
3. Use to adapt to the board of general screen line
4. The screen line not to reverse and dislocation

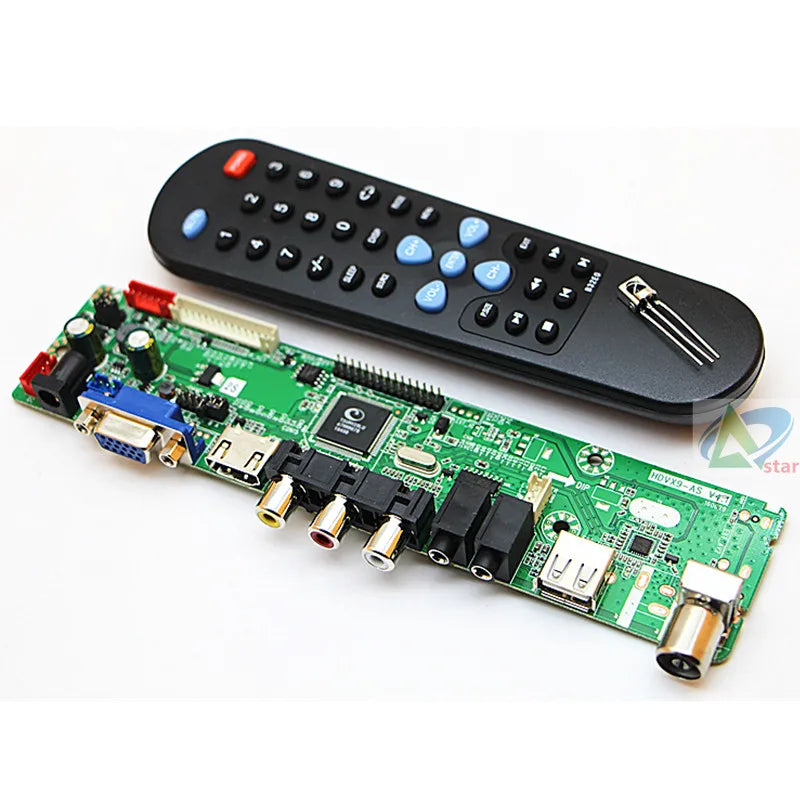

Package included:
1 x V59 Controller Board

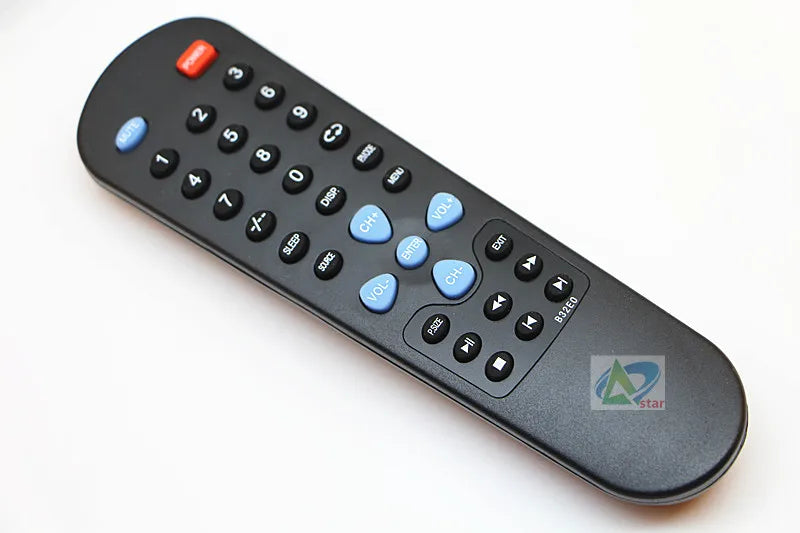

1 x remote control

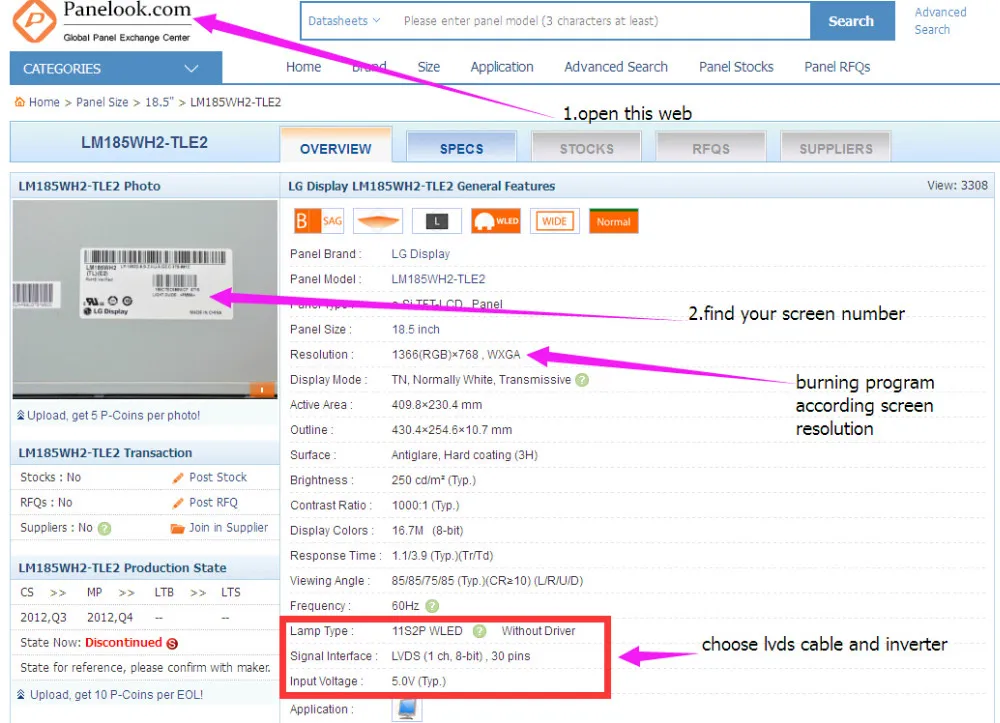

Through this list, we can see the following information,

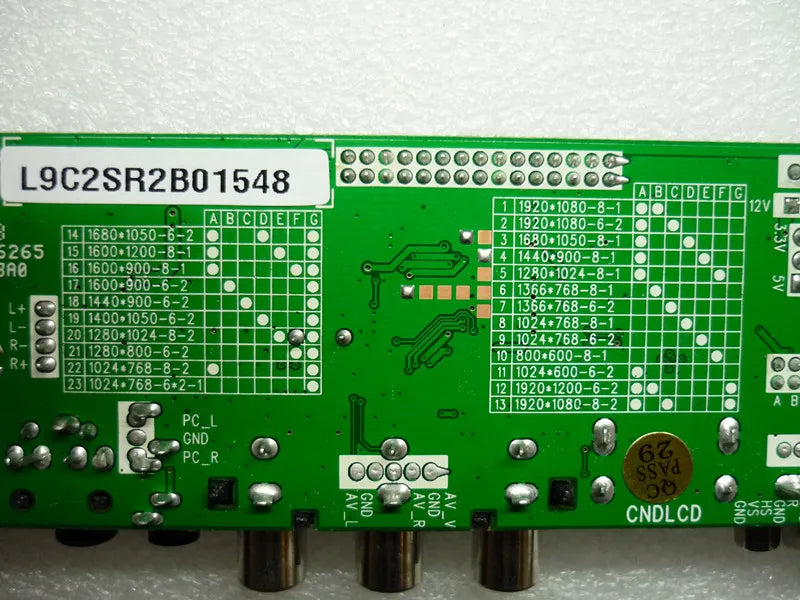

1. resolution (know the resolution of the LCD screen can change the jumper wire)
2. LVDS interface type.
3. screen of the power supply
