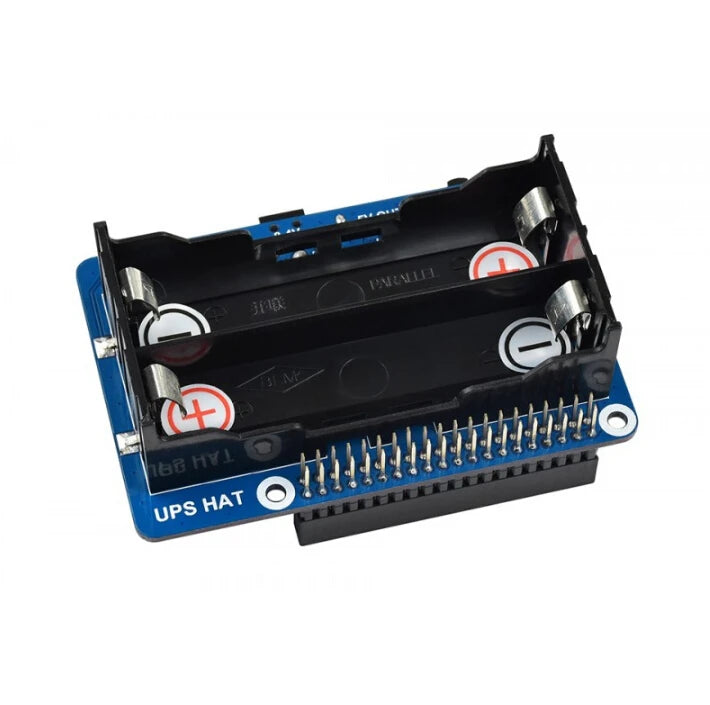

Custom Uninterruptible Power Supply UPS HAT For Raspberry Pi Stable 5V Power Output 18650 batteries are NOT included Custom PCB Manufacturer
Custom Uninterruptible Power Supply UPS HAT For Raspberry Pi Stable 5V Power Output 18650 batteries are NOT included Custom PCB Manufacturer
Couldn't load pickup availability
- Note:
- The 18650 batteries are NOT included
- Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported learn more
Power Your Pi Seamlessly From Power Connection OR The Backup Batteries
Charge and Power Output at the Same Time
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
- Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable

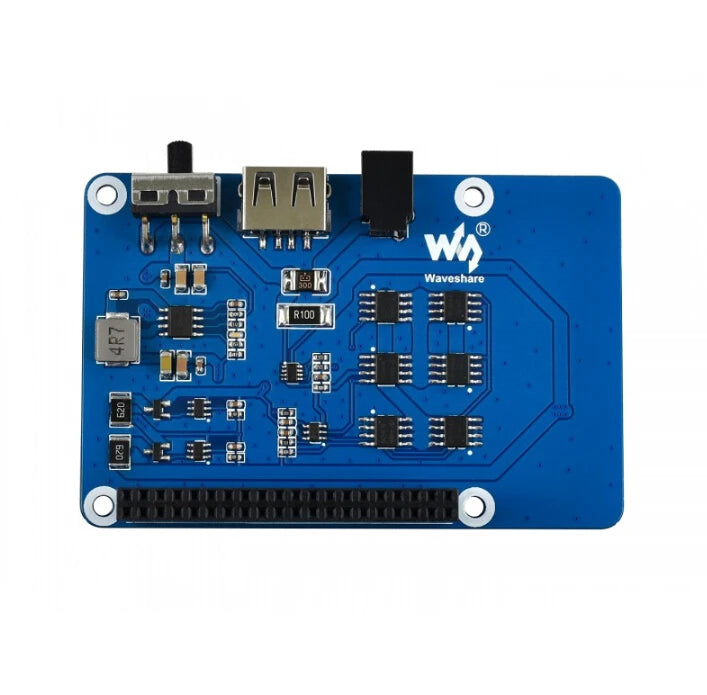

- Onboard 5V regulator, up to 2.5A continuous output current

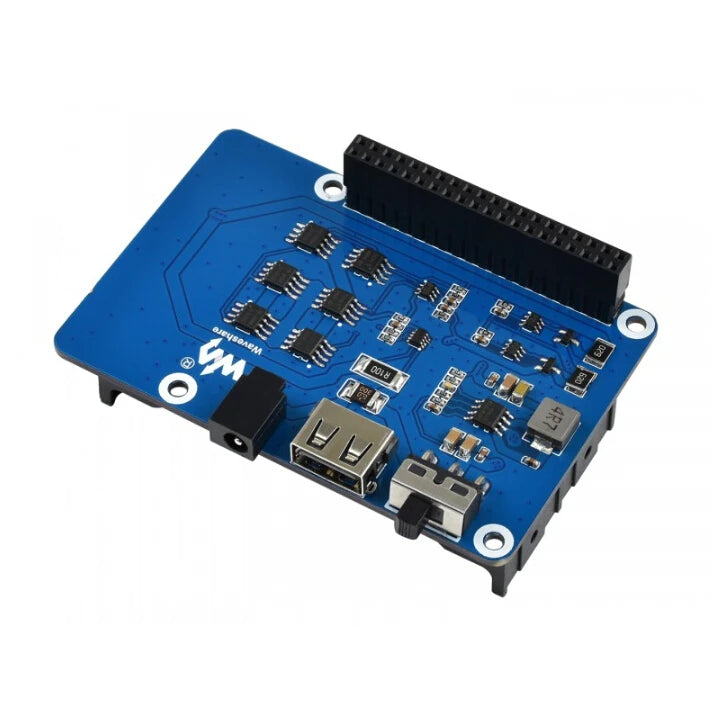

- 5V USB output, convenient for powering other boards
- Batteries warning indicators, easy to check if the battery is connected correctly
- Comes with development resources and manual
| OUTPUT VOLTAGE | 5V | CHARGER | 8.4V 2A |
|---|---|---|---|
| CONTROL BUS | I2C | DIMENSIONS | 56 × 85mm |
| BATTERY SUPPORT | 18650 Li battery (NOT included) | MOUNTING HOLE SIZE | 3.0mm |
It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

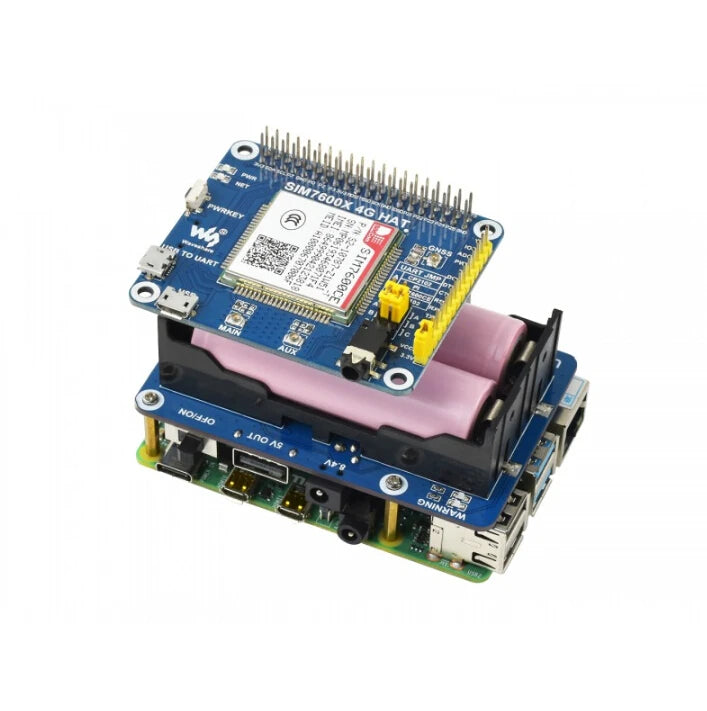

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity
When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss
Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse
Along With The Equalizing Charge Feature, More Safe And Stable
Convenient For Powering Other Boards

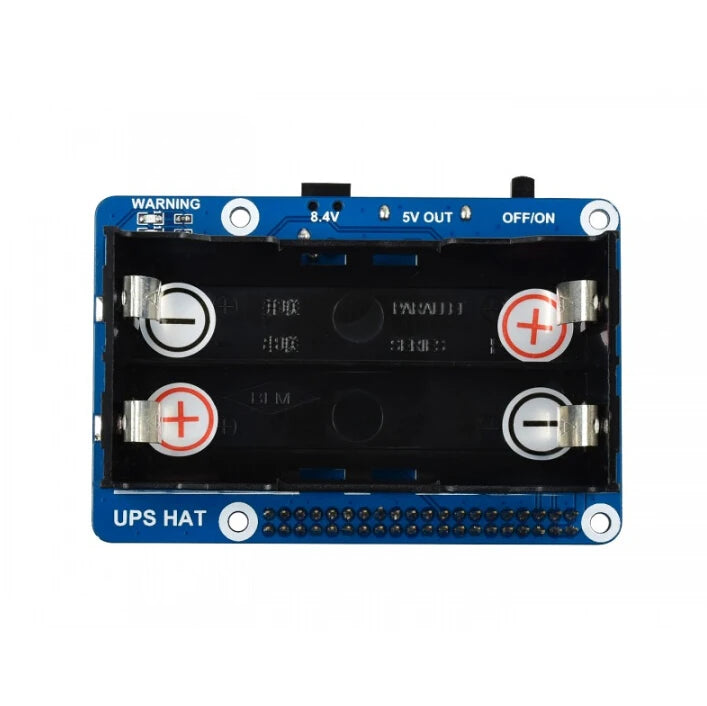

Easy To Check If The Battery Is Connected Correctly
PACKAGE CONTENT
Weight: 0.157 kg
- The 18650 batteries are NOT included
- Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
- UPS HAT x1
- 8.4V battery charger x1
- 2×20PIN female header x1
- RPi screws pack (2pcs) x1
