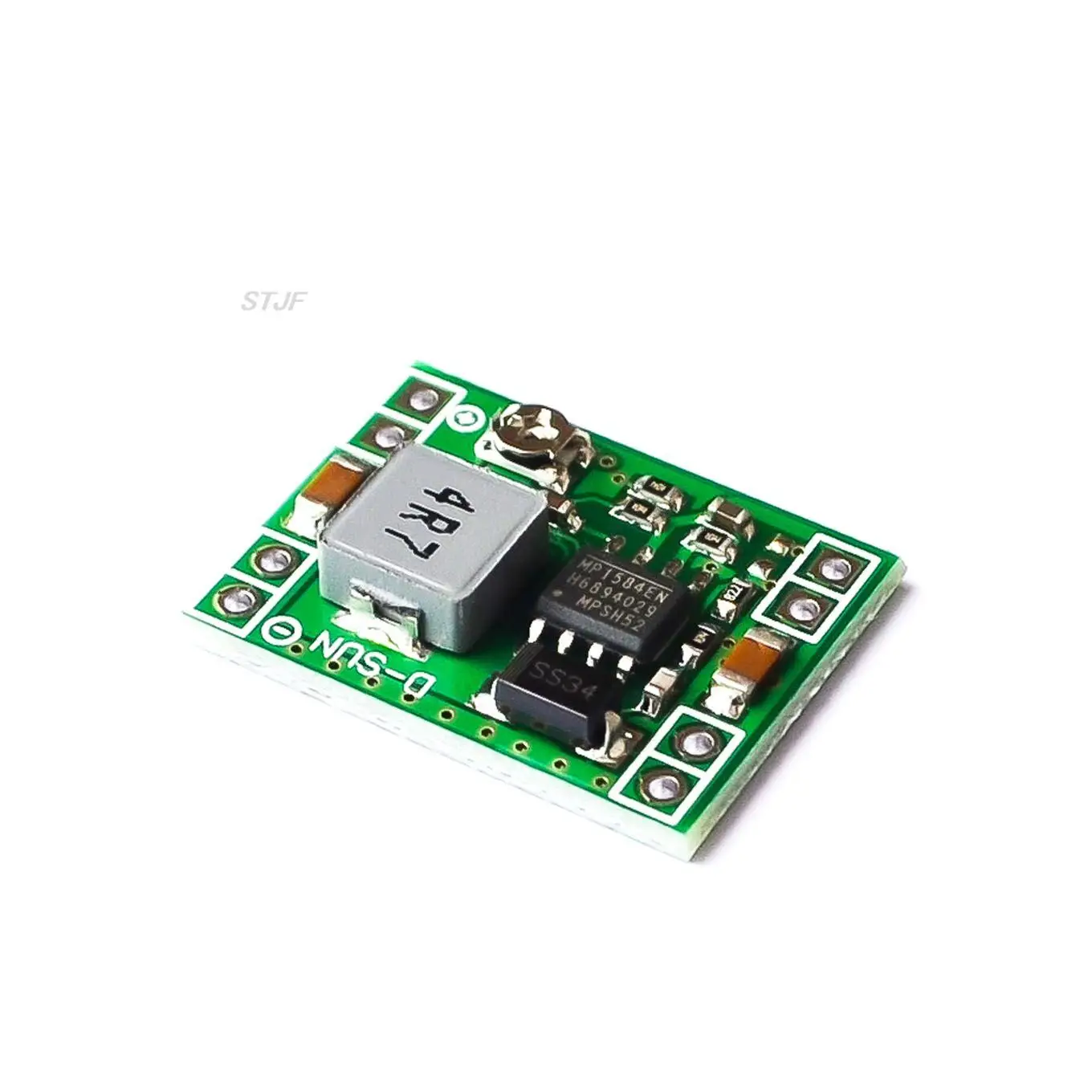

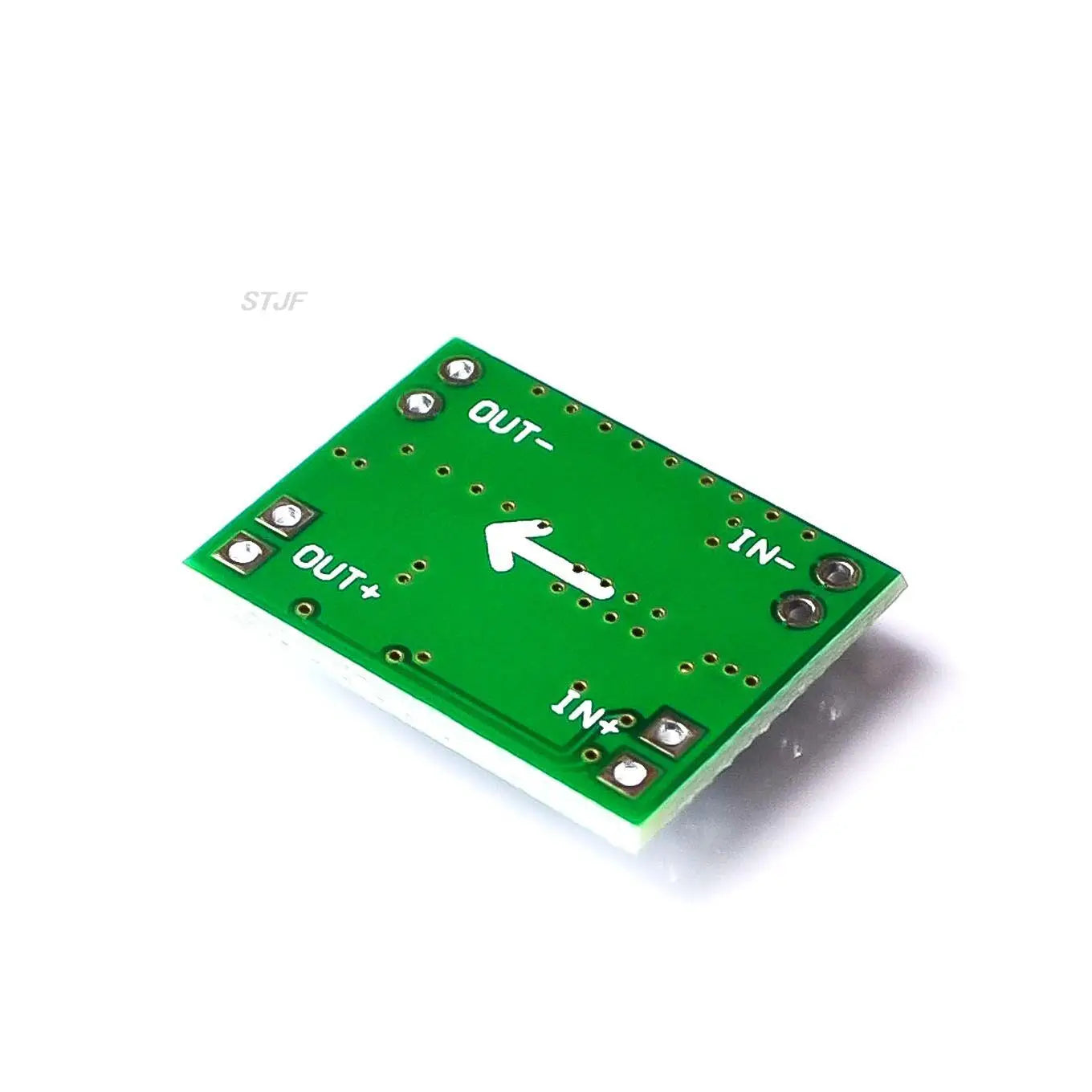

Custom Ultra-Small Size DC-DC Step Down Power Supply Module MP1584EN 3A Adjustable Buck Converter for Arduino Replace LM2596

Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.



The volume of the whole network minimum, maximum 3A output.



Application areas:

DIY mobile power, communications equipment, power supply, all kinds of size and weight for demanding occasions (such as model airplane, etc.).



Brand: D-SUN (East is Red)

Model / Name	Ultra-small DC-DC step-down module
Input voltage	4.5V ~ 28V
Output voltage	0.8V to 20V
Output current	3A (max)
Conversion efficiency	96% (the highest)
Output ripple	<30mV
Switching frequency	1.5MHz (highest), typical 1MHz
Operating Temperature	-45   to +85

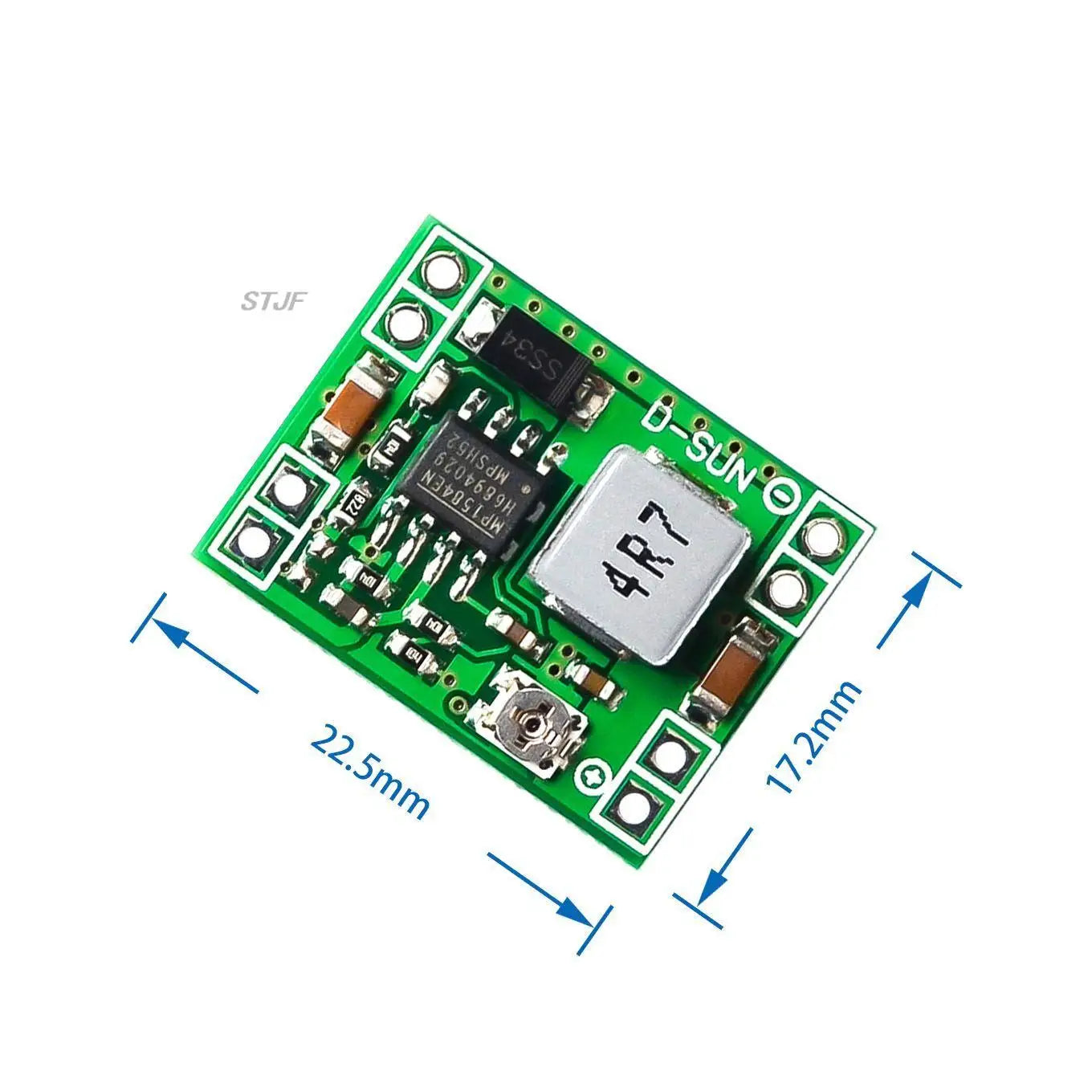

Size	22mm * 17mm * 4mm (L * W * H)
