Custom TYC50 Small Permanent Synchronous Motor AC 110V 1RPM-36RPM Electric Gear Motor 15RPM for Fan Motor Induction Cooker Fireplace Manufacturer

1.It is a synchronous motor operates on AC 110-127V, long life, wide range of applications,
speed per minute 1rpm, 3rpm, 6rpm, 12rpm, 17rpm, 18rpm, 24rpm, 39rpm, the smaller the speed, the greater the torque, the special output shaft can be customized.

2.This product with features of low power consumption, high torque, low noise, small size, light weight, easy to use.

3.At rated frequency, motor speed is not affected by voltage.

4.If overload or stall when load, the motor coil will not burn!

5. There are three directions of rotation: CW/CCW ; CW ; CCW

6. Note : When the load reaches the rated torque, the motor will automatically reverse.

7. Application: electric fireplace; Heater / microwave / refrigerator, Display; lighting motor; fan motor / light box motor,Popcorn machine.

Power: 4W

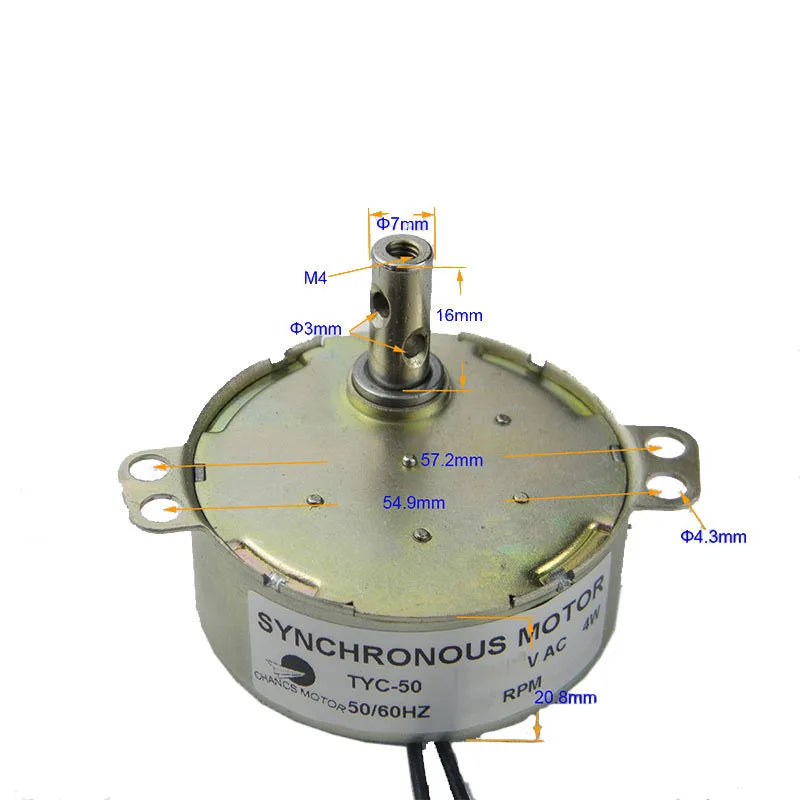

Size: 5cmX5cmX2cm

N.W. Weight: 0.09KG

Frequency: 60Hz

Power: 4W

Speed: can be customized

Torque: ≈8Kgf.cm

Shaft Rotation: CW/CCW (UNCONTROLLED)
