Custom Tuya Zigbee 3.0 Hub Gaterway Wifi Smart Home Bridge Wireless Remote Controller Manufacturer

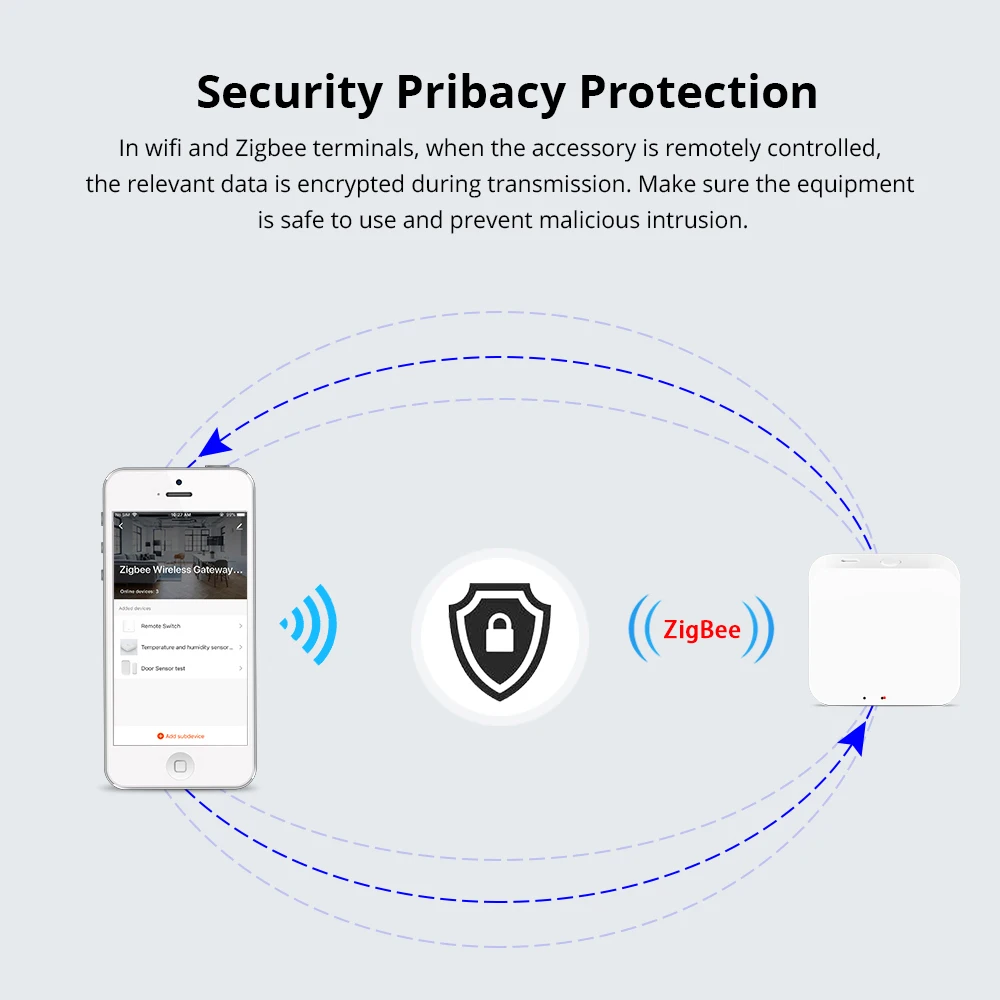

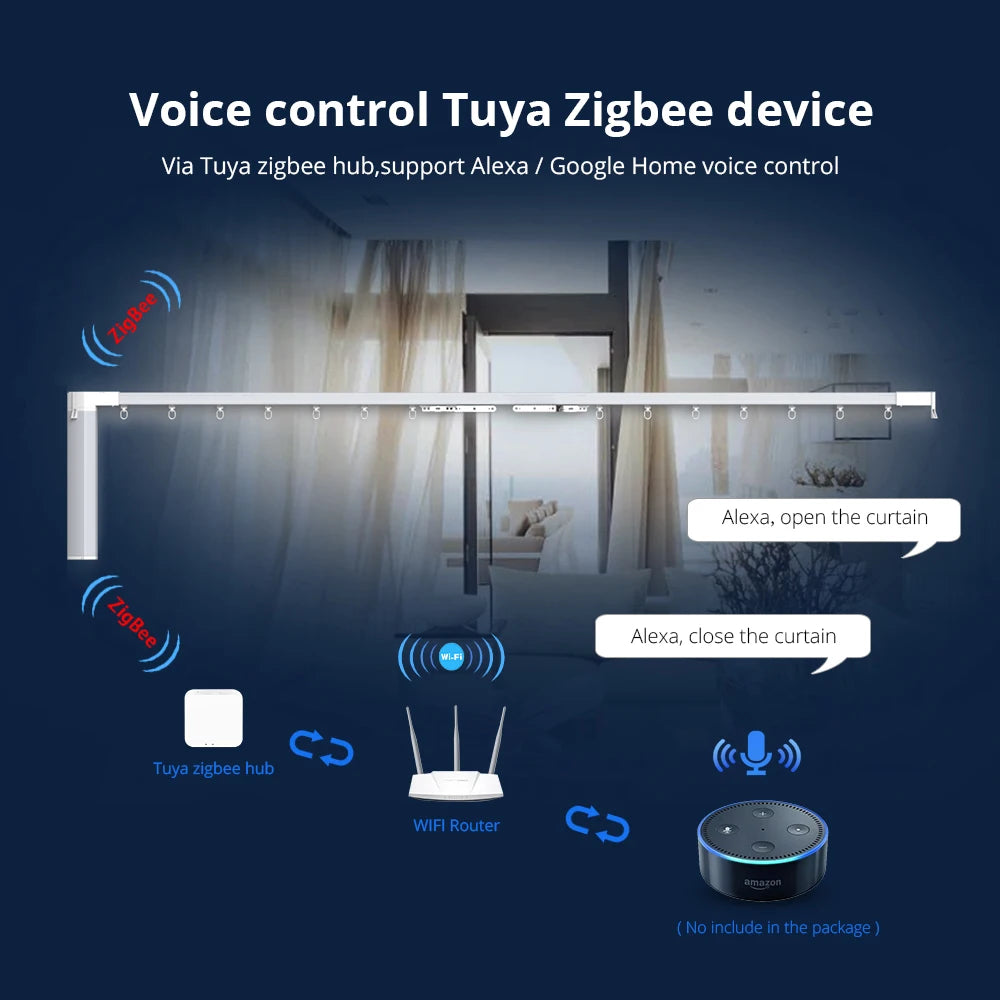

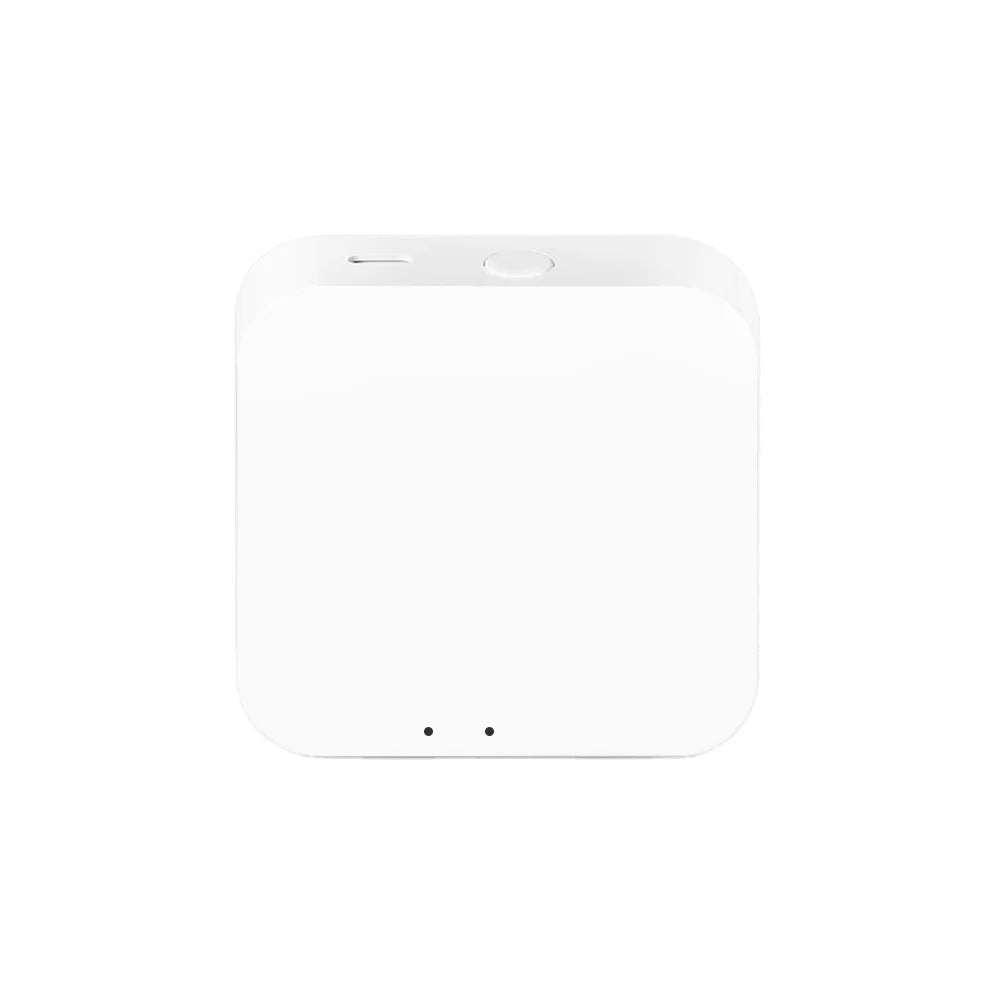

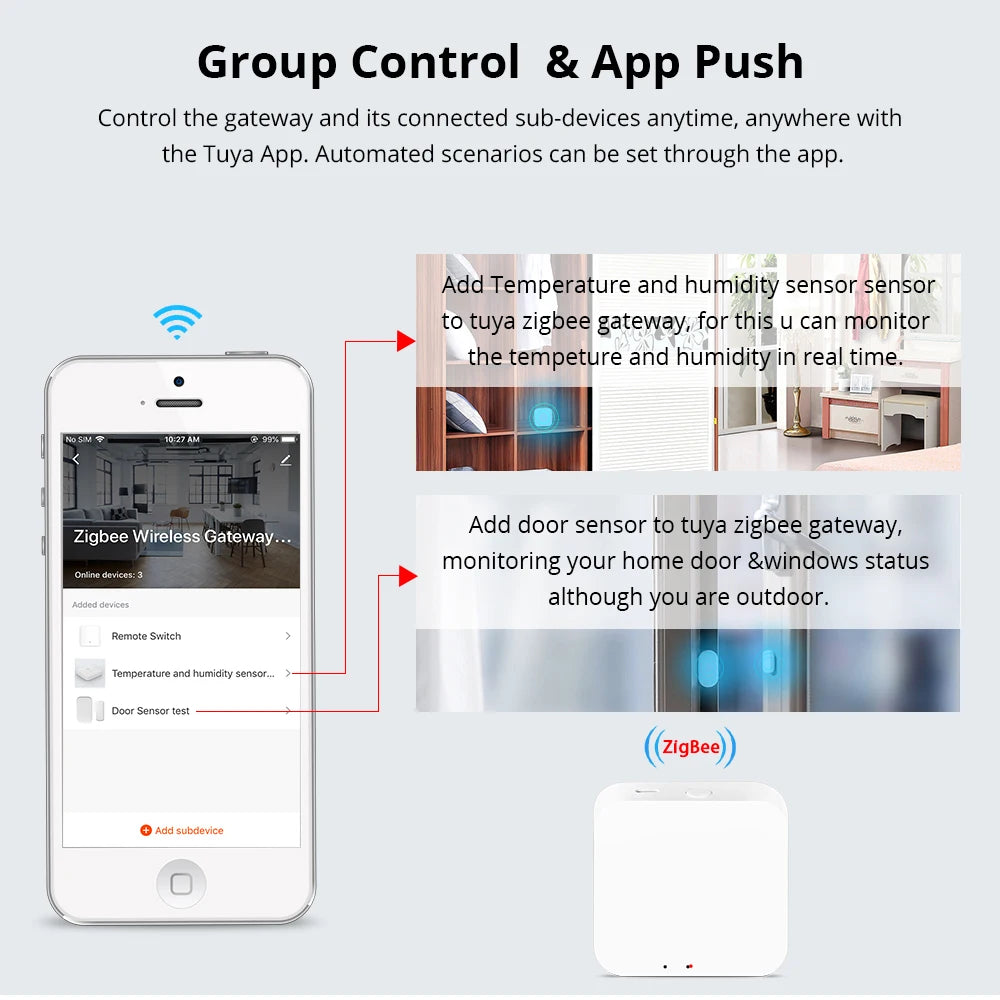

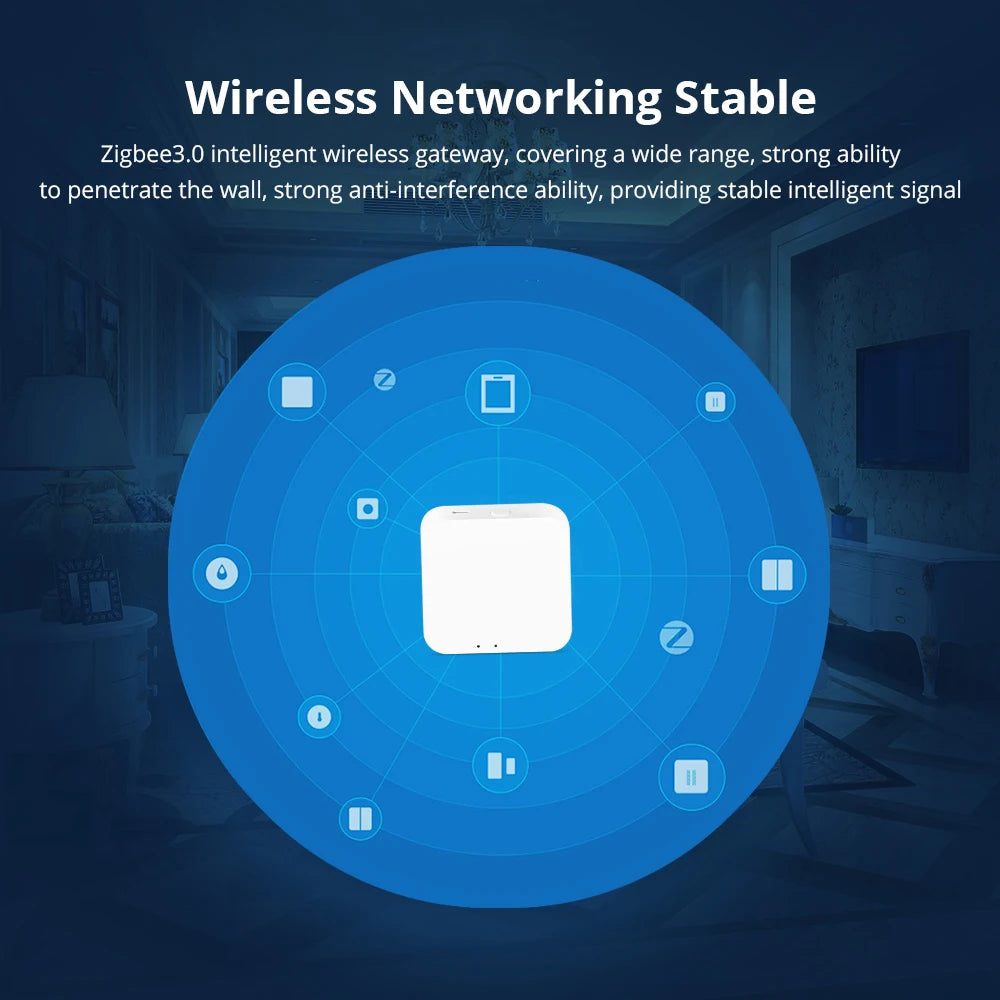

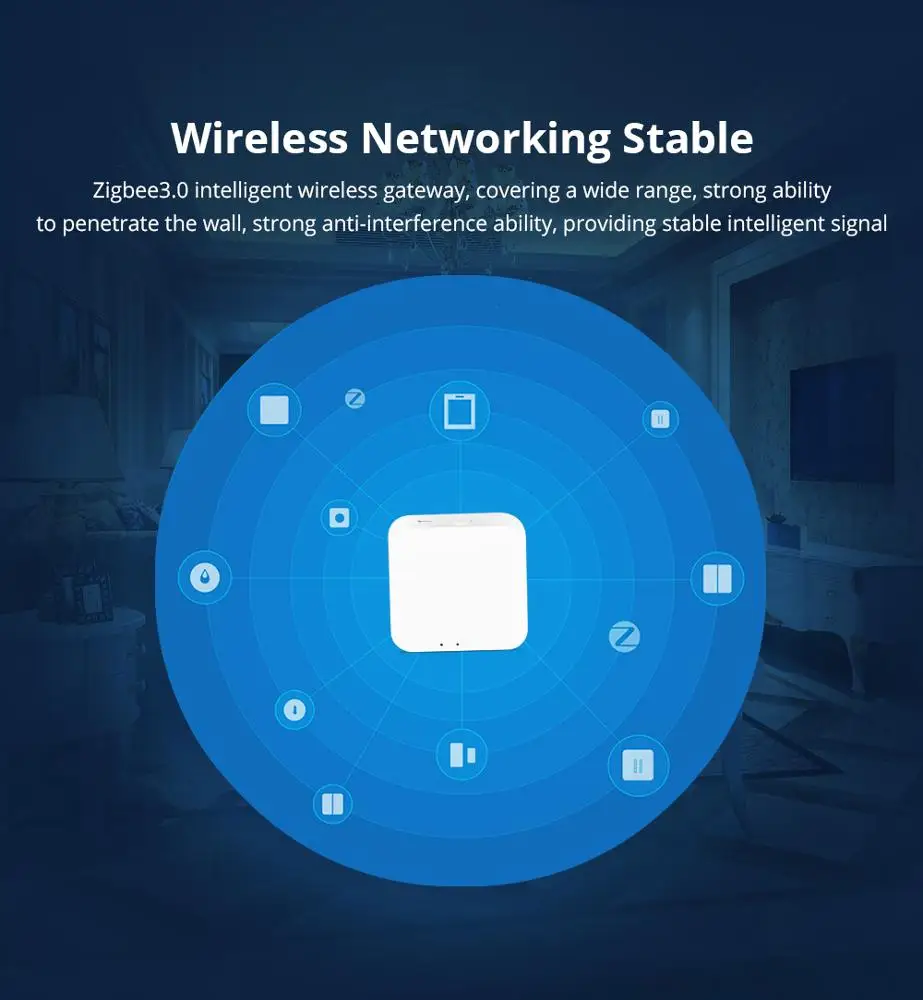

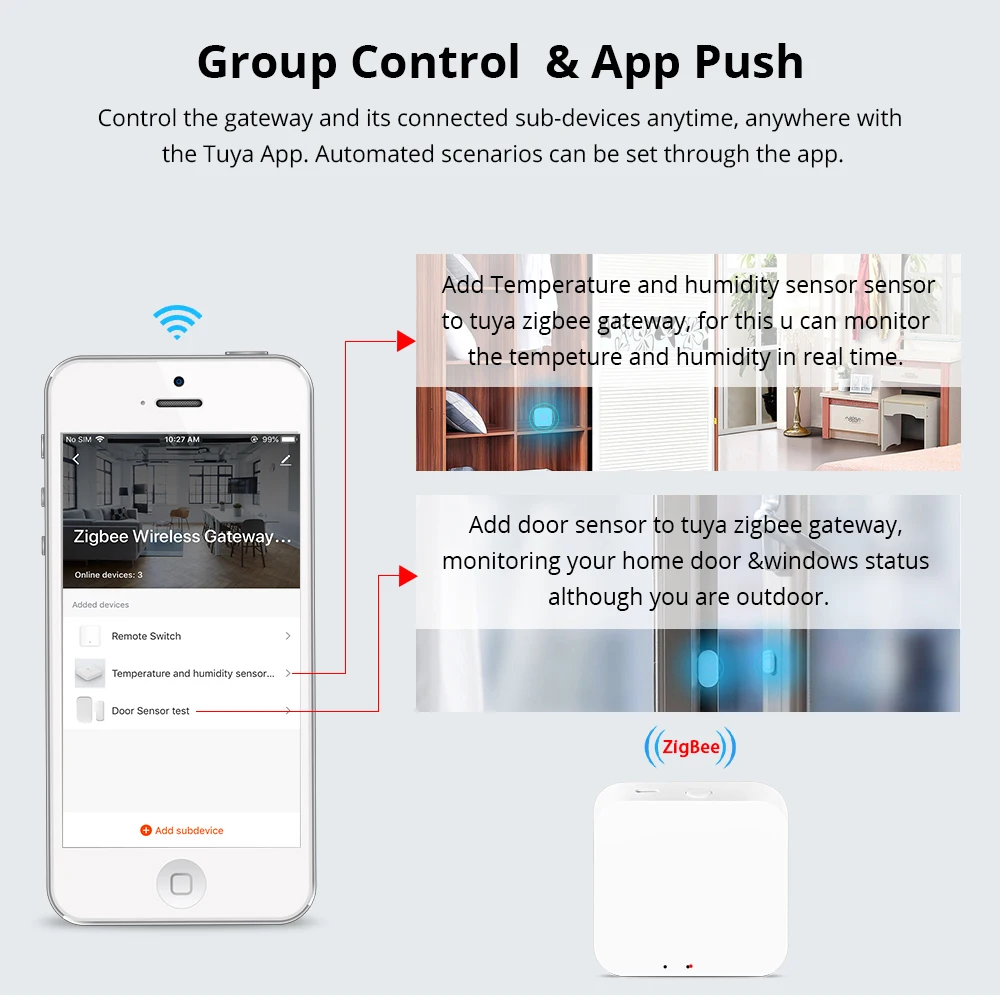

Overview :TUYA TYGWZ-01 is a Zigbee hub that connects to a variety of Zigbee smart products and is the bridge and control center for smart homes. By connecting to the router, TYGWZ-01 enables communication with the cloud and mobile app, allowing users to easily view and control various smart devices in the home that use the Zigbee protocol.

Parameter: - Chip: EFR32MG1B232 - Standard: IEEE 802.15.4 - Frequency: 2.4~2.485GHz - Maximum output power: 19dBm - Dynamic output power: >35dB - Open line of sight transmission distance: >300m - Frequency error: ±15ppm - Theoretical transmission rate: 250kbps - Receive sensitivity: typical -102dBm, PER<10% - Total number of channels: 16 Channel number: 11~26 - Network topology: Supports star, tree, mesh network - Antenna: default PCB onboard antenna Firmware upgrade: Support OTA

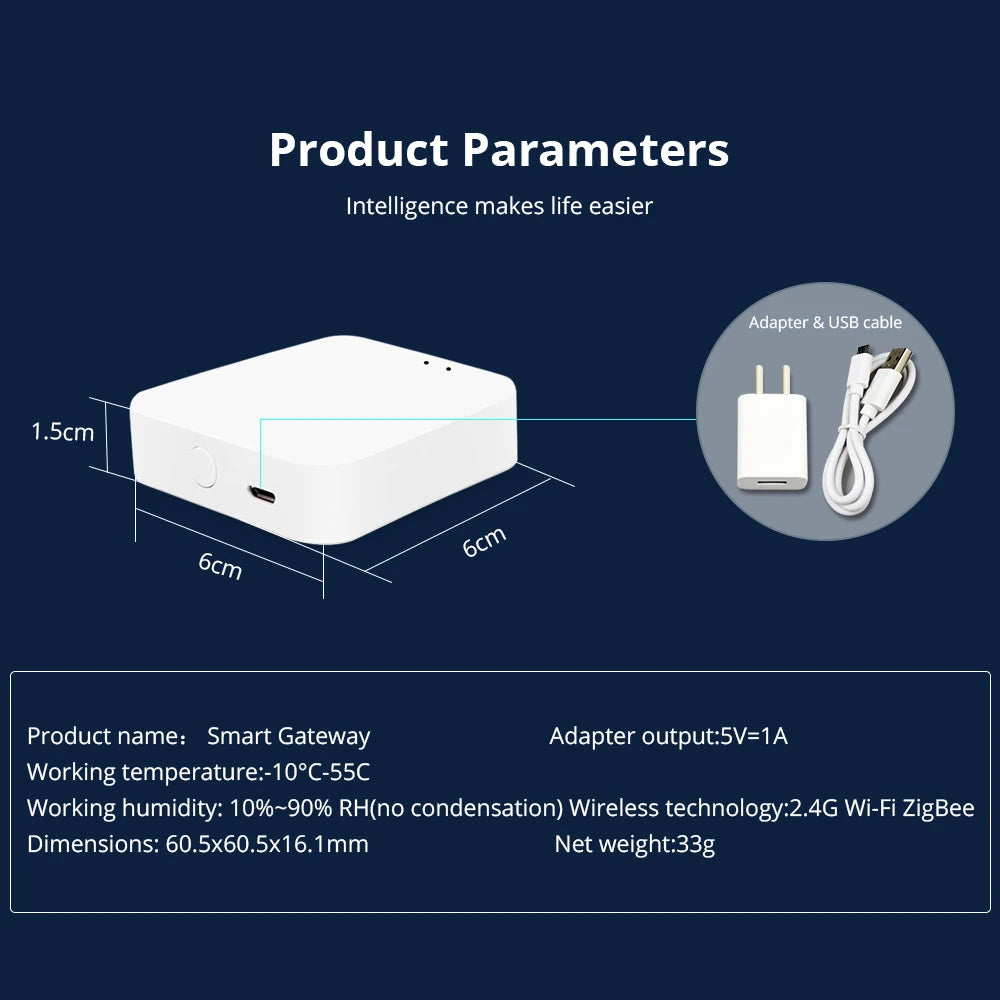

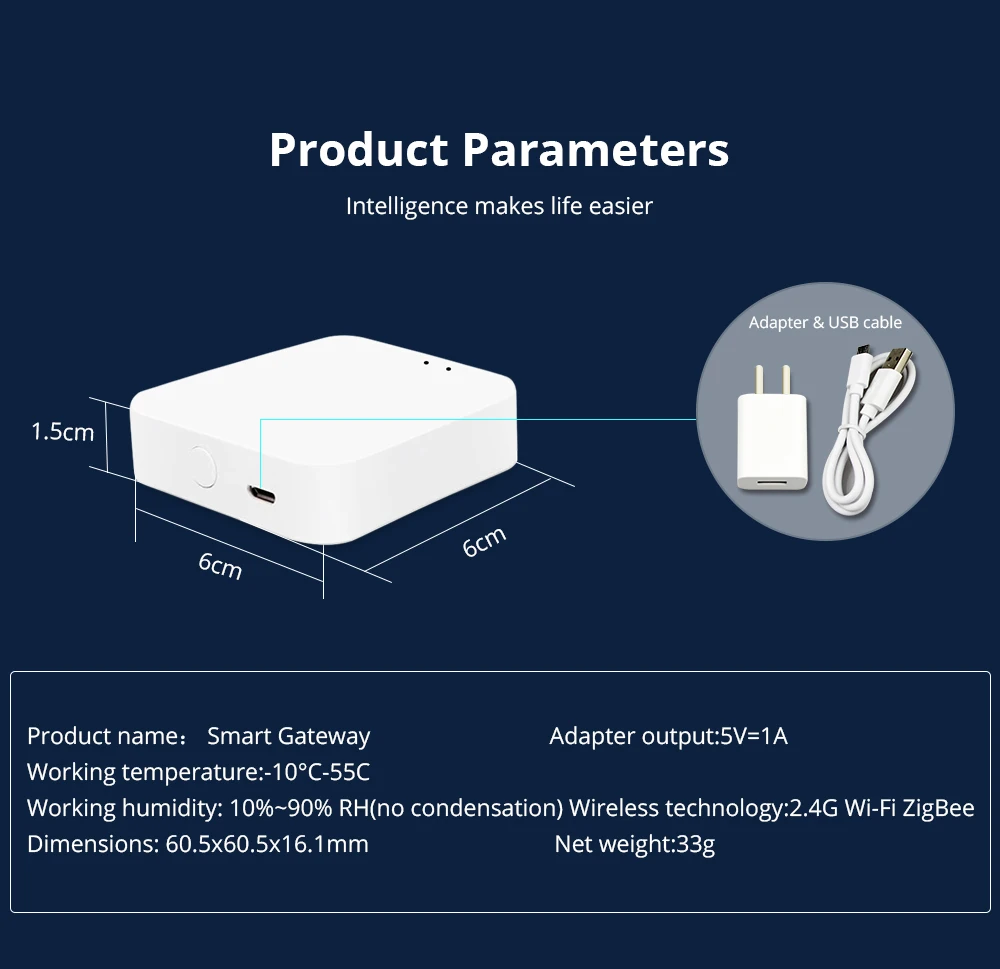

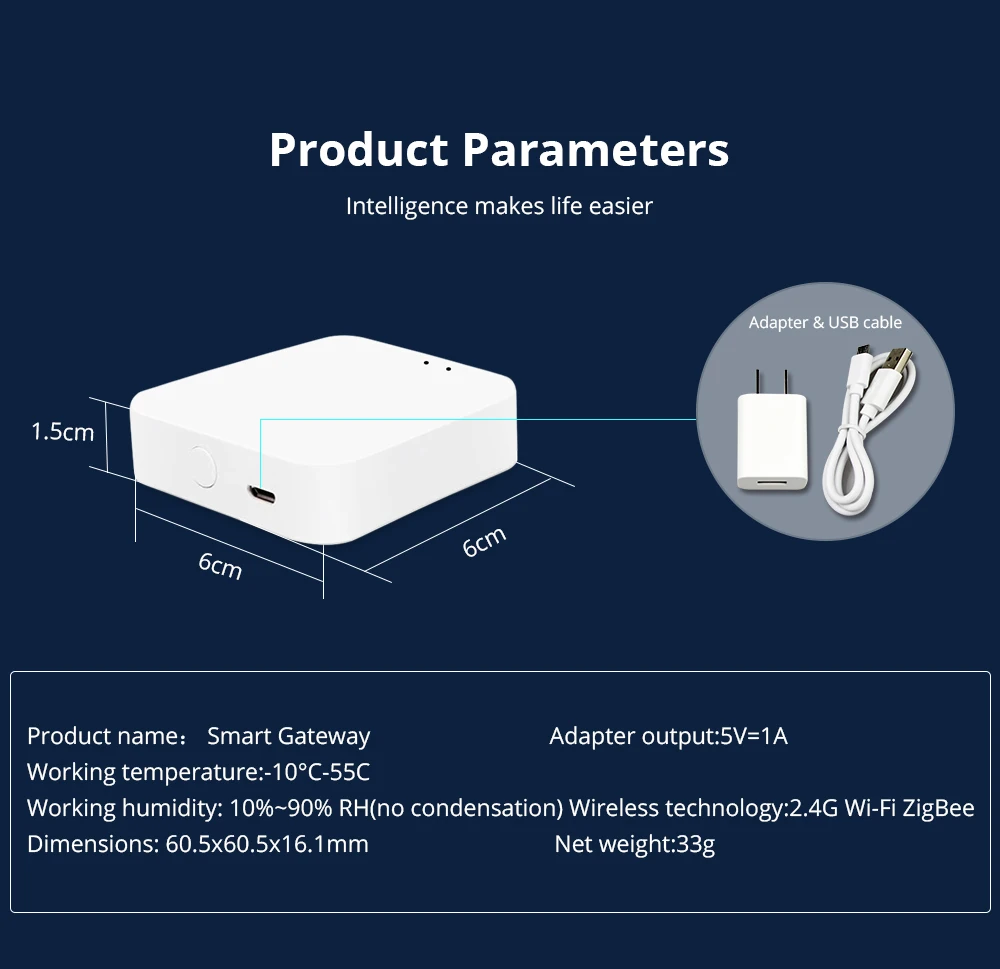

Electrical Specification : - Adapter: 110V~240V AC, 5V/1A DC - Working voltage: 1.8V ~ 3.3V - Working temperature: -10-55°C - Working humidity: 10%-90%RH (non-condensing) - Storage temperature: -20-60°C - Storage humidity: 5%-90% RH (non-condensing)
