Custom TTGO T8 V1.8 ESP32 - WROVER 8MB PSRAM TF CARD WiFi BT Expand Module Development Board 32-bit LX6 Microprocessor Manufacturer

Custom TTGO T8 V1.8 ESP32 - WROVER 8MB PSRAM TF CARD WiFi BT Expand Module Development Board 32-bit LX6 Microprocessor Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out


Note:

Due to price of CP210X chip increase.We recommend CH9102 Version which is the replace one.

If you still need CP210X version, Please contact us before placing an order.

Hardware Specifications

Chipset

ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor

FLASH

QSPI Flash 4M / 8MB PSRAM

SRAM

520 kB SRAM

KEY

reset

USB to TTL

CH9102F QFN24

modular  interface

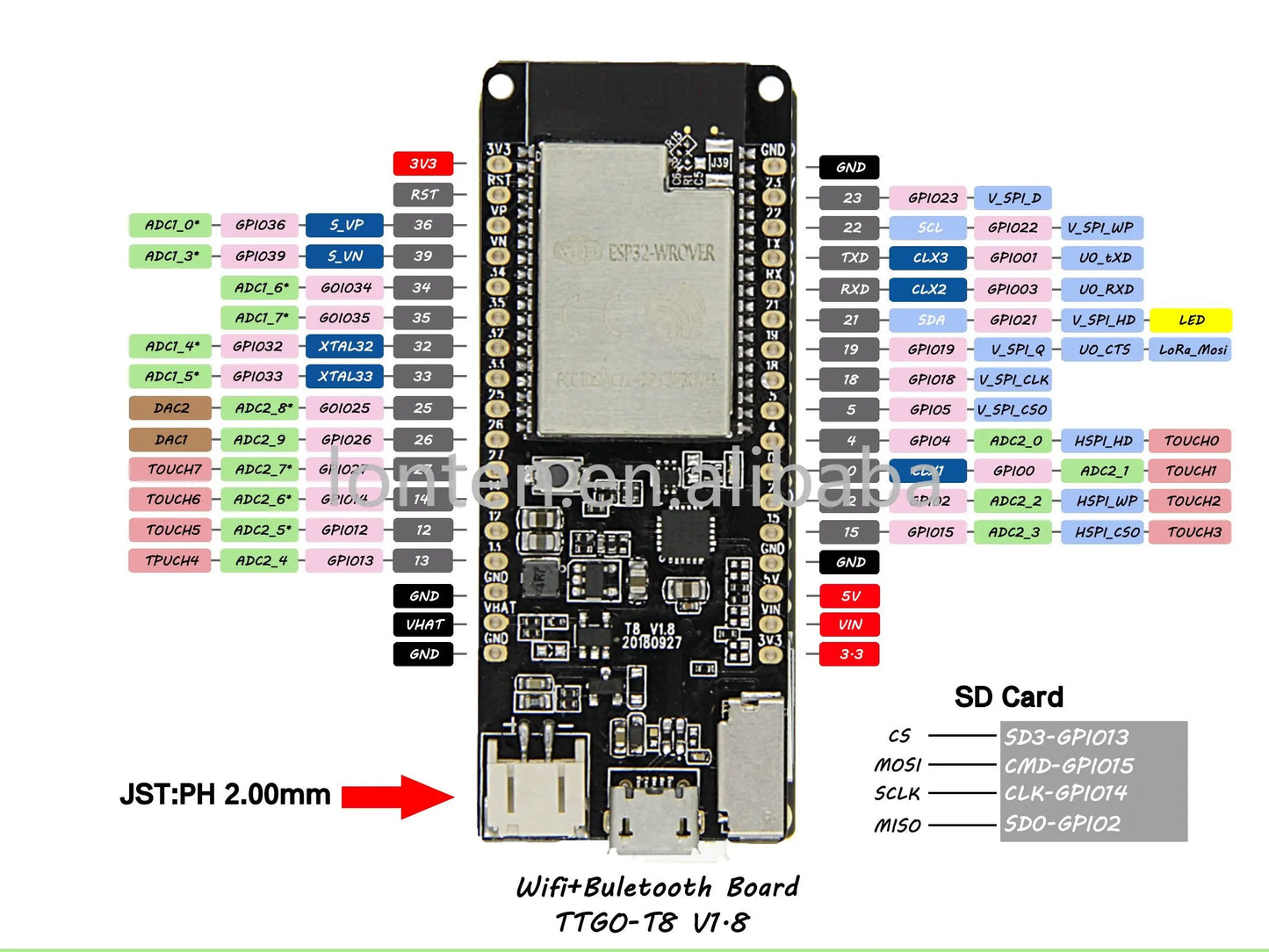

SD card,UART,SPI,SDIO,LED PWM,TV PWM,I2S,I2C,IRGPIO,capacitor touch sensor,ADC,DACLNA  pre-amplifier

on-board clock

40MHz crystal oscillator

working voltage

2.3V-3.6V

working current

about 35mA

sleep current

4mA

working temperature range

-40℃ ~ +85℃

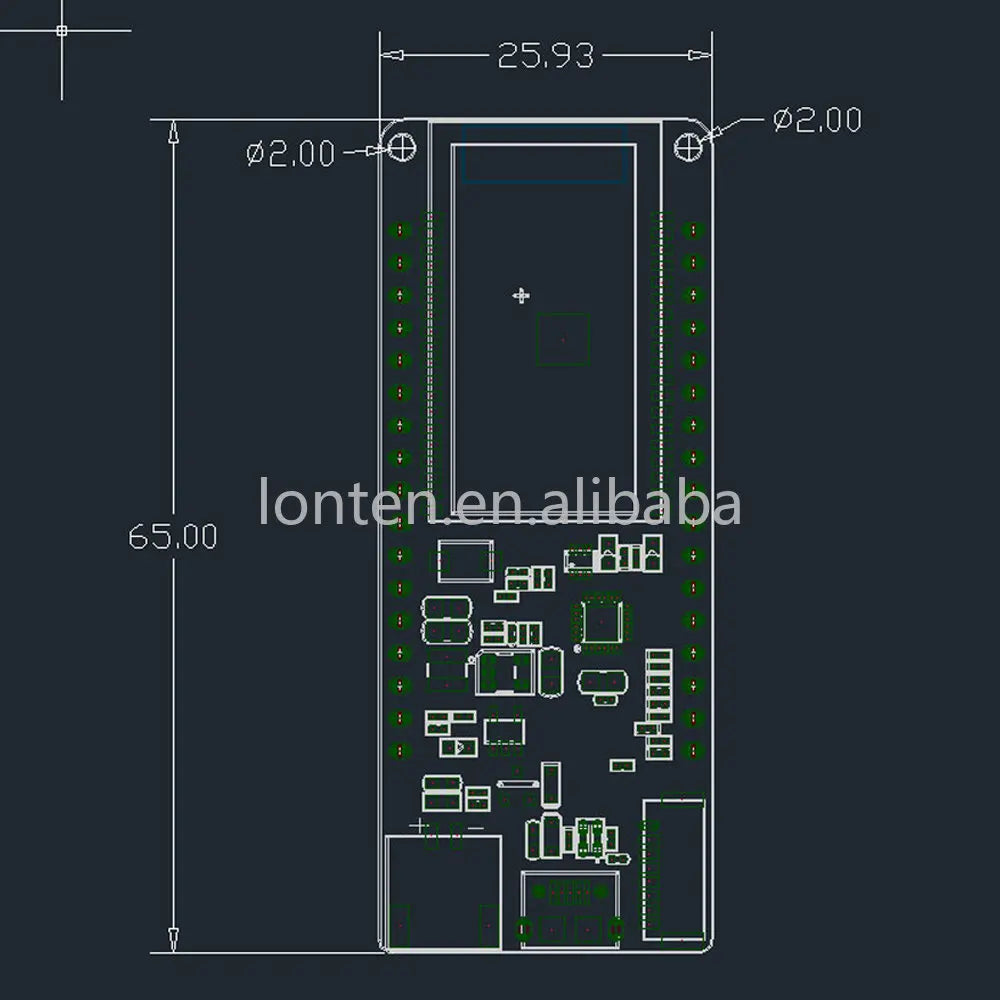

size

65.00mm*25.93mm*10mm

Power Supply Specifications



Power Supply

USB 5V/1A

charging current

500mA

battery

3.7V lithium battery

Jst: PH 2pin 2.0mm

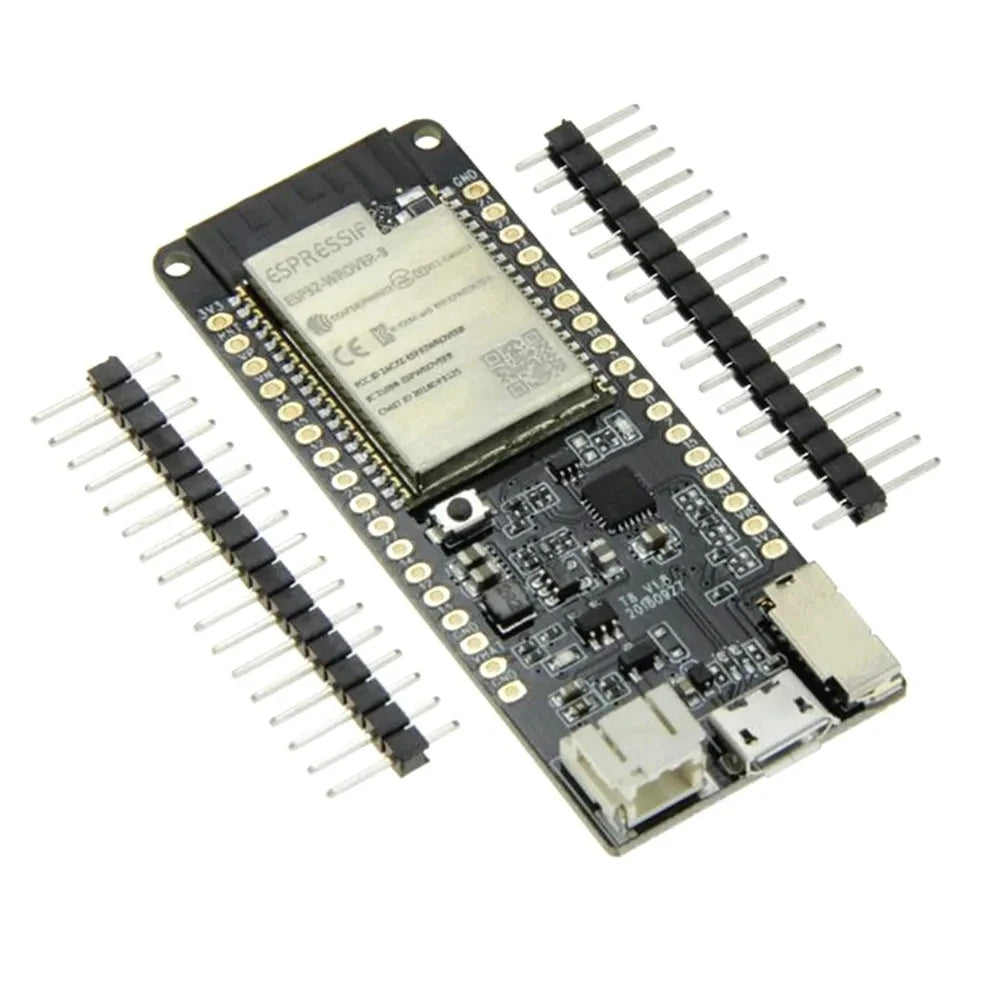

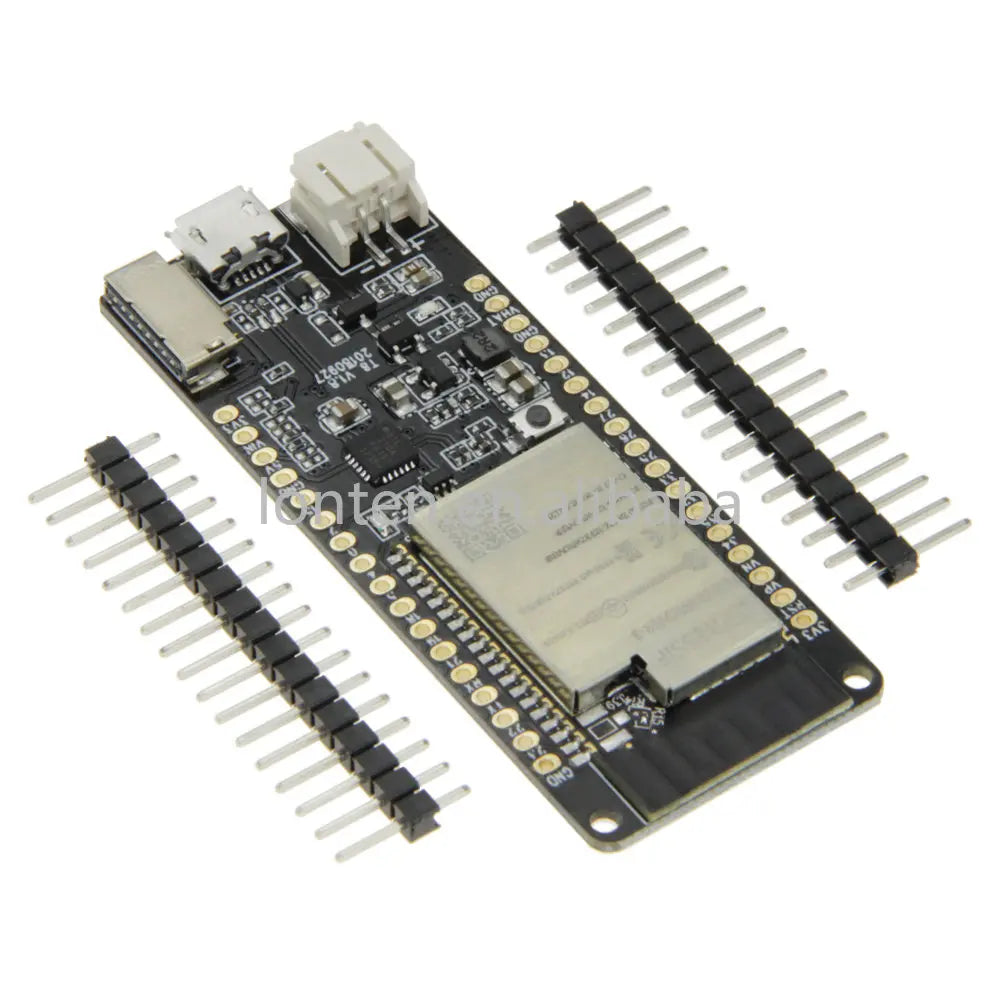

ESP32 Module CH9102F Chip  (Pin are not soldered by default)

1 X ESP32 Module

2 X Pin
