Custom TTGO T5-4.7 Inch E-paper ESP32 V3 Version 16MB FLASH 8MB PSRAM WIFI/BT Module Development Board for Arduin0 Manufacturer

Custom TTGO T5-4.7 Inch E-paper ESP32 V3 Version 16MB FLASH 8MB PSRAM WIFI/BT Module Development Board for Arduin0 Manufacturer

$33.98 USD
$33.98 USD $33.98 USD
Sale Sold out
Specification





T5 4.7-inch E-Paper Introduction

  • T5 4.7-inch E-Paper is another version of the T5 series of electronic ink screens.

  • The T5 series of ink screen versions include 1.02, 1.54, 2.13, etc., from small to large electronic ink screen versions.

  • We have been committed to low-power design optimization.

  • This 4.7-inch version continues the low-power design, the sleep mode current is about 170uA, and two optional battery modes are designed on the back：

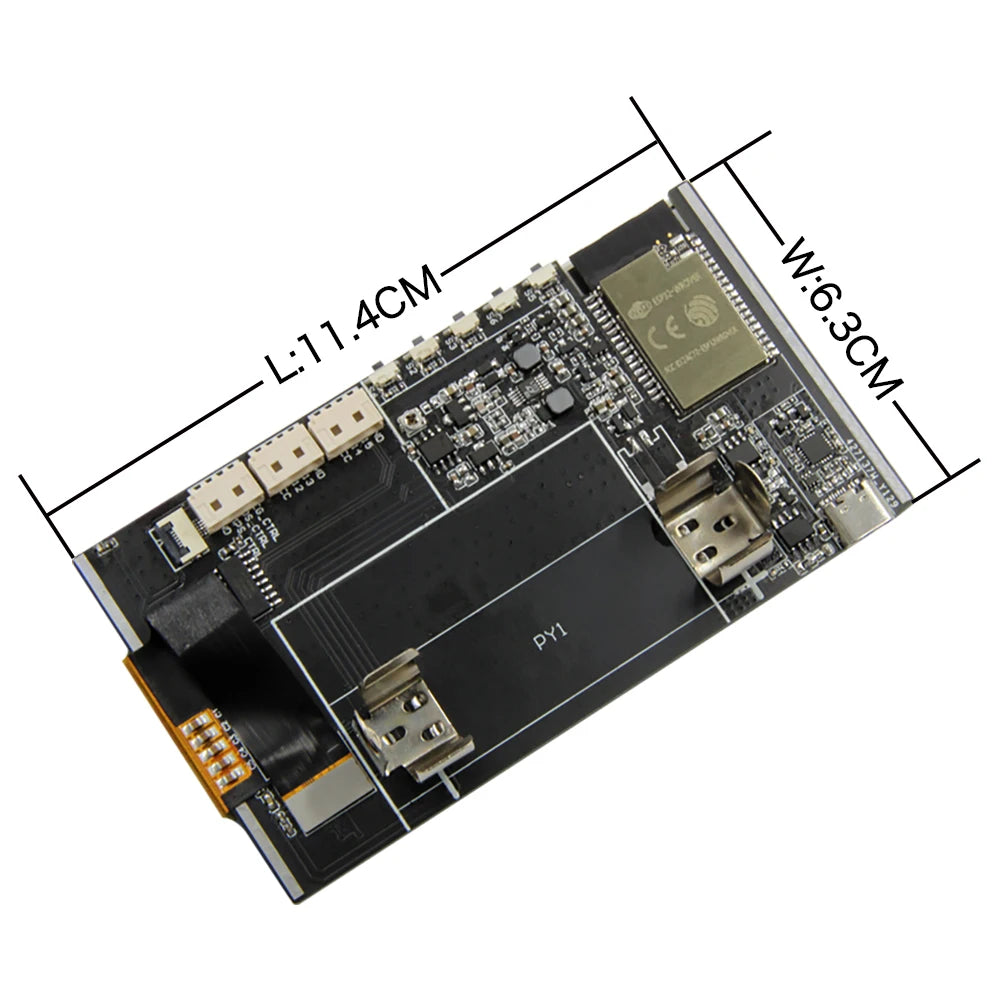

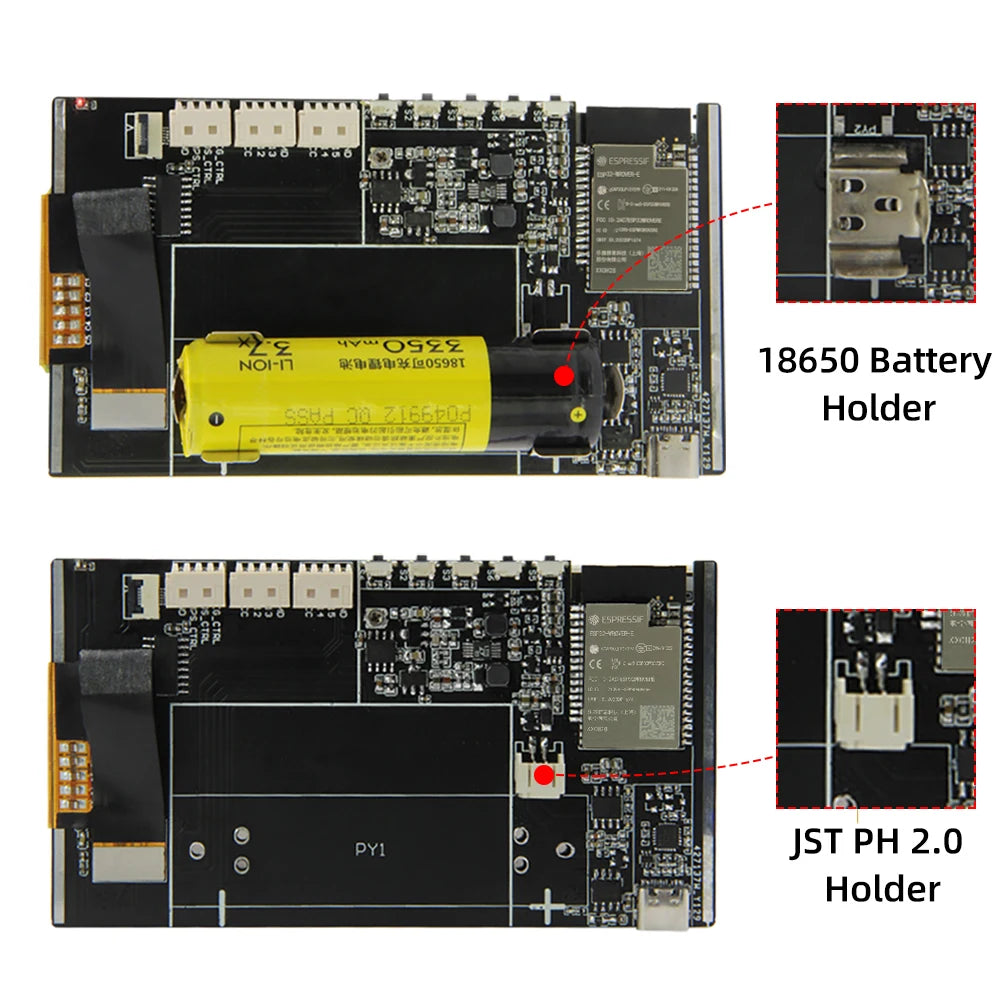

    1. PH 2.0 pitch 2pin interface.

    2. 18650 battery metal connector.

  • Reserve a 6pin touch screen interface as an optional accessory to facilitate your application.

  • There are 5 buttons reserved on the side, 3 of which are custom buttons, which can flexibly define functions. One is the reset button.

Notice:

  • The Clamp Edge of 18650 Battery Holder is relatively sharp.

  • Be careful not to scratch the battery cover when installing.




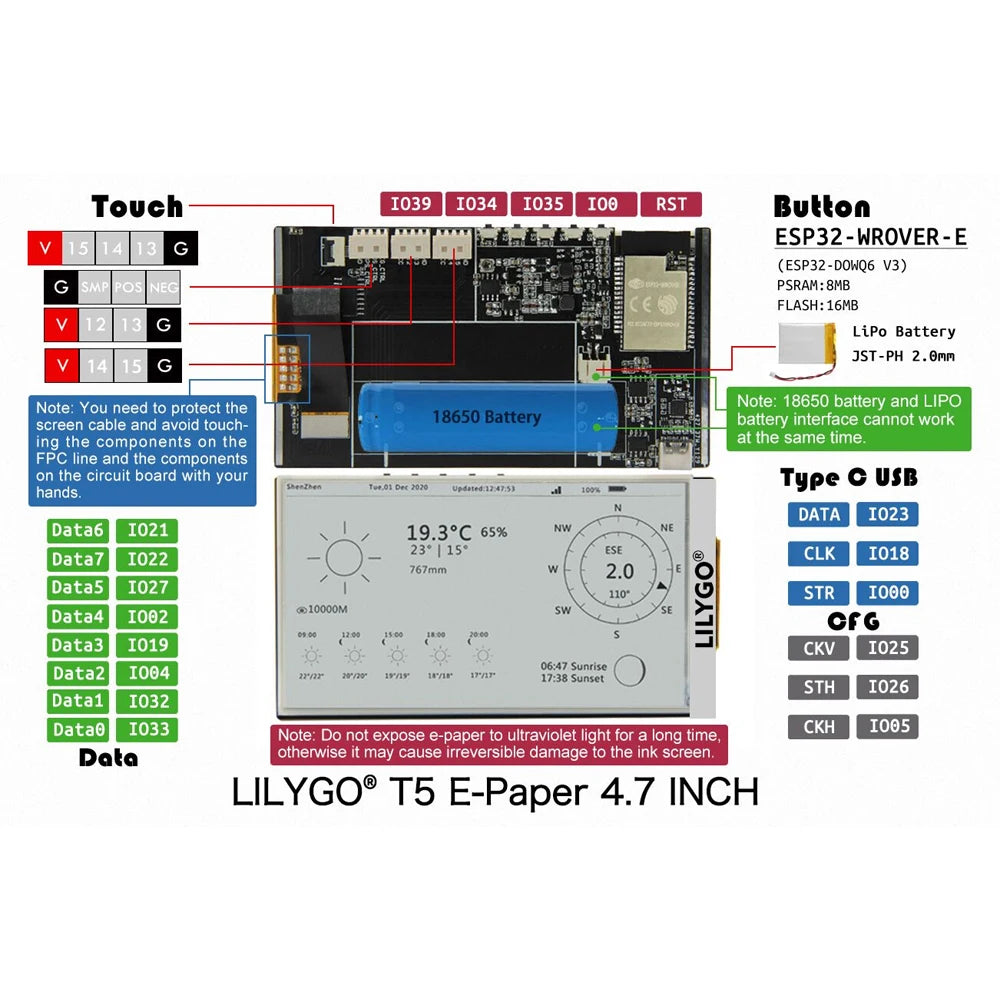

T5 4.7 inch Parameters

MCU

ESP32-WROVER-E

Flash

16MB

PSRAM

8MB

Wireless Connectivity

Wi-Fi 802.11 b/g/n

BT V4.2+BLE

Programming Platform

Arduino-IDE

VS Code

ESP-IDF

Onboard functions



Buttons :
IO39+IO34+IO35+IO0

Battery Power Detection

Power Supply

(version optional)

18650 Battery

3.7V lithium Battery

(Interface:PH 2.0)



E-Paper 4.7 inch Ultra low Power Consumption E-ink Screen

Drive

ED047TC1

Resolution

540 * 960

Size

4.7 inch

Grayscale

Support 16 bit

Features

High reflectivity

Ultra-wide viewing angle

Ultra-low power consumption

Commercial temperature range













FAQ:

  • Q:How to use the product?

  • A:For more use of driver parameters, please refer to our github instructions.

  • Avoid pulling the touch screen cable when using it.

  • When using, it needs to correspond to the pin sequence of the touch screen, do not reverse the connection, otherwise the touch screen may be damaged.

  • The touch screen is equipped with adhesive paper that is attached to the e-paper. The adhesive film must be torn off when using it, and the display area on the corresponding e-paper is correctly pasted. Avoid tearing the adhesive tape repeatedly or it may damage the touch screen.



18650 Holder CH9102 Options

PH 2.0 Holder CH9102 Options

1 X T5-4.7 inch E-paper ( Without Battery )

1 X T5-4.7 inch E-paper ( Without Battery )

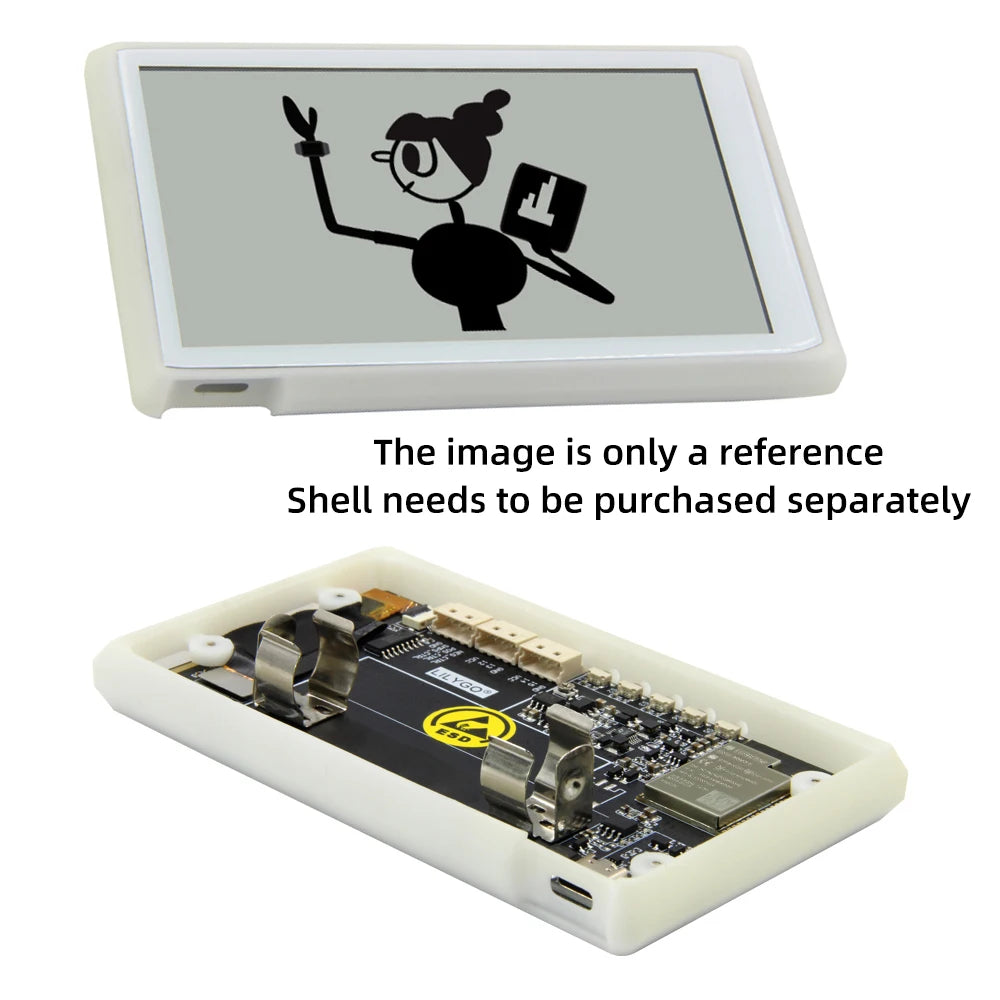

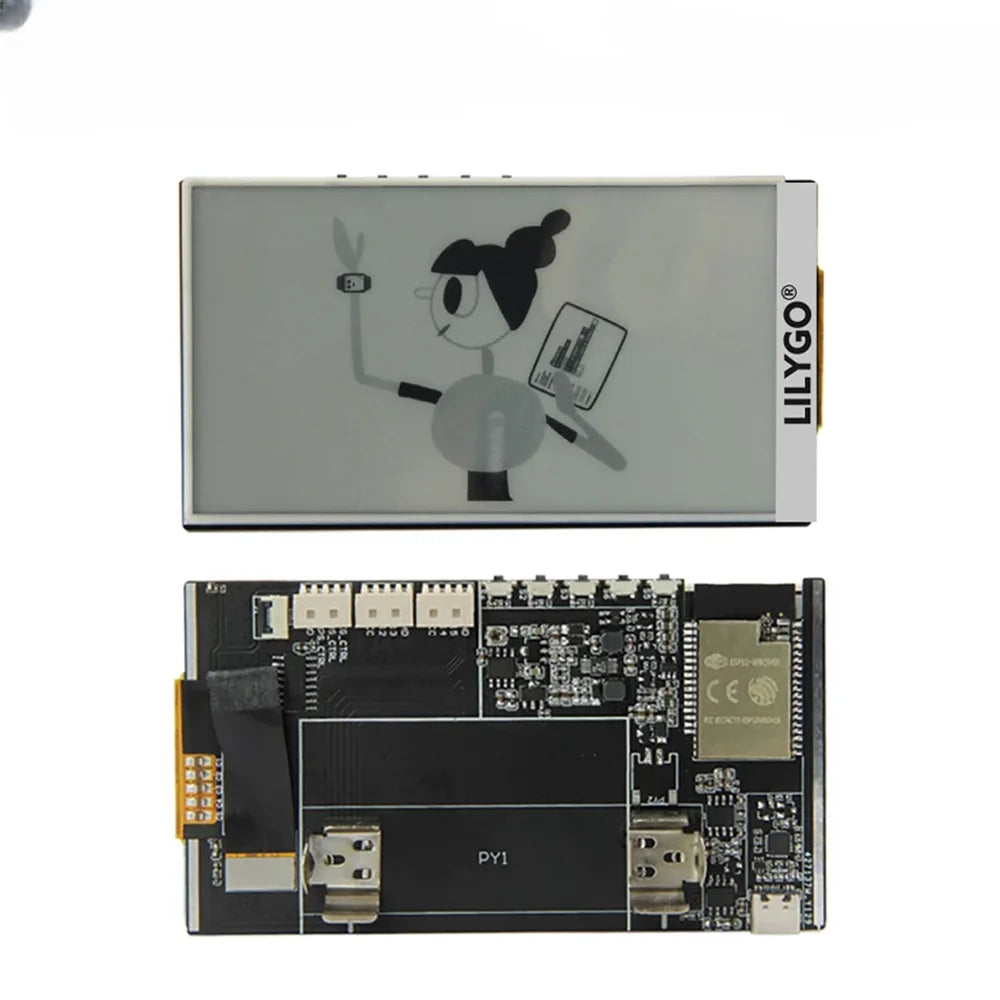

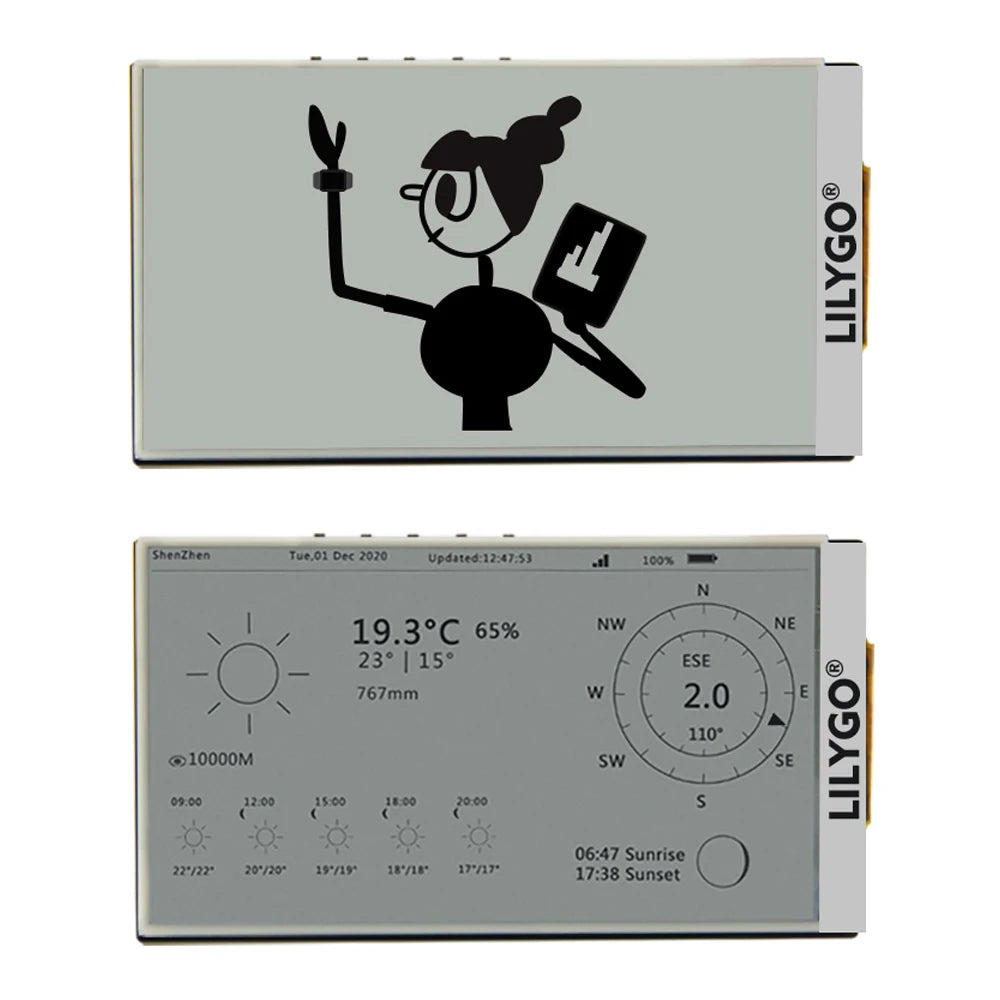

The T5 in the pictures below has a screen or case installed, the pictures are for illustration only
