Custom TTGO T-Display ESP32 WiFi And Module Development Board 1.14 Inch LCD Control Board Custom PCB pcba revers engineering service Manufacturer

Custom TTGO T-Display ESP32 WiFi And Module Development Board 1.14 Inch LCD Control Board Custom PCB pcba revers engineering service Manufacturer

Regular price $25.31 USD
Regular price $25.31 USD Sale price $25.31 USD
Sale Sold out
Specification

LILYGO® TTGO T-Display ESP32 WiFi And Blth Module Development Board 1.14 Inch LCD Control Board

1



Product  Description

Hardware Specifications
Chipset ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASH QSPI flash 4MB
SRAM  520 kB SRAM
Button Reset
USB to TTL CP2104
Modular interface UART、SPI、SDIO、I2C、LED PWM、TV PWM、I2S、IRGPIO、ADC、capacitor touch sensor、DACLNA  pre-amplifier
Display IPS ST7789V 1.14 Inch
Working voltage 2.7V-4.2V
Working current About 67MA
Sleep current About 350uA
Working temperature range -40℃ ~ +85℃
Size&Weight 51.52*25.04*8.54mm(7.81g)
Power Supply Specifications
Power Supply USB 5V/1A
Charging current 500mA
Battery 3.7V lithium battery
JST Connector 2Pin 1.25mm
USB Type-C



Wi-Fi


Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 22dBm
Communication distance 300m



Blth


Protocol Meet blth v4.2BR/EDR and BLE standard
Radio frequency With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency



Software specification


Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type  AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA(Through network/host to download and write firmware)
Software Development Support cloud server development /SDK for user firmware development
Networking protocol IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration AT + Instruction set, cloud server, android/iOSapp
OS FreeRTOS

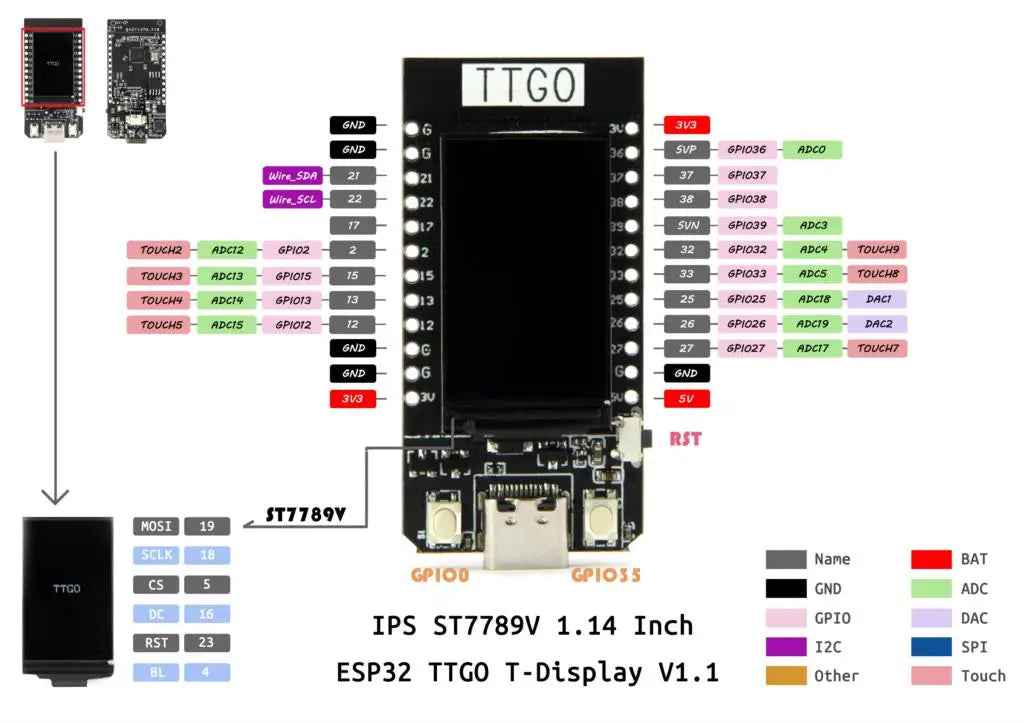

Product PIN Diagram

620





Size Chart

15



Product Detail

G511-01主图-09

G511-01主图-11



Shipping List

1 x TTGO T-Display

1 x Charging Cable

2 x Pin
