Custom TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 Custom PCB shared power bank pcba Manufacturer

Custom TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 Custom PCB shared power bank pcba Manufacturer

$100.00 USD
$0.00 USD $100.00 USD
Sale Sold out

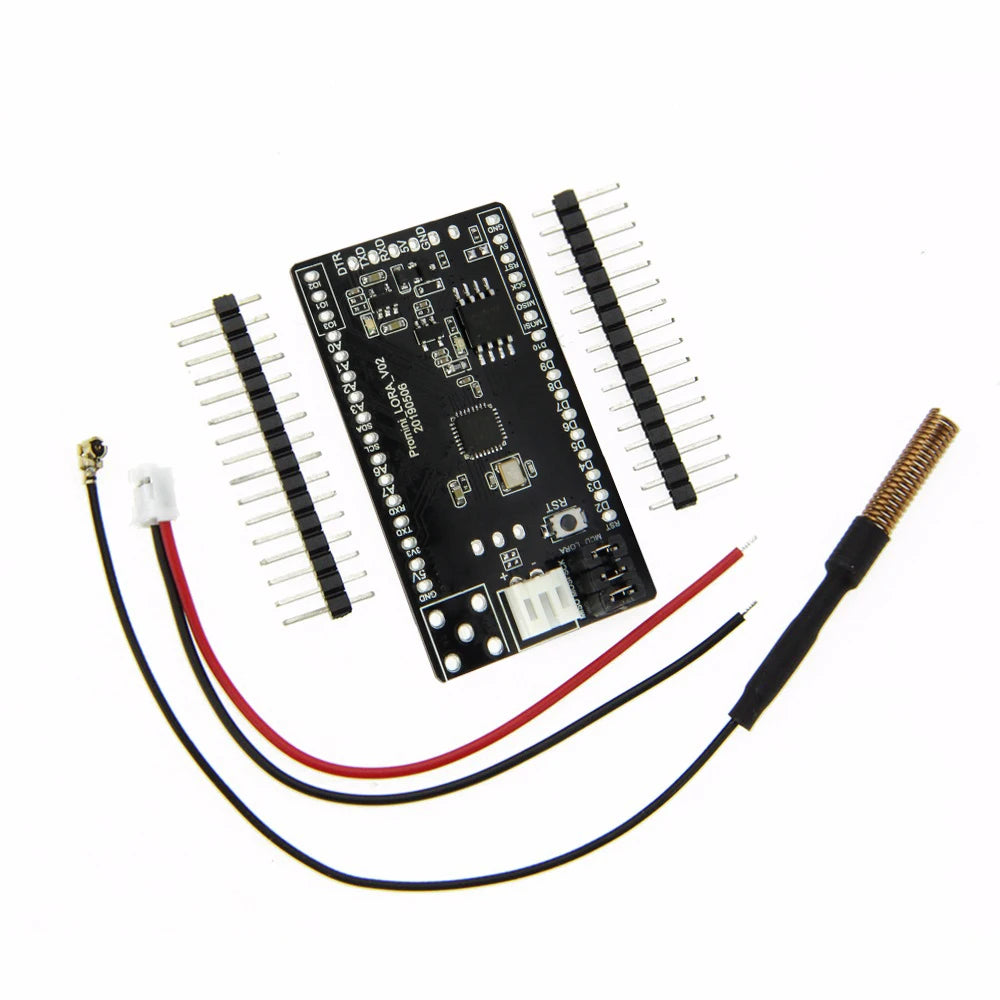

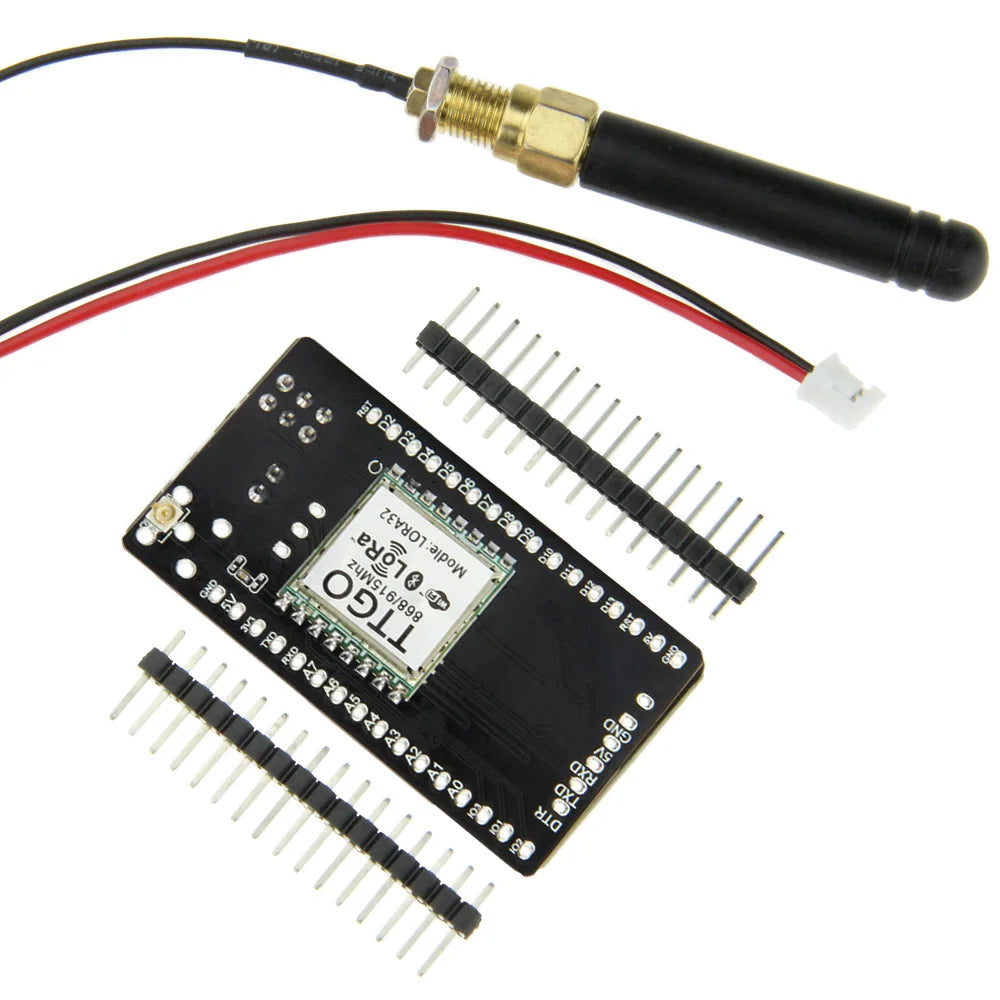

TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328

TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 Custom PCB shared power bank pcba

Product Description

Hardware


Chipset
Atmega328P
FLASH
QSPI flash/SRAM, up to 4 x 16 MB
KEY
reset
Power indicator lamp
red
lora
TTGO LORA 433M
on-board clock
16MHz crystal oscillator
working voltage
2.3V-3.6V
working current
about 8mA
working temperature range
-40℃ ~ +85℃
size
51.13mm*27.25mm*12.29mm
Power Supply Specifications

Power Supply
USB 5V/1A
charging current
500mA
battery
3.7V lithium battery



Notice:Plug the jumper when using the LORA, and disconnect the jumper when downloading the boot load

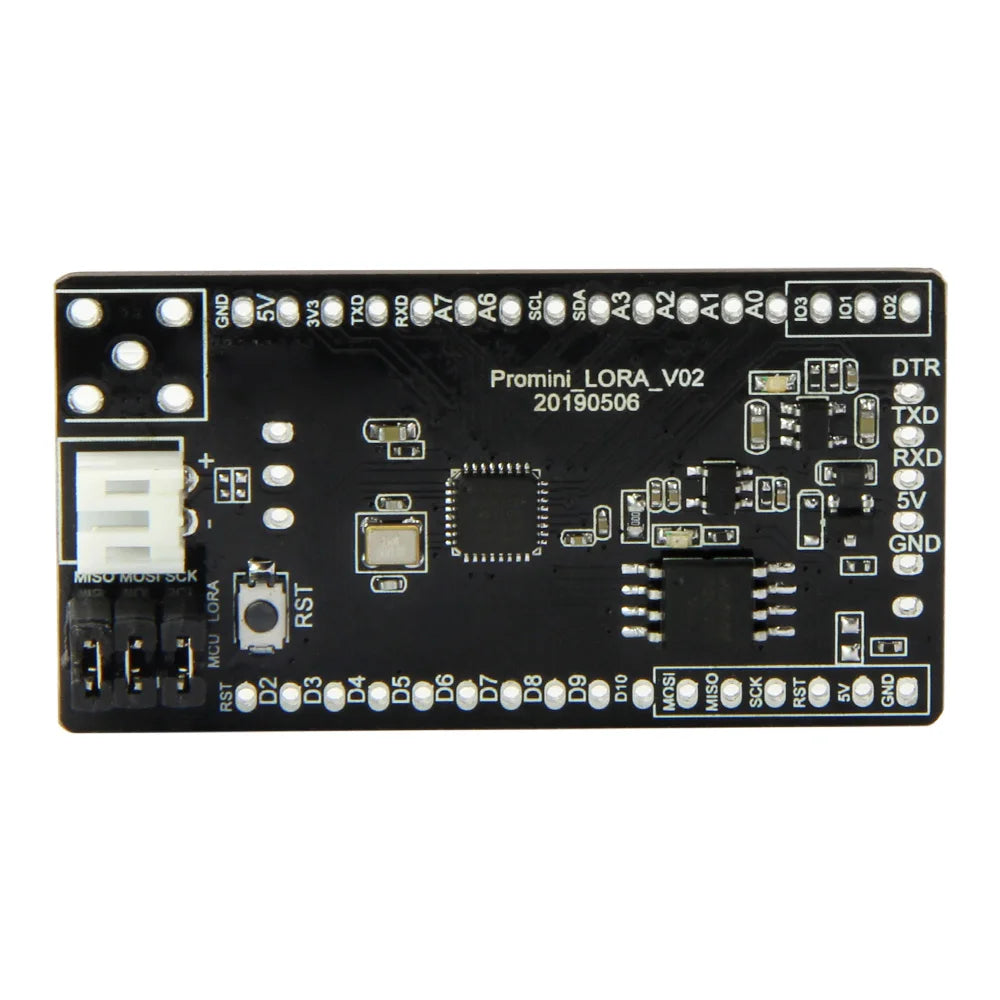

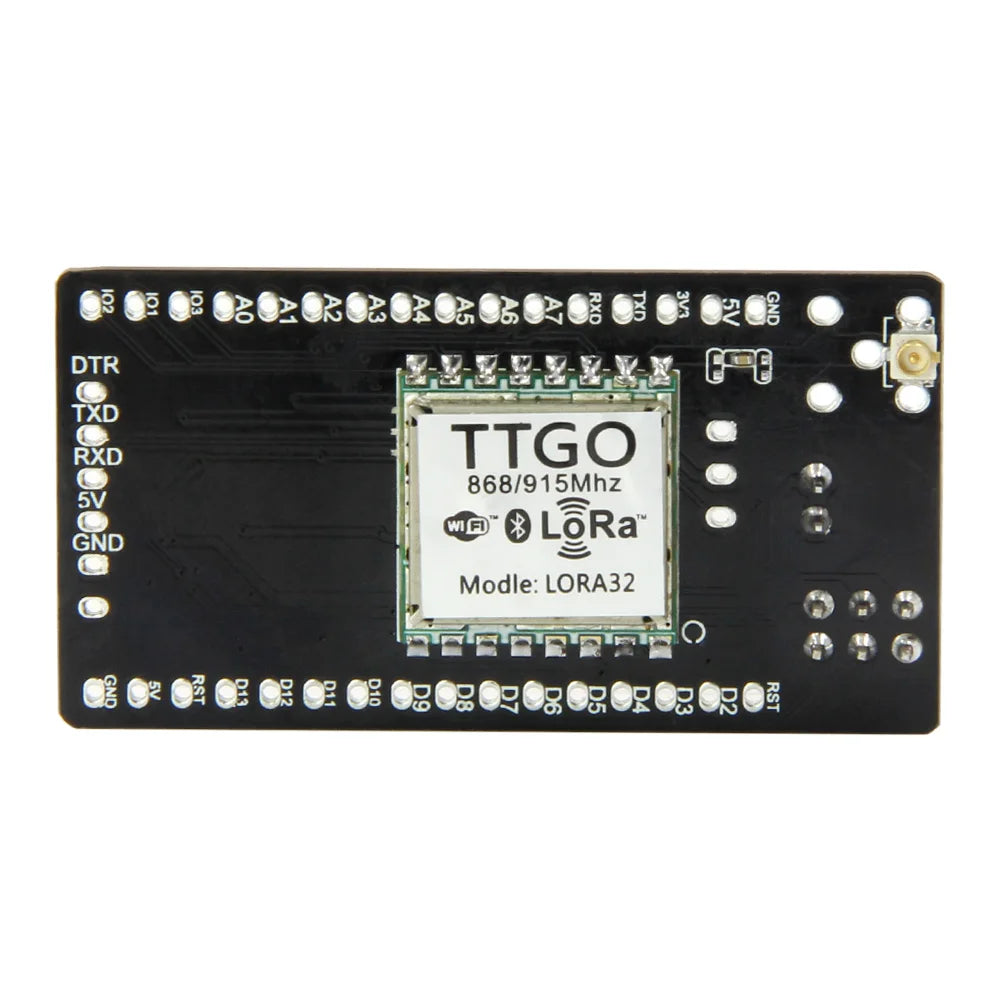

Pin Reference Description

TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 Custom PCB shared power bank pcba



Product Details

TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 Custom PCB shared power bank pcba



TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 Custom PCB shared power bank pcbaTTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 Custom PCB shared power bank pcba

Shipping List

433MHz Shipping LIst

TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 Custom PCB shared power bank pcba

868MHz Shipping LIst

TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 Custom PCB shared power bank pcba



915MHz Shipping LIst



TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 Custom PCB shared power bank pcba




 Welcome Customize Order!
