LILYGO® TTGO T-Beam V1.1 ESP32 LORA 433/868/915/923MHZ WiFi Wireless BTModule GPS NEO-M8N IPEX 18650 Battery Holder
Product Features:
ESP32
Lastest ESP32 Version: REV1
WIFI & BT
4MB Flash & 8MB PSRAM
3D Antenna
Working voltage: 1.8~3.7v
Acceptable current:10~14m
ATransmit current: 120mA@+20dBm,90mA@+17dBm,29mA@+13dBm
Operating frequency: 433/470MHz(433HMz version) /868M/915M(868MHz version)
Transmit power: +20dBm
Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error:+/-15KHz
FIFO space : 64Byte
Data rate :1.2K~300Kbps@FSK
0.018K~37.5Kbps@LoRa
Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK
Interface form : SPI
Sleep current :0.2uA@SLEEP
1.5uA@IDLE
Operating temperature :-40℃- +85℃
Digital RSSI function
Automatic frequency correction
Automatic gain control
Low voltage detection and temperature sensor
Fast wake-up and frequency hopping
Highly configurable data packet handler
Product Details
GPS:
GPS modules NEO-M8N, 3V-5V power supply Universal
Destined module with ceramic antenna, signal super
Save the configuration parameter data EEPROM Down
With data backup battery
There are LED signal indicator
Default Baud Rate: 9600
PowerPower:
Supply Input: USB 5V/1A
Charging current: 500mA
Battery Input: 3.7-4.2V
Charge IC: AXP192
Pre-Flash Firmware
-SoftRF
Product Demonstration

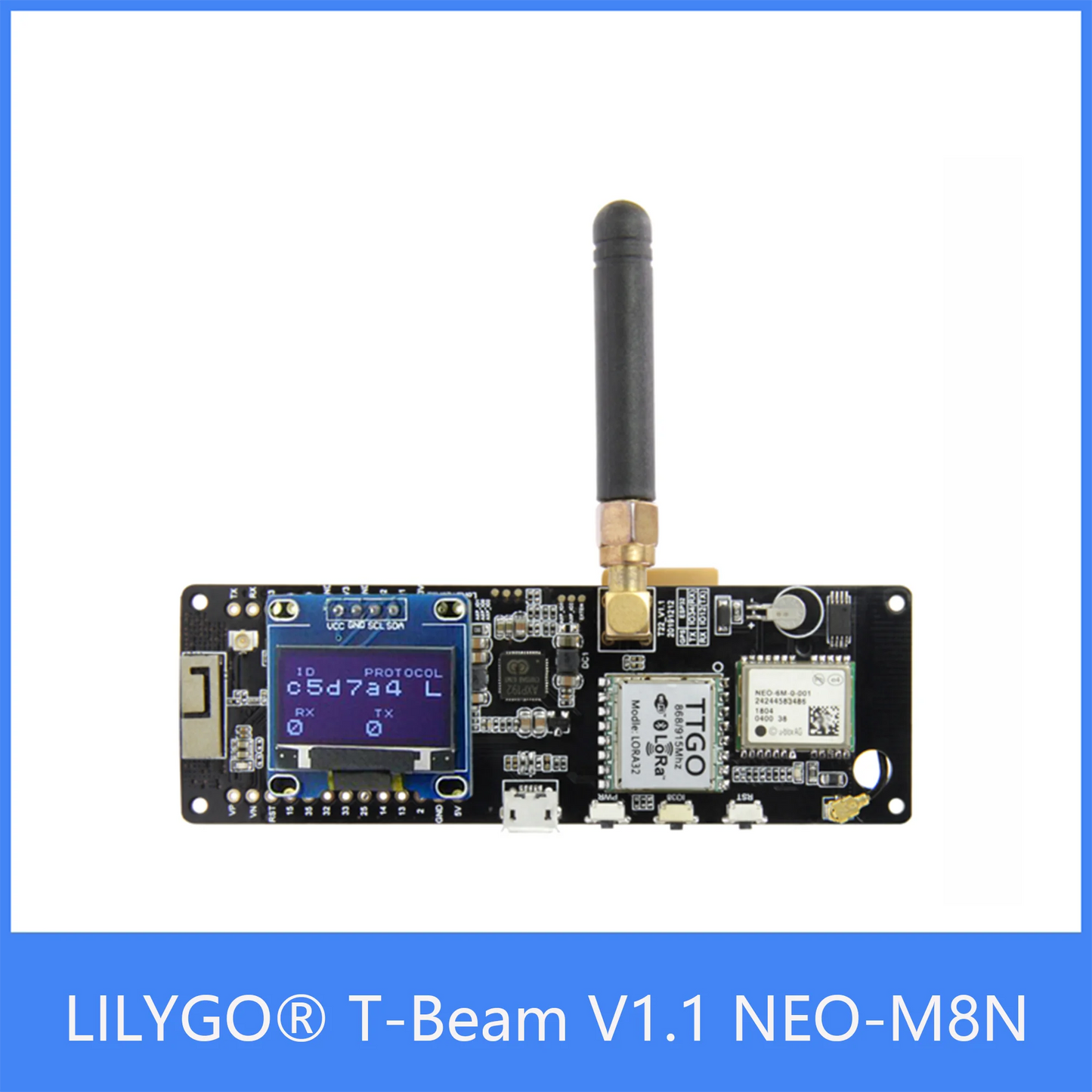

With OLED(not includes, only for reference )
With BMP280(not includes, only for reference )
