Custom TSL2591 Digital Light Sensor Breakout Module High Dynamic Range Lux IR Infrared Full Spectrum Diodes Detect 3.3V-5V for Arduino

$3.58 USD

~~$9.58 USD~~ $3.58 USD

Sale Sold out

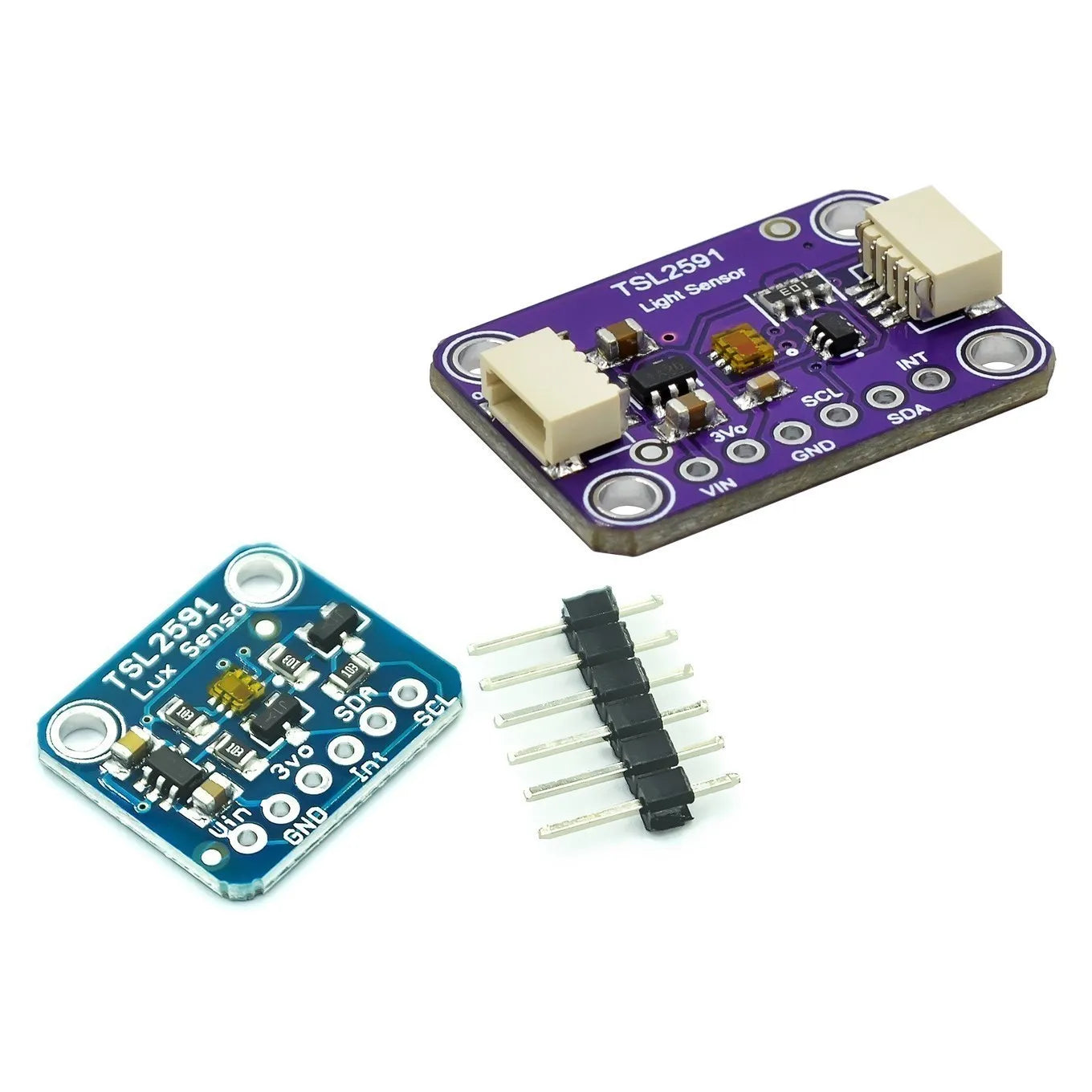

color Blue no interface purple interface

Quantity

TSL2591 light sensor is an advanced digital light sensor, suitable for use in various light conditions. Compared to low-cost cadmium sulfide cells, this sensor is more accurate, allowing precise lux calculations and configurable for different gain/timing ranges, with a 188 DULUX light detection range up to 88,000 lux at a flying distance. It contains both infrared and full-spectrum diodes, which can measure infrared, full-spectrum or human visible light respectively. The TSL2591 light sensor has a huge dynamic range of 600 million:1. Please note that compared to the previous TSL256 1, the 7-bit I2C address (0x29) of the sensor cannot be changed. The board has a voltage regulator and can work at a voltage of 3.3V-5.0V. The built-in ADC device can take advantage of this with any microcontroller, even if it does not have an analog input. Actively sense 0.4mA, less than 5μA in power-down mode. The device current consumption is extremely low, so it is very suitable for low-power data recording systems.

Product Parameters:

Interface type: IIC

Voltage range: 3.3V-5V

Dynamic range count: 1 600,000,000

Lux range: 188 uLux sensitivity, up to 88,000 lumens input measurement.

Temperature range: -30°C~80°C

Dimensions: 1 9mmx16mmx1mm

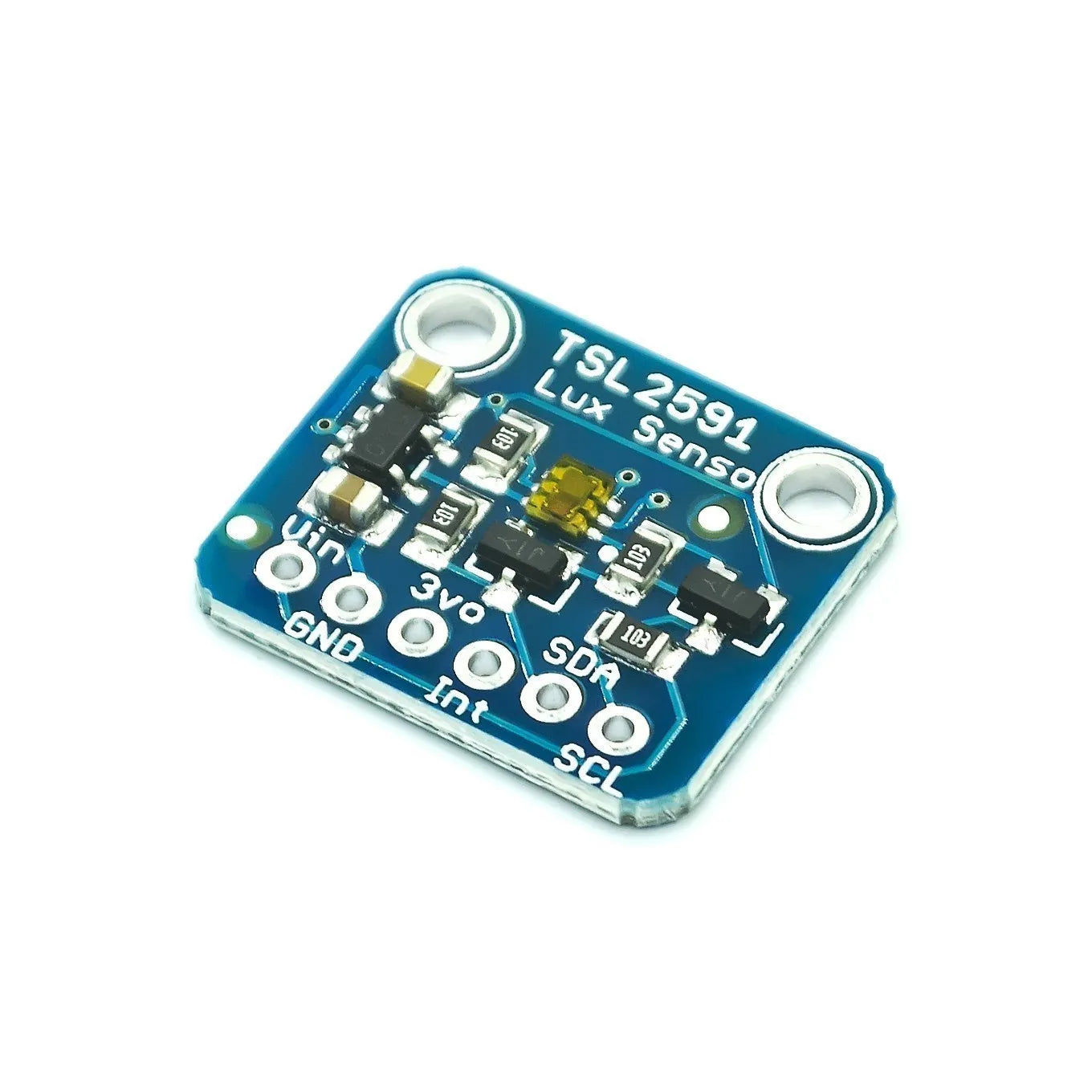

Pin Definition:

VIN: Power +

GND: ground

SCL: I2C serial clock line

SDA: I2C serial data line
