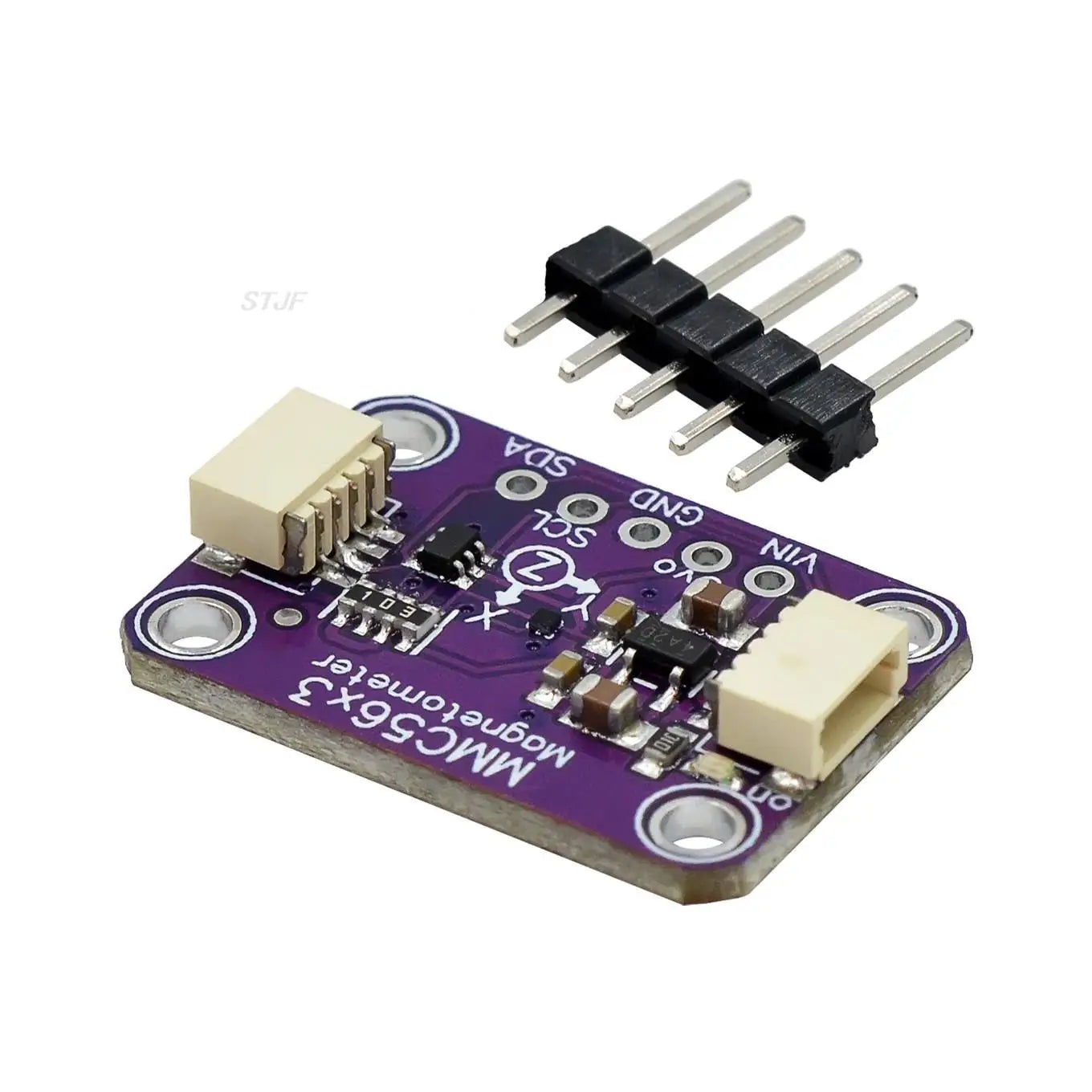

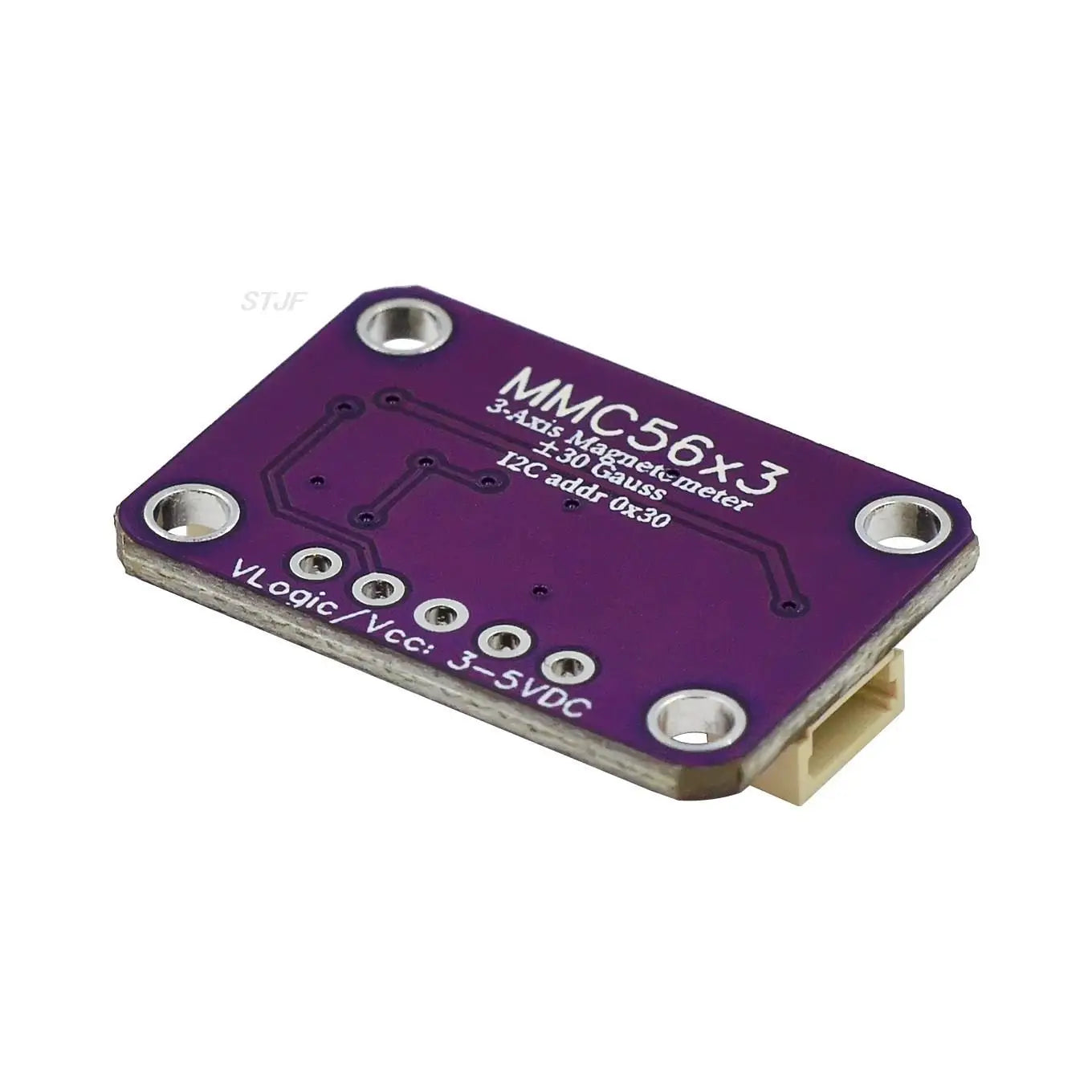

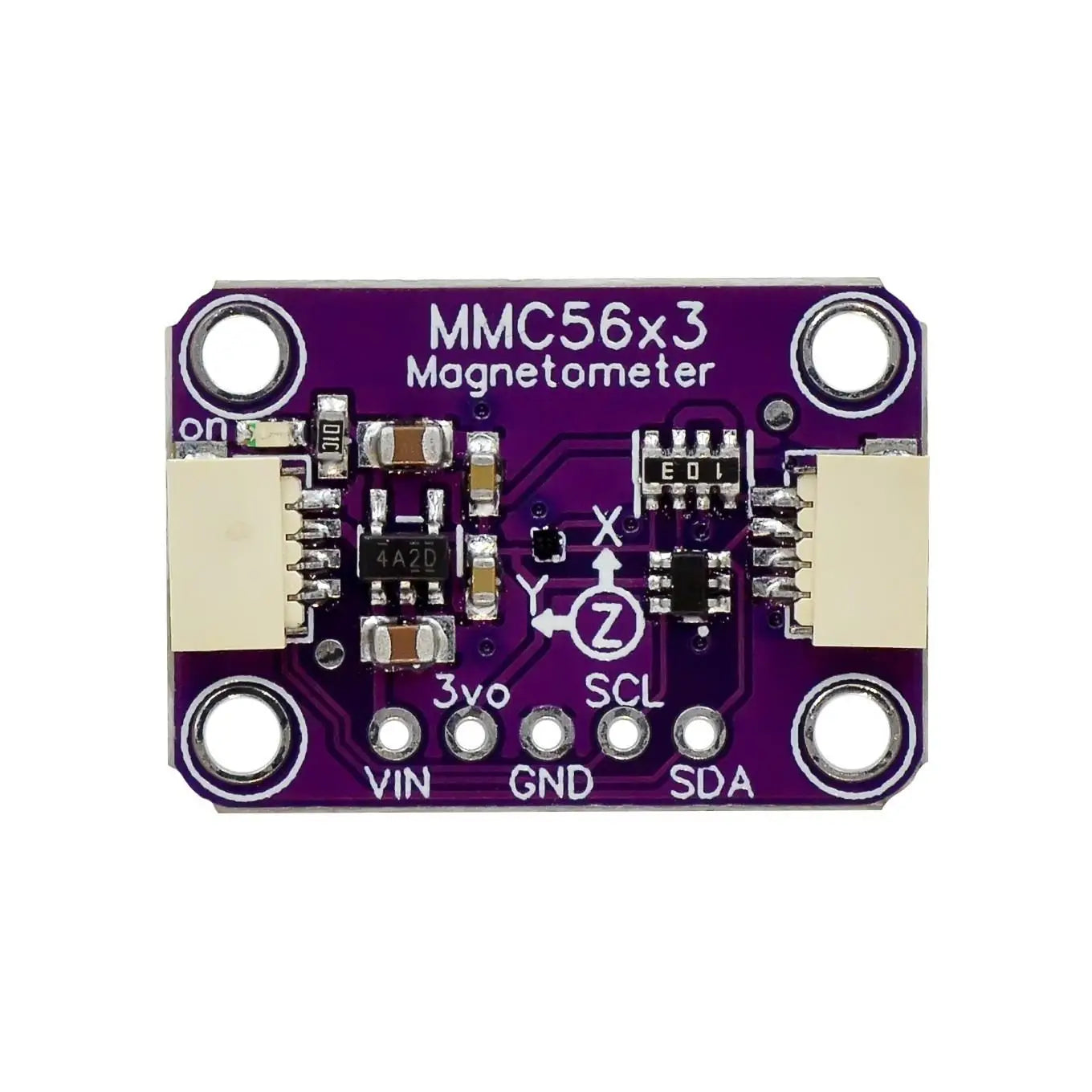

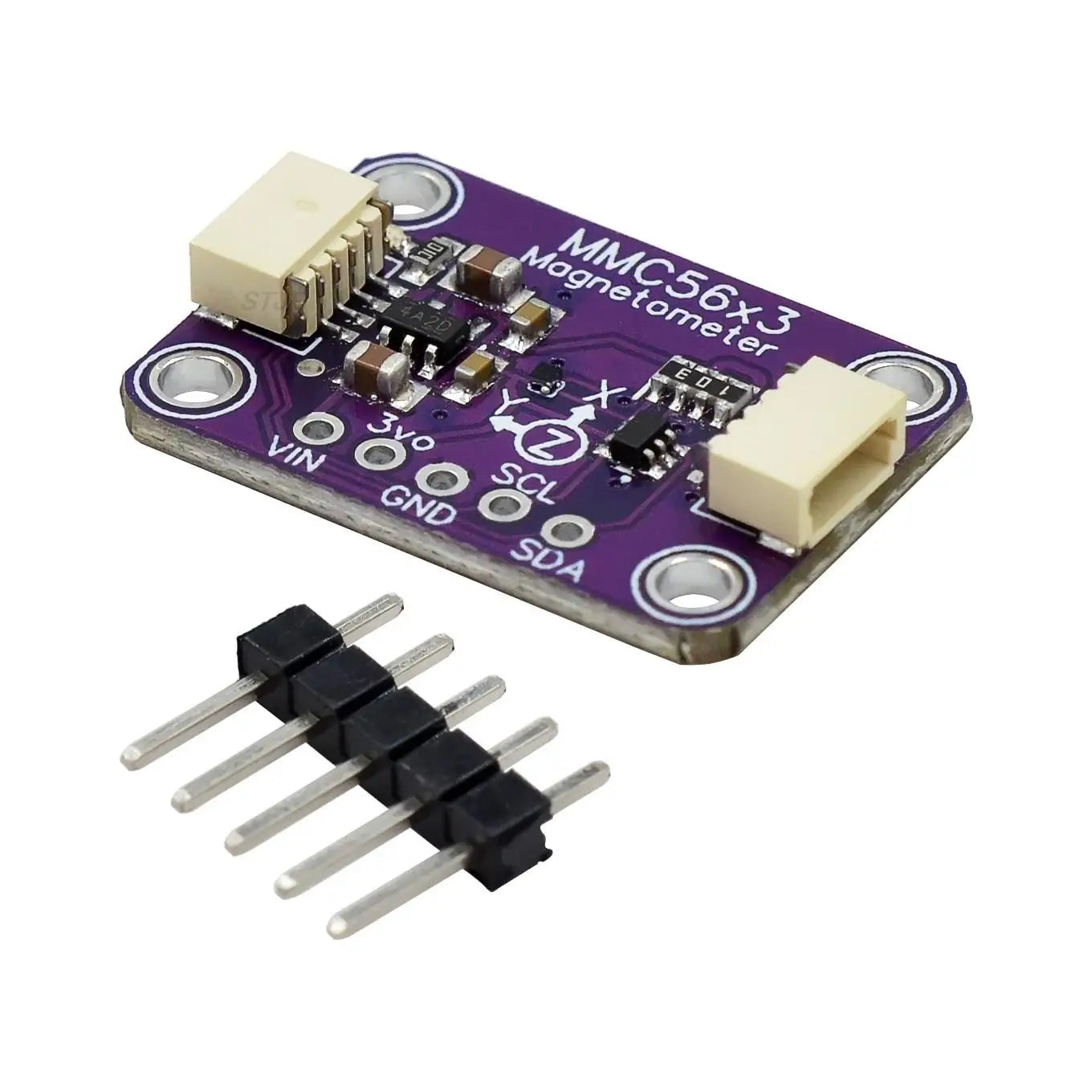

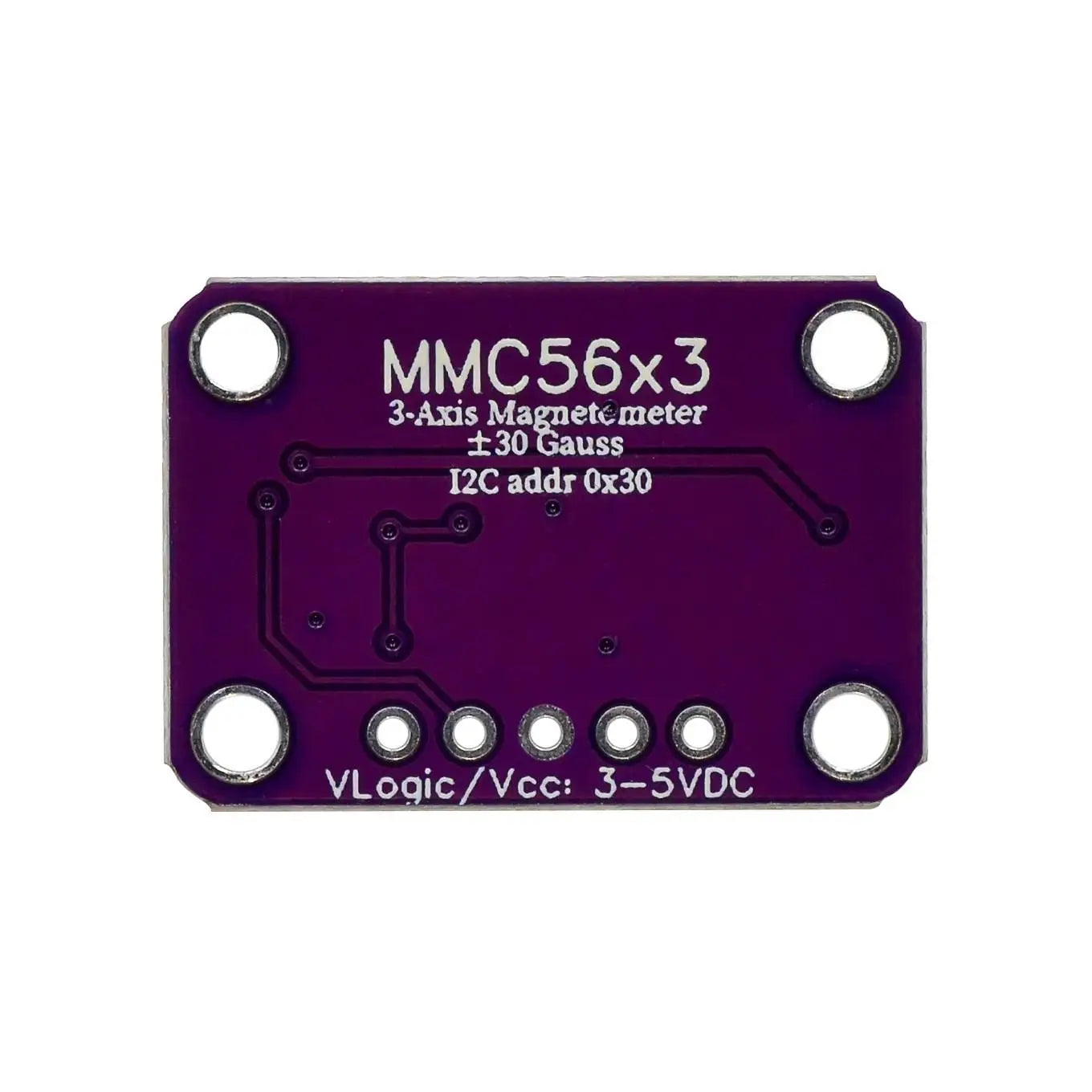

Custom Triaxial magnetometer MMC5603 For STEMMA QT/For Qwiic interface

Custom Triaxial magnetometer MMC5603 For STEMMA QT/For Qwiic interface

Regular price $3.57 USD
Regular price $6.57 USD Sale price $3.57 USD
Sale Sold out



Features:
1. Use high-quality materials with guaranteed quality
2. A magnetometer can sense where the strongest magnetic force comes from and can be used to measure magnetic fields
3. This product does not require welding!  Simply connect to your favorite microcontroller to quickly obtain magnetic measurements
4. The sensor can sense within a range of ± 30 Gauss (± 3000uT or ± 3mT) without the need for range setting, and can output up to 1000Hz rate readings in all 20 bits.  This range is very suitable for reading the Earth's magnetic field (with a maximum value of approximately 0.6 Gauss) or some basic magnets

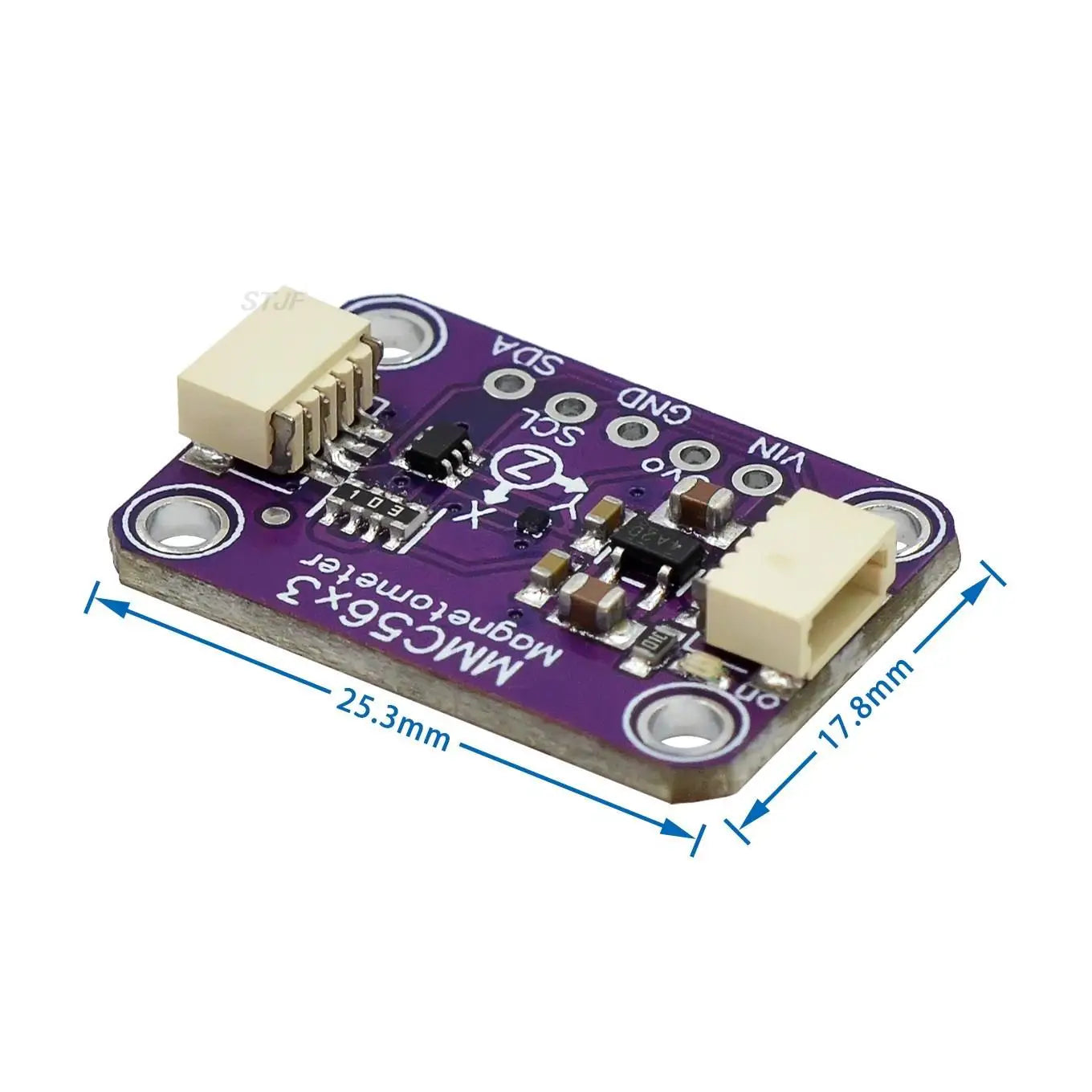

5. This product has been fully assembled and tested.  Comes with a little 0.1 "standard connector in case you want to use it with a Breadboard or perforated plate.  Four 2.5 mm (0.1 inch) mounting holes make installation easier
Parameters:
L2C address 0x30
Monolithic integrated 3-axis AMR magnetic sensor
Excellent dynamic range and accuracy:
± 30 G FSR
20 Bitwise operation mode
0.0625mG per LSB resolution
Implementation of 2mG total RMS noise
Heading accuracy of 1 °
The true frequency response of the sensor can reach up to 1KHz
L2C peripheral, fast (≤ 400 KHz) mode
On chip automatic demagnetization with built-in SET/RESET function
Eliminating offset errors caused by thermal changes (open field output)
Removing residual magnetization generated by strong external fields
On chip sensitivity compensation, on chip temperature sensor

Package include:
Magnetometer module * 1
Pin arrangement * 1
