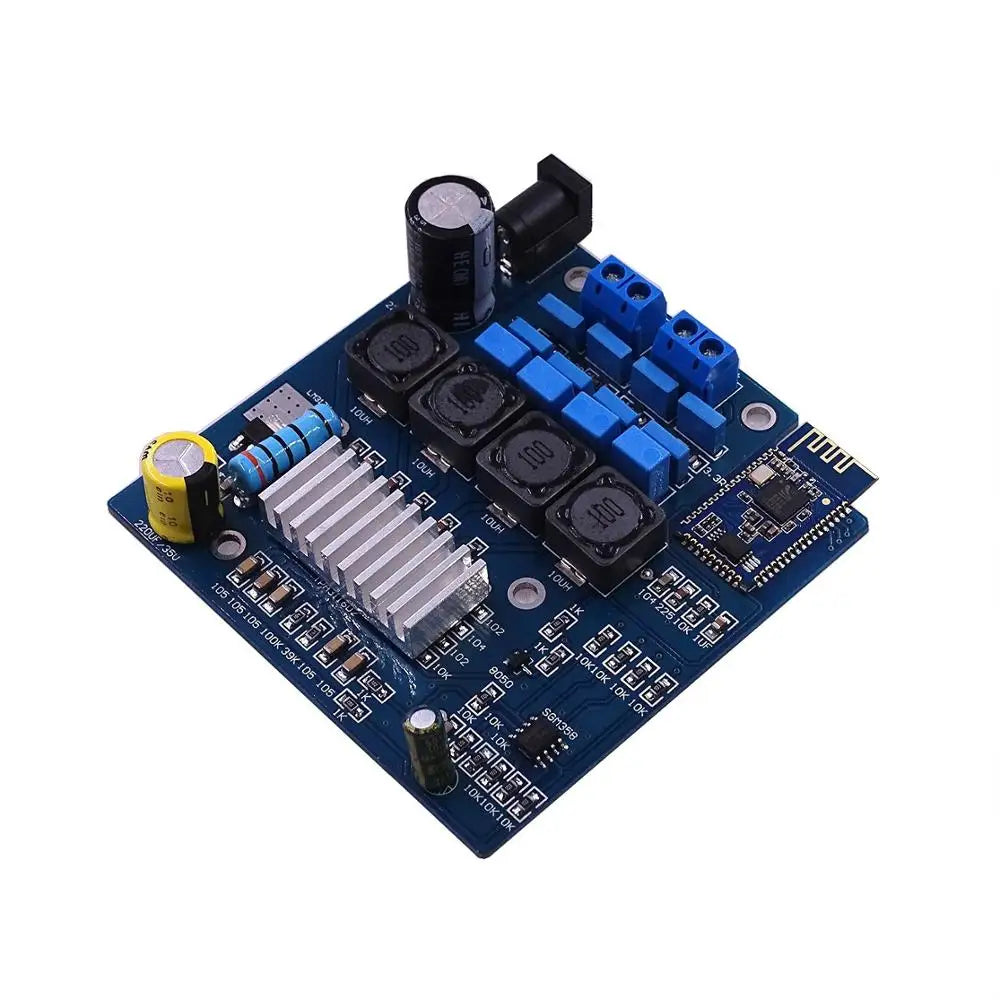

Custom TPA3116 CSR8645 CSR4.0Wireless Digital Amplifier Board Class D Stereo Amplifier Board 2x50W 20Hz to 20kHz Manufacturer

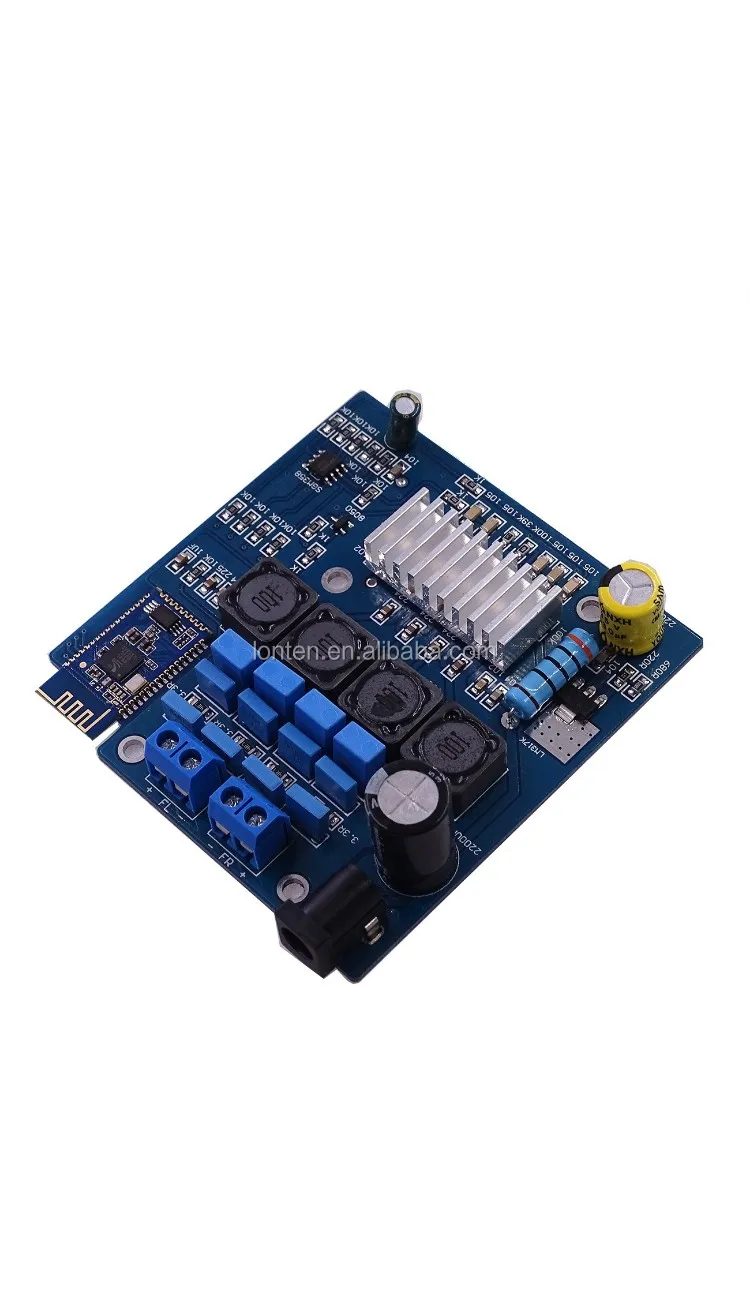

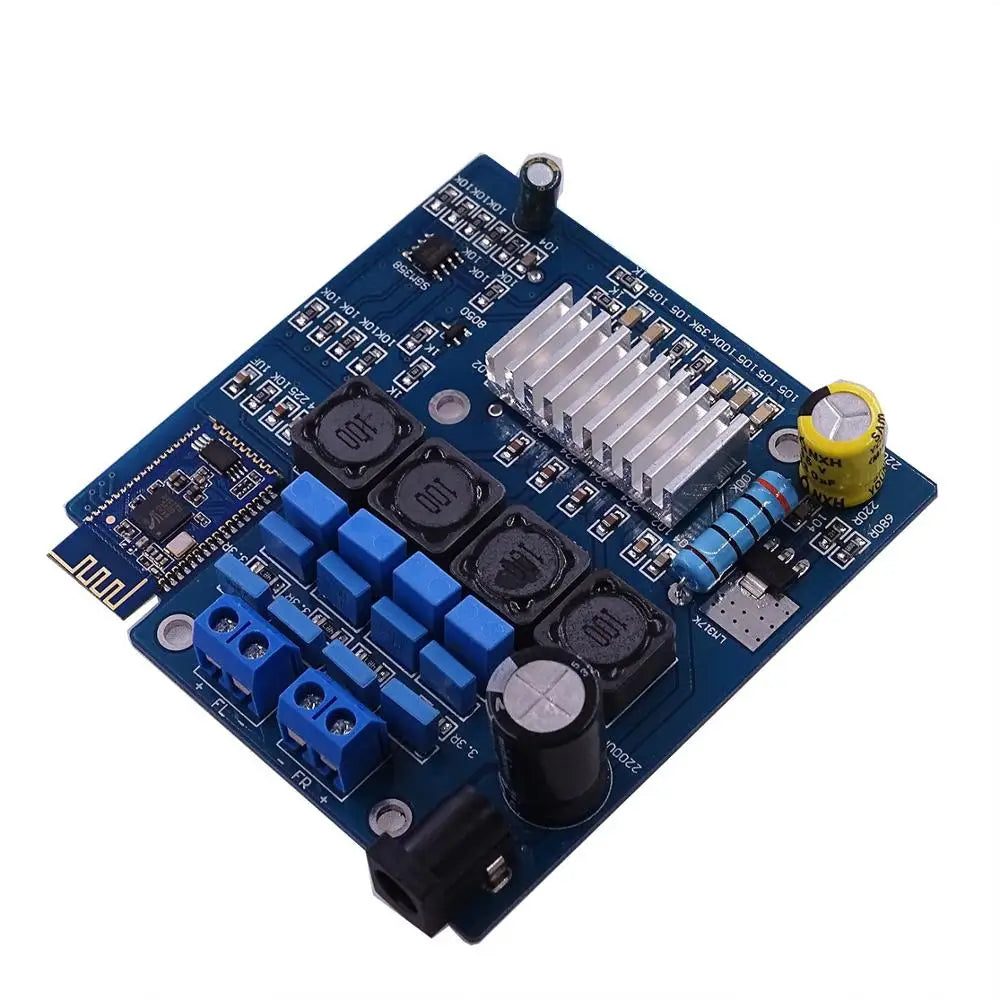

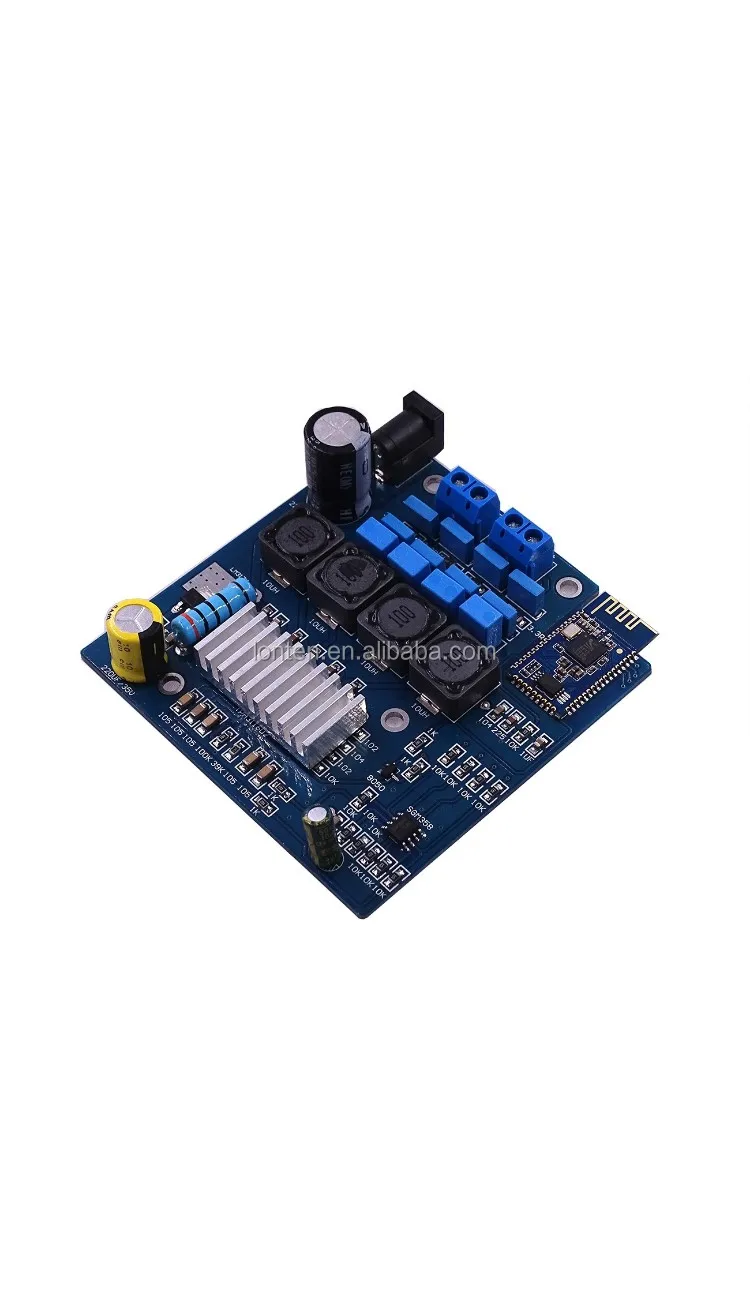

TPA3116 CSR8645 nondestructive bluetooth digital power amplifier board

Goods description:

This article all parts for home furnishings, simplicity, quality pure; Use high quality original parts, not just the safety guaranteed quality, long service life, more important is to make the actual performance can meet the design goal of a strong guarantee. The pursuit of first-class quality is our consistent aim.
Product details:

N the original TPA3116 CSR8645 4.0 and bluetooth module

N power filtering capacitor using the nikon and Japan panasonic electrolytic capacitor

N electrolytic capacitance signal main circuit USES Taiwan famous brand, Japan nikon electrolytic capacitor is used in the main filter capacitance, continuous power to ensure a strong support.

N choose the rings of metal resistance resistance, accuracy + / - 1% of the rings metal film resistor is used in the main circuit, ensure the machine good signal-to-noise ratio.

N PCB used 1.6 mm thick double-sided board, 2.0 oz copper thick, tin the whole process, to ensure good through the performance of the size of the current. The first-class quality of PCB.

N using the latest bluetooth version 4.0

N connect bluetooth mode and connection mode of general equipment!

N input mode only bluetooth input function.
The basic parameters:

1. The way to work: D class

2. The static current: 50 ma

3. Working efficiency: 90%

4. The rated output power: 2 * 50 w

5. Frequency response: 20 hz to 20 KHZ

6. Working voltage: DC18V to DC24V

7. The largest output current: 3 a

8. The receiving range of 10 meters (extended bluetooth antenna is better)

PCB size: 82 * 80 mm
