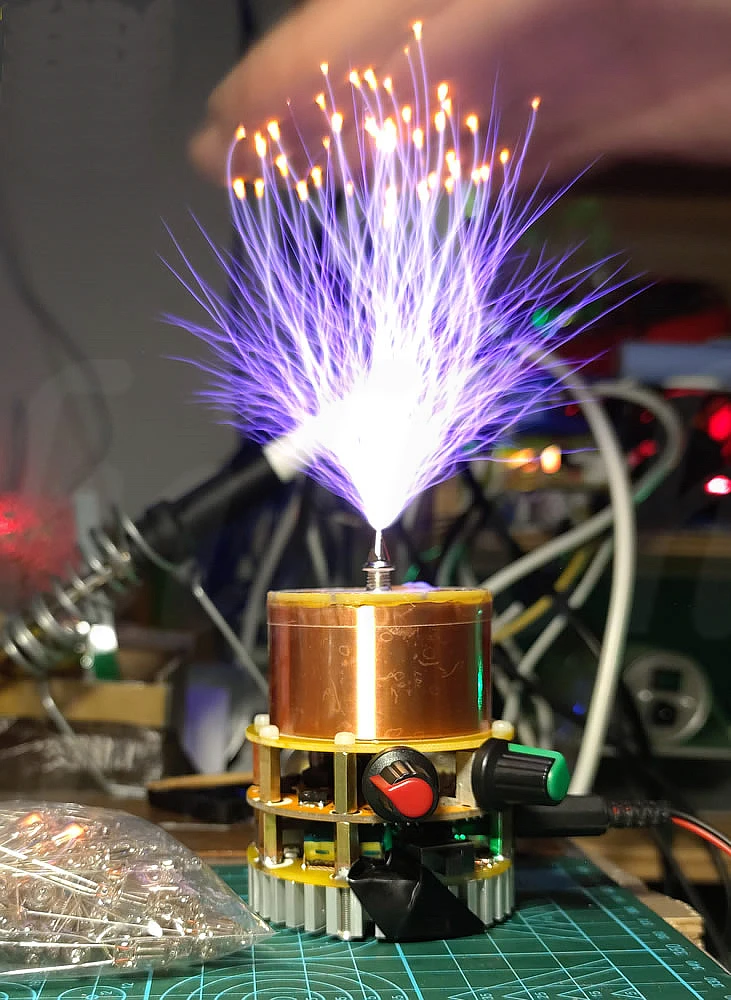

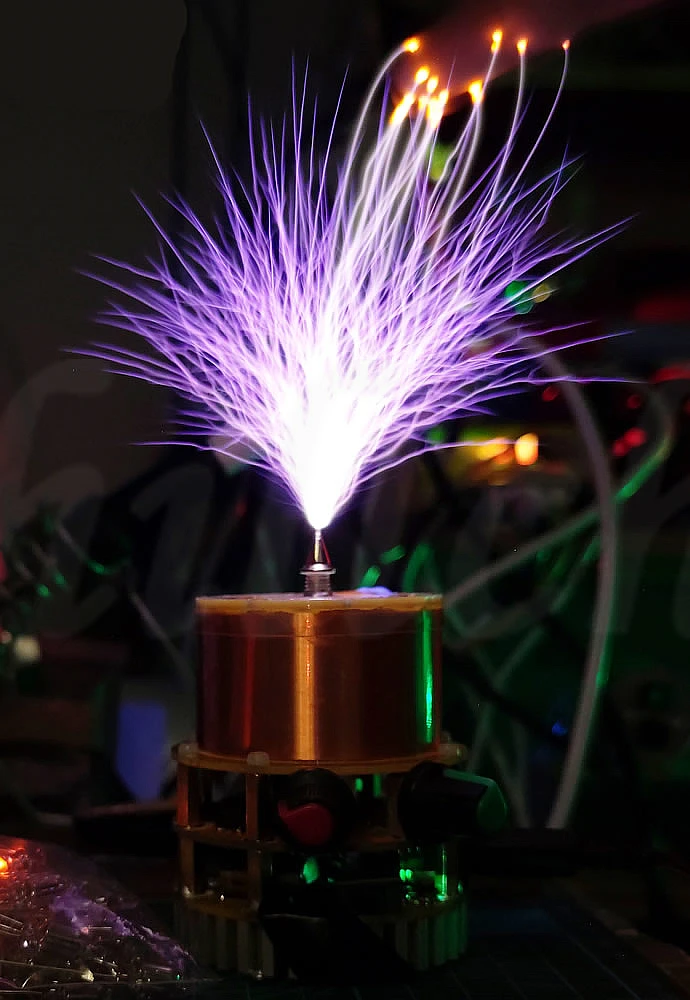

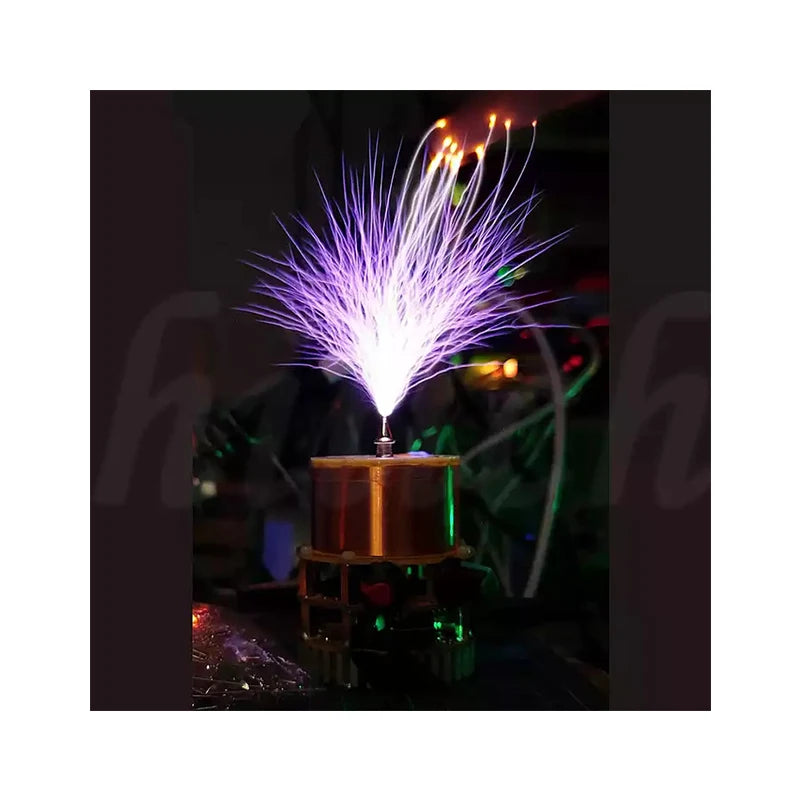

Custom Touchable Artificial Lightning Mini Music Double E Class Solid Tesla Coil Teaching Tool Wireless Lighting Manufacturer

Reminder: Due to the harsh working environment of Tesla coils, surrounded by high-voltage electric and magnetic fields, the metal around the coil, PCB wiring, components, etc. will be induced to high-voltage interference, so there is a certain chance of damage.

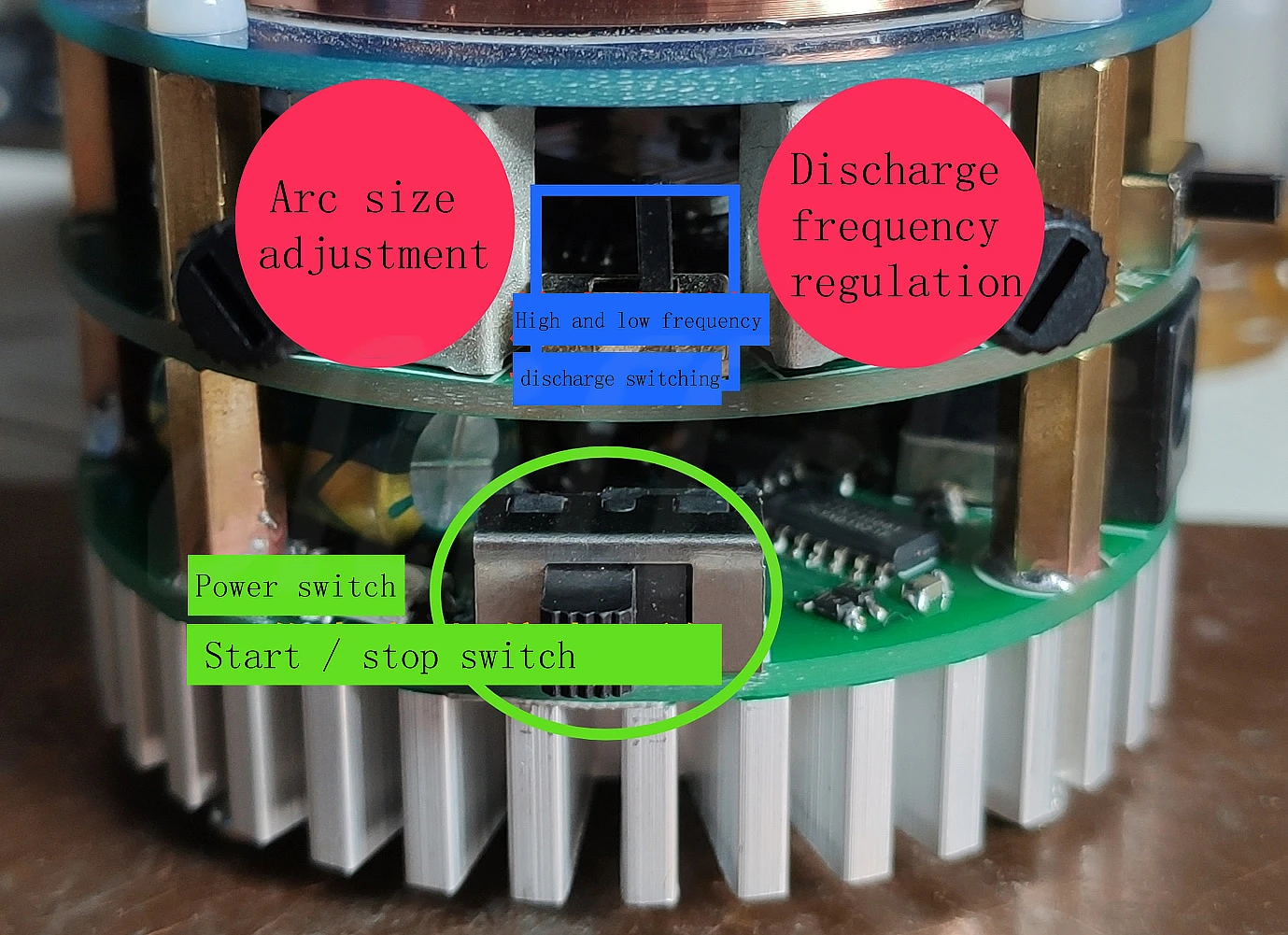

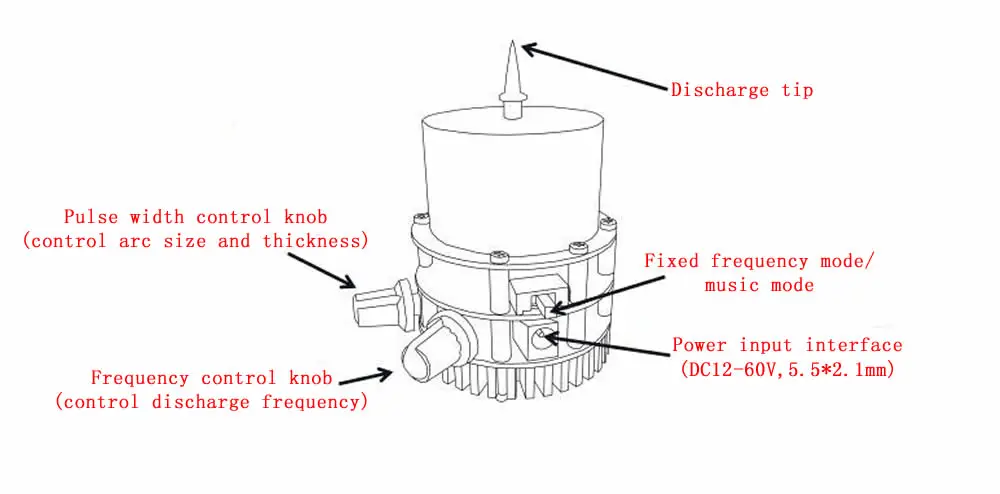

Function name:

Pulse width: control the thickness and length of the arc (to a certain extent, it will not become longer but thicker)

Discharge frequency: control the frequency of arc discharge

-------------------------------------------------- ----------------

Music mode:

Note! ! Can only play square wave music.

How to connect to a mobile phone via BT:

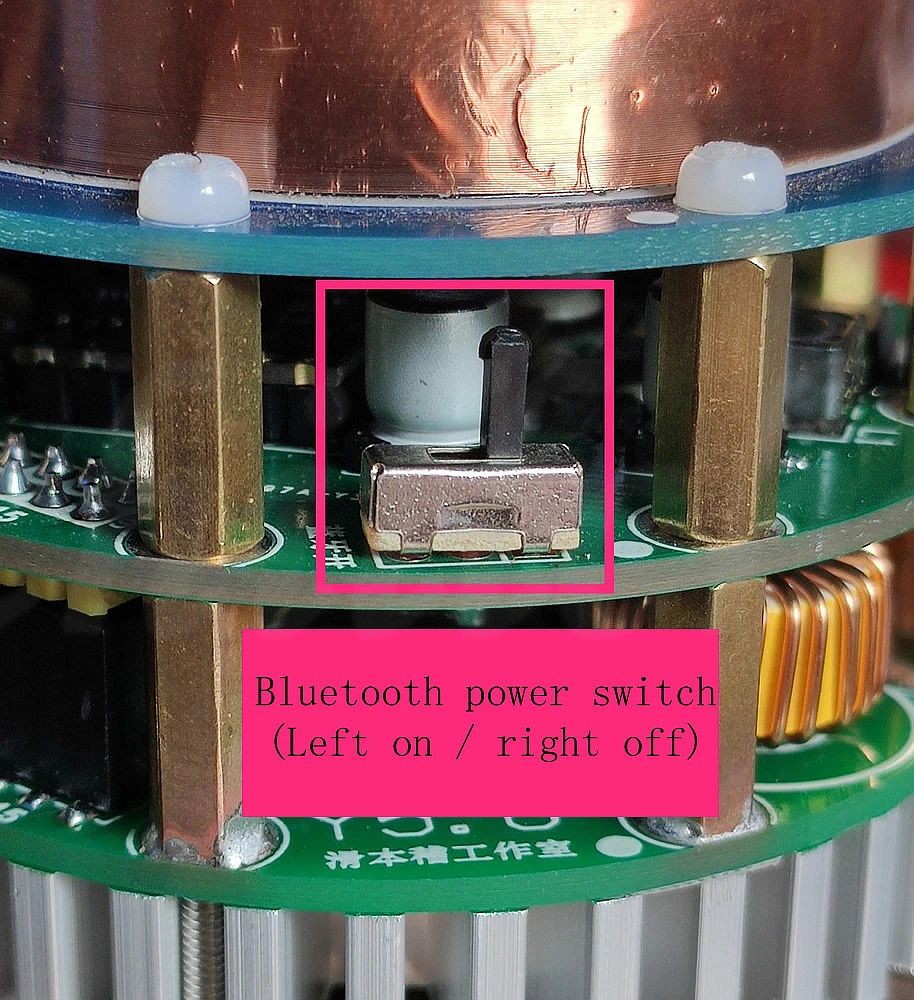

After plugging in the power, turn on the BT power switch, the mobile phone searches for the BT device M18, and you can connect

In the future, just turn on the BT power switch and it will automatically connect

Please turn the phone volume to maximum when playing music

Input voltage: DC 12-60v

48v input arc 5-10cm+

Power input interface: 5.5*2.1mmDC socket

Playable music format: square wave music

Audio input: BT connection to mobile phone

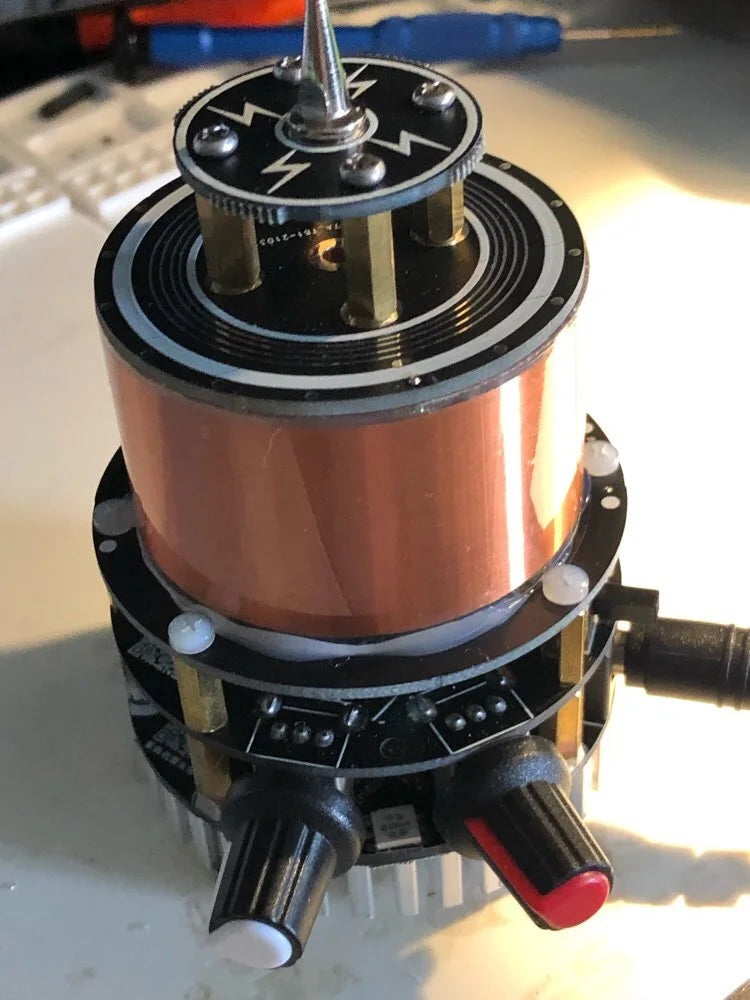

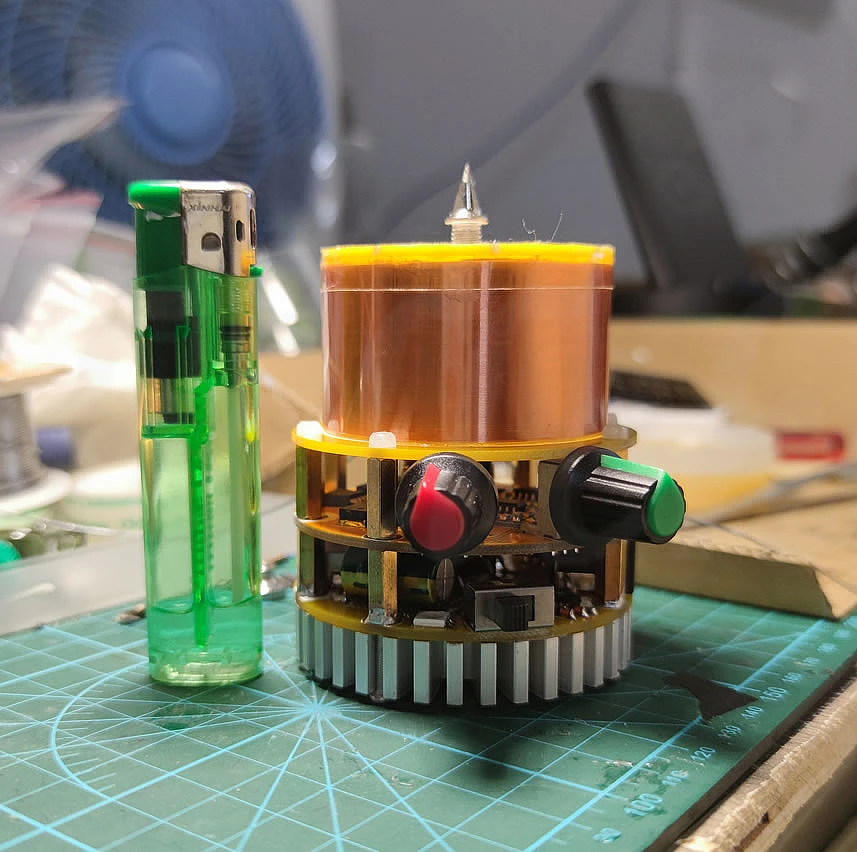

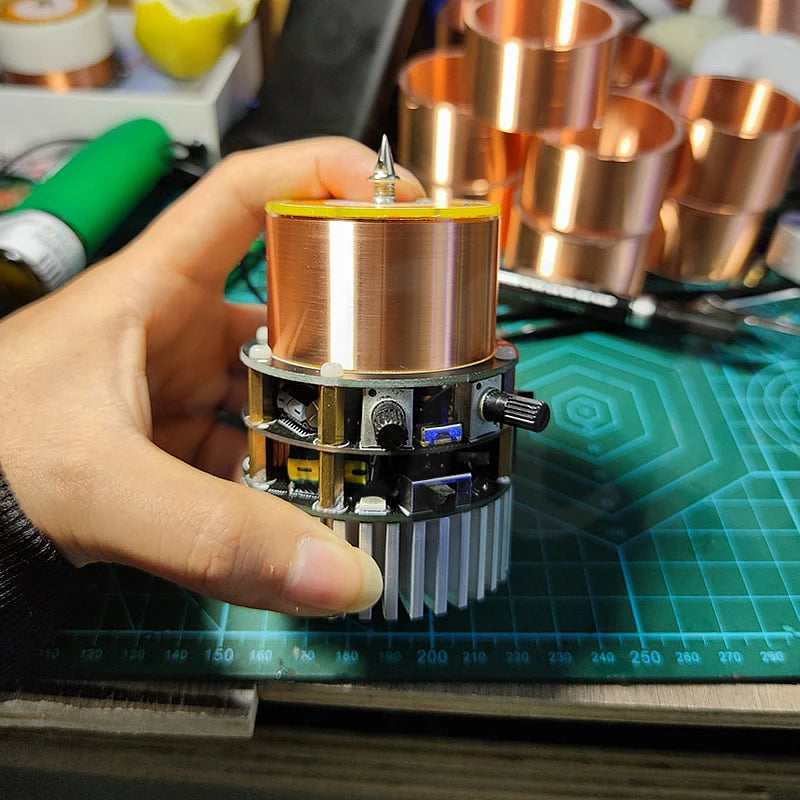

Coil body ruler: height 100 * diameter 63mm

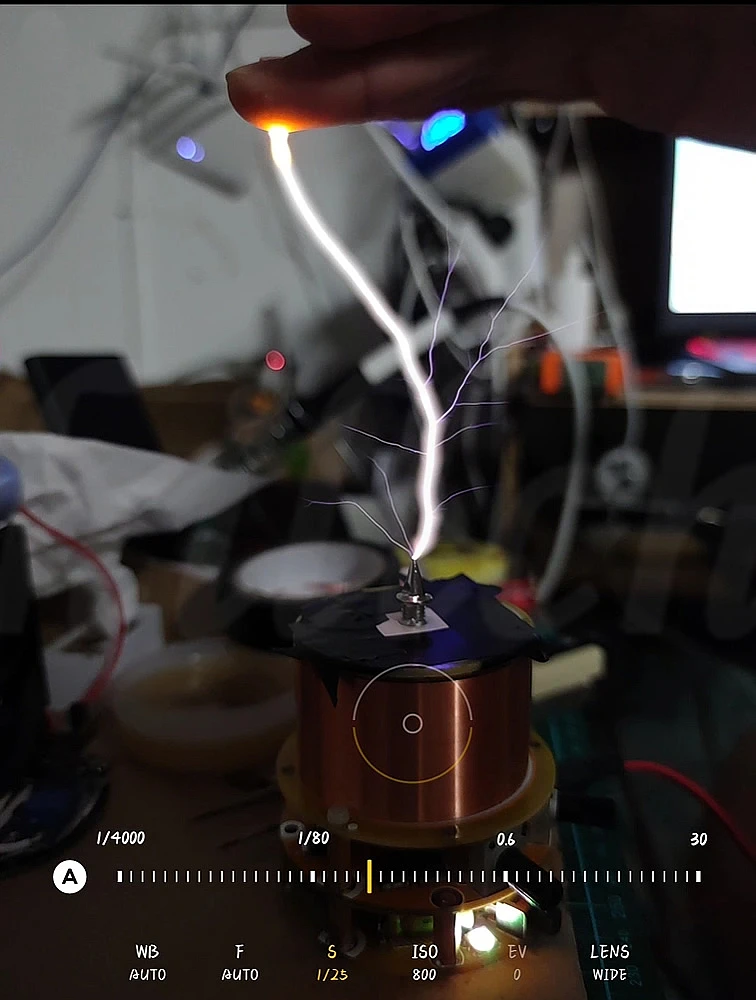

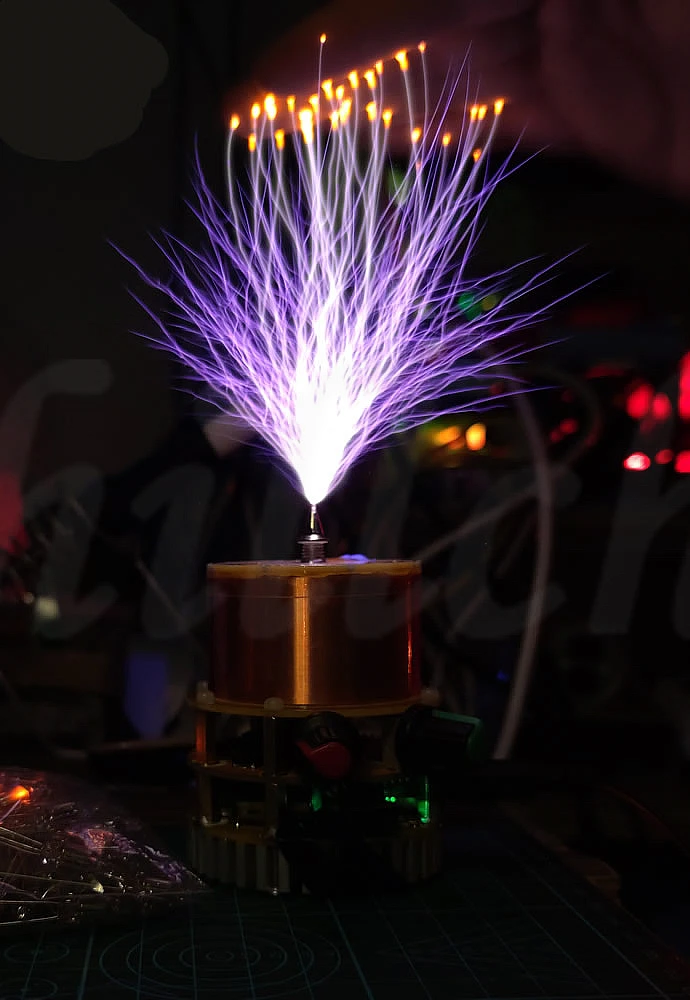

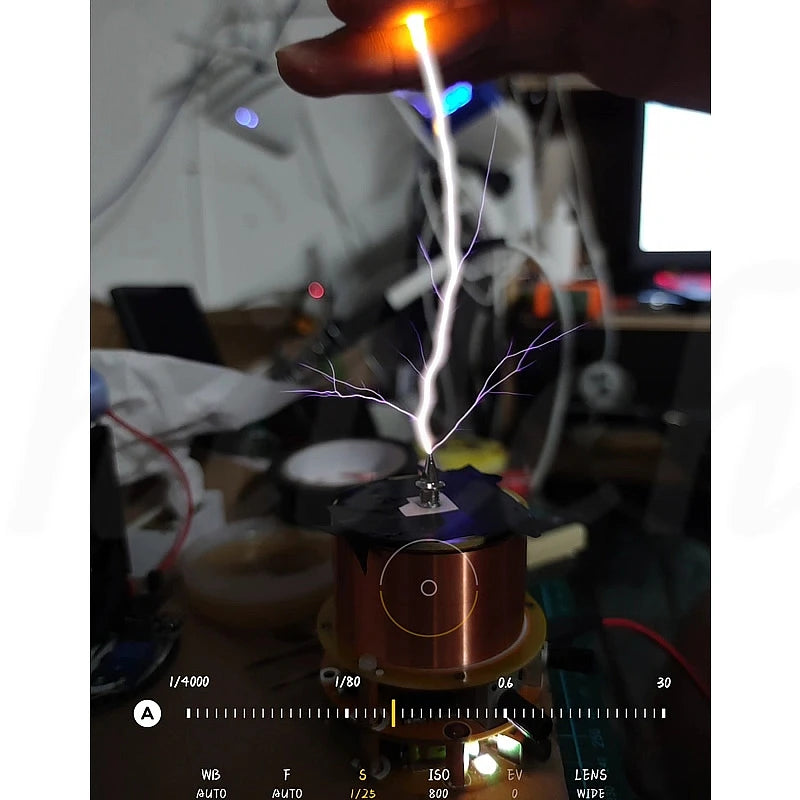

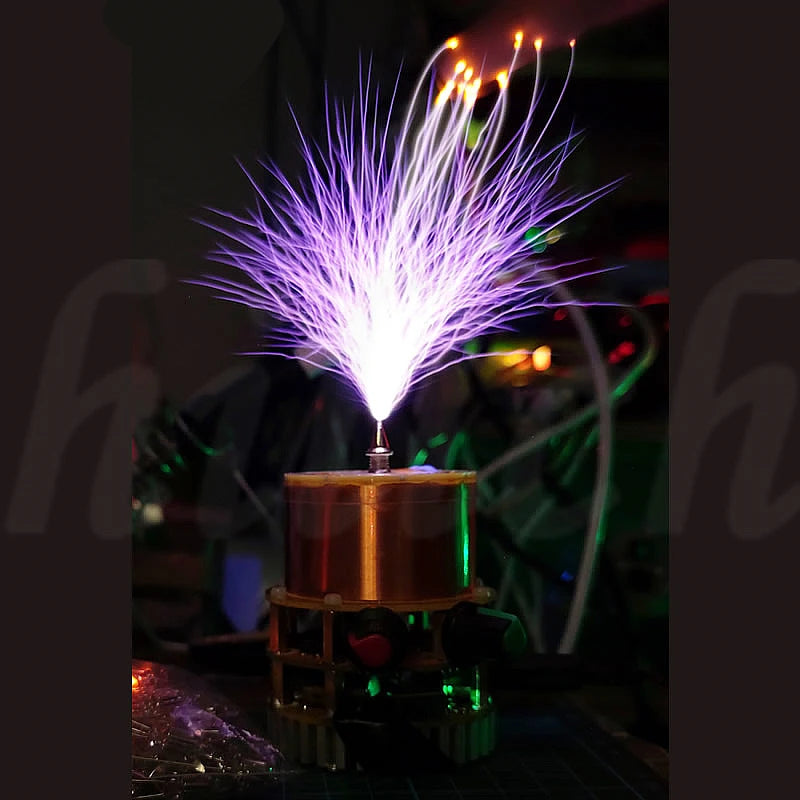

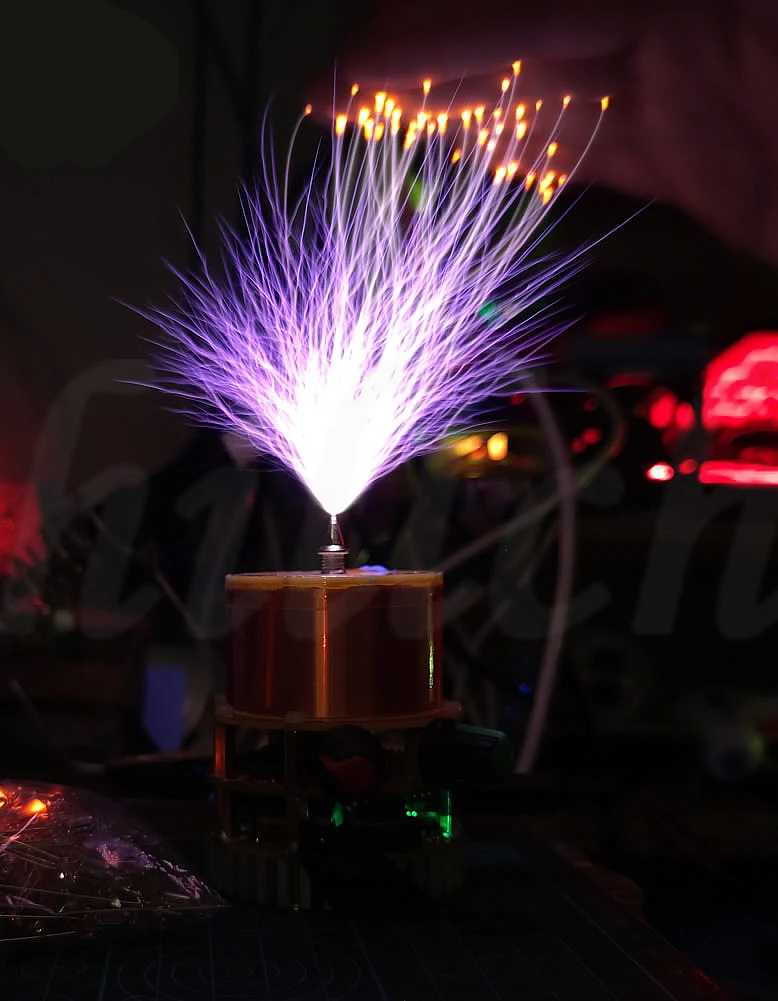

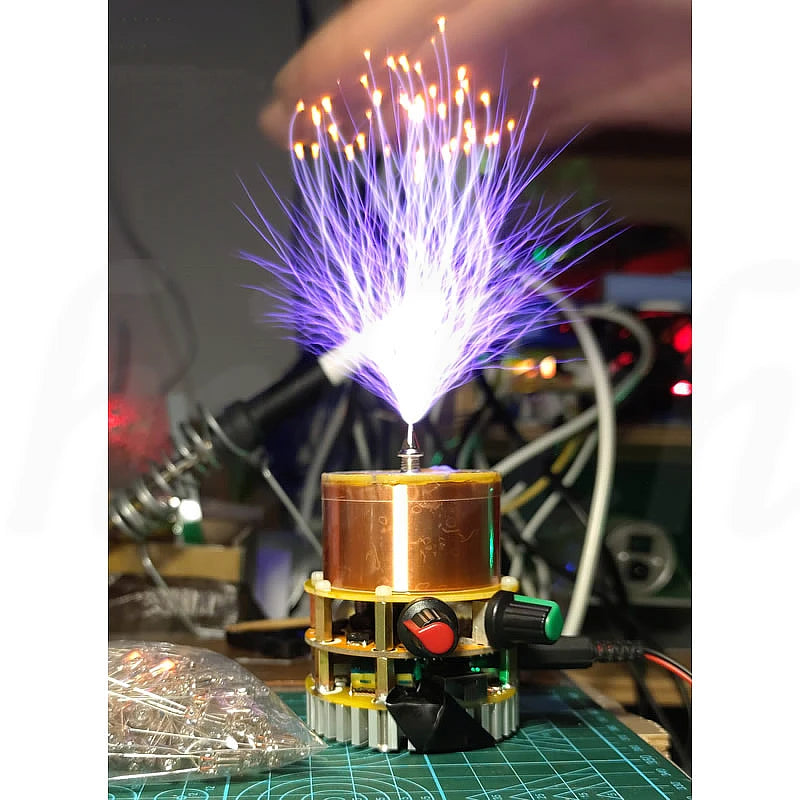

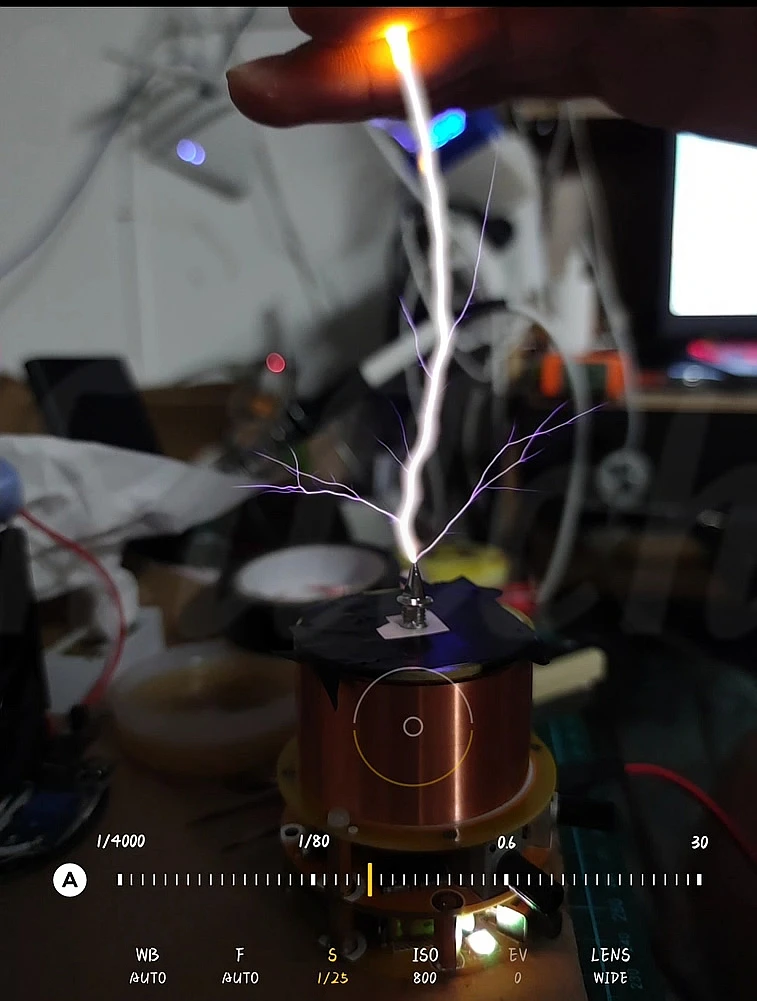

Arc length: 0-10cm (actually it may be shorter or longer)

Secondary size: diameter 50 * length 30mm

Secondary process: pure copper oxygen-free enameled wire winding

Elementary: PCB elementary

Heat sink size: diameter 61 * length 10mm

Current: 0—2A

Power: 0—120w

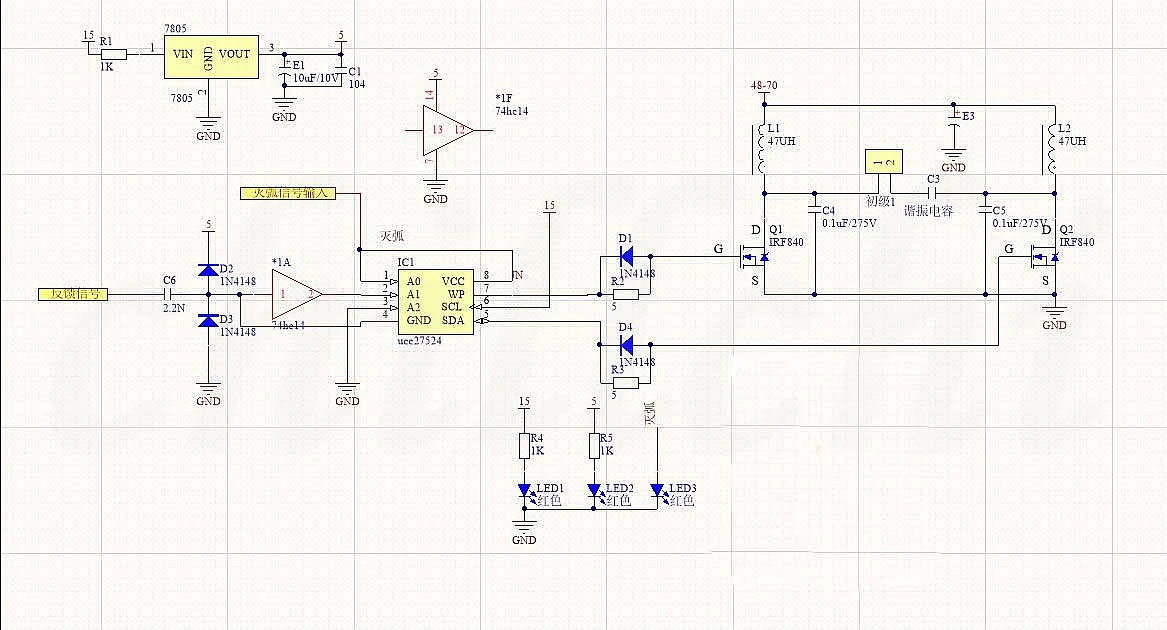

Refer to the schematic diagram (the parameters on the diagram may be changed)

Precautions:

1: Because the frequency is too high, the power tube will generate more heat. Please always pay attention to the temperature of the heat sink during use, so as to avoid excessive temperature damage to the components (mainly in music mode)

2: Do not place flammable and explosive materials within 5m of the surrounding area during use

3: Due to the serious interference to metal, please do not get close to the coils of electronic devices such as mobile phones and computers to avoid damage to the product

4: Due to the extremely small diameter of the secondary coil, try not to bump, so as not to break the winding of the secondary coil.

Important warning: Please keep away from people who implant life-support electronic devices such as pacemakers (10m range)!

Since the solid-state Tesla coil works in a strong magnetic field and a strong electric field, it will induce current on surrounding metal objects, including wires, cables, and nearby electronic devices, and generate strong electromagnetic radiation. Therefore, if there are carriers of implanted/non-implanted electronic medical equipment around, the power-on experiment may cause these equipment to malfunction and cause life-threatening danger! ! ! !

The solid-state Tesla coil control and power output parts have voltages greater than the safe voltage, and direct contact with limbs is prohibited during operation and debugging.

There is a large-capacity energy storage device in the solid-state Tesla coil. After the power is cut off, it still has a lethal voltage. The charge in the energy storage device must be released first when debugging. When a bleeder element is installed, wait a few minutes before debugging. Manual short-circuit discharge is prohibited, as this will damage the energy storage device.

Solid-state Tesla coils will produce a lot of ozone during discharge, so ensure that the experimental site is well ventilated

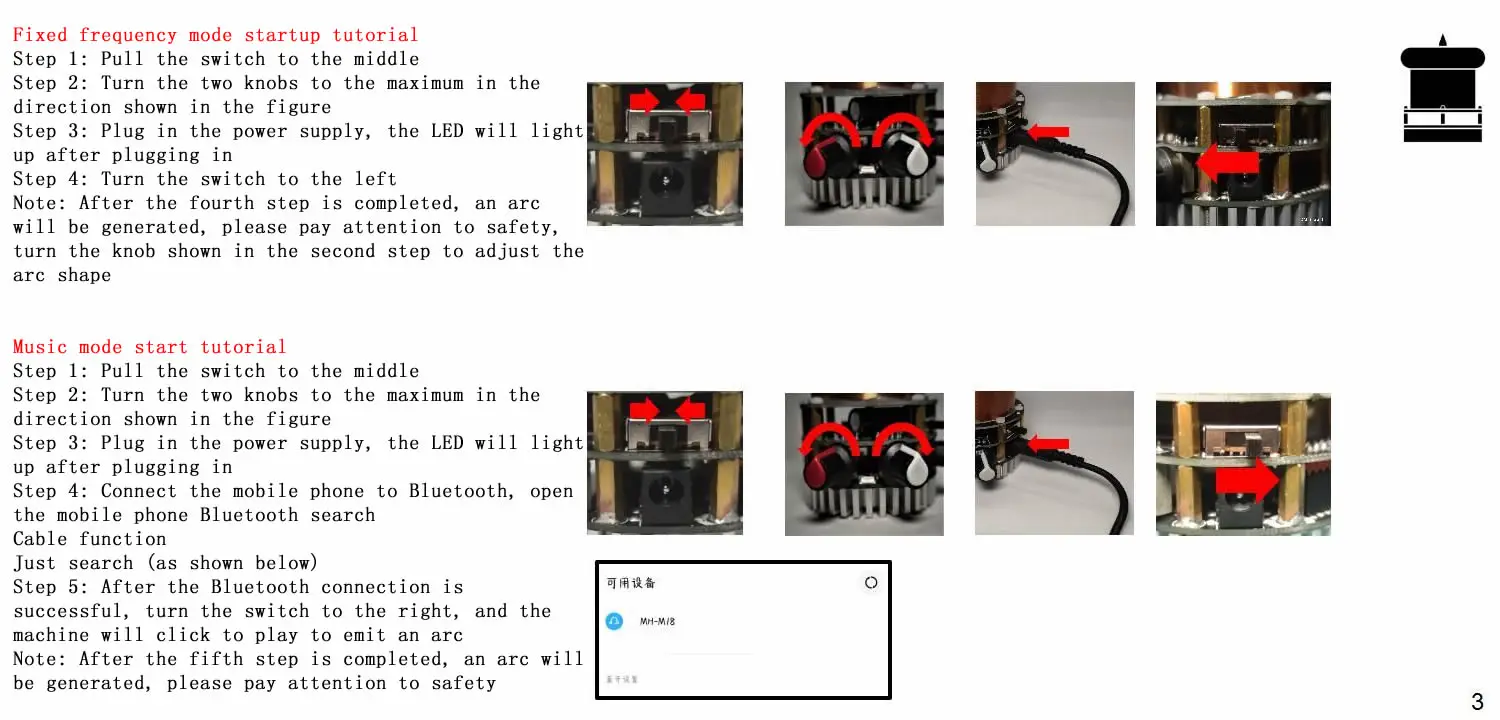

Control instruction:

Now deliver is this upgrade version:
