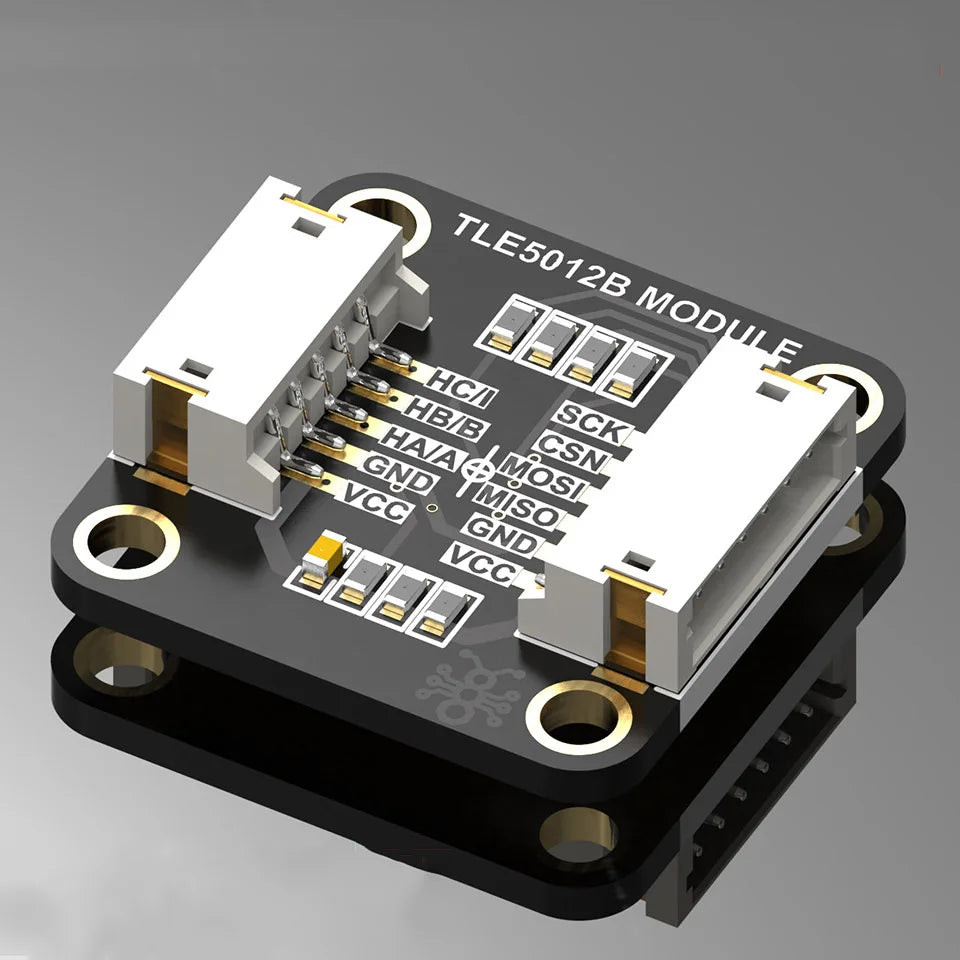

Custom TLE5012B magnetic encoder angle sensor SPI/HAL/ABI to send radial magnet Manufacturer

The default delivery model TLE5012BE1000, the factory setting is 4096 resolution, incremental encoder

Can be set to PWM or Hall sensor output via SPI

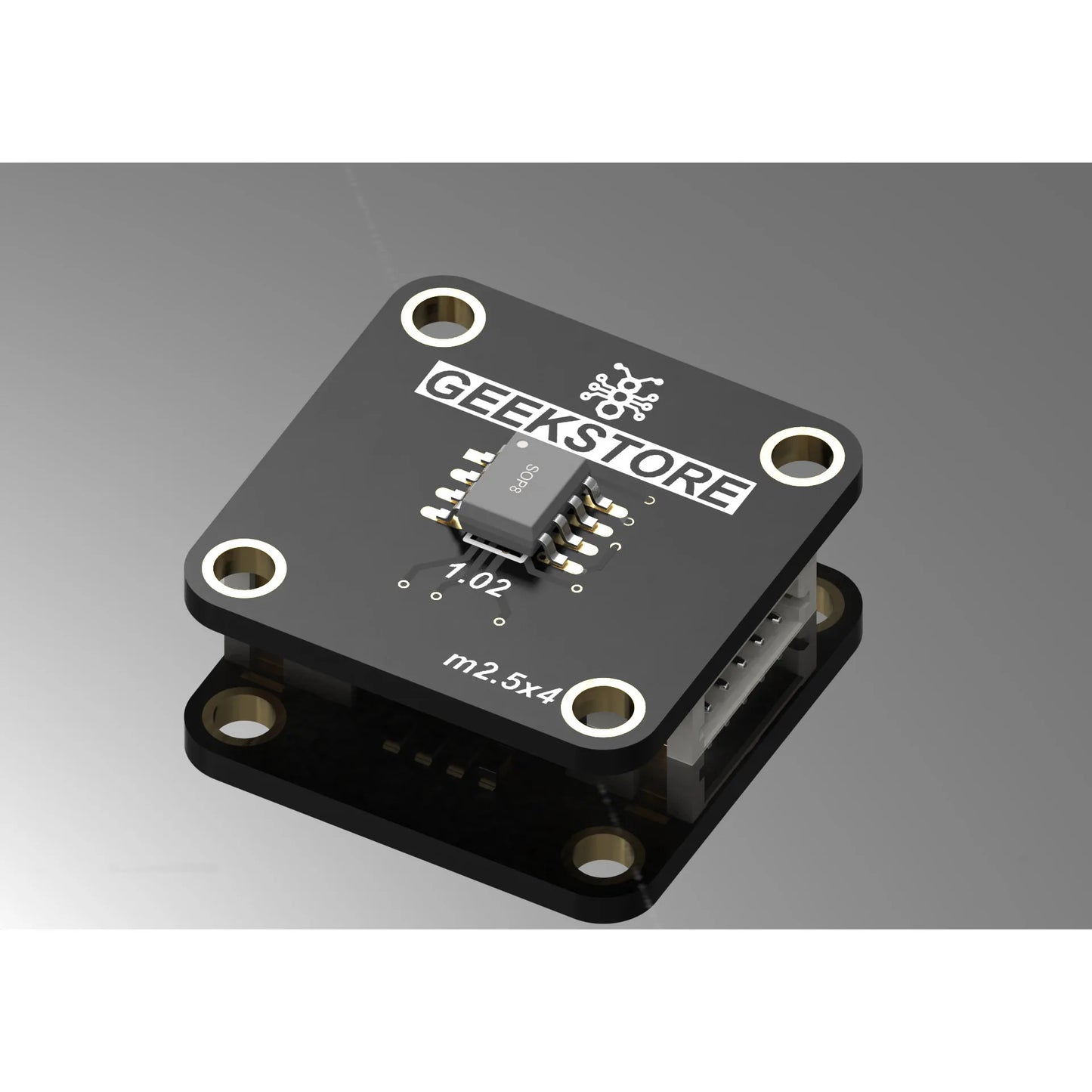

The four-corner aperture is 2.6mm and can be fixed with m2.5 screws


specification:

Output accuracy: 15BIT ABI (maximum 4096PPR 16,384CPR)

Power supply mode: 3.0V-5.5V

Output mode: SPI ABI (HAL PWM output can be configured through SPI)

Support speed: up to 10000RPM

Default output: ABI (4096 PPR)

Module interface: SPI ABI

Radial magnet: 6*2.5mm

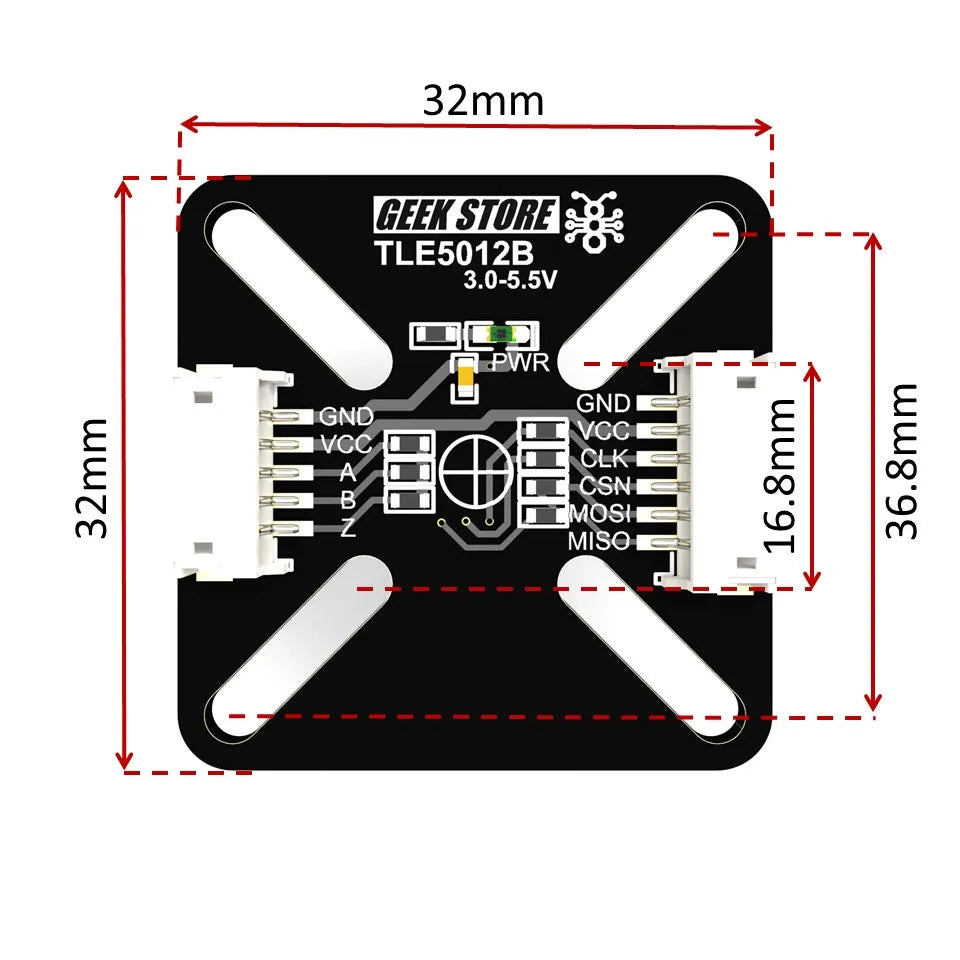

Matching hole pitch: 4* m3 screw 16.8mm-36.8mm



Set detailed parameters

Base:

It can match the motor with 16.8mm-36.8mm mounting hole pitch, 3d printing, consumables: PLA+, color: black, weight: 20 grams

motor:

2804 gimbal motor, 7-stage pair, maximum speed 1500 mounting hole position 4*m3

Detailed attributes:

Shipment

One TLE5012BE module

One radial magnet

ZH1.5 5pin line one

ZH1.5 6pin line one

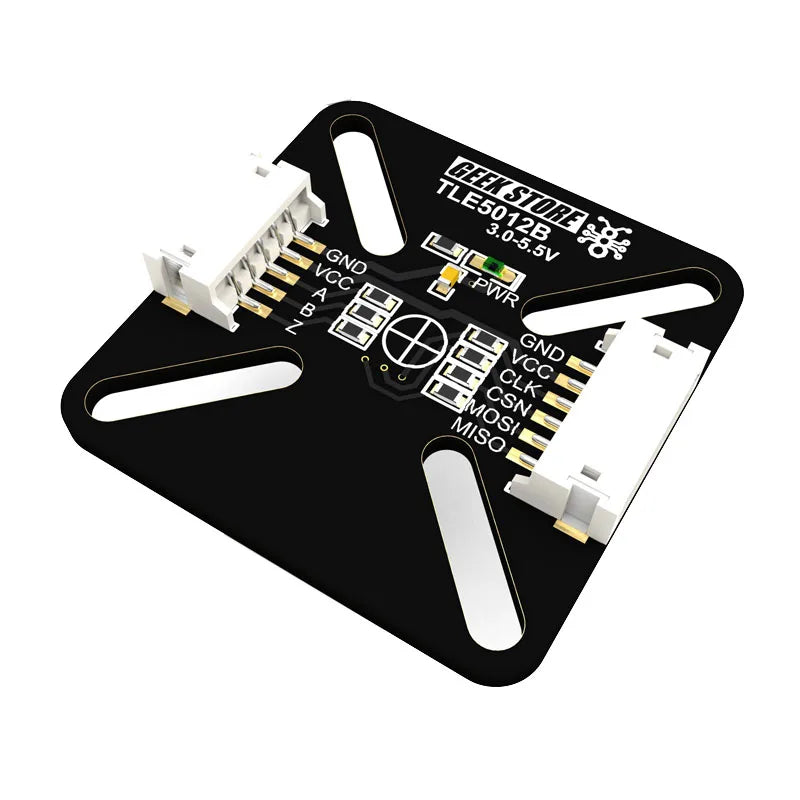

Variable pitch version


Fixed pitch version

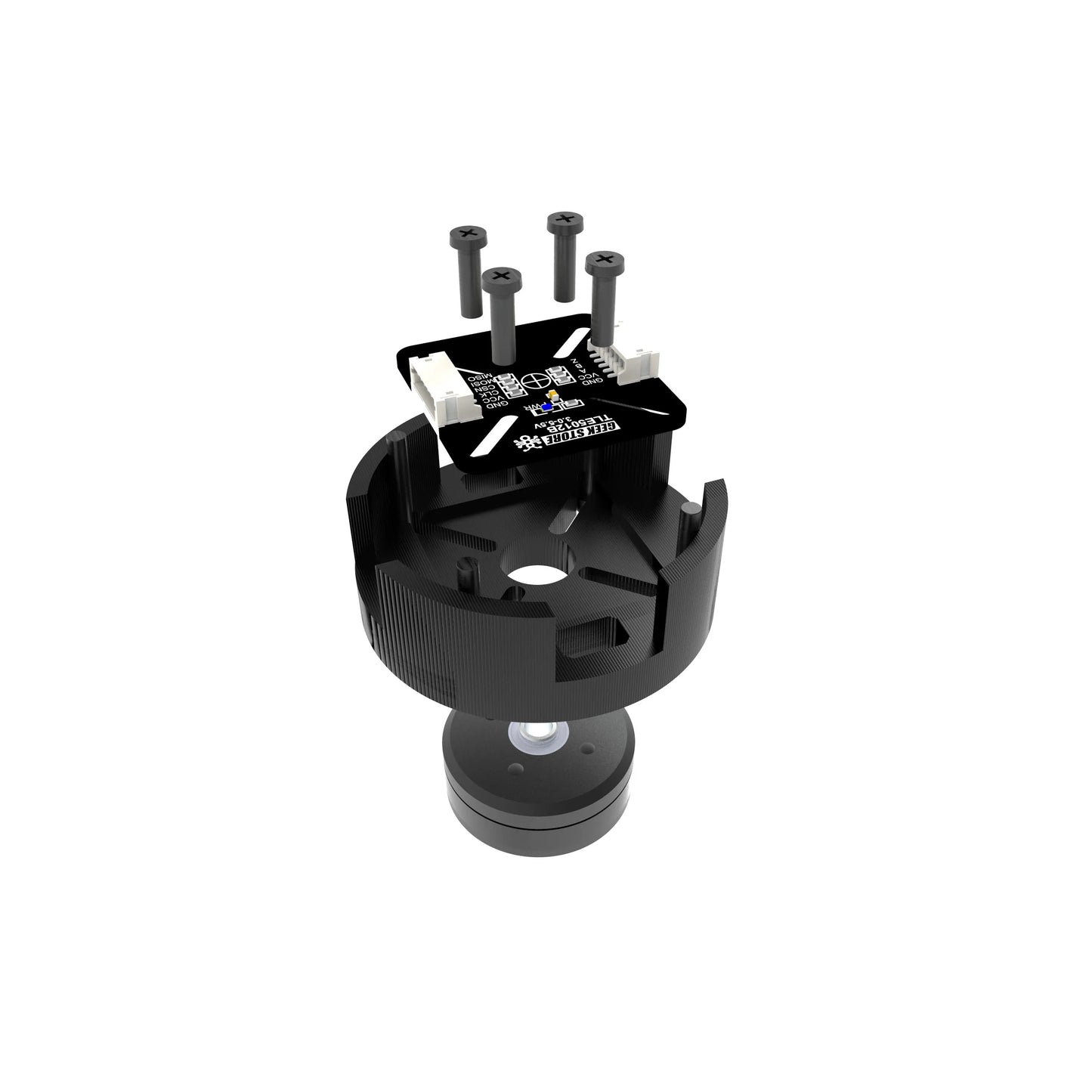

Installation method:
