Custom The wireless module with the antenna 1100 meters distance NRF24L01+PA+LNA Manufacturer

This moduleThe rate of 250K, the open distanceOne thousand and one hundredMeters, the rate of 1M, the open distanceSeven hundred and fiftyMeters, the rate of 2M, the open distanceFive hundred and twentyMeters,

Focus on the development and application of wireless transmission, with more eperienced R & D engineers, can provide wireless data transmissionNRF24L01P+PA+LNAIs our high power and high sensitivity of the wireless data transmission module ultra long-distance data transmission specially developed.NRF24L01P+PA+LNAWireless modules work on the license free 2.4G band of ISM, can point to point application, can also be composed of a star network,
NRF24L01P+PA+LNAThe core of the wireless module for Norway NORDIC company's new high performance wireless
Data transmission chip nRF24L01 +, with our professional design, increase the high power PA and LNA chip, RF switch, bandpass filter composed of professional and full bi-directional RF power amplifier, greatly epanding the effective communication distance.
In the RF part, the company has done a lot of optimization, debugging, the emission efficiency reached the maimum, minimum harmonic,
bringNRF24L01P+PA+LNARadio frequency interference of wireless module to the outside equipment to reach the minimum, but also not easy to be interfered by other devices, greatly.
High stability work.
NRF24L01P+PA+LNAThe wireless module is highly integrated, the size is only 45.54mm*16.46mm, convenient embedding
In any space tight products, as long as the customer to add a MCU control through the SPI portNRF24L01P+PA+LNA
The wireless module to complete the design of ultra long distance wireless data transmission system, developed completely without the need for RF part
Worry about big cuts in funding research and development and shorten the development cycle

Description:

Voltage: DC 3-3.6V
Max output power: +20 dBm
Working current in transmit mode: 115mA
Working current in receiver mode: 45mA
Current in mode: 4.2uA
Operating temperature: -20-70 degree
Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode
PA growth: 20dB
LAN growth: 10dB
LAN noise figure: 2.6dB
Antenna growth: 2dBI
2M rate: 520m

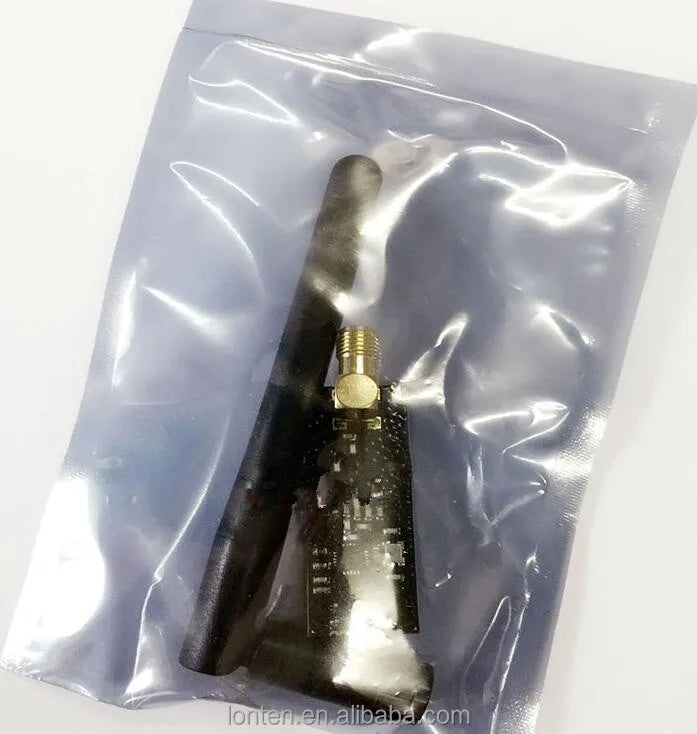

Package Included:

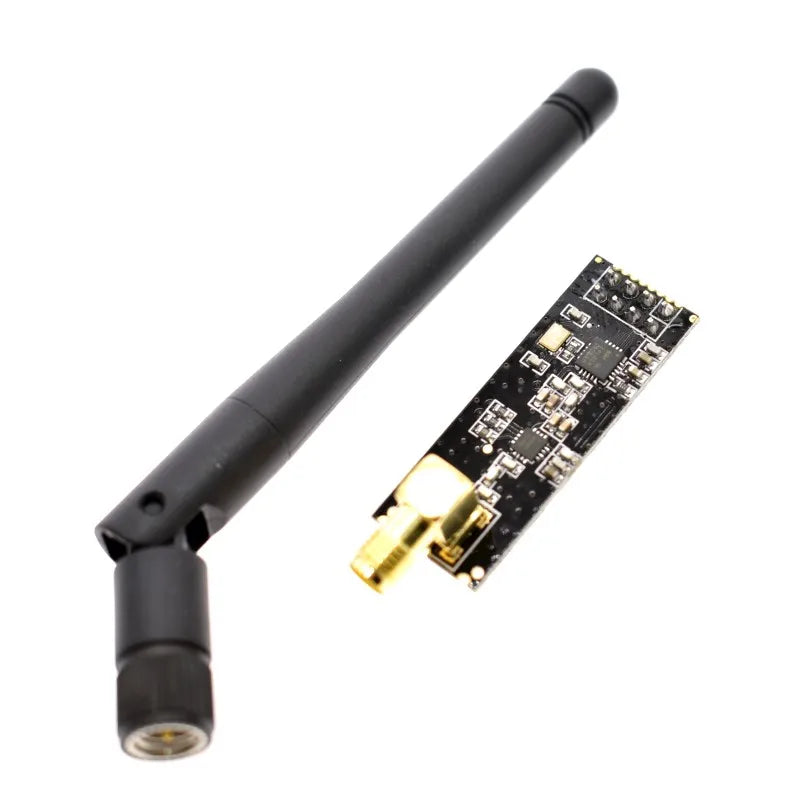

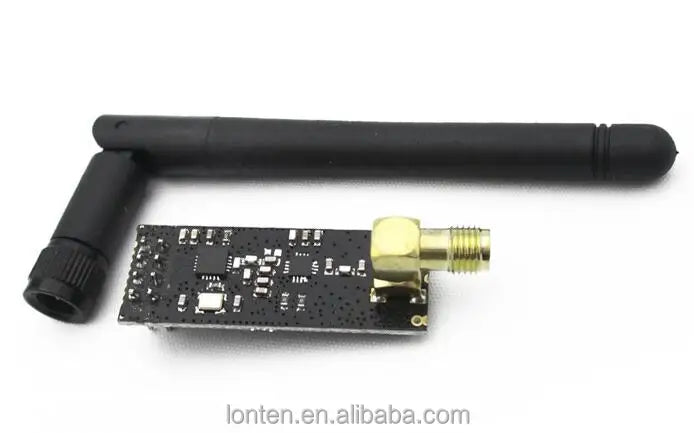

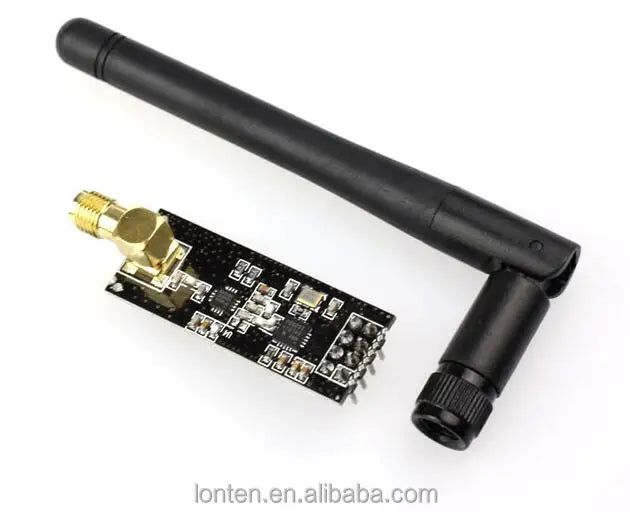

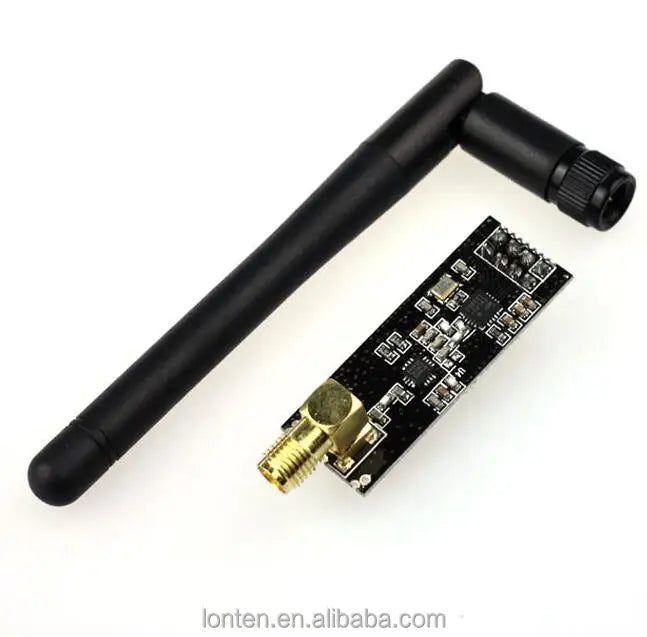

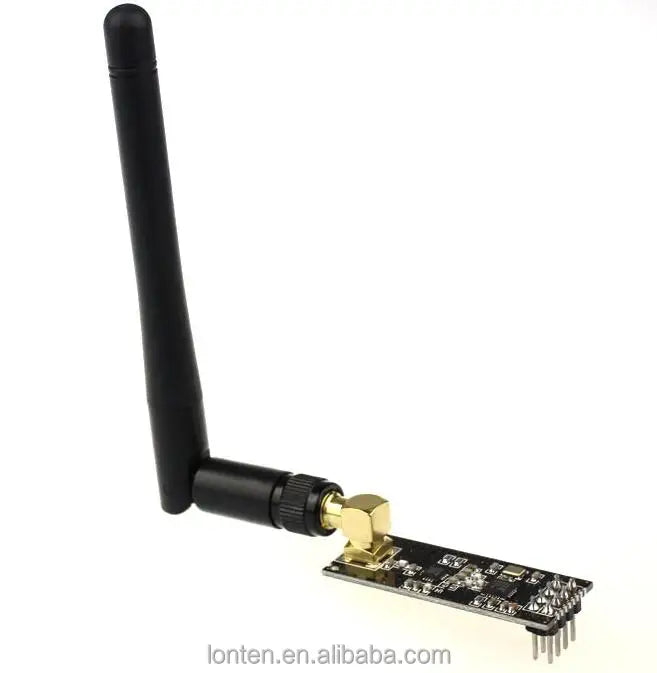

1 * NRF24L01+PA+LNA Wireless Modules
1 * Antenna
