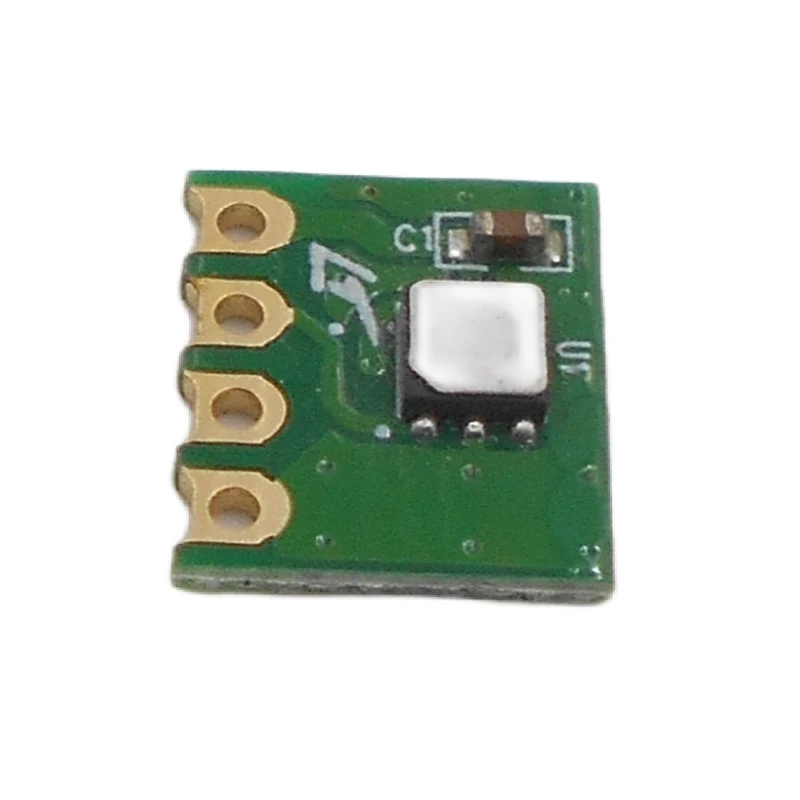

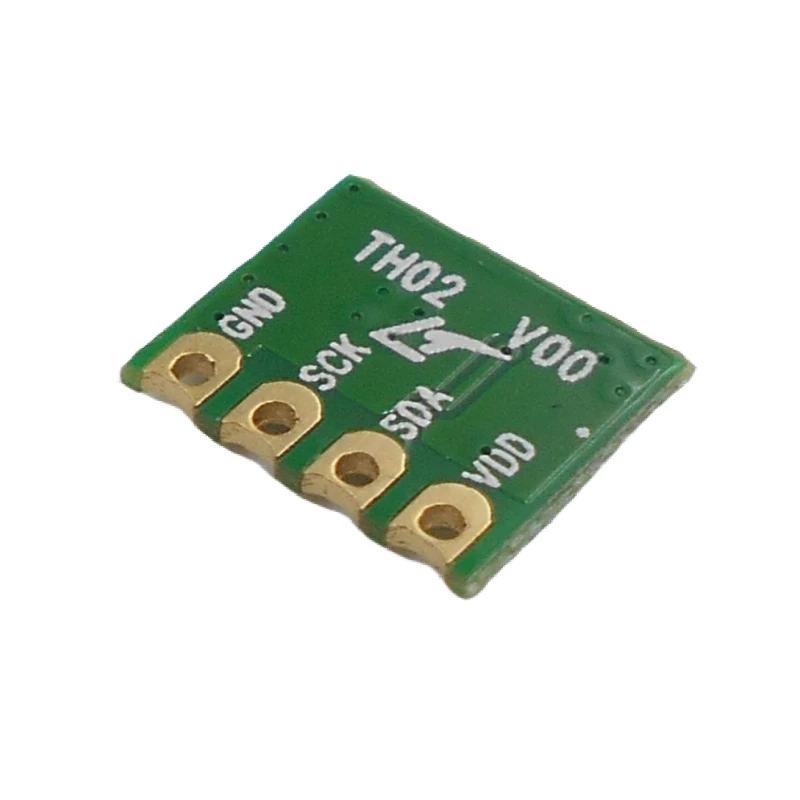

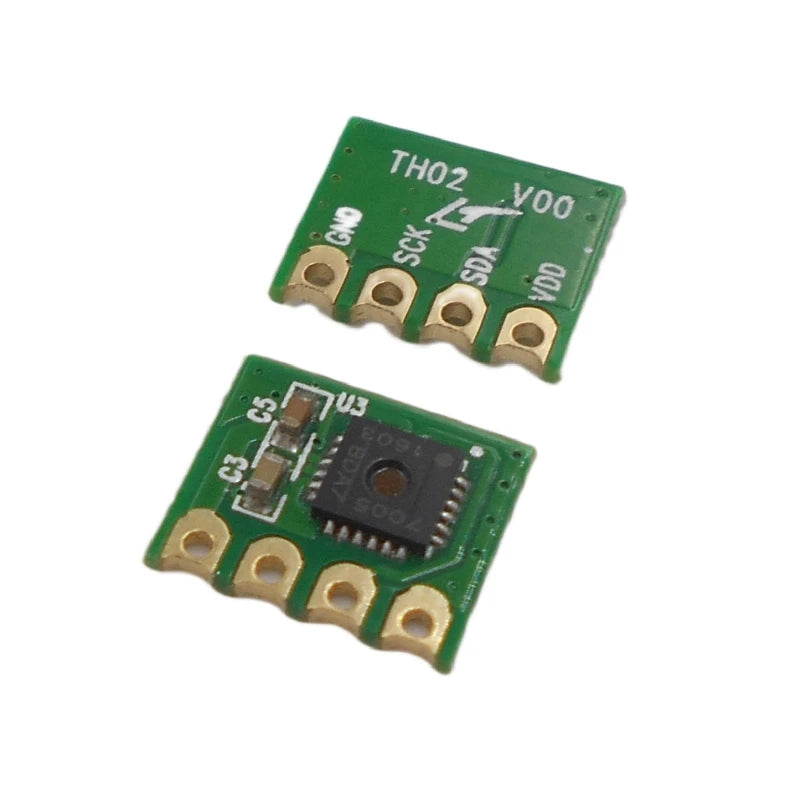

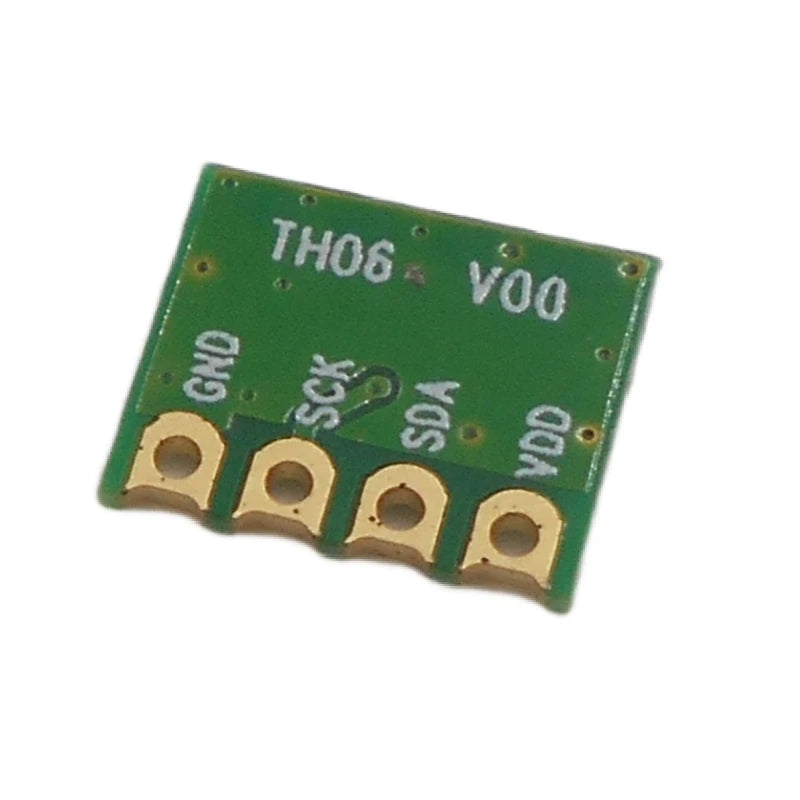

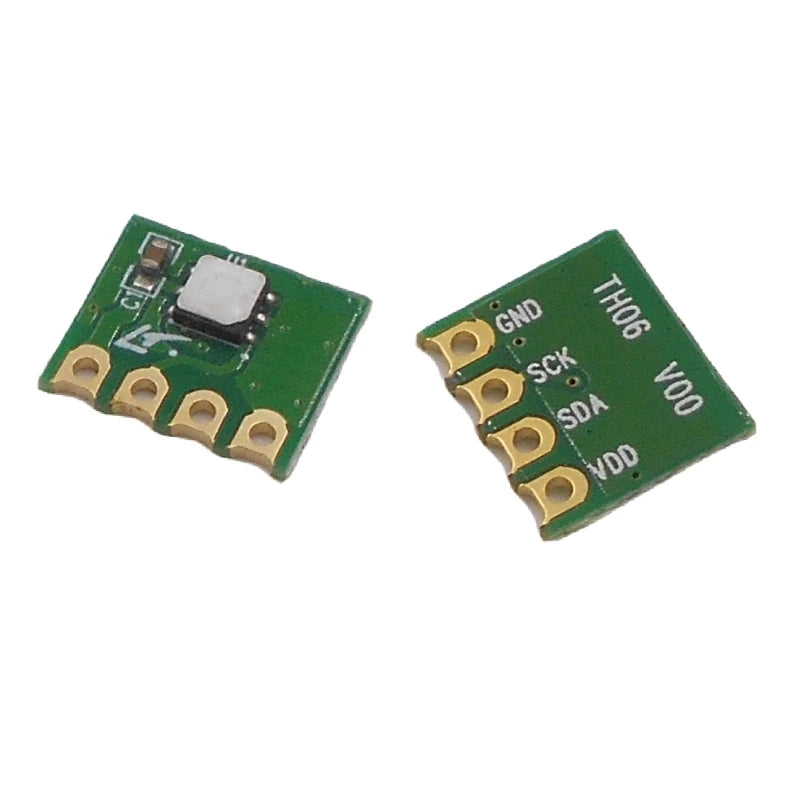

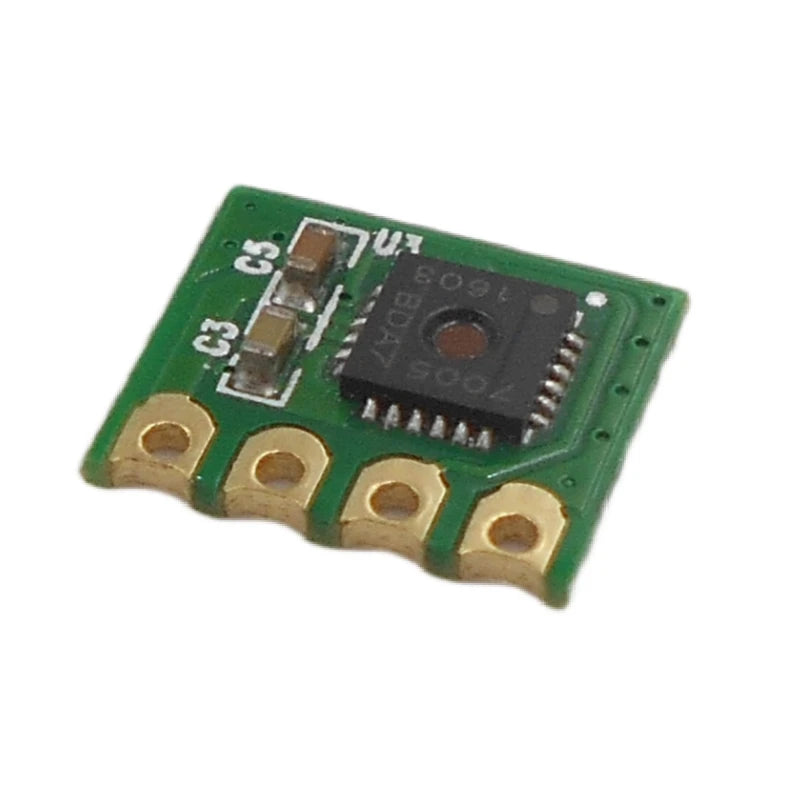

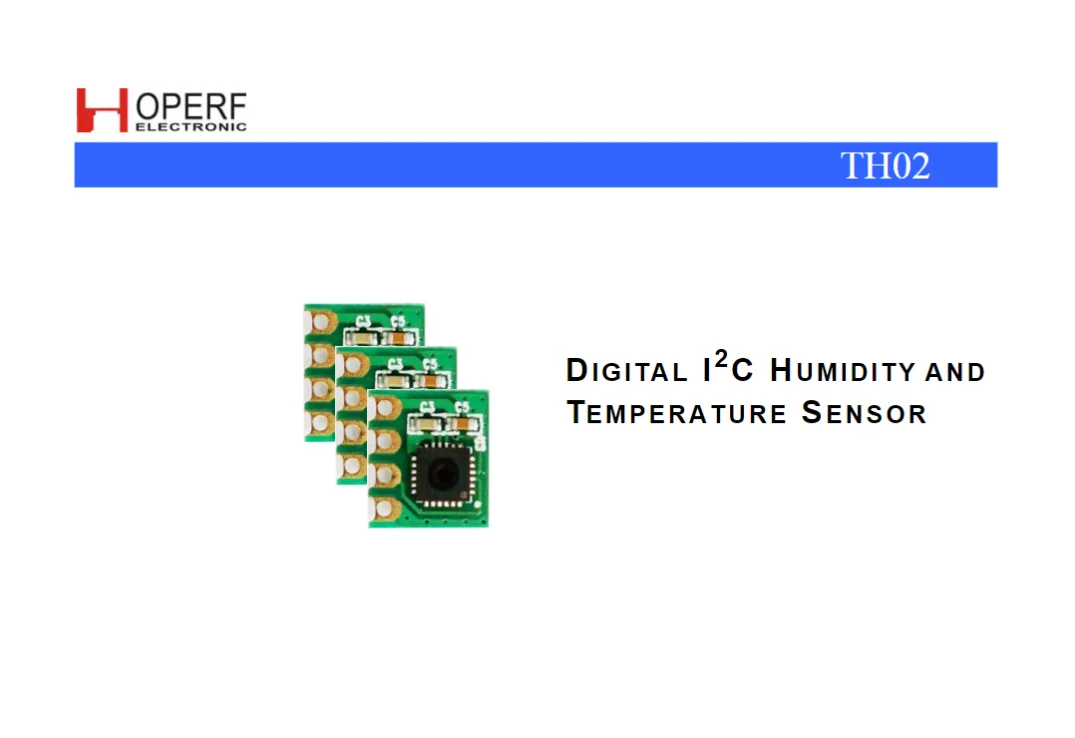

Custom TH06 TH02 Precision Digital Converter Temperature and Humidity Sensor Module

$1.98 USD

~~$1.98 USD~~ $1.98 USD

Sale Sold out

color TH02 TH06

Quantity

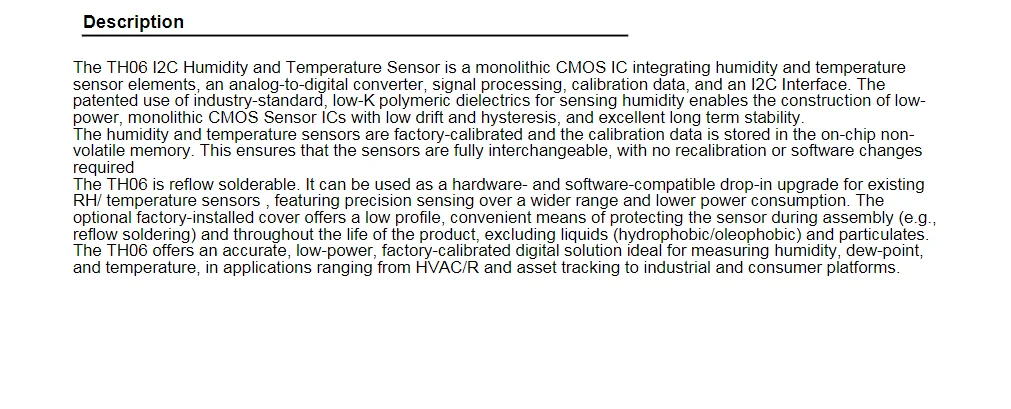

ensor is a monolithic CMOS IC integrating humidity and temperature

sensor elements, an analog

-

to

-

digital converter, signal processing, calibration data, and an I2C Interface. The

patented use of industry

-

standard, low

-

K polymeric dielectrics for sensing hu

midity enables the construction of low

-

power, monolithic CMOS Sensor ICs with low drift and hysteresis, and excellent long term stability.

The humidity and temperature sensors are factory

-

calibrated and the calibration data is stored in the on

-

chip non

-

vol

atile memory. This ensures that the sensors are fully interchangeable, with no recalibration or software changes

r e qu i r ed

The TH06 is reflow solderable. It can be used as a hardware

-

and software

-

compatible drop

-

in upgrade for existing

RH/ temperature sens

ors , featuring precision sensing over a wider range and lower power consumption. The

optional factory

-

installed cover offers a low profile, convenient means of protecting the sensor during assembly (e.g.,

reflow soldering) and throughout the life of the p

roduct, excluding liquids (hydrophobic/oleophobic) and particulates.

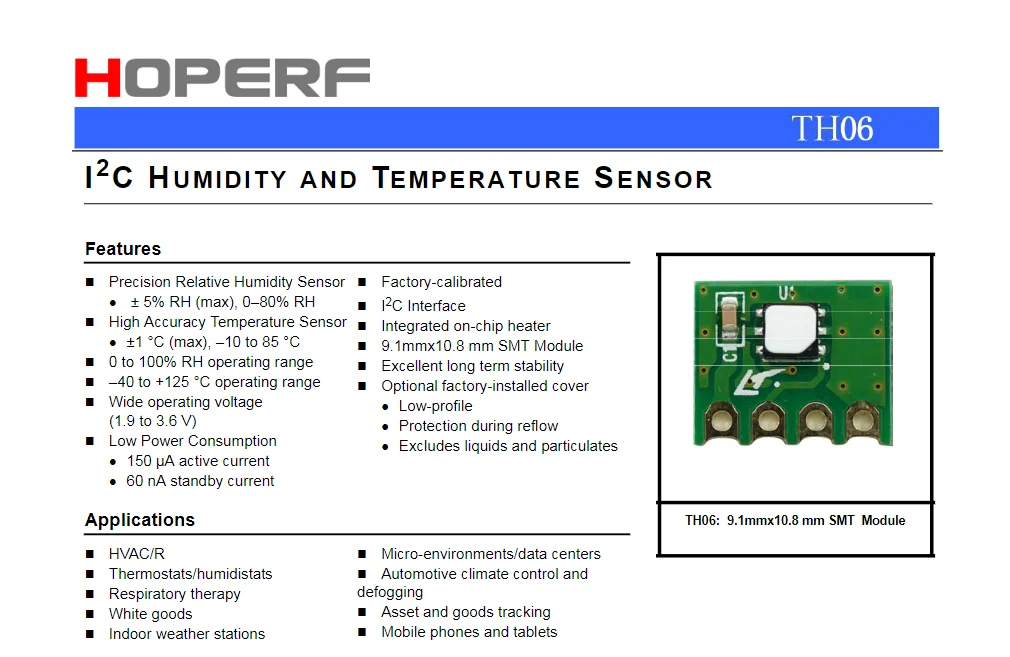

The TH06 offers an accurate, low

-

power, factory

-

calibrated digital solution ideal for measuring humidity, dew

-

point,

and temperature, in applications ranging from HVAC/R and asset trackin

g to industrial and consumer platforms.
