Tesla Coil Plasma Generator Spark Gap Mini Ball DIY Electronic Kit Wireless Transmission DC 12~36V Soldering Training Suite

Instruction Download link:http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/13219.pdf

Know Before You Buy

1. Basic soldering skills are required. You need to solder the circuit board and connect the wires. You need to buy the soldering iron and the tin wire glue gun by yourself. It is recommended to buy a thicker tin wire (but not too thick, otherwise there are a few spots that are not easy to solder. board)

2. You need to prepare the source adapter yourself, and you will need it in the step of pulling the arc

3. If the soldering skill is not enough, you must pay more attention to the soldering tin of the circuit board and the soldering tin of the wire connected to the coil on the booster package. It’s easy to be unsuccessful in the welding, causing no arc to be drawn behind

4. Safety protection must be paid attention to, especially after the final success and halfway through, we must be cautious. If you forget to turn off the power when halfway through, it is easy to be charged.

In general, as long as you follow the instructions carefully, and ask us where you won’t or make mistakes, you will be able to make very good results in the end!

Finally, remind everyone that things related to electricity must be safe!

Introduction:

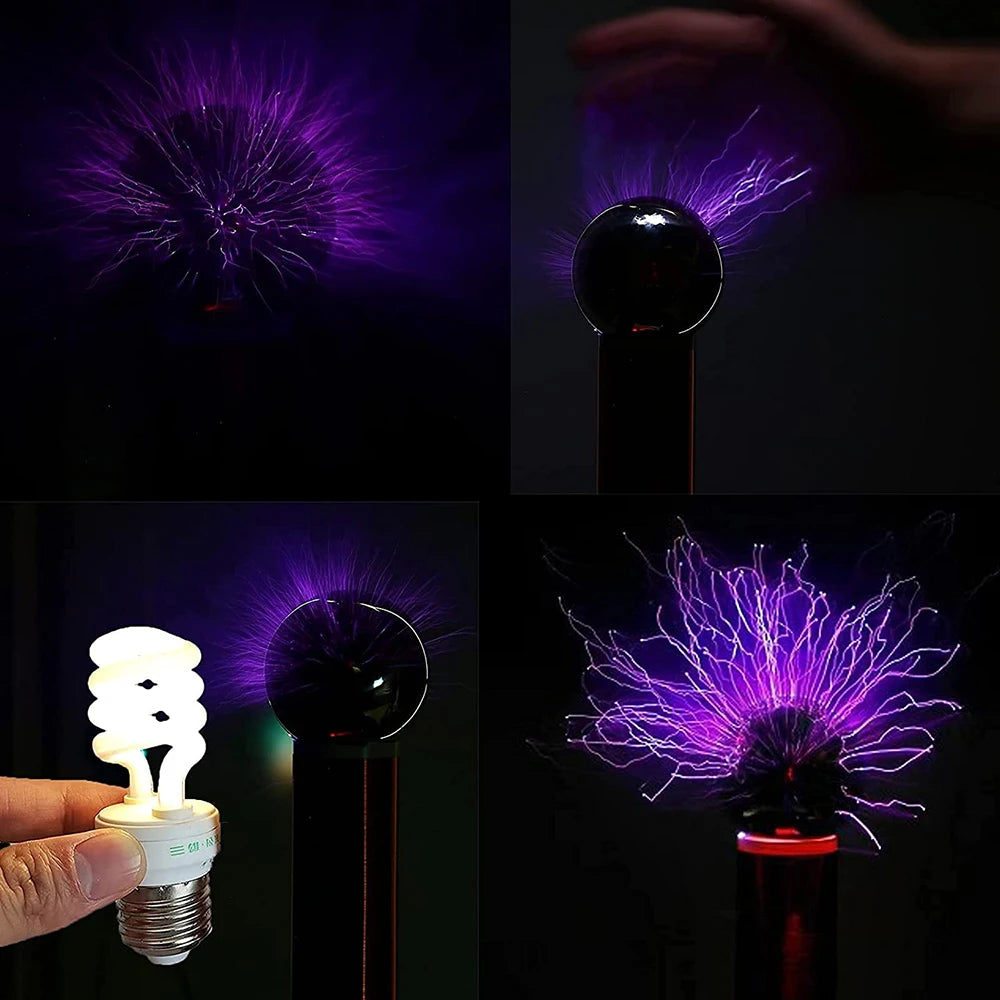

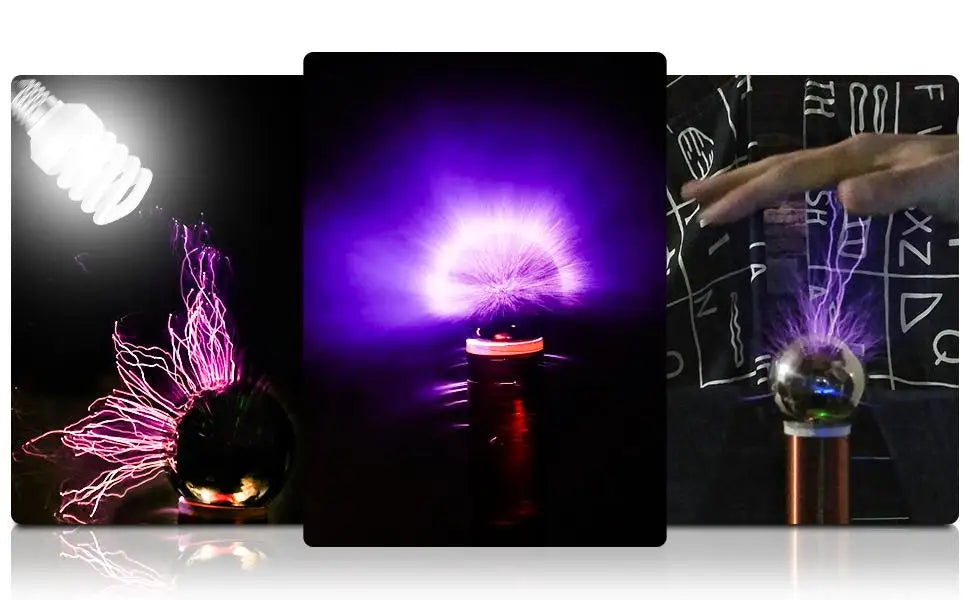

It is a Spark Gap Tesla Coil DIY Kit. The Tesla coil can produce high temperature and high pressure plasma which can wireless transmission and light fluorescent lamp.

Feature:

1>.Brilliant arc

2>.Wireless transmission

3>.Lighting in the air

4>.10cm arc

Parameter:

1>.Product Name:Spark Gap Tesla Coil DIY Kit

2>.Work Voltage:DC 12V~36V

3>.Work Power:60W-80W

4>.Arc length:about 10cm

5>.Work Temperature:-40℃~85℃

6>.Work Humidity:5%~95%RH

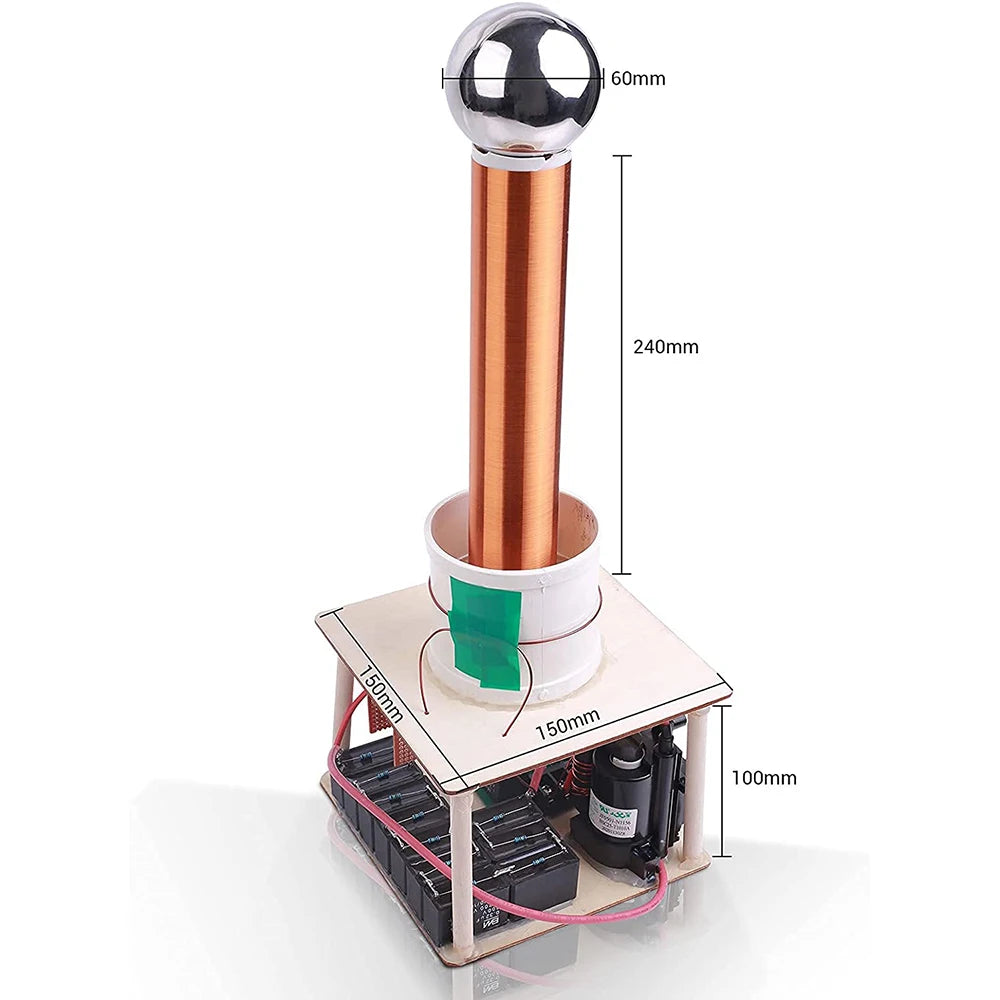

7>.Size(Installed):150*150*410mm

Note:

1>.There is no direct contact between the primary coil and the secondary coil.

2>.The secondary coil must be connected to ground before power ON. 3>.Please do not touch the product with your hands when working.

3>.Please provide sufficient and stable power supply. It is recommended to use 19V4.7A power supply.

Installation Tips:

1>.User needs to prepare the welding tool and hot melt adhesive at first. 2>.Please be patient until the installation is complete.

3>.The package is DIY kit.It need finish install by user.

4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.

5>.Pay attention to the positive and negative of the components. 6>.Strictly prohibit short circuit.

7>.Install complex components preferentially.

8>.Make sure all components are in right direction and right place.

9>.It is strongly recommended to read the installation manual before starting installation!!!

10>.Please wear anti-static gloves or anti-static wristbands when installing electronic components.
