Custom TEC1-12706 12704 12705 12708 12709 12710 12712 12715 Thermoelectric Cooler Peltier 40*40MM 12V Peltier Elemente Module

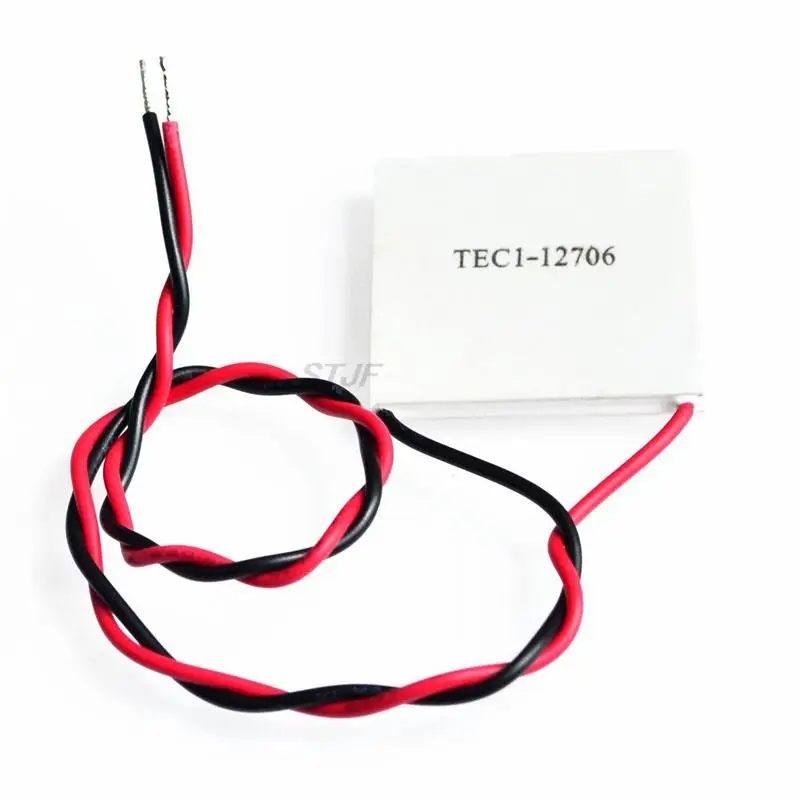

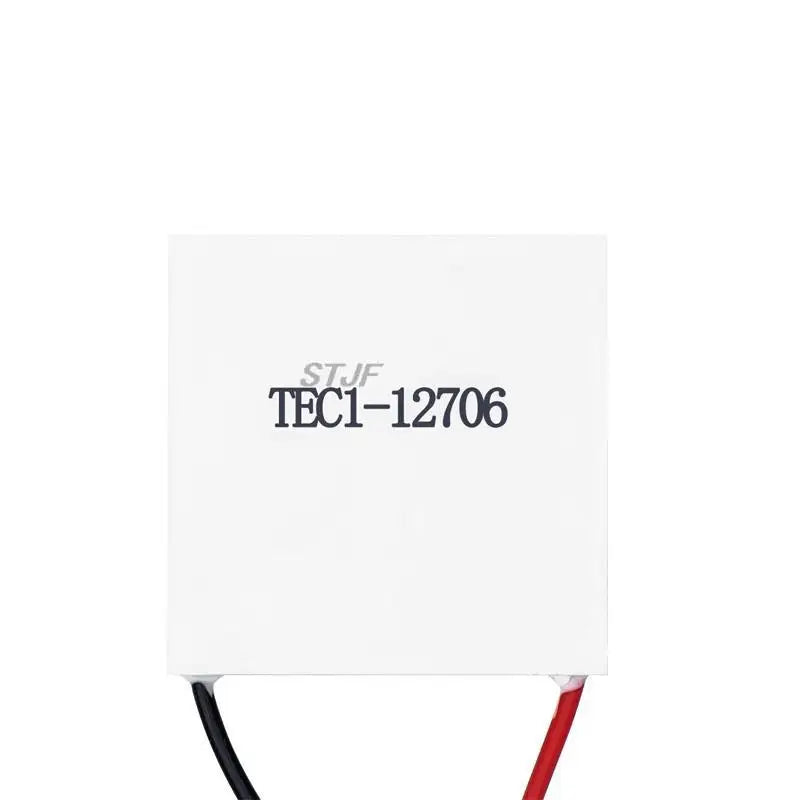

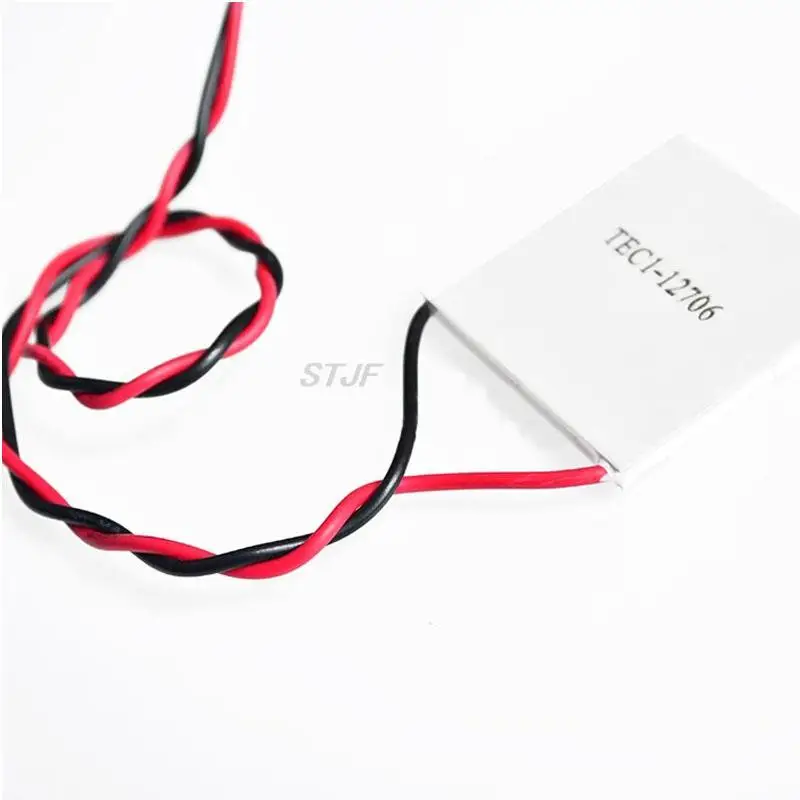

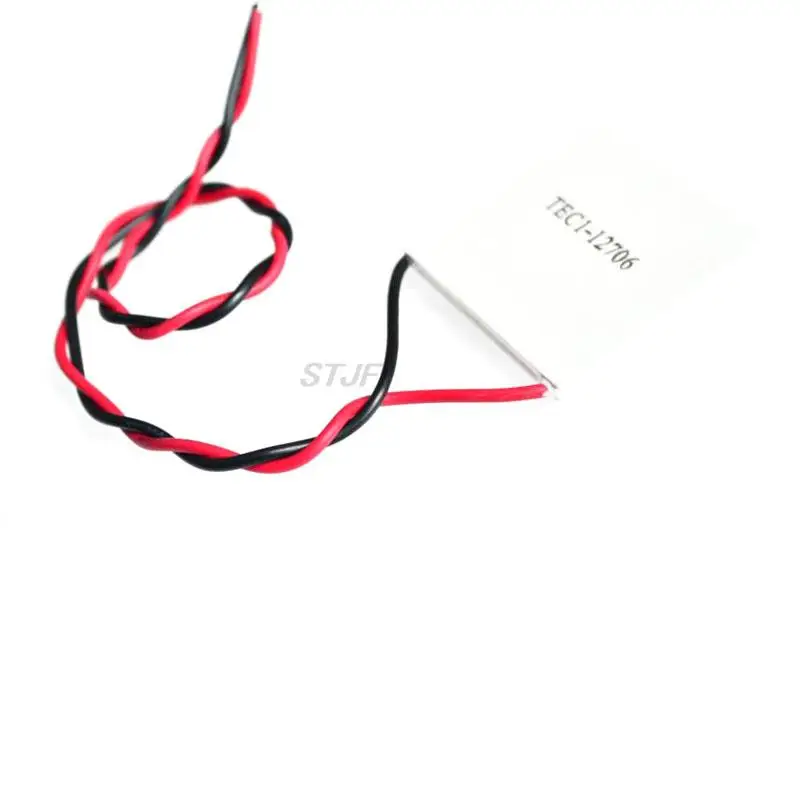

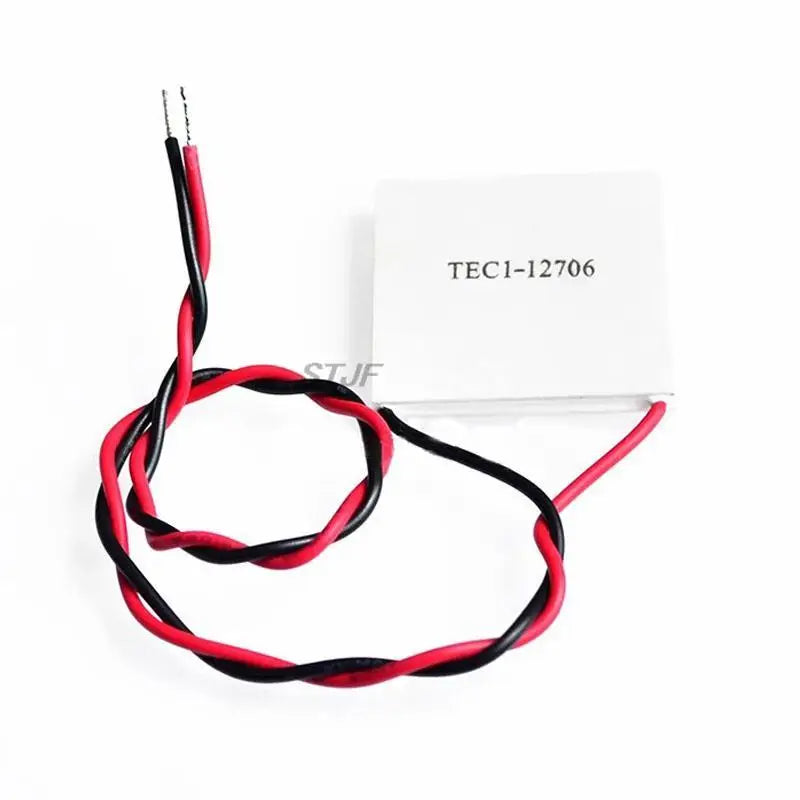

TEC1-12706 40*40

Chip Type: TEC1-12706
External dimensions: 40 * 40 * 3.75mm
Internal resistance: 2.1 ~ 2.4Ω (ambient temperature of 23 ± 1 'C, 1kHZ Ac test)
The maximum temperature difference:  Tmax (Qc = 0) above 59 'C.
Working current: Imax = 4.3-4.6A (rated at 12V)
Rated voltage: 12V (Vmax: 15V starting current 5.8A)
Cooling power: Qcmax 55W
Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency)

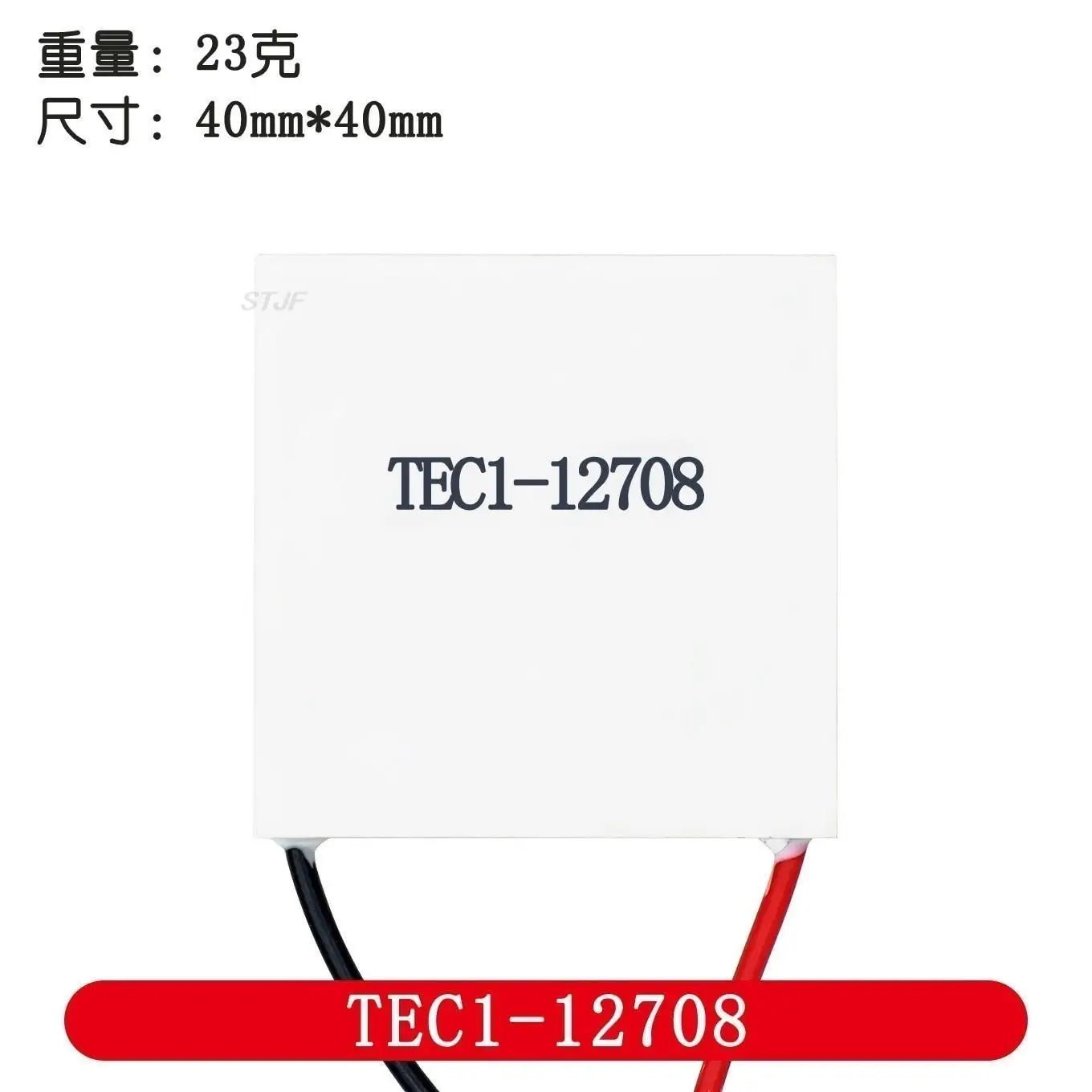

TEC1-12708 40*40

Chip Type: TEC1-12708

External dimensions: 40 * 40 * 3.5mm

Internal resistance: 1.5 ~ 1.8 Ω (23 + / - 1degree, environment temperature 1 KHZ Ac test)

The largest temperature difference: delta Tmax (Qc = 0) more than 67degree

Working current: Imax = 8 (rated voltage startup)

Rated voltage: DC12V (Vmax: 15.5 V)

Cooling power: 77 w Qcmax

The assembly pressure: 85 n/cm2

Working conditions: temperature range and 55degree~ 83degree (high environmental temperature will directly affect the cooling efficiency)

Encapsulation process: standard around 704 silicone rubber seal

Packing: bubble box packing, storing conditions - 10degree to 40degree ambient temperature

TEC1-12709 40*40MM

Chip Model: tec1-12709

Overall dimensions: 40*40*3.5mm component Logarithm 127 pairs

Wire specification: lead long 300±8mm RV standard conductor single head 5mm tin plating

Internal resistance: 1.4~1.5ω (ambient temperature 23±1°, 1kHZ AC test)

Maximum temperature difference: 62 ° above

Working current: imax=7.1A (max voltage. 5V start 9A)

Rated Voltage: $literal (maximum voltage: 5V)

Cooling power: 86W (high cooling surface temperature will reduce cooling power)

Assembling pressure: 85n/cm2

Working environment: Temperature range -55°~83° (high ambient temperature will directly affect refrigeration efficiency)

Packaging process: Ambient standard 704 Silicone rubber seal

Packaging standards: Foam box packaging, storage conditions ambient temperature -10°~40°

Storage conditions:-40~60°

Power Requirements: Single voltage 12V, current 9A above the working power supply (series and parallel use)

Device characteristics: Red line positive, black line negative (there is literally refrigeration surface, no literal heat dissipation surface)

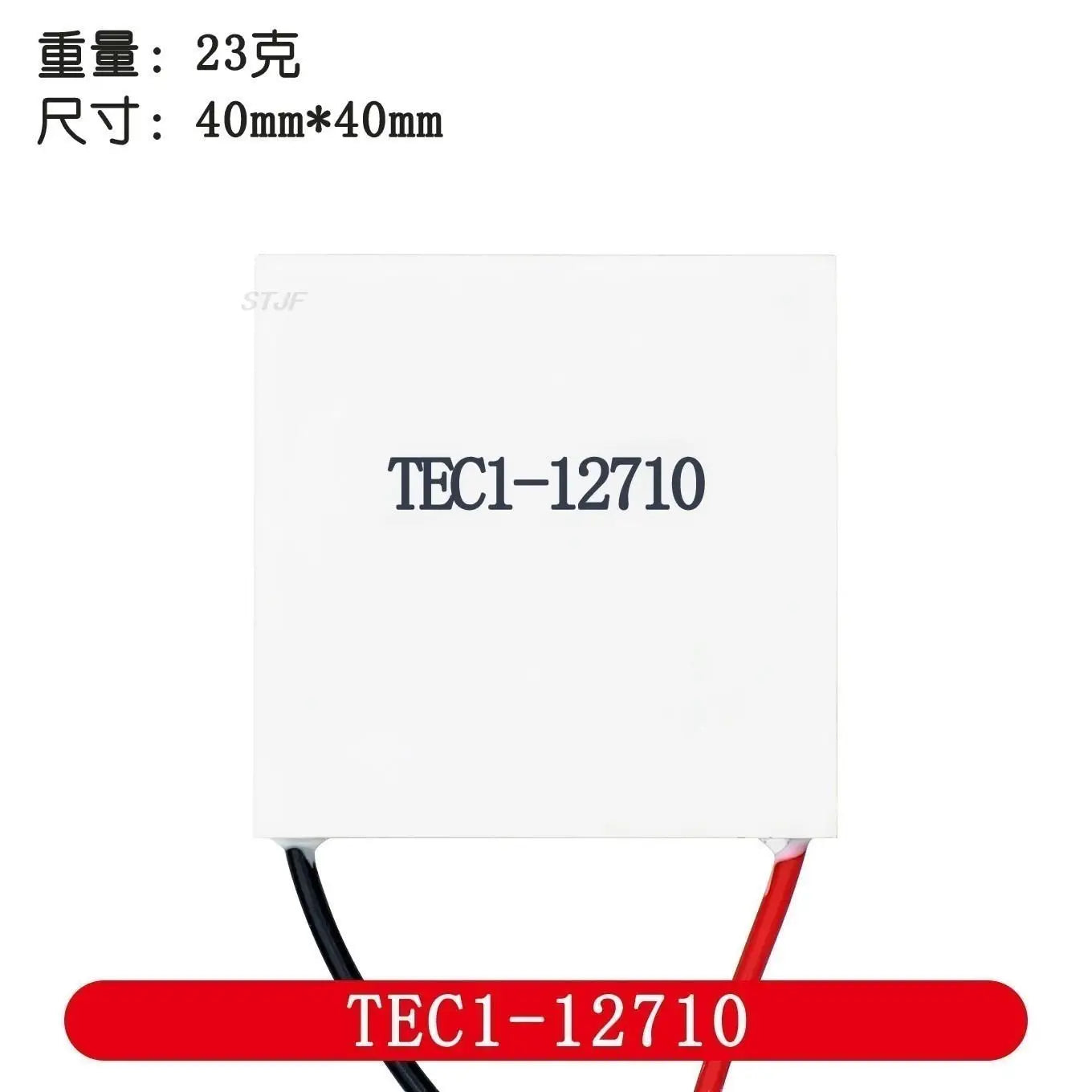

TEC1-12710 40*40

Chip: TEC1-12710

Dimension: 40 * 40 127 * 3.4 mm components logarithmic

Wire specifications: 300 + / - 5 mm long RV lead wire single head 5 mm tin plating

Internal resistance value: 1.2 ~ 1.5 Ω (23 + / - 1degree, environment temperature 1 KHZ Ac test)

Maximum temperature difference: delta Tmax (Qc = 0) above 60degree.

Working current: Imax = 10 a voltage (vmax 15 starts)

Rated voltage: DC12V (Vmax: 15.5 V)

Cooling power: 92 w Qcmax

The assembly pressure: 85 n/cm2

Working conditions: temperature range and 55degree ~ 83degree (high environmental temperature will directly affect the cooling efficiency)

Encapsulation process: standard around 704 silicone rubber seal

Packing: bubble box packing, storing conditions - 10degree to 40degree ambient temperature

Storage conditions: - 40 ~ 60degree

TEC1-12712 40*40

Type: TECI-12712

Couples: 127

Imax (A): 12

Umax (V):15.4

Qcmax(w) T =0: 109

Tmax (°) Qc=0: 68

Size: 40*40*3.4mm

TEC1-12715 40*40

Model: TEC1-12715

Size: 40mm x 40mm x 4mm

Operates from 0~15.4V DC and 0~15A

Operates Temperature: -40 to 90

Max power consumption: 165 Watts
