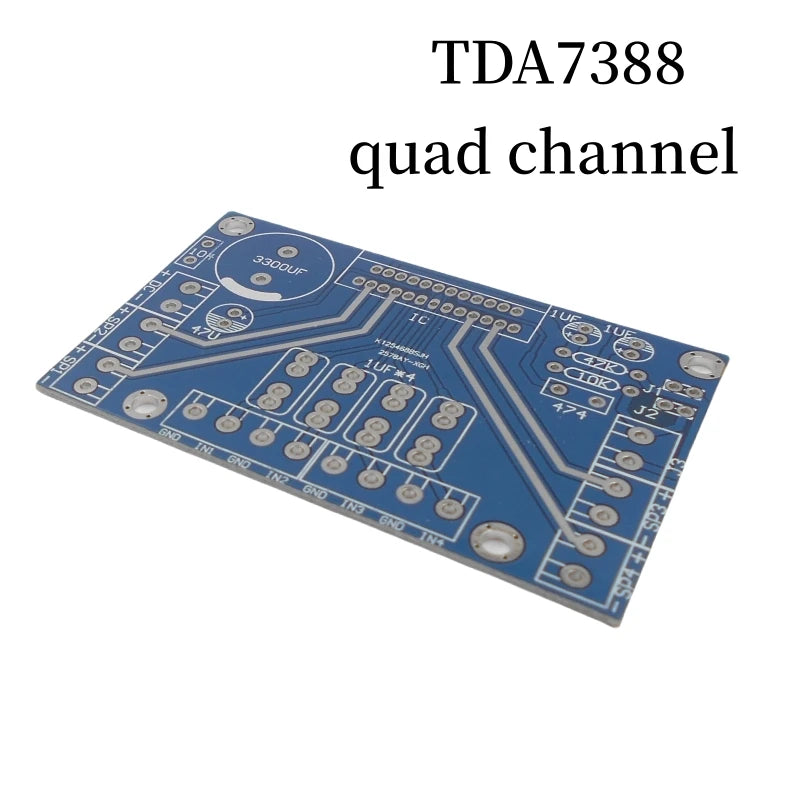

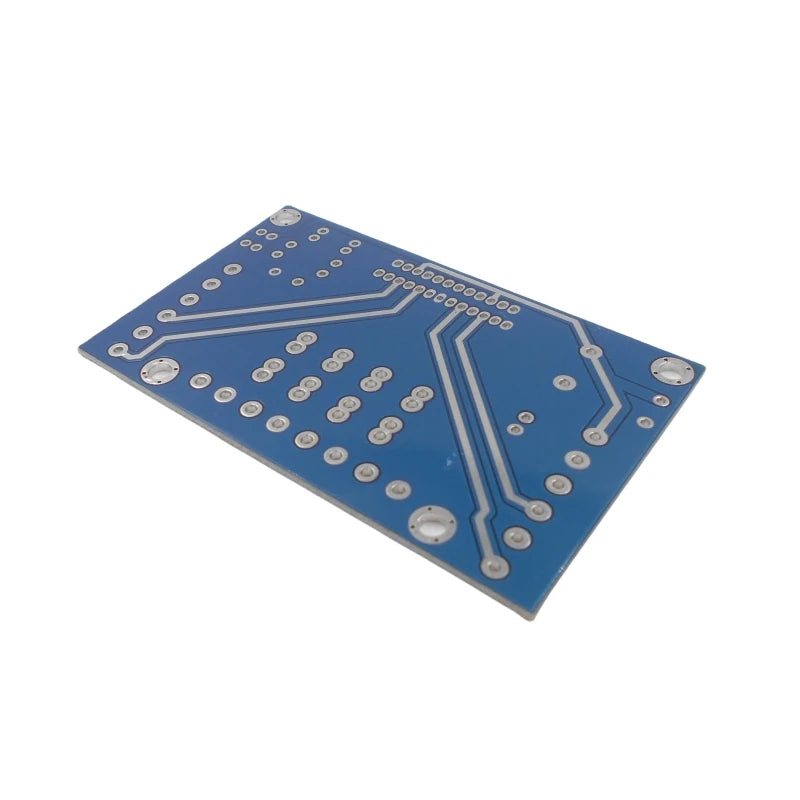

Custom TDA7388 quad channel 4X41W PCB empty board compatible with 7850 PA2030A

TDA7388 is a four channel automotive specific IC produced by ST Corporation (the world's fifth largest semiconductor company serving all electronic sub markets and leading integrated device manufacturer). This chip uses BTL output form, with very few peripheral components but excellent sound quality, and installation is also very convenient. It is packaged in a 25 pin dual inline configuration. The power supply is DC 12V-14.5V. This product is a four channel amplifier module, which adopts the most common circuit design concept and is very in line with the overall effect of the IC. The materials used in the kit are also extremely particular about WM's dedicated audio capacitors, Panasonic's CBB capacitors, and Japan's Ruby filter capacitors. In order to facilitate connection, the input and output of this board all use 5.08mm wiring terminals, making it convenient for external connections.

Input voltage: Single DC 12-14.5V

Output power: TDA7388--4X41W

Board size: 80 * 50 * 1.6 MM (length * width * thickness) This board is suitable for car modification, product upgrades, desktop amplifier modules, and computer active audio upgrade modules..

104 is a 0.1uF capacitor, 470 is a 470uF electrolytic capacitor, and 474 is a 470nF capacitor. The IC is TDA7388 compatible with PA2030A, 78501uF * 4, and all four are soldered with 1uF here
