Custom TDA7293/7294 Mono Power Amplifier Board Guan Fangdart Accurate Circuit Design 85W PCB Empty Board
Custom TDA7293/7294 Mono Power Amplifier Board Guan Fangdart Accurate Circuit Design 85W PCB Empty Board
Regular price
$0.28 USD
Regular price
$3.28 USD
Sale price
$0.28 USD
Unit price
per
Couldn't load pickup availability

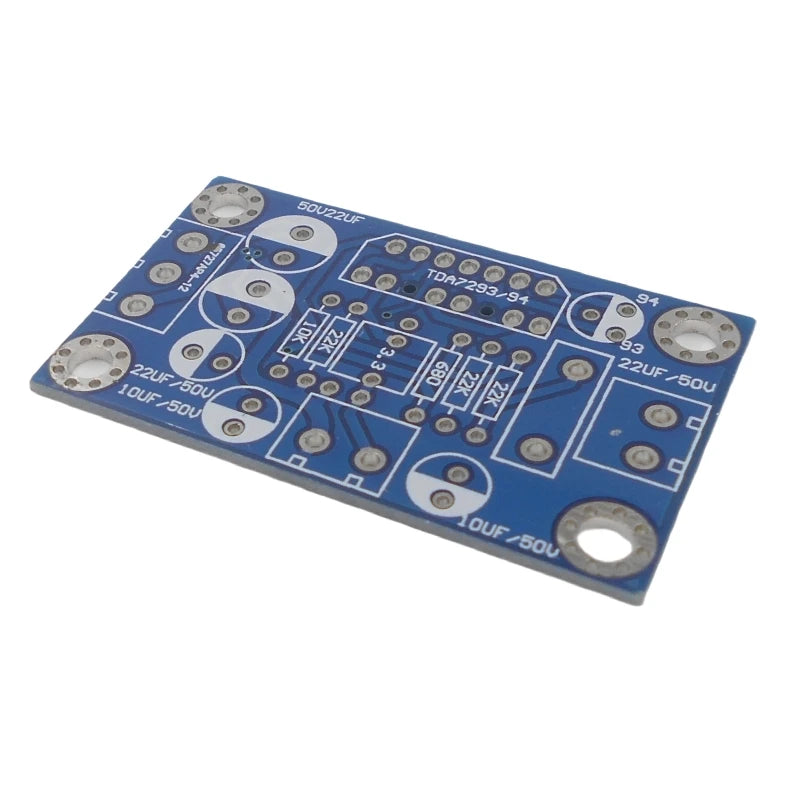

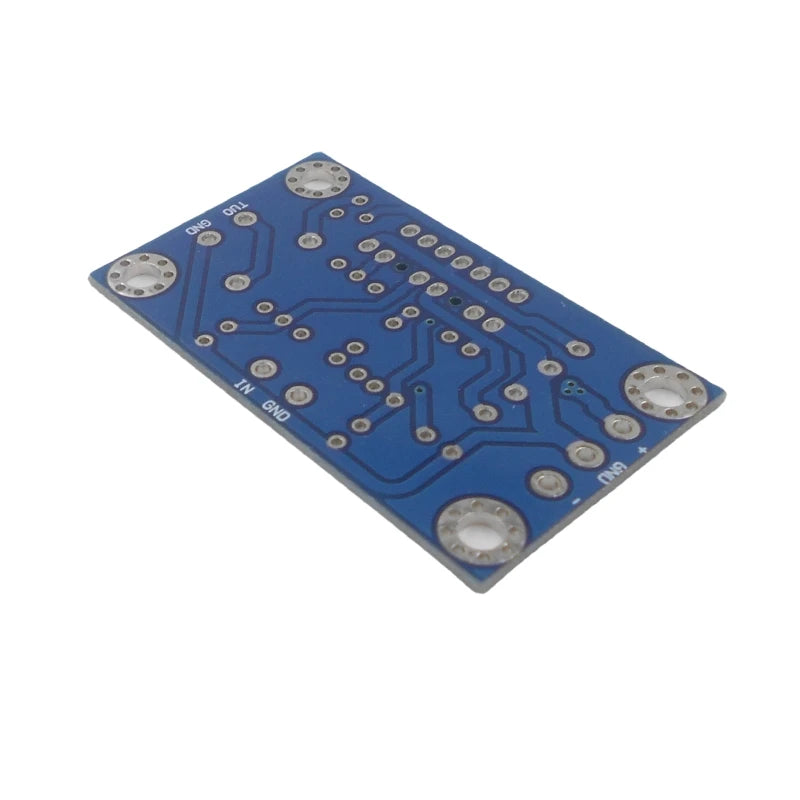

TDA7293/TDA7294 Universal Power Amplifier Board
This board supports TDA7293 / TDA7294 two kinds of chips. The 22uf capacitor in the upper right corner of the PCB board can be connected to different pins according to the chip model.
PCB size: 33MM*55MM;
Supply voltage: DC dual 24V-40V, recommended double 35V (recommended dual 26V/100W transformer, heat sink 1 kg)
Output power: 80W*1 undistorted rated power, peak power 100 watts (double 35V 8 ohm load)
