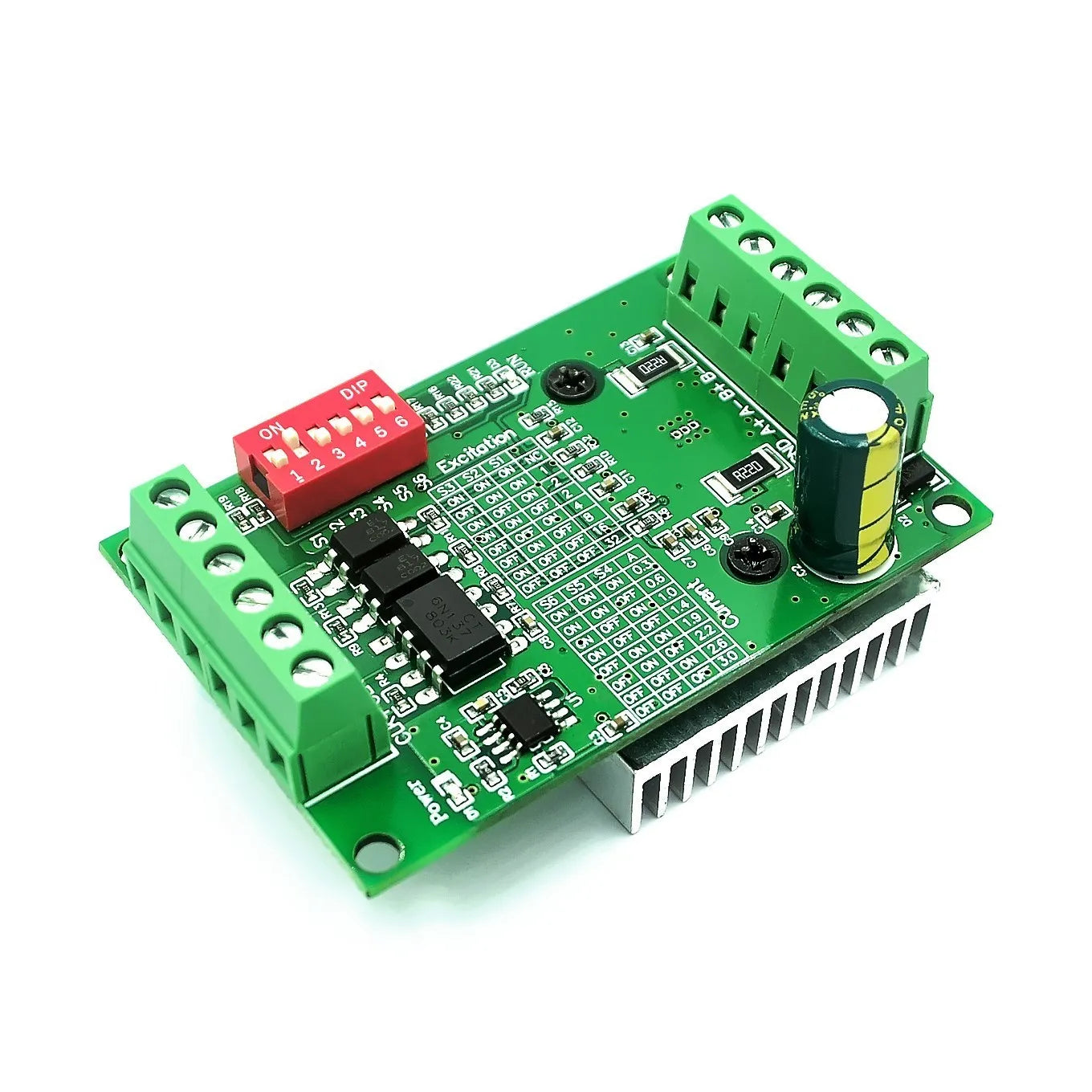

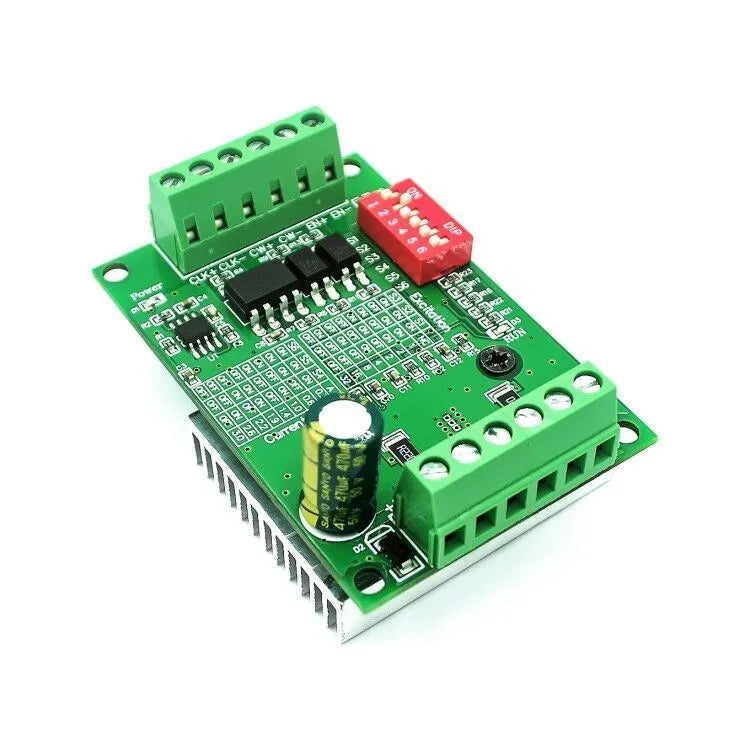

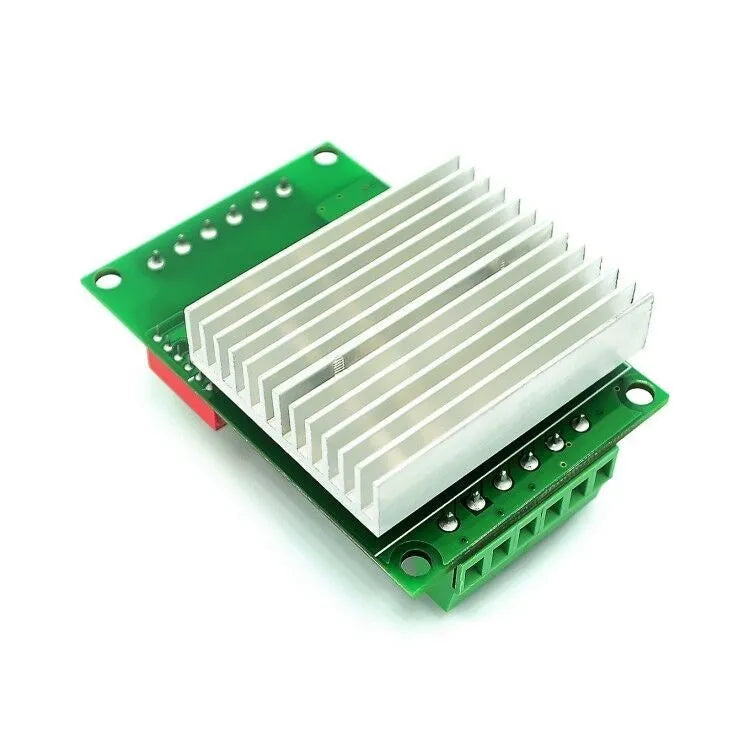

Custom TB6560 3A Stepper motor drives CNC stepper motor board Single axis controller 10 files motor controller board

Manual wiring diagram download link: http://pan.baidu.com/s/1c0b6XdY

1) Working voltage dc 10V-35V. DC24V switching power supply is recommended.

2) Use 6N137 high speed photocoupling to ensure high speed without losing step.

3) TB6560AHQ brand new chip, with low voltage shutdown, overheat shutdown and overcurrent protection circuit, to ensure performance.

4) Rated output: ±3A, peak 3.5a.

5) suitable for 42,57 stepper 3A within the two phase/four phase/four wire/six wire stepper motor, not suitable for more than 3A stepper motor.

6) Automatic half-flow function.

7) Subdivision: whole step, half step, 1/8 step, 1/16 step, 16 subdivision.

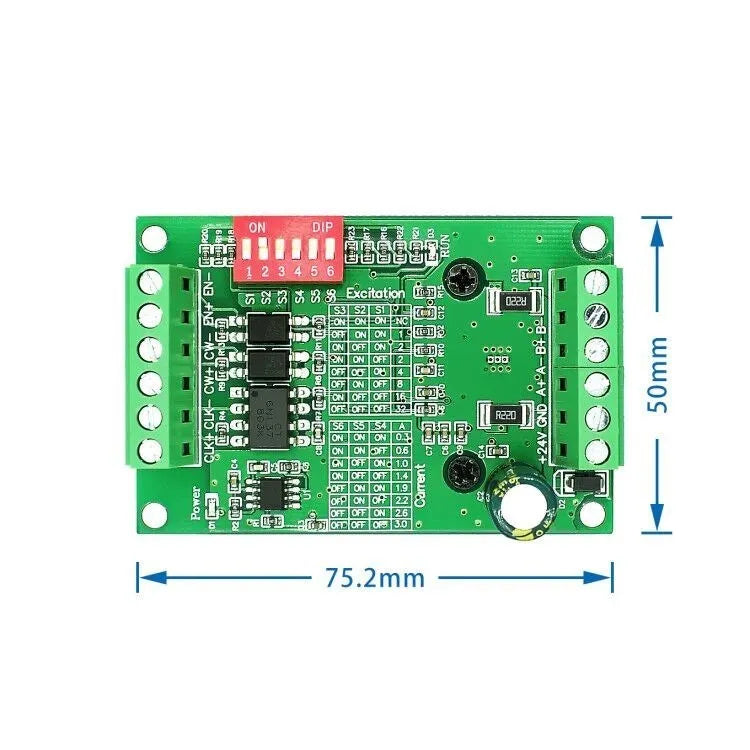

8) Volume: width 50* length 75* height 35 (MM)
