Custom TB414*5 USB 5V to DC 6V 9V 12V 15V adjustable Output DC DC Converter Step-up Boost Module for PTZ camera Smart Home LED Motor Manufacturer
Custom TB414*5 USB 5V to DC 6V 9V 12V 15V adjustable Output DC DC Converter Step-up Boost Module for PTZ camera Smart Home LED Motor Manufacturer
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
|
|

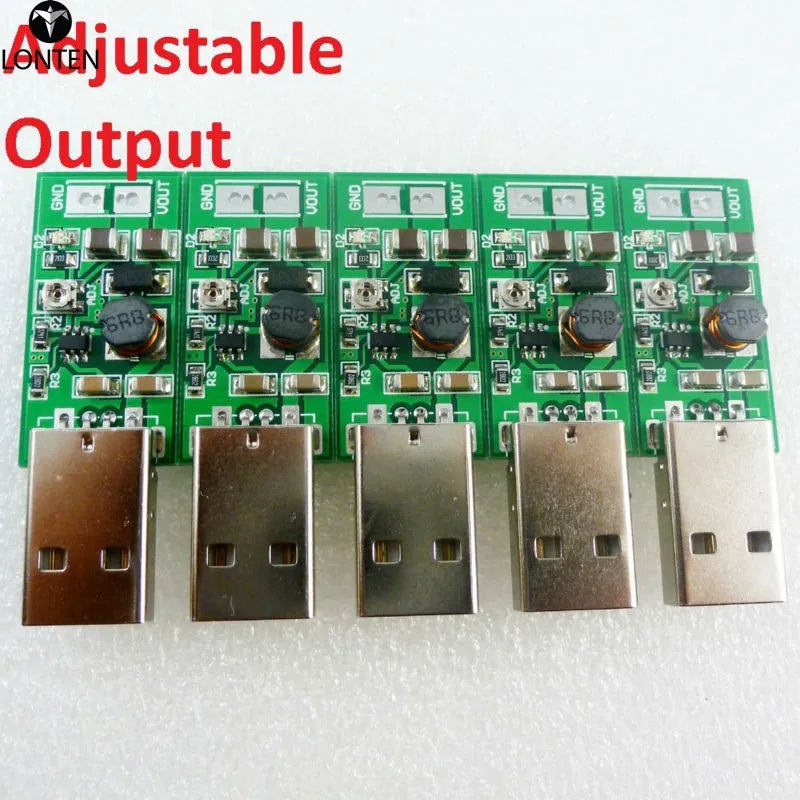

Product Name:5x USB 5V to DC 6V 9V 12V 15V adjustable Output DC DC Converter Step-up Boost UPS Module for PTZ camera Smart Home LED Motor

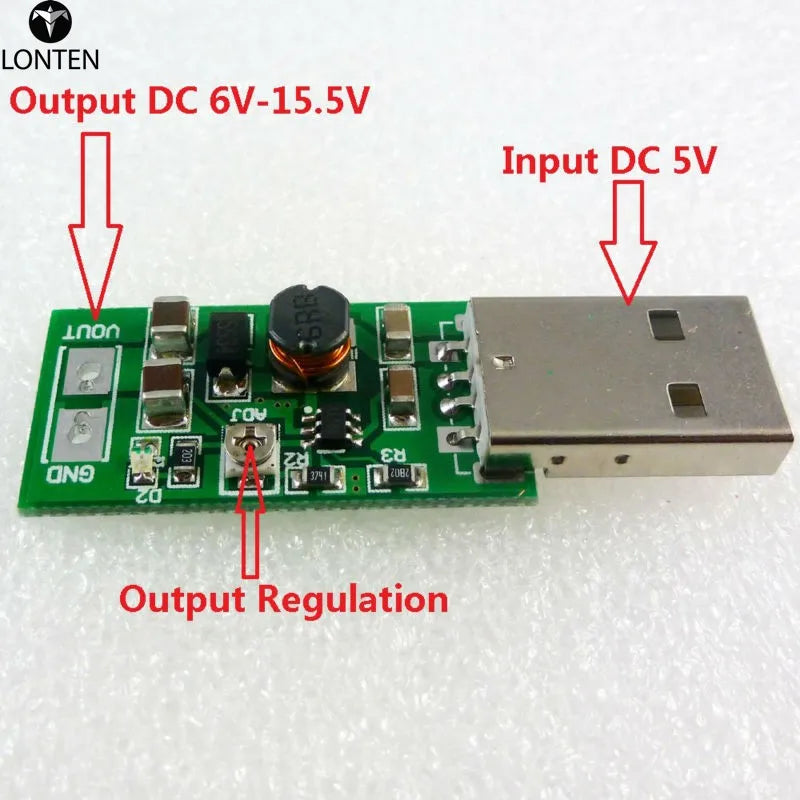

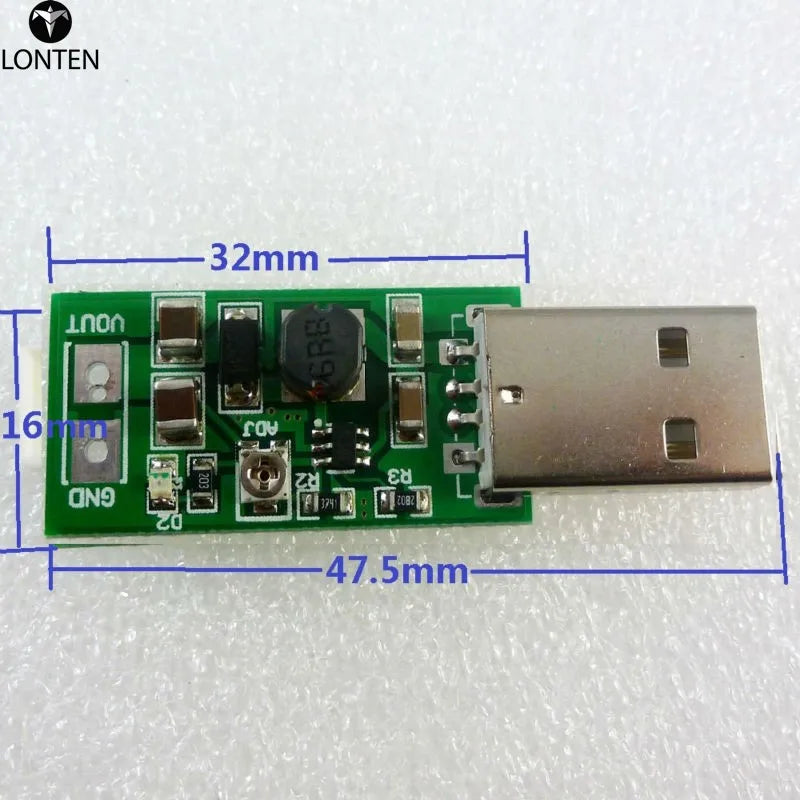

Packing list Description: Maximum input current : 1.4A Long-term work Current : 1.1A Conversion efficiency : 80-91% Input : USB Male Interface, DC 3-6V; Ouput : 2 PIN XH2.54, DC 6-15.5V; If input dc 5v,output 6-15.5V Adjustable Power : Maximum 7W; DC-DC Boost module working frequency 1.0MHZ. Operating ambient temperature : -40~+85 Degrees Celsius . Size 47.5mm x 16mm Weight : about 4.2g(light) Applications: 6-15V Low Power Motor 6-15V LED Lighting PTZ camera Smart Home/Home Automation Hard drive power supply 9V 12V 15V Routers and network equipment Wireless communication equipment 315M 433M Wireless remote controller Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range
Q & A: Q : Why output voltage is less than the nominal voltage A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low

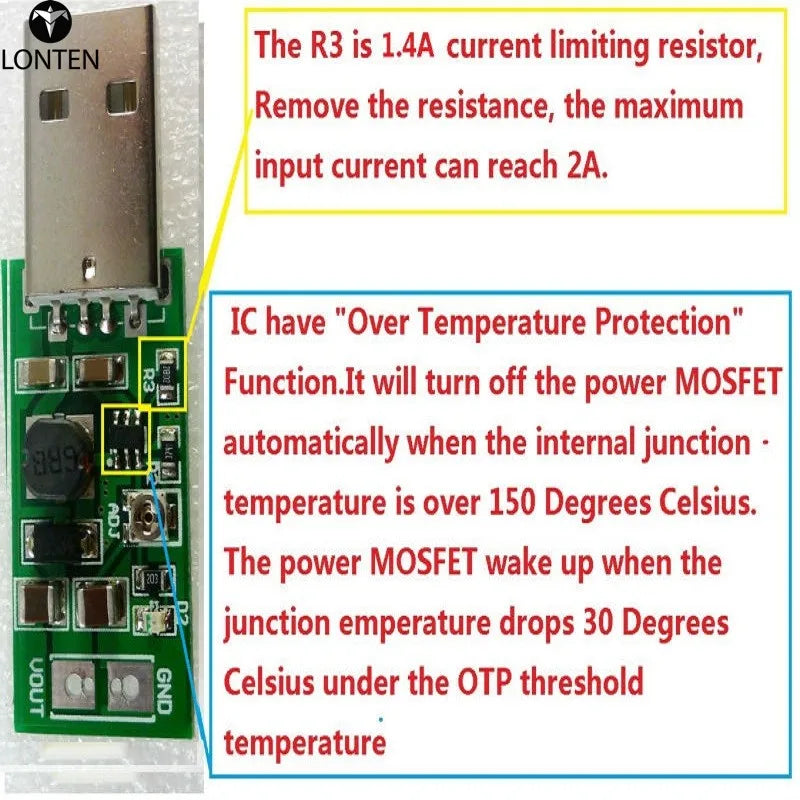

Modify Parameter Description: 1.4A current limiting resistor,Remove the resistance, the maximum input current can reach 2A. But IC have "Over Temperature Protection" Function.It will turn off the power MOSFET automatically when the internal junction temperature is over 150 Degrees Celsius. The power MOSFET wake up when the junction emperature drops 30 Degrees Celsius under the OTP threshold temperature The master chip is FP6291(Made in Taiwan) |
|---|
Application :
