Custom TB376 USB DC 5V to 12V DC-DC Boost Converter Step Up Module for Monitor Camera LED DVR Manufacturer
Custom TB376 USB DC 5V to 12V DC-DC Boost Converter Step Up Module for Monitor Camera LED DVR Manufacturer
Regular price
$1.98 USD
Regular price
$1.98 USD
Sale price
$1.98 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.

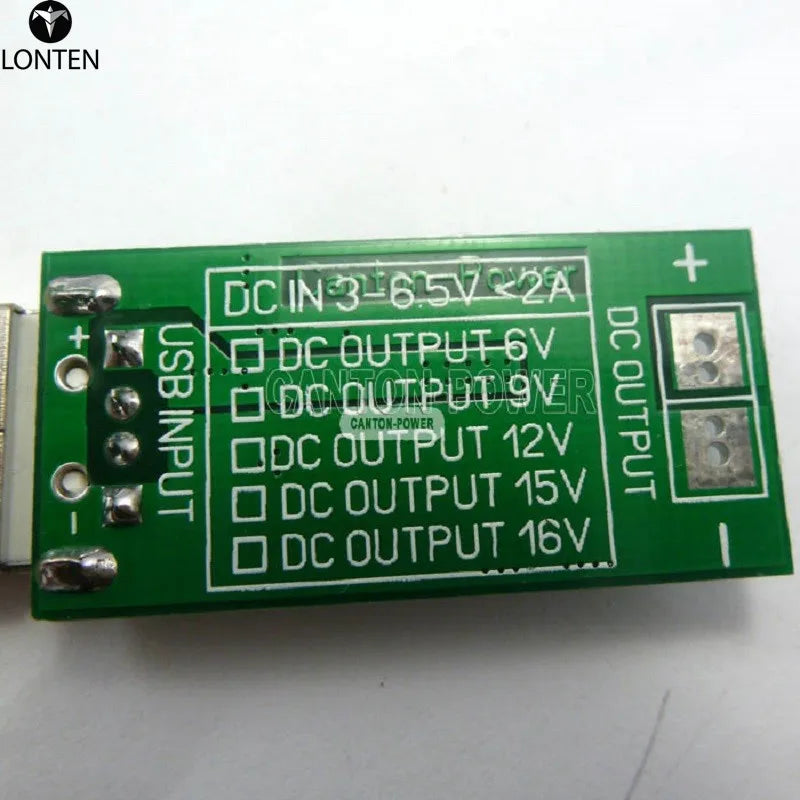

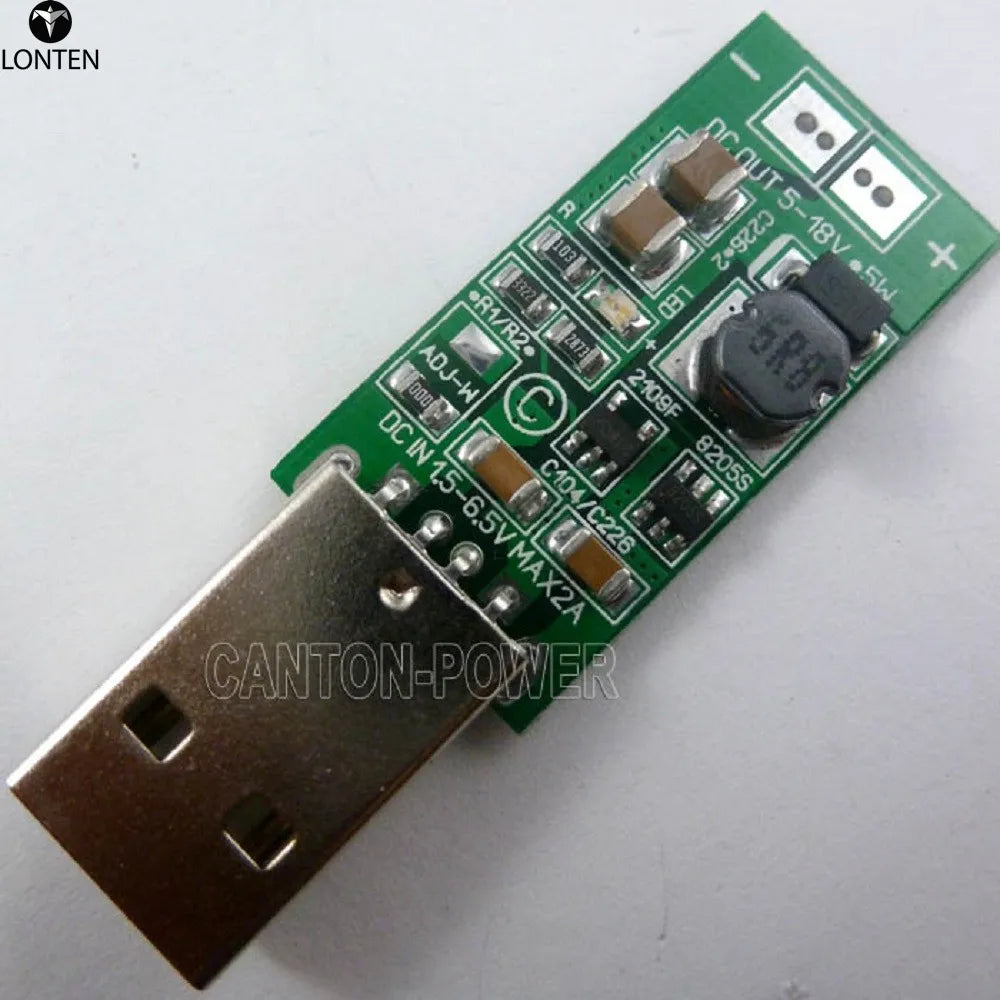

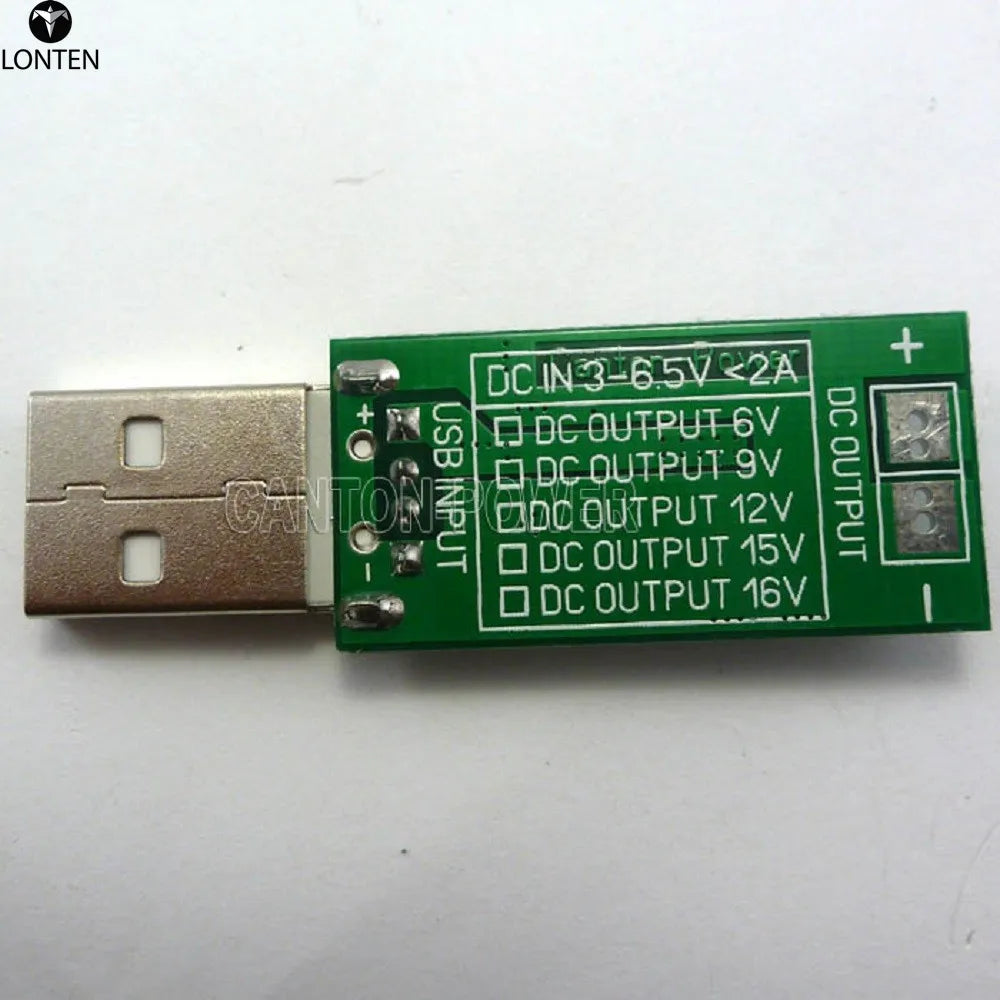

Module No.: TB376
Packing list:
1 pcs USB TO DC 12V step-up modules (input DC 3-6.5 V , output 12V ± 5% 5W );
Description:

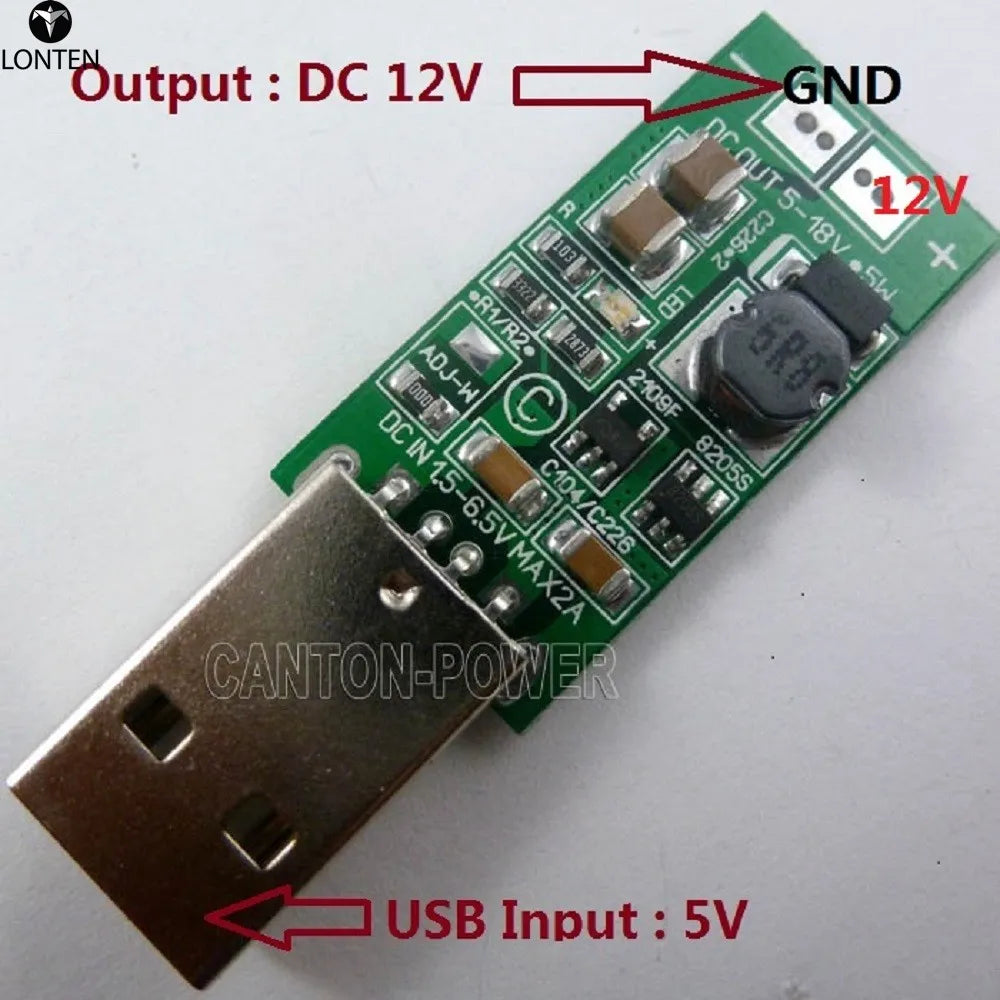

Input : DC 5V( Range 3-6.5V )
Output: DC 12V 410MA(About 5W),Temperature is less than 15°C can be output 600MA
Conversion efficiency : 85-90%
Note: The output current is no current limit! is capable of carrying up to 2A peak input current, But output power cannot exceed 5W ,otherwise the heat will become big problems!
Tips: This module supports sleep mode, remove the LED indicator the sleep current 50mA,250-350 mA current can support the one-year stand mode! The micropower environment more suitable for special use .
Attention :
1: Boost modules or buck module indicate the operating voltage, Please donot exceed operating voltage , or it will be damaged easily !
2: Boost module output voltage can only be greater than or equal to input voltage, cannot be less than the input voltage!
3: Input power must be greater than the output power
1: Boost modules or buck module indicate the operating voltage, Please donot exceed operating voltage , or it will be damaged easily !
2: Boost module output voltage can only be greater than or equal to input voltage, cannot be less than the input voltage!
3: Input power must be greater than the output power
Typical applications:
Security Monitoring
Routers
315M/433M Wireless Relay Controller
LED
PLC
Application :
