T5-2.66 inch E-paper compatible with T-U2T USB To TTL automatic downloader



If you are buying this product for the first time, it is recommended to buy a T5-2.66 inch E-paper kit containing T-U2T USB To TTL

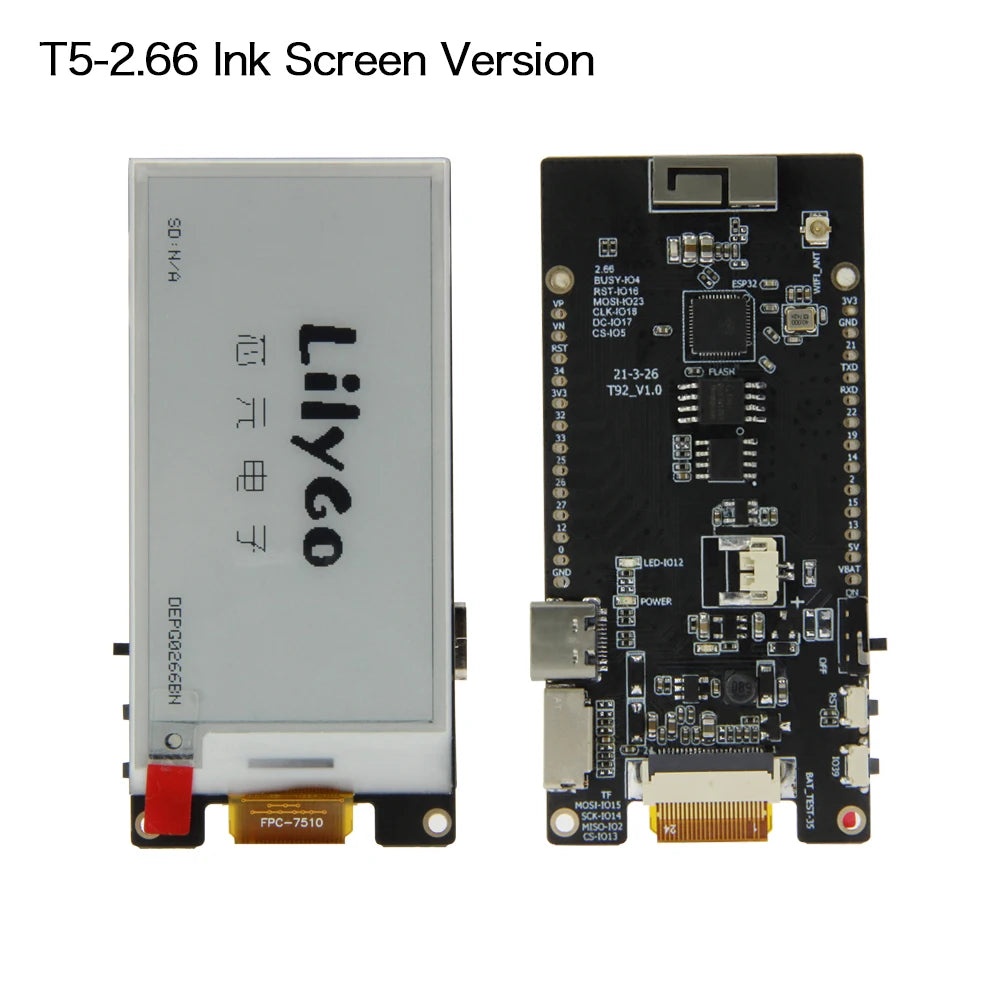

LILYGO T5-2.66 inch e-paper is another size version that continues the T5 e-paper series.



Continuing the design of T5-2.13 inch version, adding PSRAM, with TF card slot, power switch, custom buttons, 3D antenna, hiding the GPIO extension pins on both sides,



For example, when soldering pin headers, you need to remove the screen first.

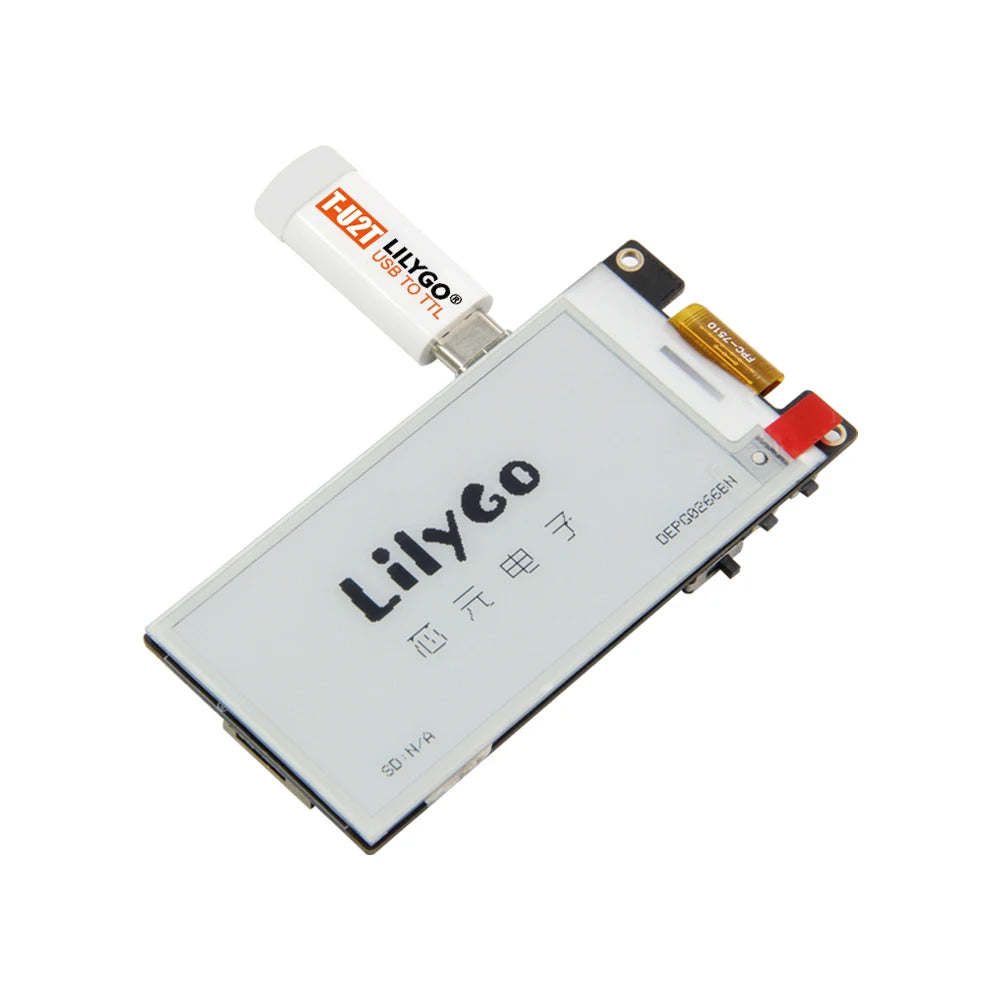

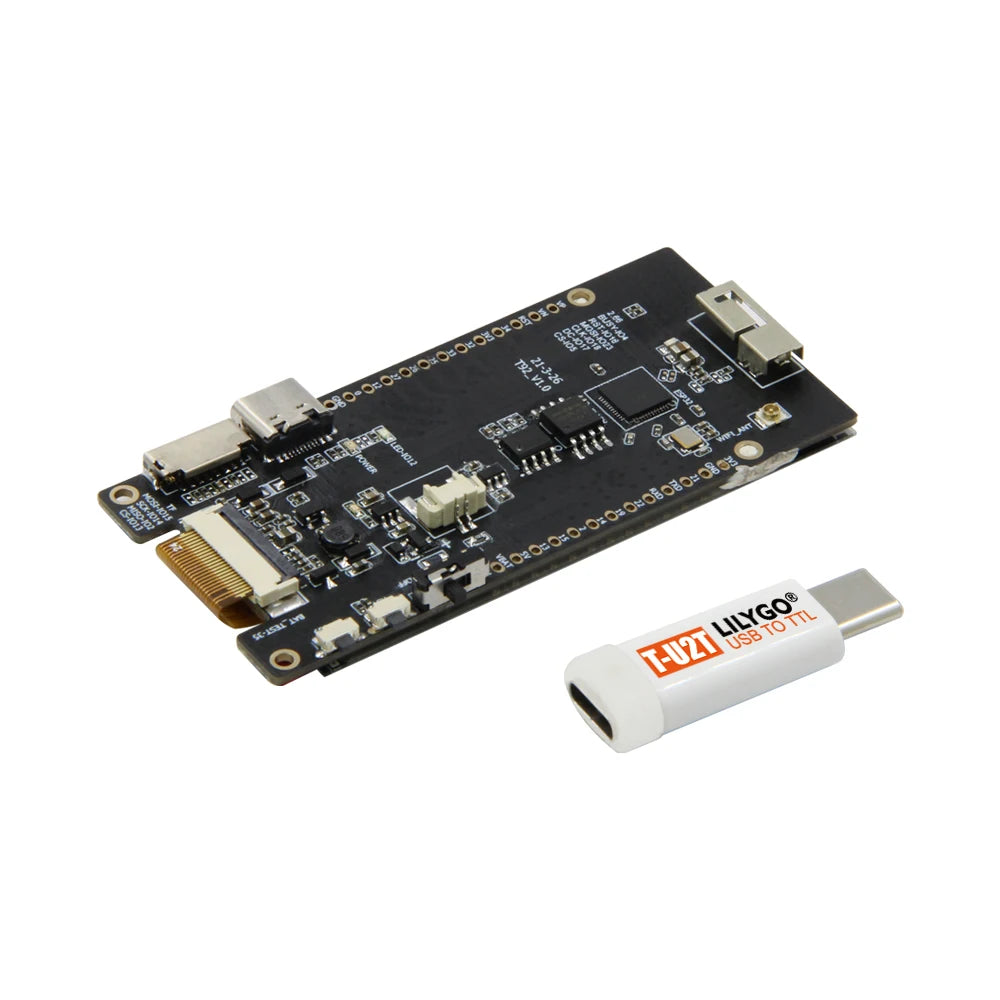

This is also the first product compatible with the T-U2T automatic downloader. It is currently shipped as a package by default when purchased. We will be compatible with the T-U2T automatic downloader on the new version of the product. The new products will be sold separately to reduce costs.

No need to repeat purchases.



If you want to purchase the downloader separately, you can jump to this link:

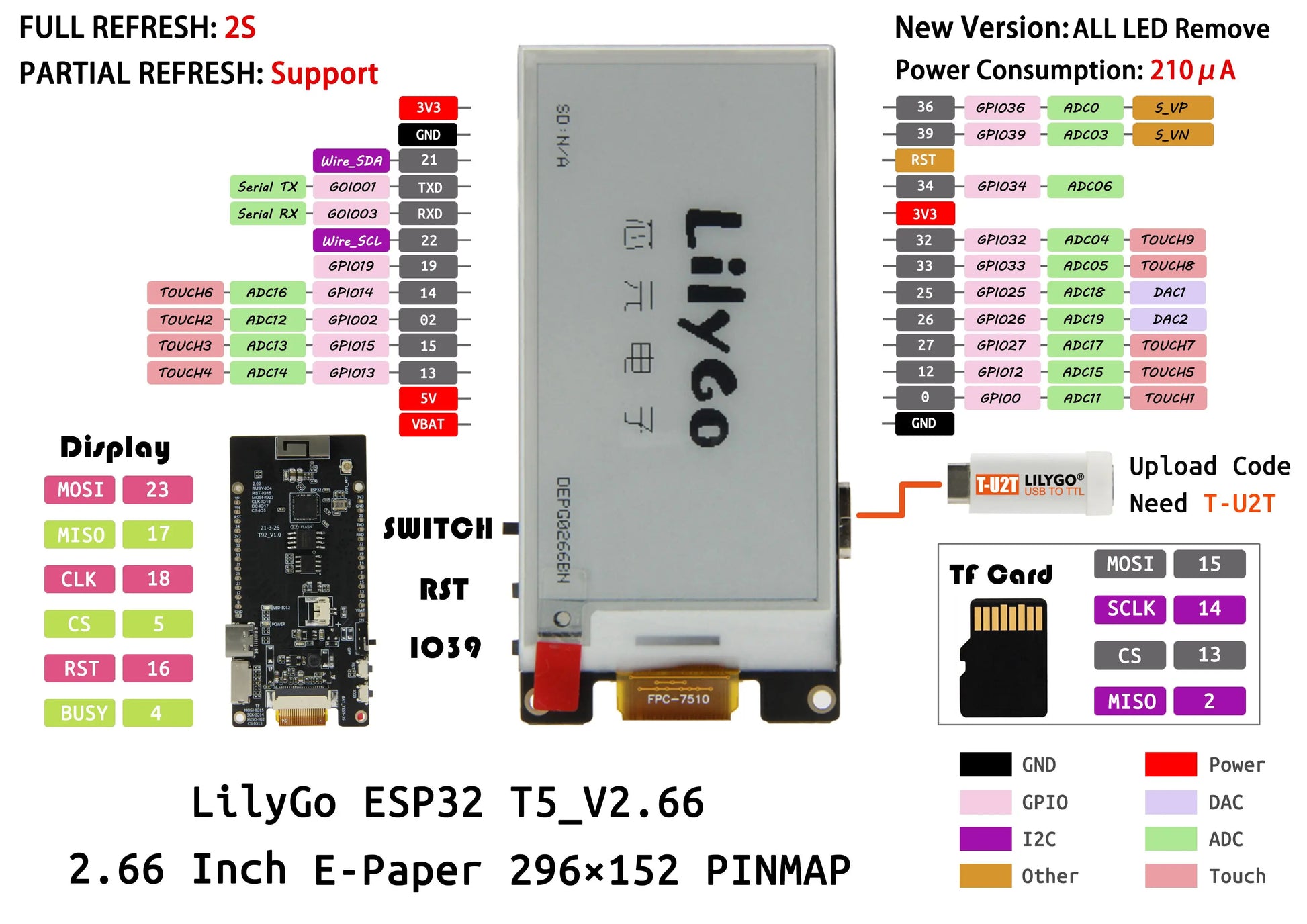

Product pin diagram

LILYGO T5-2.66 inch e-paper parameters

-2.66 inch e-paper resolution: 296X152

-ESP32-D0WDQ6-V3

-8MB PSRAM

-TP4054 battery charge and discharge chip

-IO39 custom buttons

-RST button

-TF card socket

-Type-c USB for T-U2T

-IPX antenna base

-Power toggle switch

-3D antenna



Application scenarios

-Shelf label

-Badge

-Home or desktop weather station

–DIY

-STEM

-IOT terminal equipment



Shipping list



T5-2.66 inch E-paper options



1 X T5-2.66 inch E-paper



2 X Pin

1 X Battery cable

T- U2T USB to TTL options



1 XT- U2T USB to TTL

T5-2.66 inch E-paper kit options



1 X T5-2.66 inch E-paper

2 X Pin

1 X Battery cable

1 X T- U2T USB to TTL
