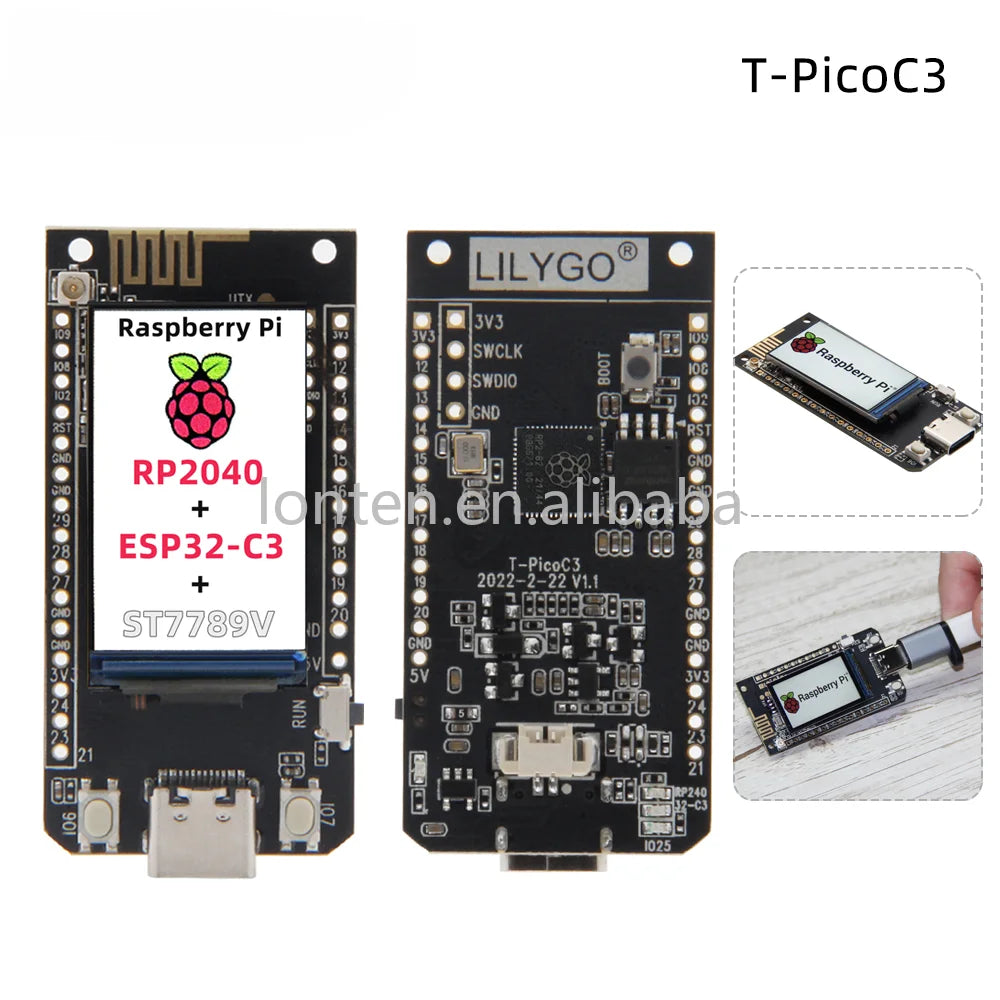

T-PicoC3 Introduce
-
The T-PicoC3 is LILYGO®'s first dual MCU motherboard. (Note: Both chips can work at the same time)
-

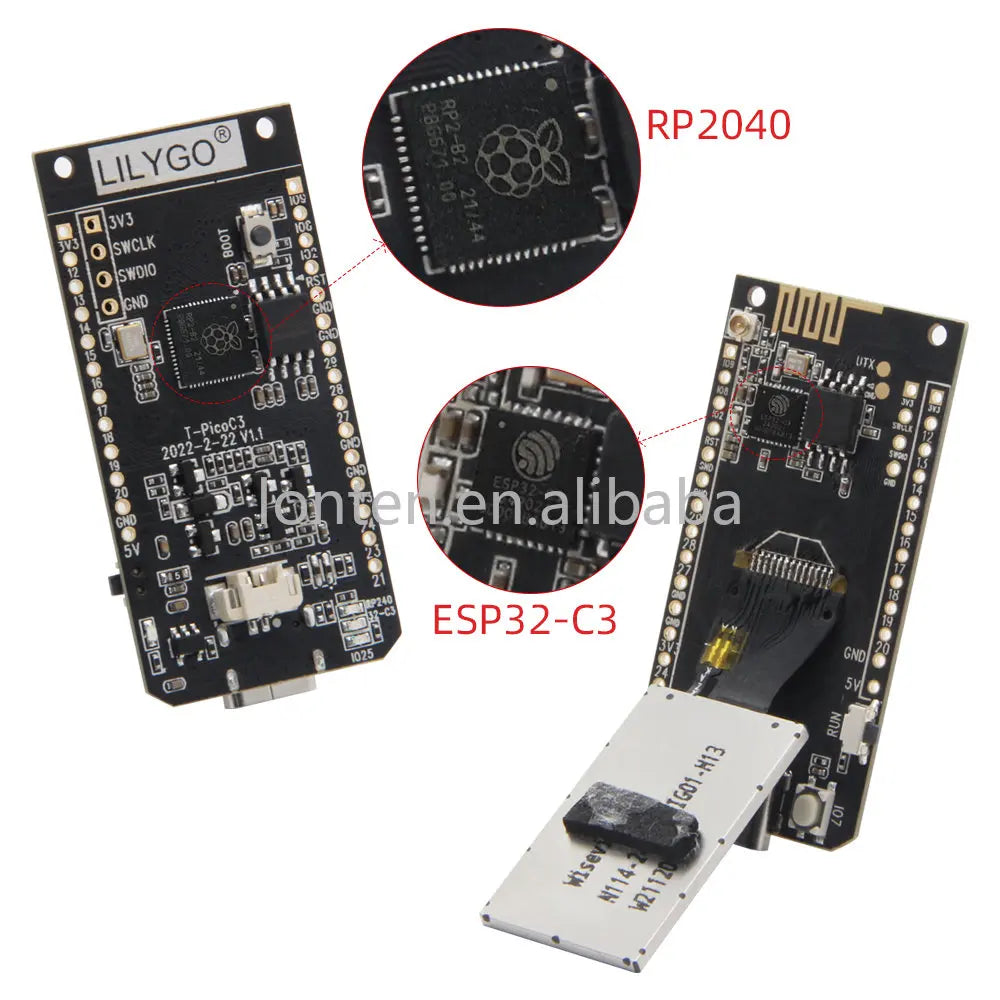

Equipped with Raspberry Pi RP2040 and ESP32-C3 chip (Supporting WIFI and BT).
-
T-PicoC3 continues the design style of LILYGO® T-Display, 1.14 inch LCD and Buttons : IO06+IO07.
|

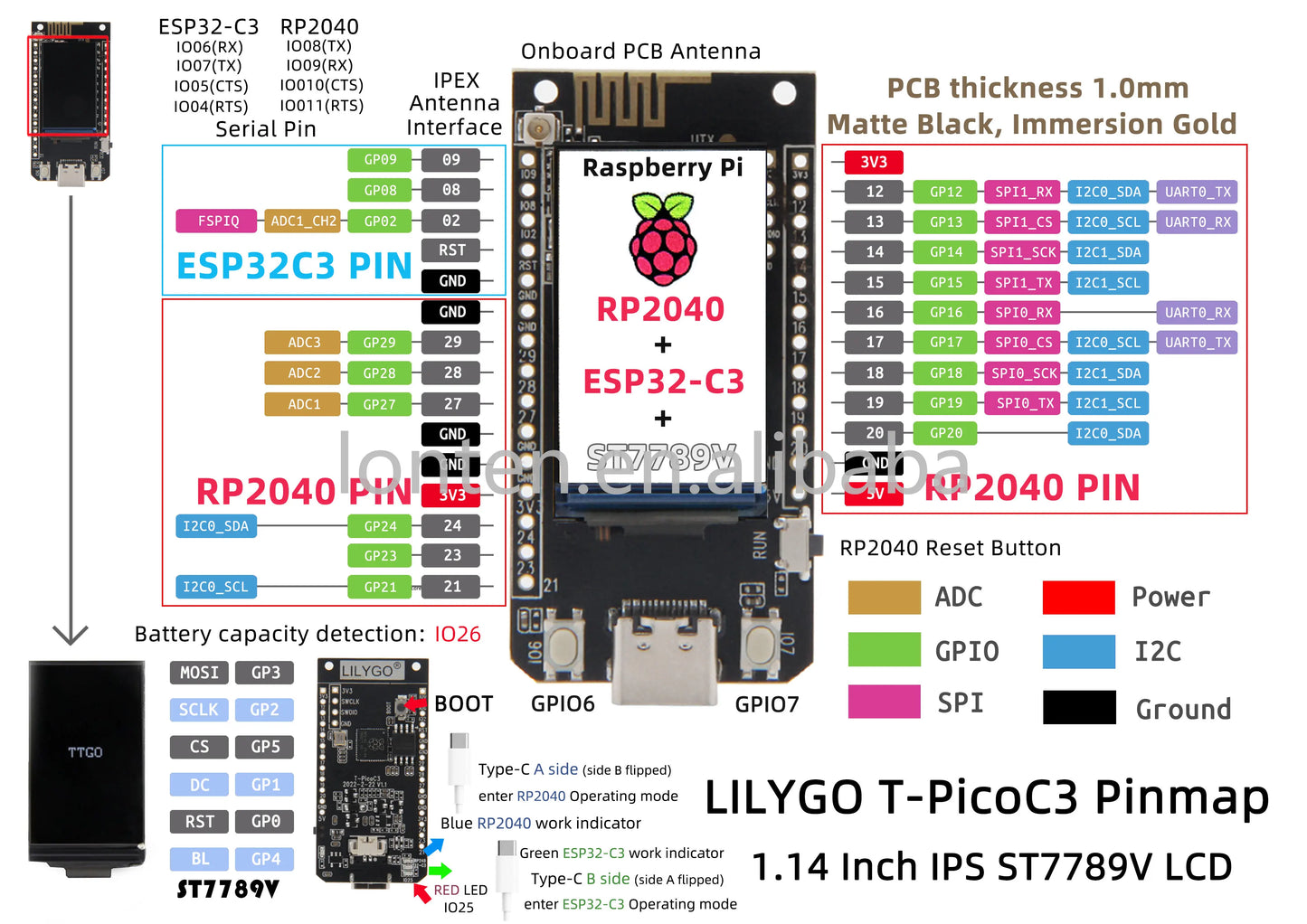

| T-PicoC3 Specifications | ||||
| MCU | RP2040 Dual ARM Cortex-MO | FLASH: 4MB | |||
| ESP32-C3 Support Wi-Fi,BT V5.0+BLE | |||||
| Programming language | C/C++, MicroPython | ||||
| Onboard functions | Buttons : IO06+IO07 | ||||
| Battery Power Detection | |||||
| Support machine learning library TensorFlow Lite | |||||
| LILYGO TTGO T-Display | |||||
| 1.14 inch ST7789V IPS LCD | |||||
| Resolution | 135x 240 | Features | High Density 260ppi | ||
| Drive | ST7789V | Interface | 4-Wire SPI | ||
| Screen Size | 1.14"diagonal | Screen Type | TFT IPS LCD | ||
| Screen color | Full color | ||||
| Screen color | 3.3V | ||||
| Operating Temperature | -20-70℃ | ||||
|
| |||||

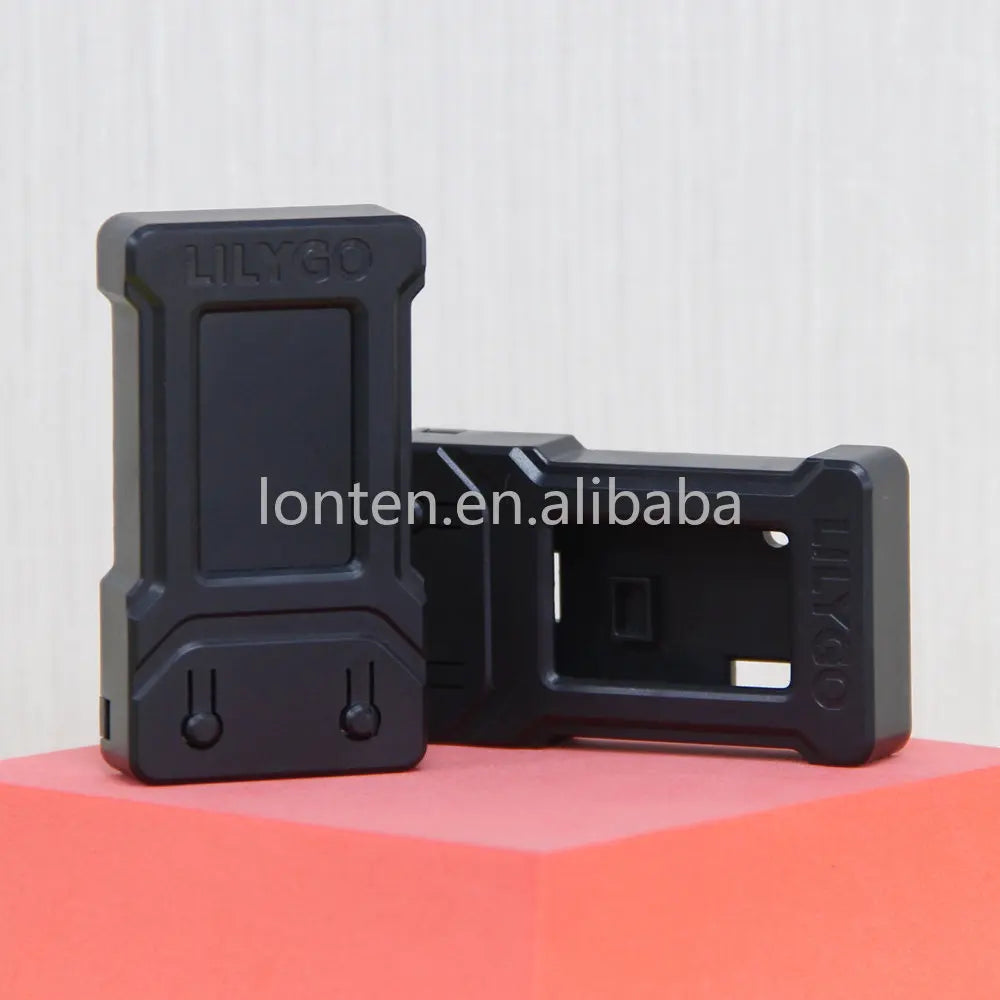

With Shell Version
|

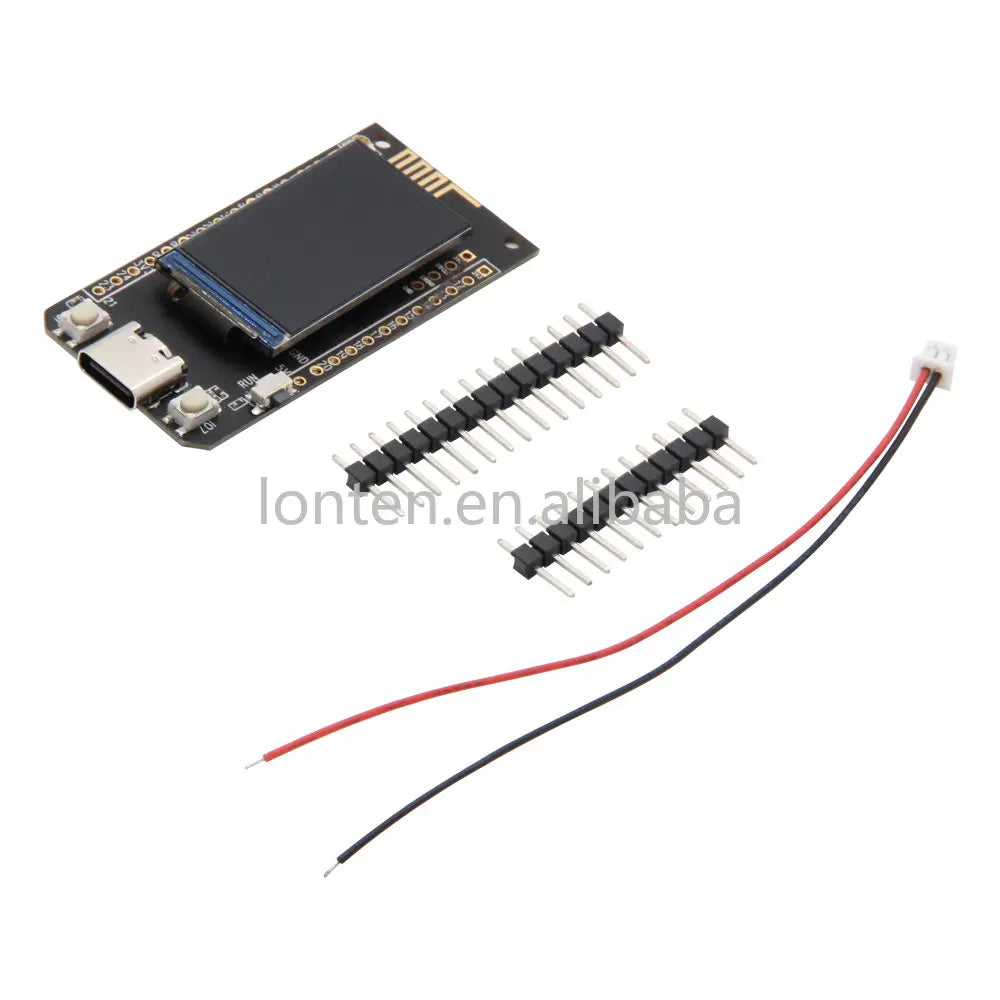

| T-PicoC3 Option |
| 1 X T-PicoC3 | |
| 1 X Power Cord (2 PIN JST 1.25mm POWER CONNECTOR) | |
| 2 X Pin Headers |
Welcome Customize Order!
