Custom Synchronous Reduction Motor Reversible 60KTYZ 110V 80/96RPM CW/CCW Metal Geared for Rotisserie Turntable Manufacturer

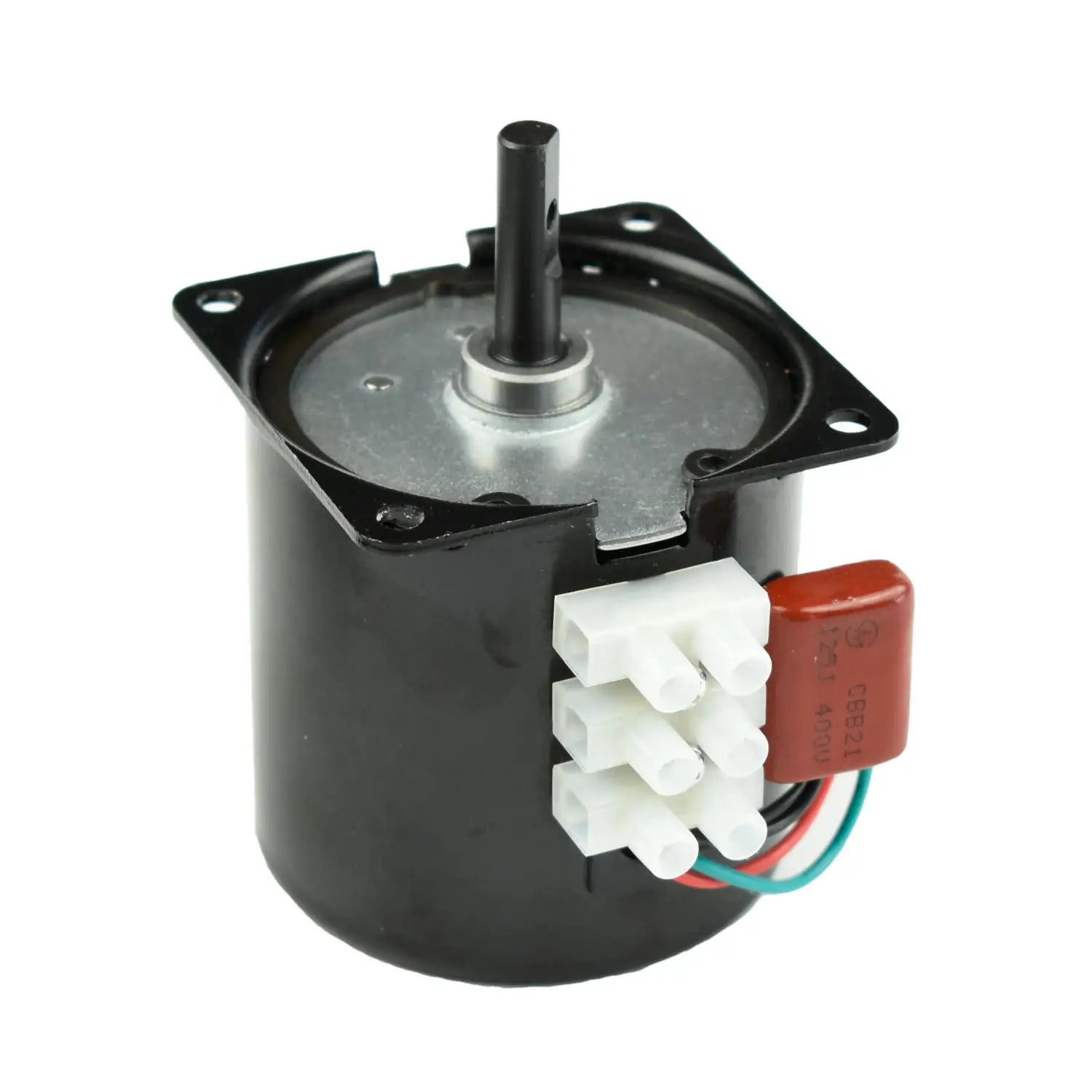

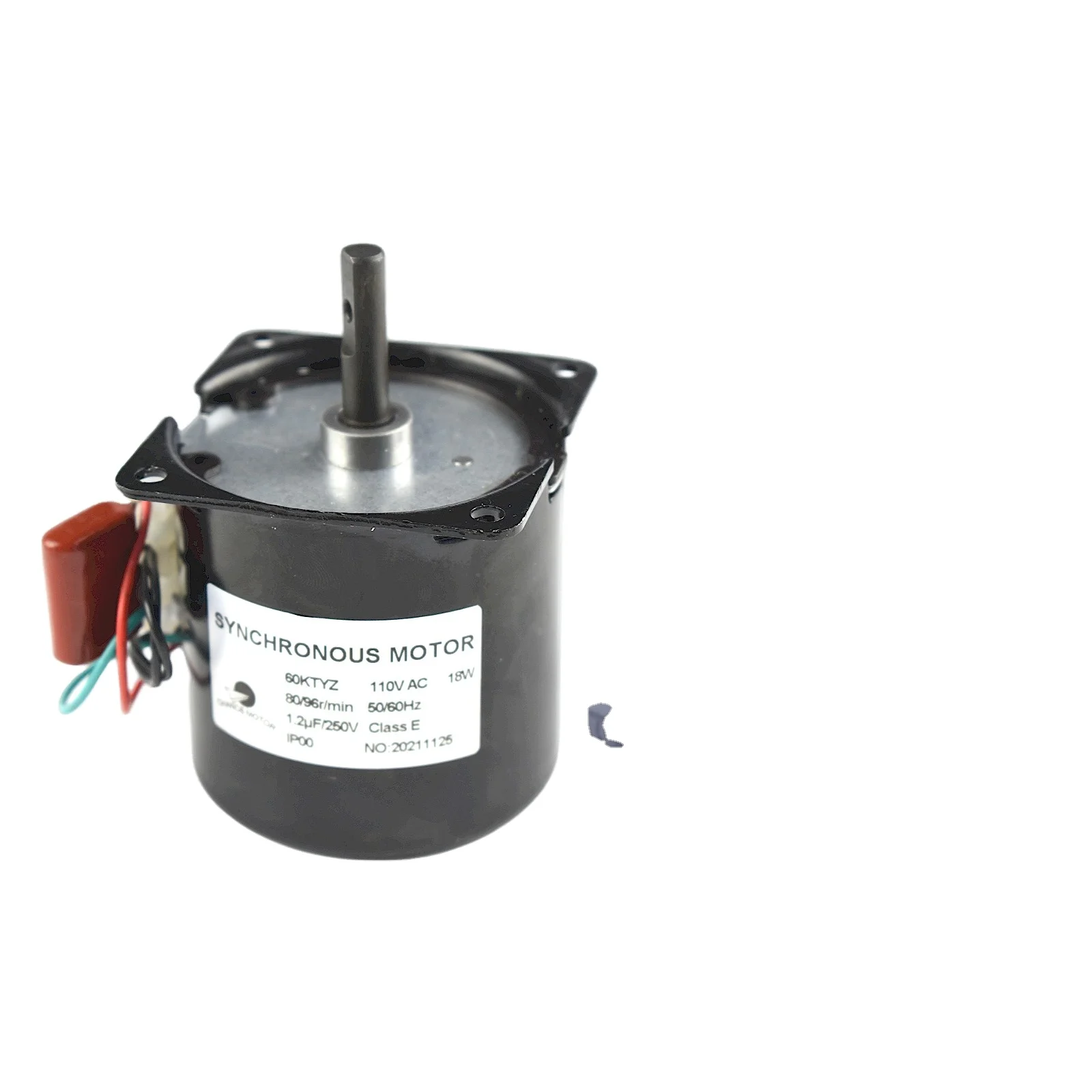

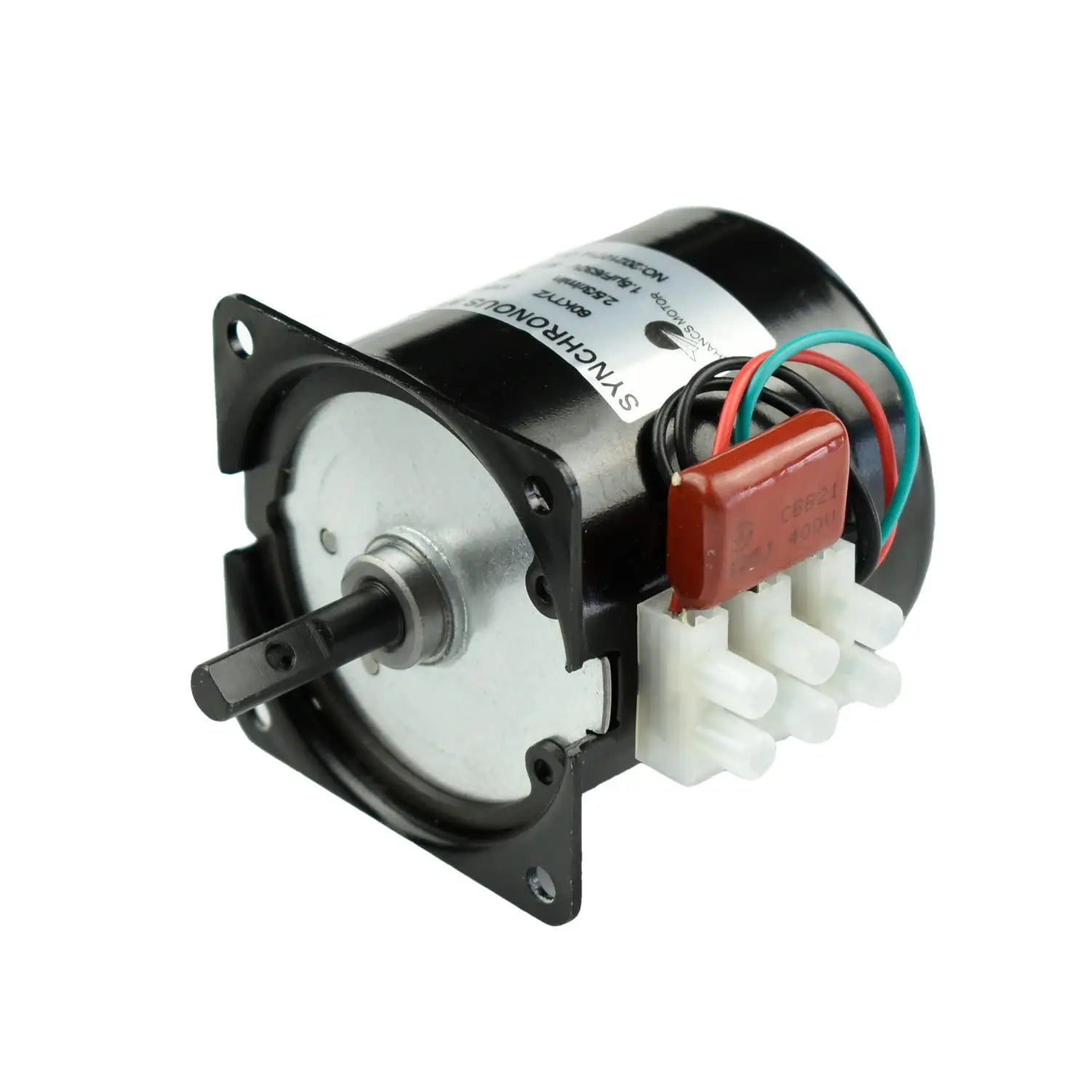

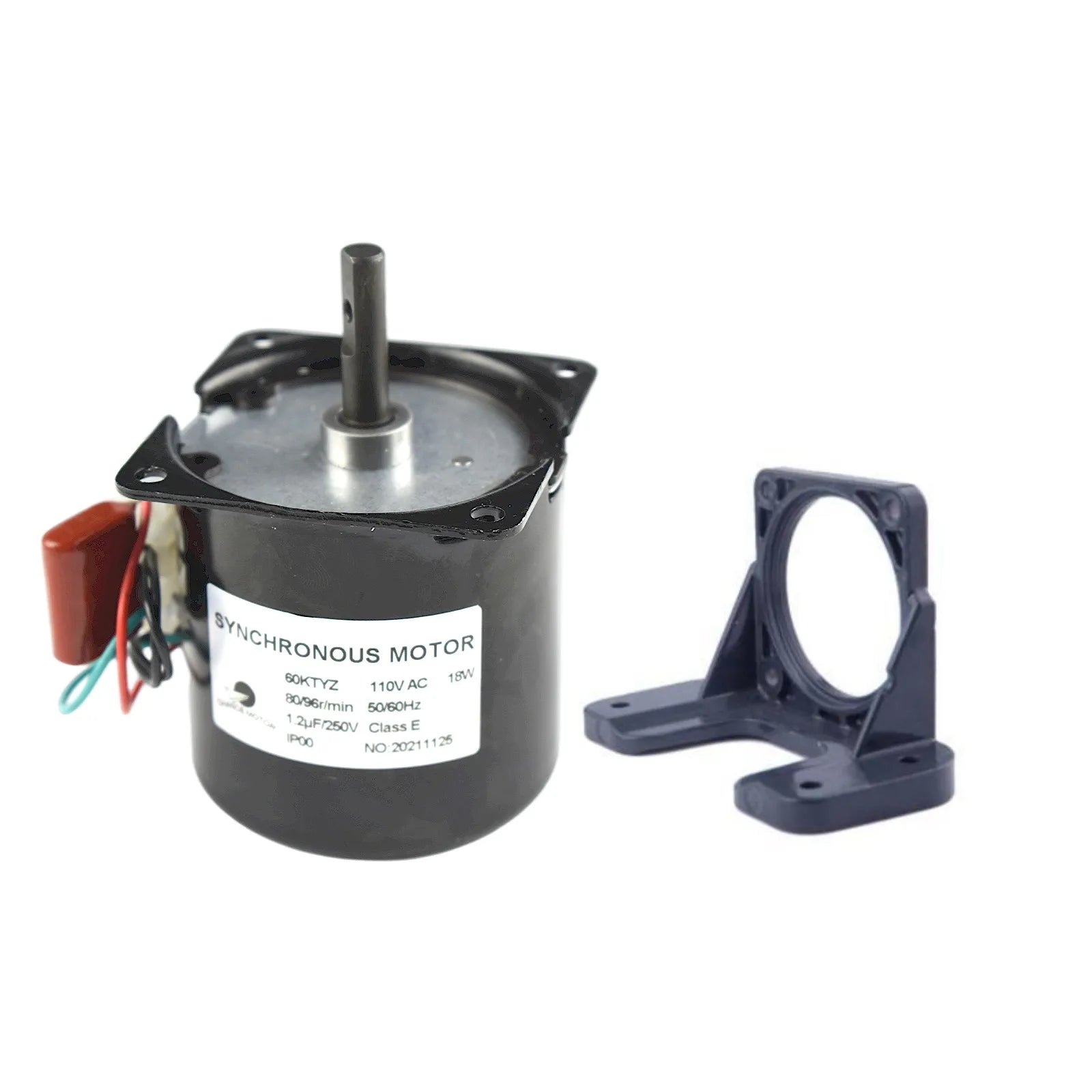

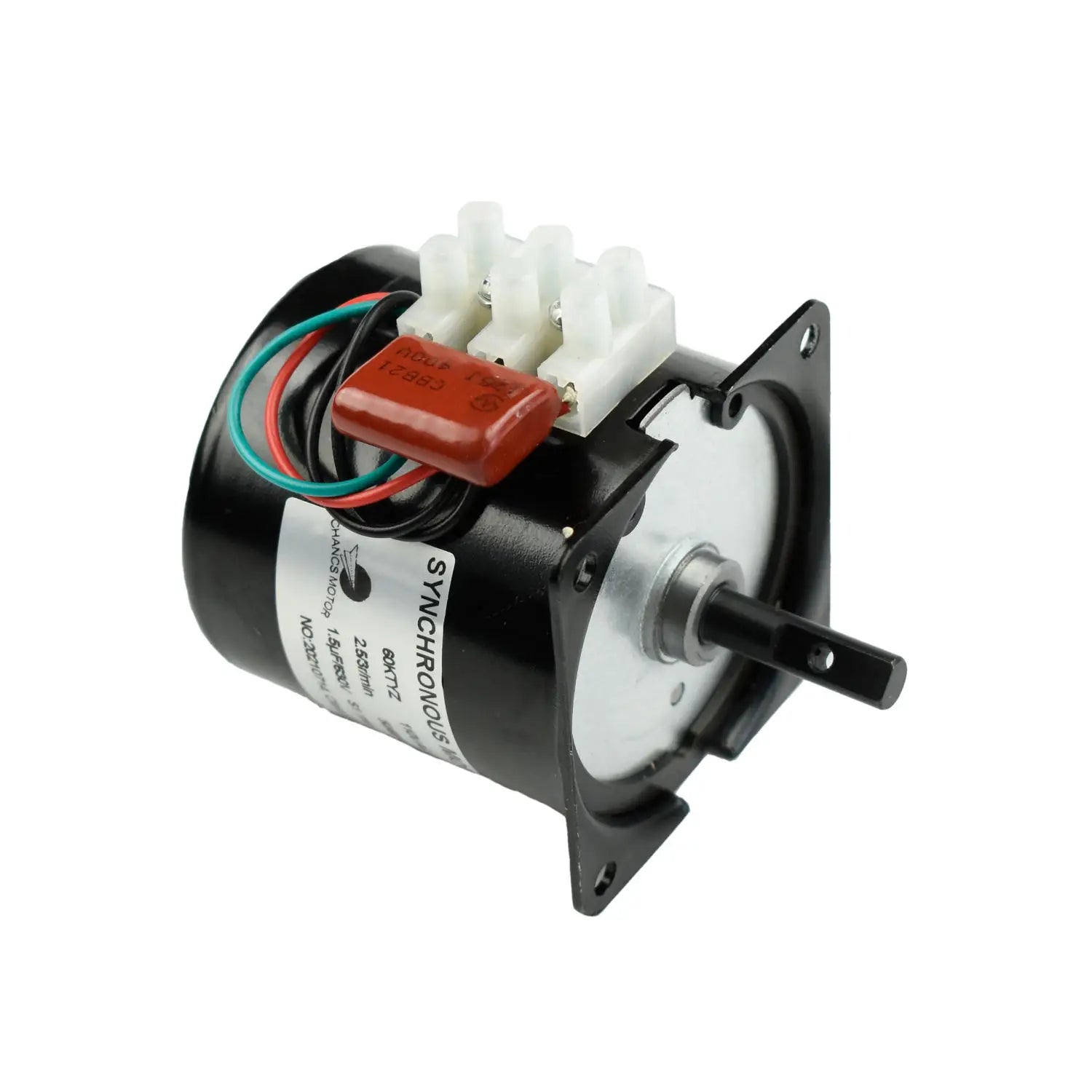

This is a 60KTYZ motor with power cable and bracket.
The 60KTYZ synchronous motor adopts high quality material for long lifespan, wear resistant and durable.
This motor has simple construction and compact size, easy to install and use.

[Specification of Motor:]
Model Type: 60KTYZ;
Voltage: AC 110V;
Speed: 80/96RPM;

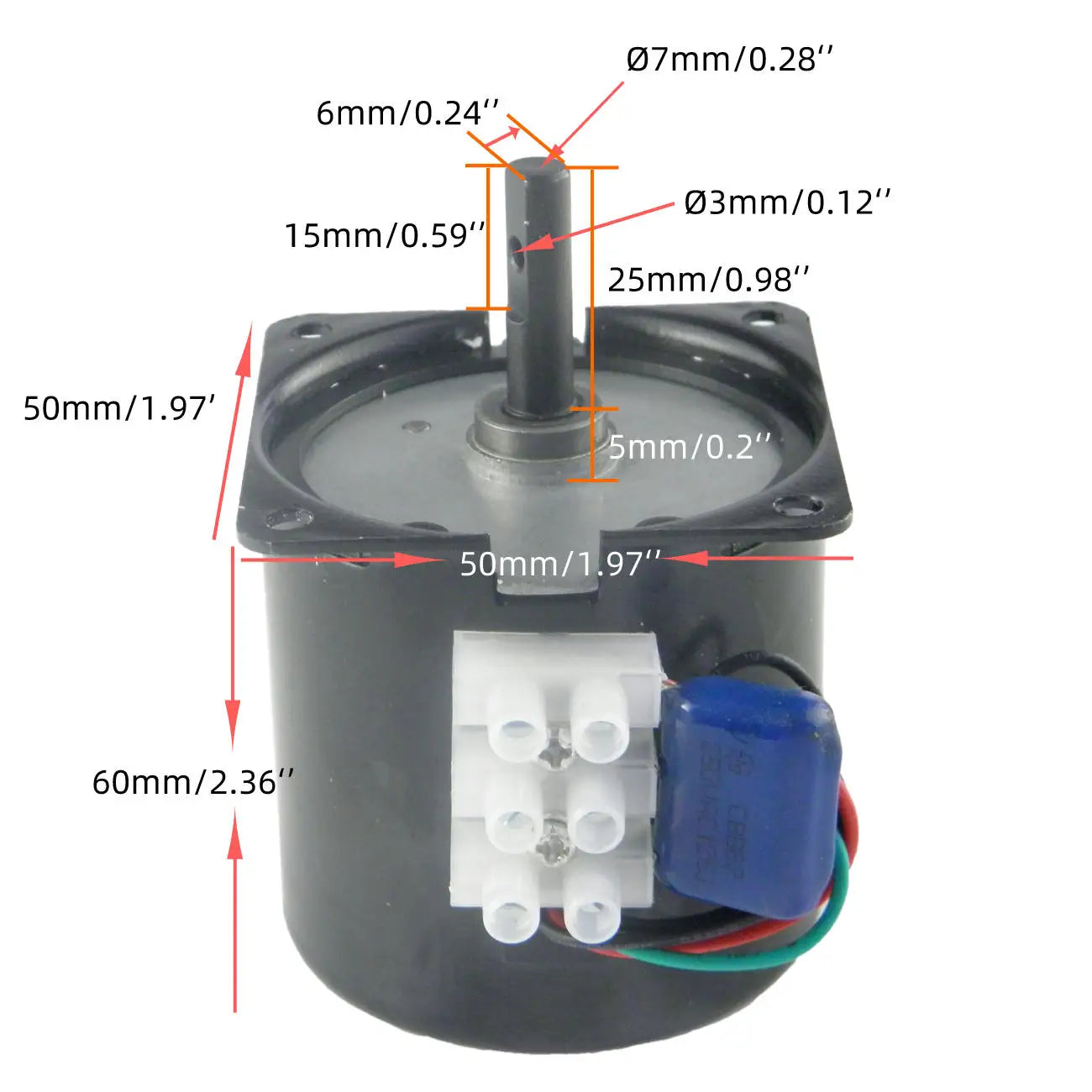

Shaft Style: in center;
Shaft Diameter: 7mm;
Shaft Length: 25mm; CW/CCW (Controllable);
Power: 18W;
Frequency: ~50/60Hz

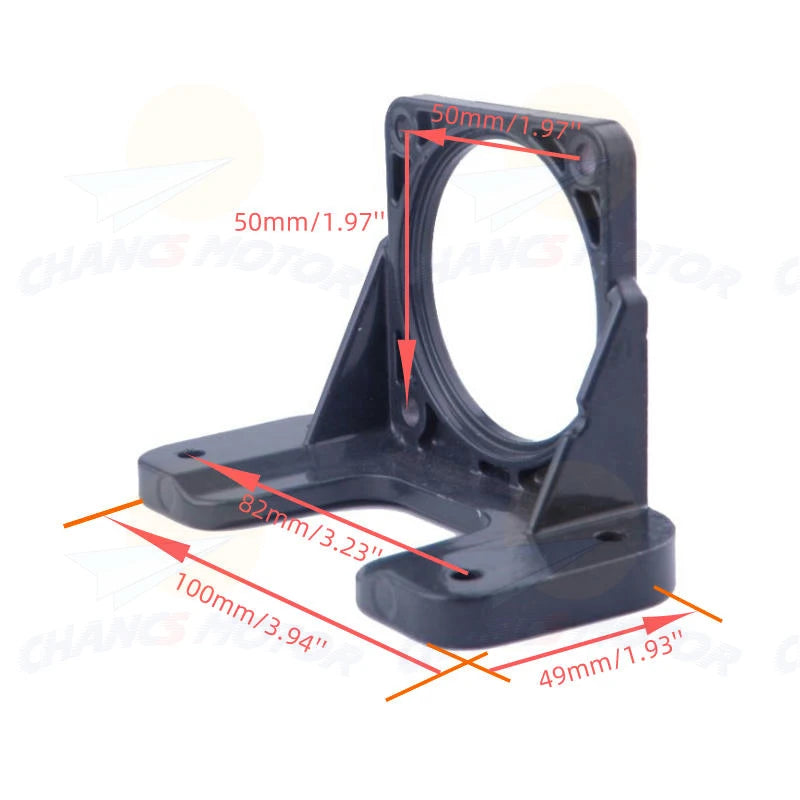

[Specification of Bracket:]
Type: U-Shape/Standard;
Surface: Electroplating;
Materials: High Strength Steel;
Vertical Plane: thickness 6mm/0.24inch,
height 69mm/2.72in;
Baseboard: app.61mmx68mm/2.4in x 2.68in;
Motor mounting hole: 5.5mm;

*It is normal the motor get hot when working. The surface temperature will up to 70-90℃(158-194℉). That will NOT influence motor’s service life.

*Please use the voltage within the rated torque of the motor. If you use more than the rated torque of the motor, the shaft will rotate unsteadily and the motor may be damaged.
