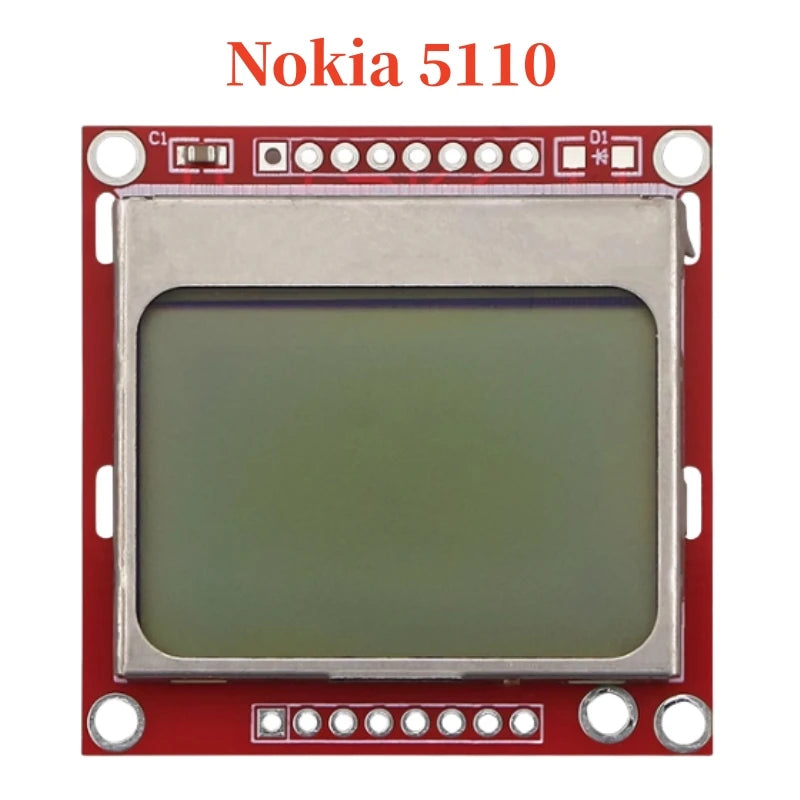

Custom Suitable for Nokia 5110 LCD red screen LCD module red PCB

Note: The Nokia 5110 LCD is a second-hand disassembly screen for Nokia phones. The LCD screens sold on this site are all of selected good quality and quality.

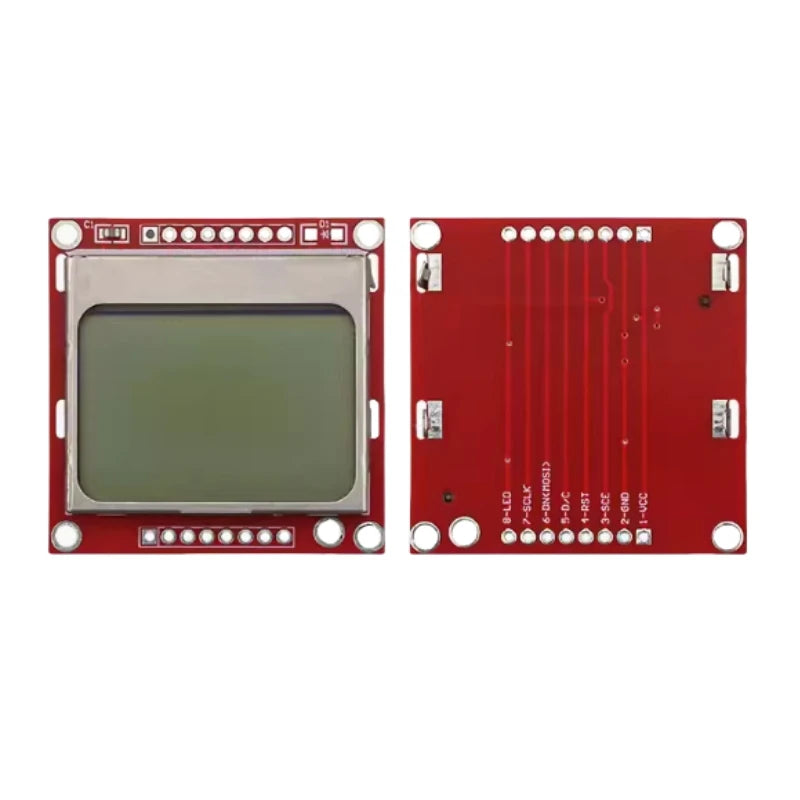

The base plate is designed for this station, with positioning holes at the four corners, and provides two rows of wiring ports, arranged as follows:

1. RST - Reset

2. CE - Film Selection

3. DC - Data/Instruction Selection

4. DIN - Serial Data Cable

5. CLK - Serial Clock Line

6. VCC - Power input (3.3V and 5V can be used, verified through experiments, no problems)

7. BL - Backlight control terminal

8. GND - Ground wire

The interface is a serial SPI interface
