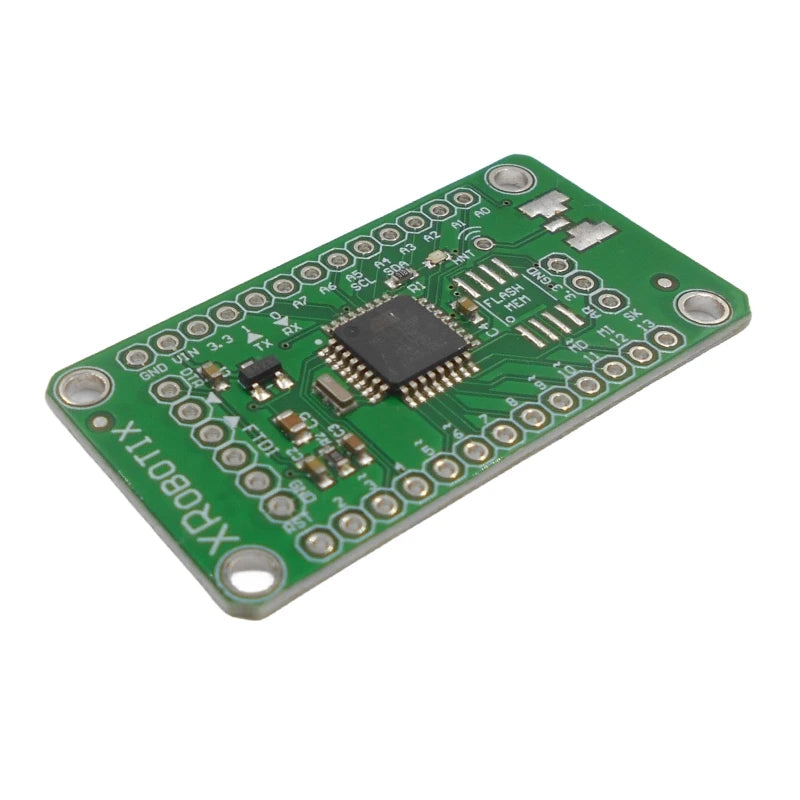

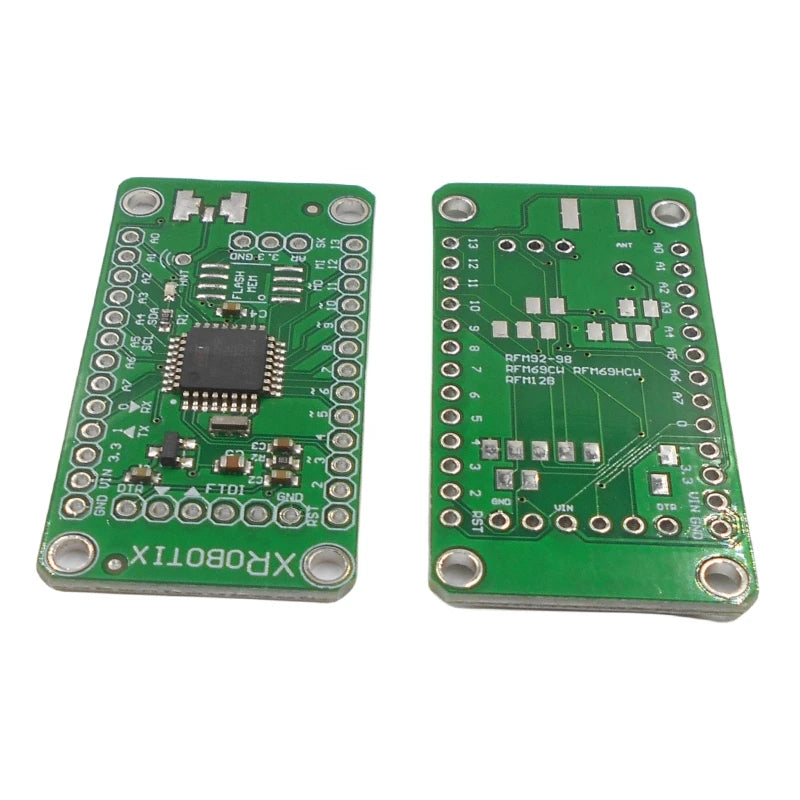

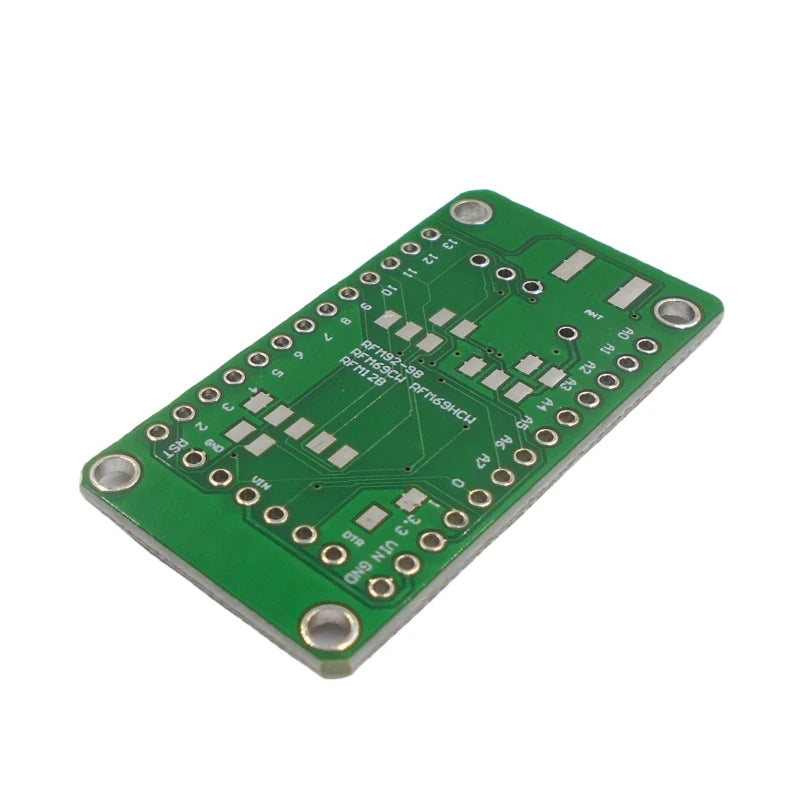

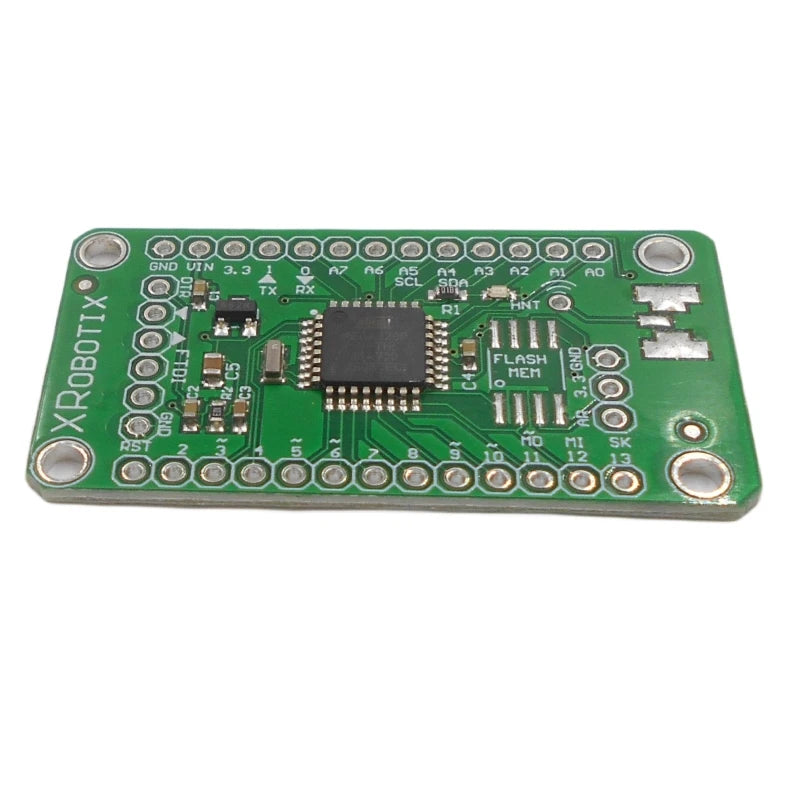

Custom Suitable for Arduino 3.3V RFM95 RFM69CW RFM12 RFM69HCW RFM92 RFM98 RFM96 Wireless LoRa module development board

With the wireless module, it is very easy to network many things, such as wireless access to temperature, humidity, voltage, human PIR and so on.

More ideas waiting for your play~~

The wireless chips supported by this board are: rfm12, fm69CW, RFM69HCW, RFM92-RFM98 Wireless LoRa

Features:

Full interface, D0-D13, A0-A7;

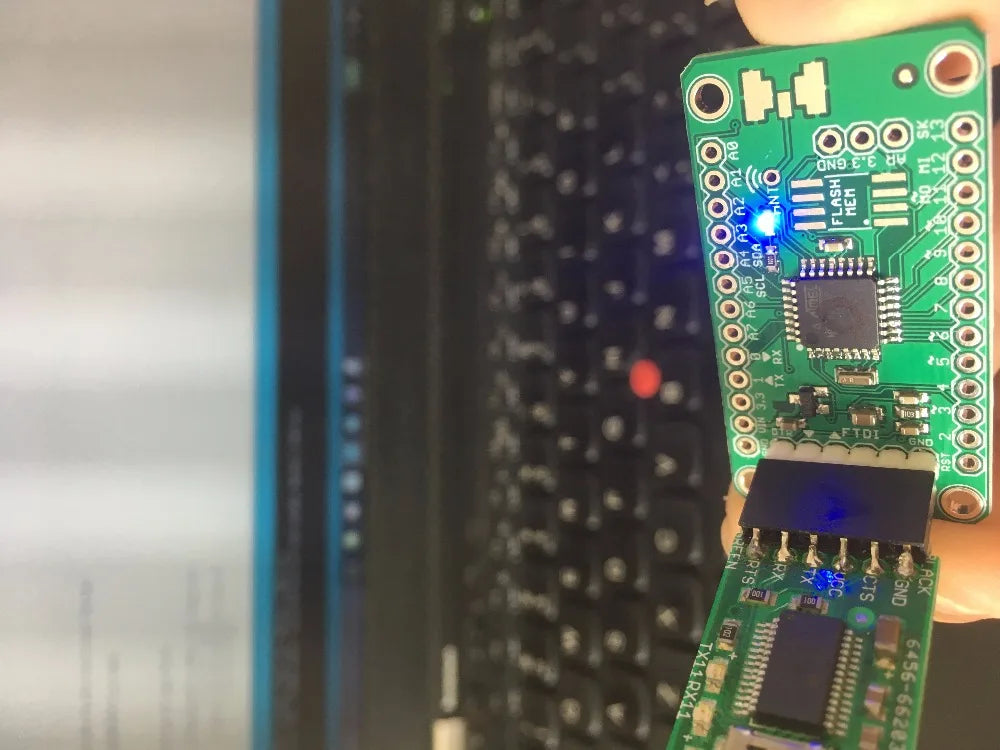

Blue led DI9 needle;

for Arduino UNO bootloader ;

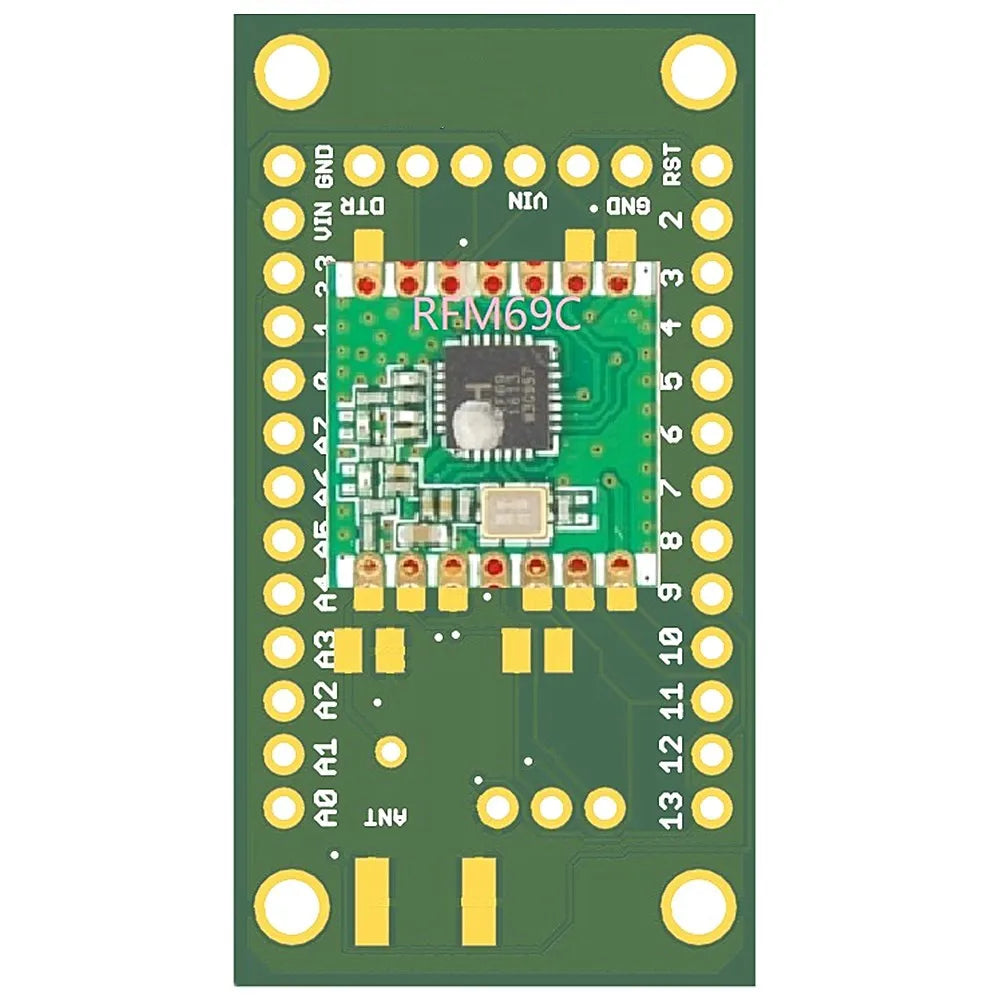

RFM chip soldering diagram: (Please pay special attention to the chip model and solder joint position, do not make mistakes, so as not to cause unnecessary damage)
