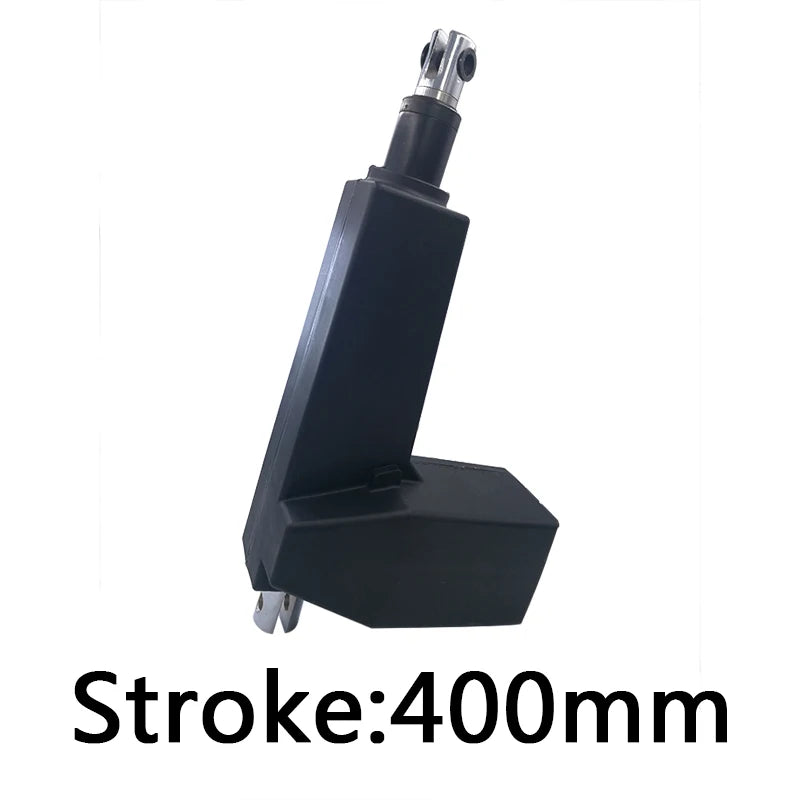

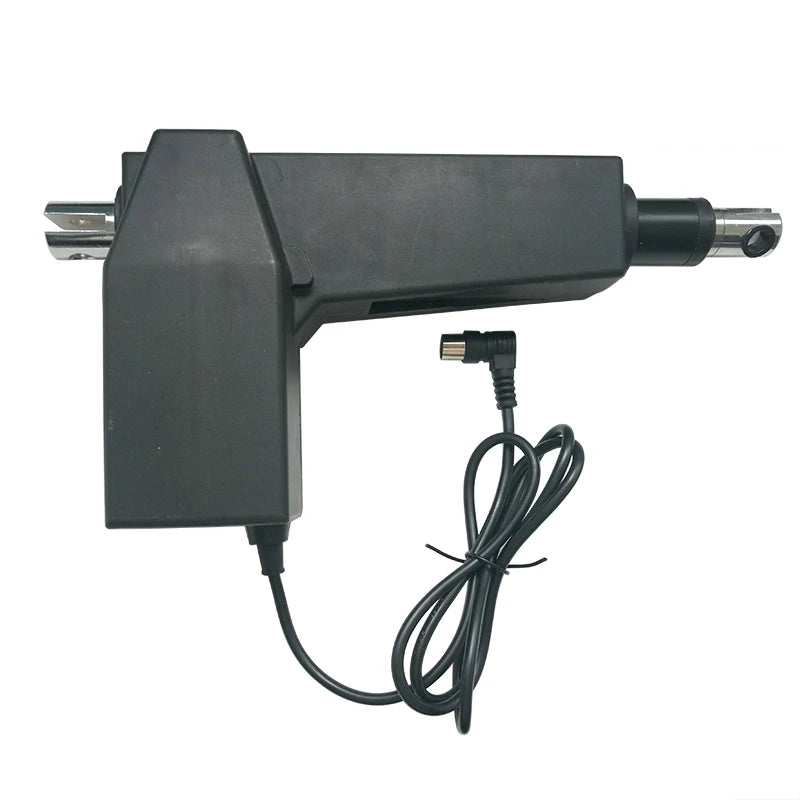

Custom Stroke 400mm Electric linear actuator 12V 24V DC motor 2000N 4000N 6000N 8000N push pull force hospital ICU electric chair bed Manufacturer
Custom Stroke 400mm Electric linear actuator 12V 24V DC motor 2000N 4000N 6000N 8000N push pull force hospital ICU electric chair bed Manufacturer
Couldn't load pickup availability
Input 12V/24V
Limited switch Built-in
Color Black
Operation temperature -26 ~ +65 degree
IP class options IP54
***********************************************************

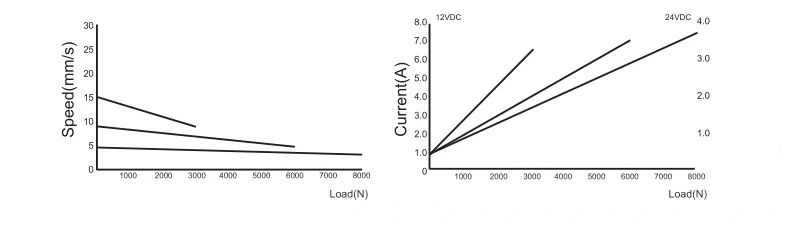

8000N linear actuator reference：
| Push force | Pull force | Speed(no load) |
| 8000N | 6000N | 7-10 mm.s |
| 6000N | 4500N | 12-14 mm.s |
| 4000N | 3000N | 16-18 mm.s |
| 2000N | 1500N | 24-26 mm.s |
The self-locking force of the linear actuator is about 80%
***********************************************************

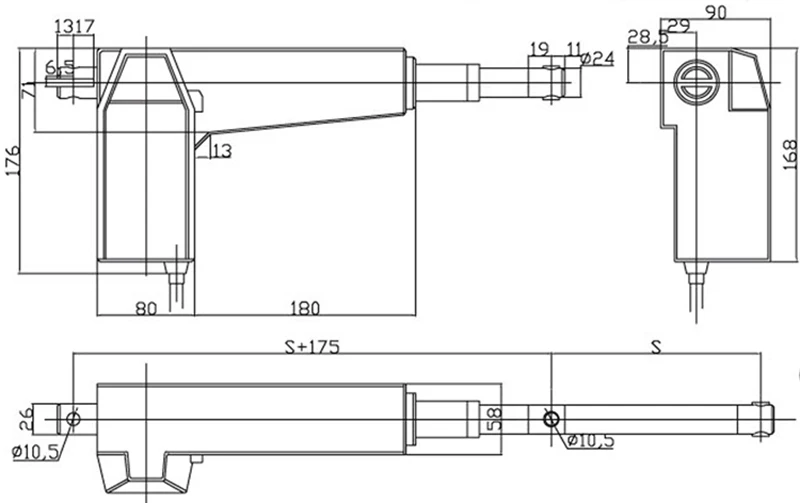

L min=175+Stroke (S)
Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch.
Stroke means the movement length of linear actuator
Lmax=L (min)+Stroke(S)
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch.
