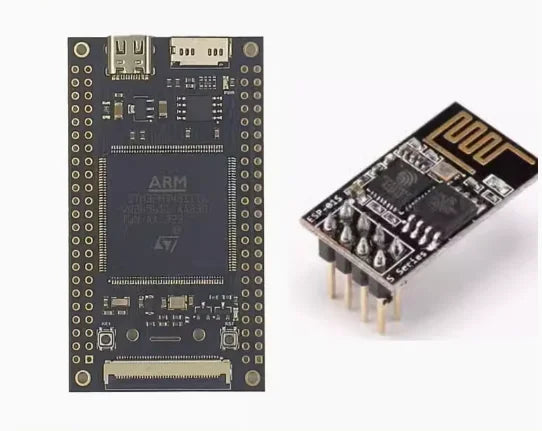

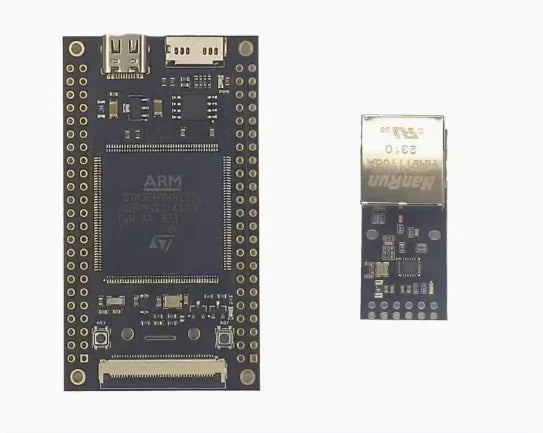

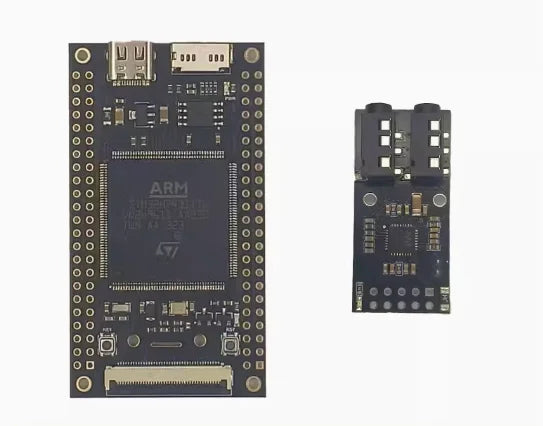

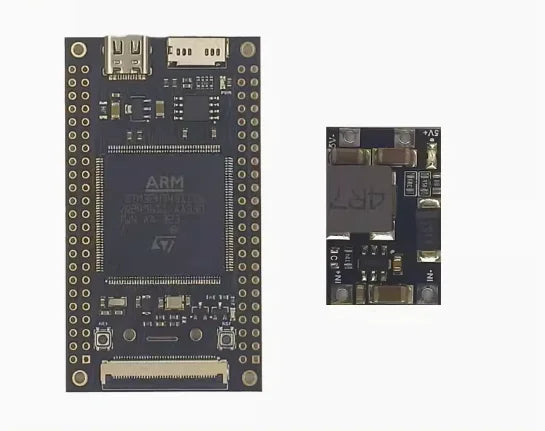

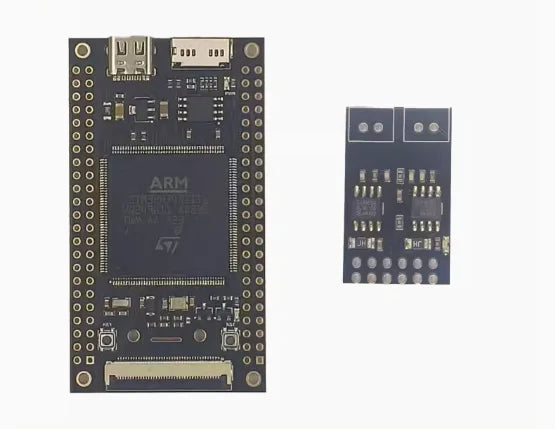

Custom STM32H743IIT6 Development Board Core Board STM32H7 Minimum System Board Geek GUI Programming STM32
Custom STM32H743IIT6 Development Board Core Board STM32H7 Minimum System Board Geek GUI Programming STM32

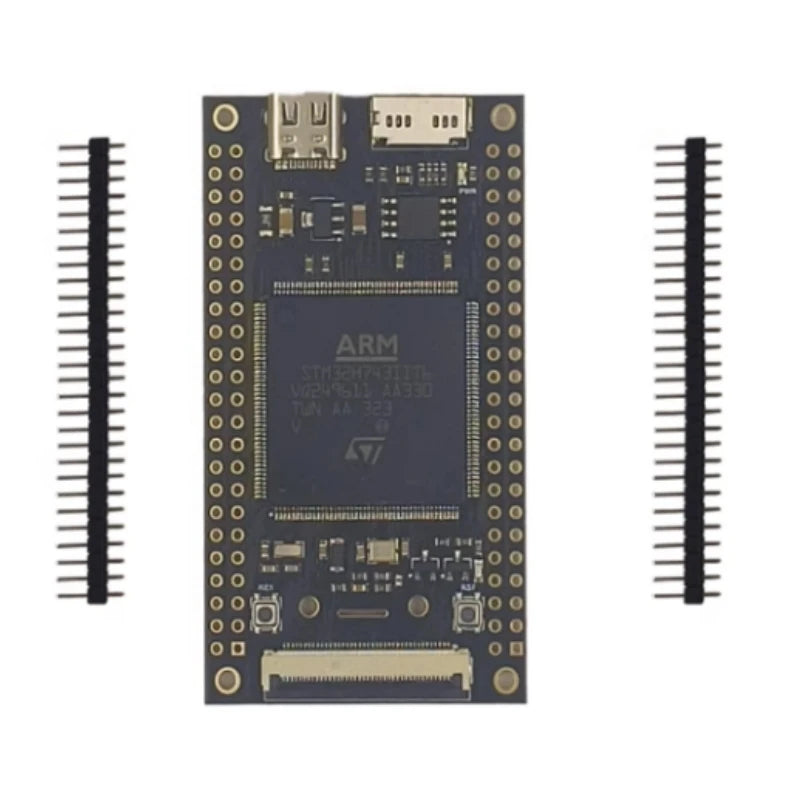

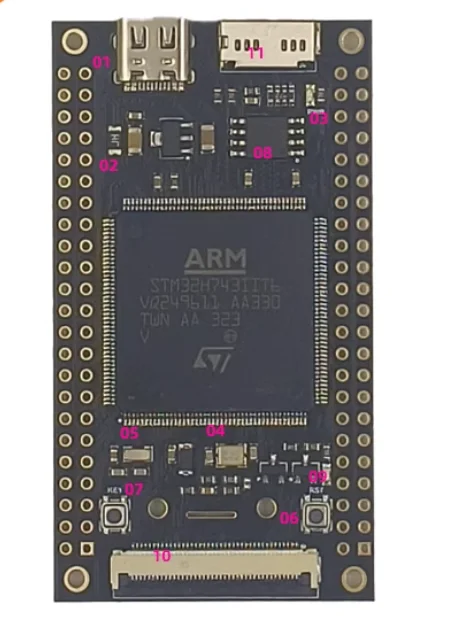

01. USB: 5V power supply/data communication
02.Self healing fuse
03. Power LED indicator light
04. Main clock crystal oscillator: 25MHz
05. RTC crystal oscillator: 32.768KHZ
06. Reset button
07. ISP download button
08. W25Q64 8M flash
09. User LED
10. 4.3-10.1 inch Wave Crystal Interface
11. TF card holder supports 32GB

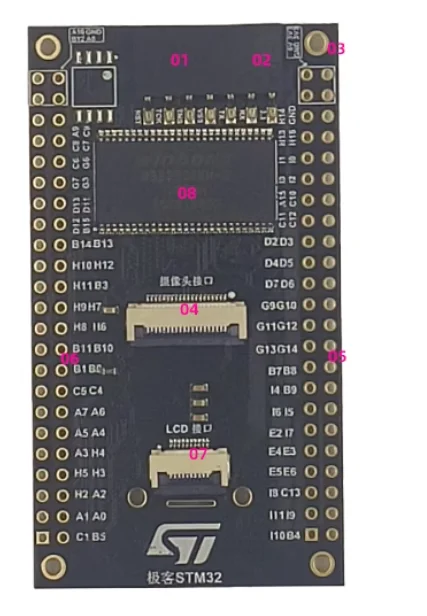

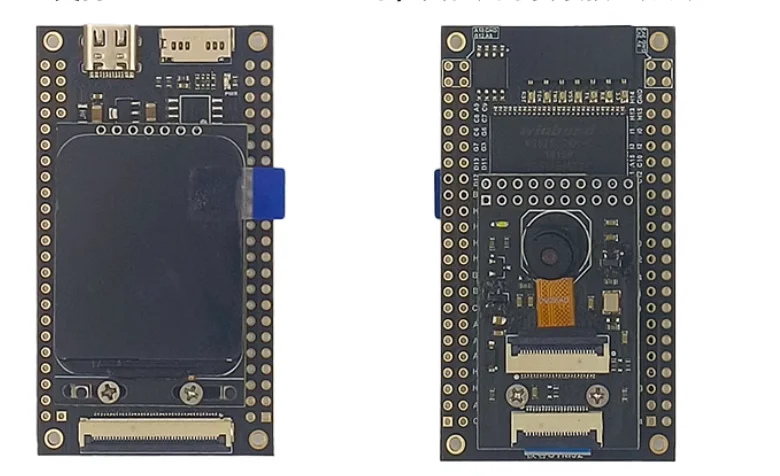

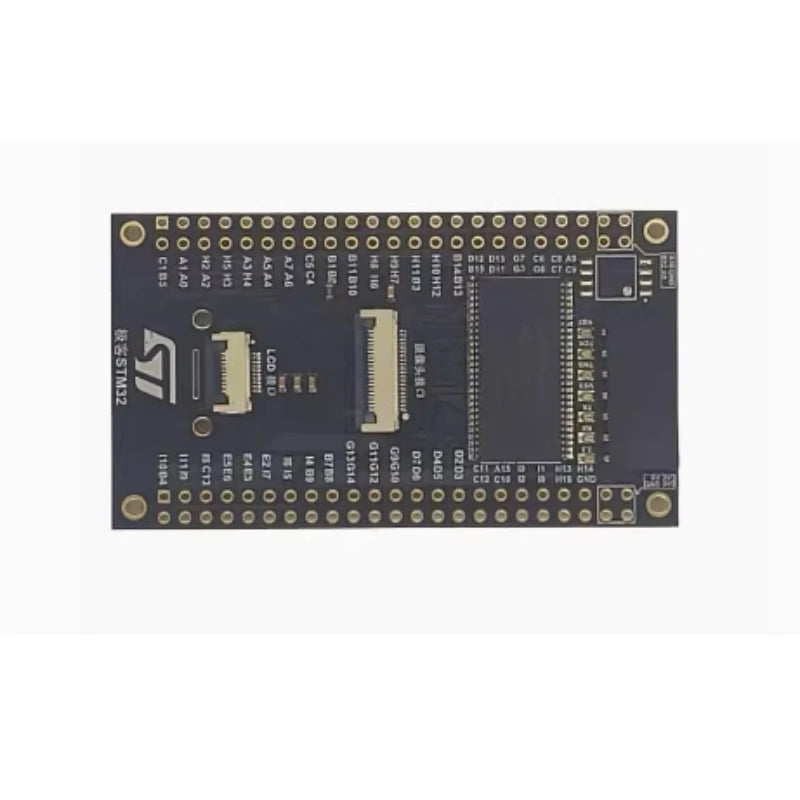

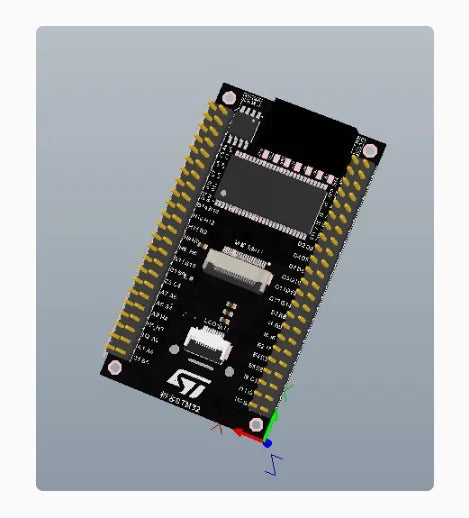

01. STLINK SWD download port
02. Serial communication port
03. 2mm screw hole
04. Camera interface
05. Pin set 46P2.54mm welding
06. Pin set 46p2.54mm welding
07. 0.96-2.0 LCD interface
08. 32M SDRAM
Introduction to Core Board Resources
Main frequency: 480MHz, QSPIflash: W25Q64
2MFlash SRAM 1M inside the chip

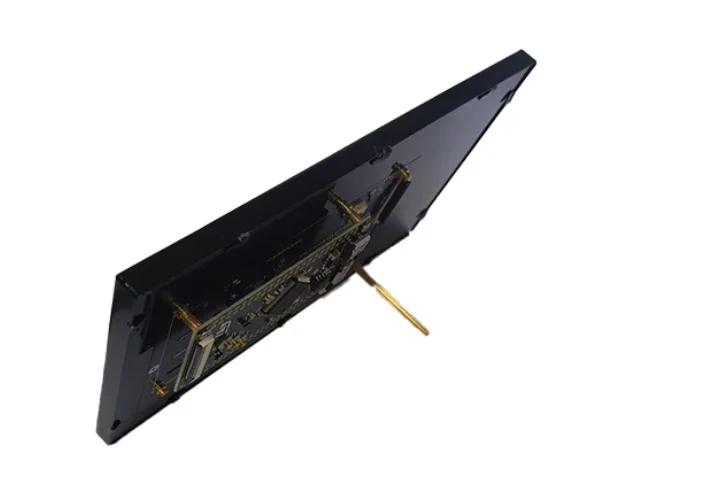

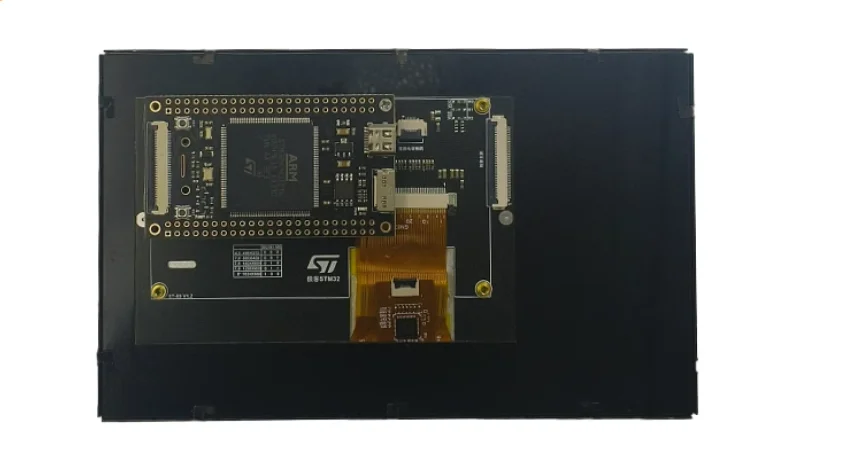

LCD interface FPC40P supports 4.3-10.1 inches and touch screen
86 pins with 10 ports are led out, with a pin spacing of 2.54mm
TYPCE mainstream USB port, camera interface. 0.96-2.0 LCD interface
1 programmable LED, 1 power indicator light, 2PCS buttons
Output the SWD download port and serial port through the mother bus

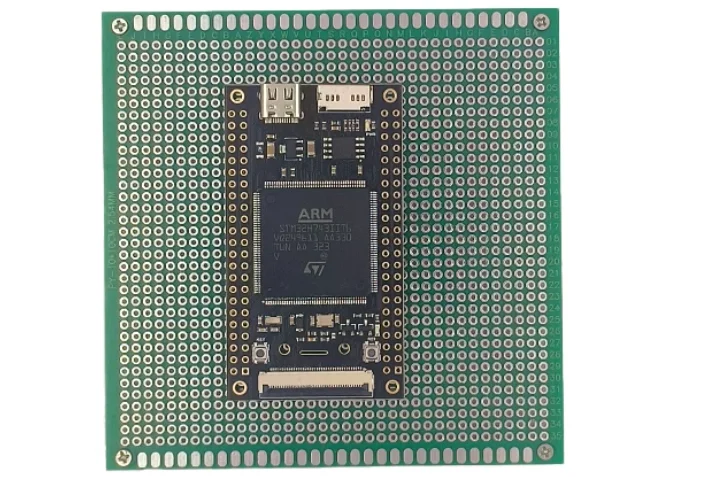

Development of pin compatible universal board with a spacing of 2.54mm

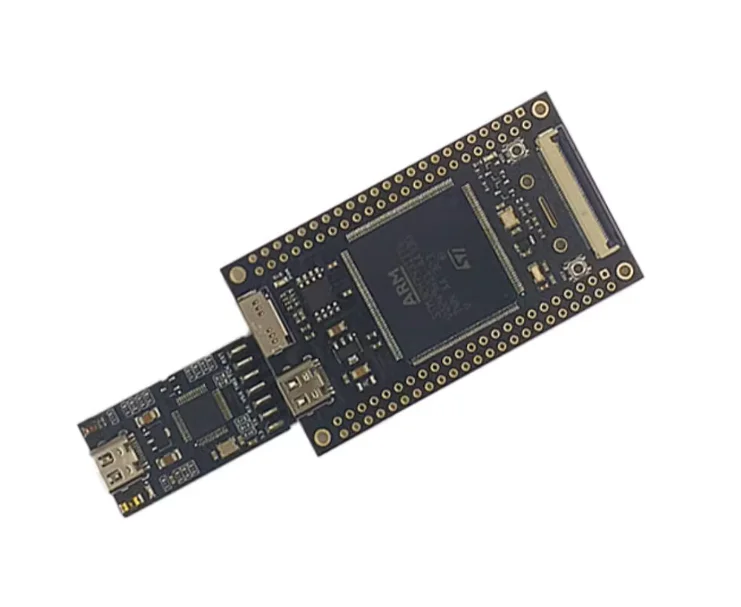

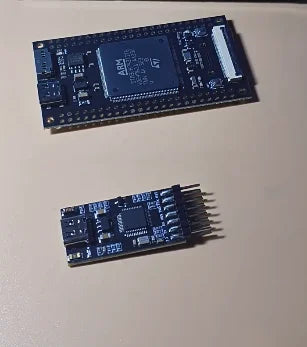

Features: Download port supports docking with downloaders, eliminating the need for cables
On board SDRAM 32M chip
Onboard SD card socket interface, supports up to 32GB, supports USB read/write
H743II core board
Key introduction
Main frequency: 480MHz, flash: 2M, internal SRAM up to 1M bytes, capable of driving 800 * 480/1024 * 600 screens with 16 bit colors, fully meeting the needs of image display GUI developers supporting emWIM GUI development. 800 * 480 refresh rate DMA+MJPEG can reach 60fps. STM32H7 has powerful performance and can use JPEG hardware decoding methods. With hardware acceleration such as MDMA and DMA2D, it is easy to run 30pfs on RGB565 and 800 * 480. According to actual testing, as long as the program is optimized, stable 60fps can be achieved. 8MB W25064 chip, programs can be run from flash
