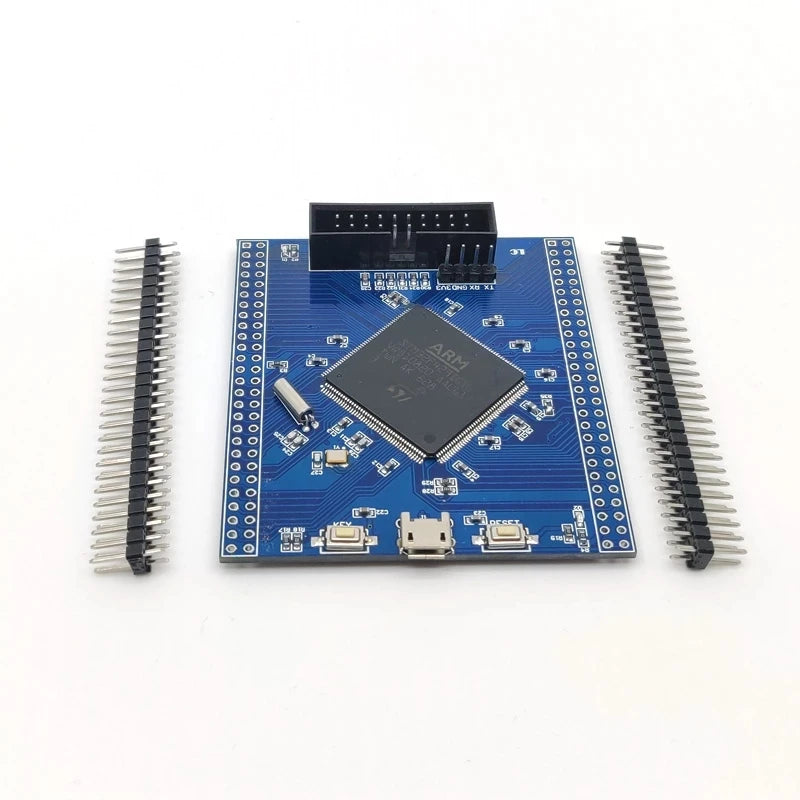

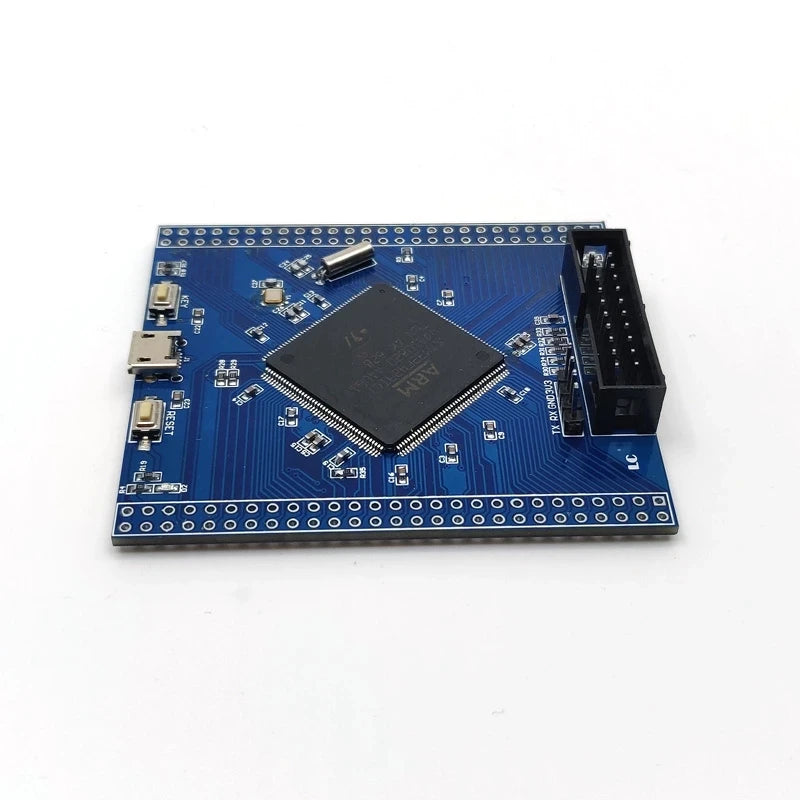

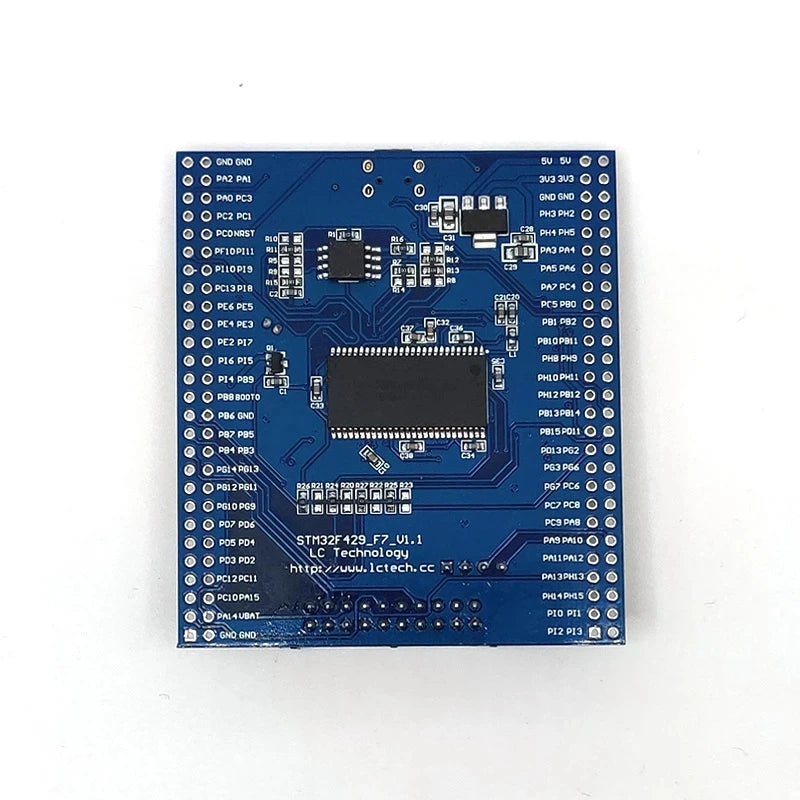

STM32F429IGT6 Development board Cortex-M4 core board
SKU :LC-STM32-F429 STM32F429 is cortex-m4 development board designed for high-performance STM32F4 series.STM32F429IGT6 serials is latest high quality MCU of Cortex-M4F inner core launched by ST company .Based on structure of RISC ,working frequency 180MHZ,and with Single-precision floating point arithmetic unit.It also has total set of operation instruction and memory protection unit. Functions : 1,On board chip:STM32F429IGT6 Inner core :Cortex-M4 32-bit RISC; Feature:Single cycle DSP instruction; Working frequency:180MHz,225 DMIPS/1.25 DMIPS/MHz; working pressure :1.8V-3.6V; Package:LQFP176; Storage:1024kB Flash,256+4kB SRAM; Interface :6 x SPI,4 x USART,4 x UART,2 x I2S,1 x SAI,3 x I2C; 1 x FMC,1 x SDIO,2 x CAN; 1 x LCD-TFT; 1 x USB 2.0 FS/HS controller(with special DMA); 1 x USB HS ULPI(external connection for USB HS PHY); 1 x 10/100 Ethernet MAC; 1 x 8 to 14-bit camera connector ; 3 x AD(12bit ,1us,Time-sharing 24 road),2 x DA(12bit); 2,data access FLASH:W25Q128/16MB 3,button:one reset button ,one functional button 4,LED:one power supply indicator,one configurable LED indicator 5,Basic mcu circuit ,including 25MHz,32.768 KHz Crystal resonance circuit,USB Power Management Circuits,USB port and so on 6,SDRAM: IS42S16400J-7TLI/8MB 7,In addition to GPIO occupied by SDRAM and SPI FLASH, all the other external pins of I/O are extracted in the form of 2.54mm pin, and the various resources of the chip can be used at will. 8,with JTAG/SWD Debug download interface 9,Four - layer board process, more stable performance. 1.interface instruction : J6:USB connector ; P2:JTAG/SWD debug interface ; USART1 serial port :3V3:positive of working voltage ; GND:negative of working voltage ; TX:sender PIN of module serial port (that is PA9); RX:receiver PIN of module serial port (that is PA10);
if you need more information please feel free to contact us ,
